Power Required	90-120 Hp	Rotor Diameter	5.5 in
Working Width	86 in	Rotor Thickness	0.5 in
Overall Width	101 in	Rear Roller Diameter	6 in
Blade Ground Clearance (Four Gears)	0.2-0.9-1.7-2.4 in	Rear Roller Thickness	0.25 in
Max. Cutting Diameter	Depends On The Type Of Grass	PTO Shaft Speed	540 rpm
Offset Distance from The Center (Maximum)	130 in	Deck Thickness	2 in

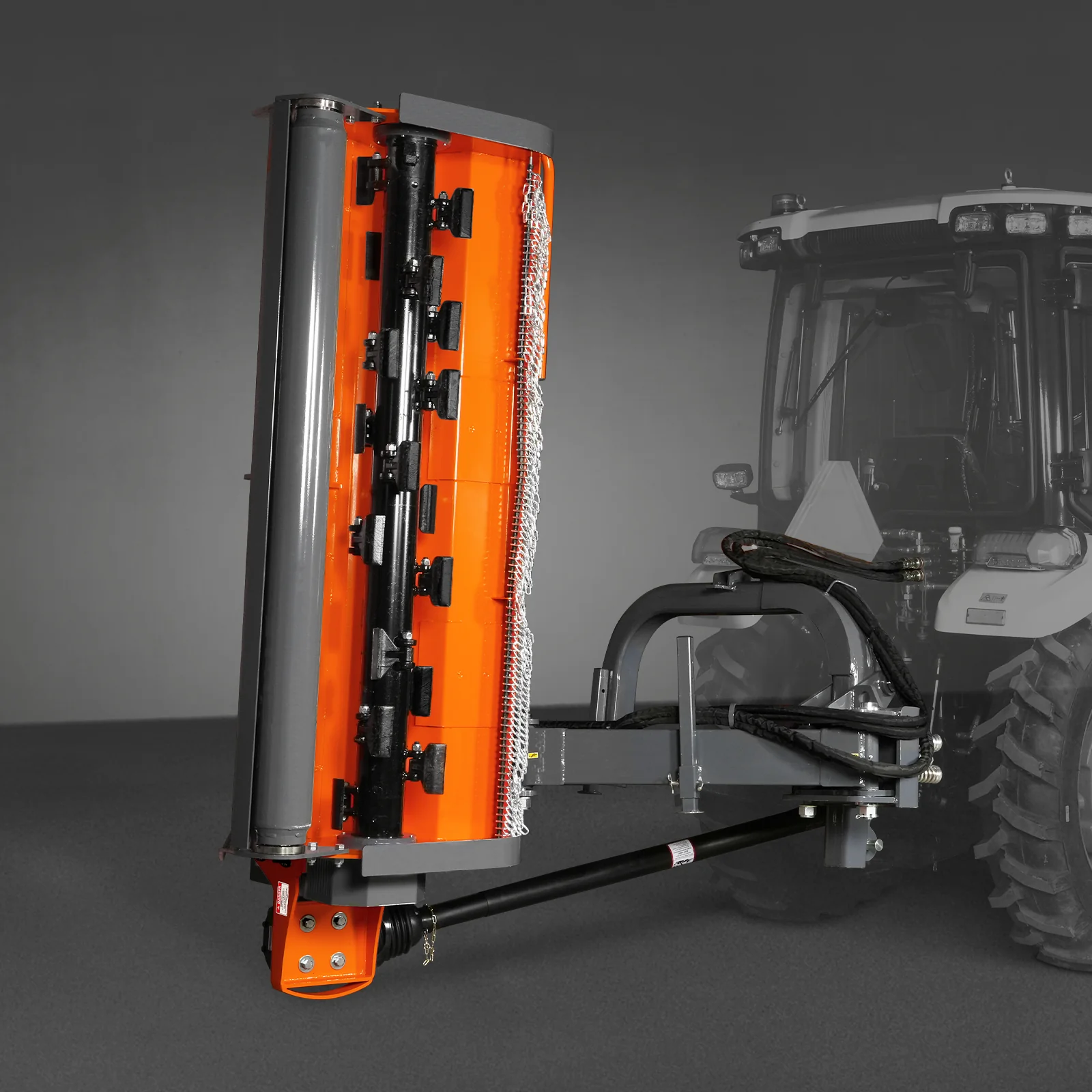

Tilt-Up Angle	90°	Side Plate Thickness	0.25 in

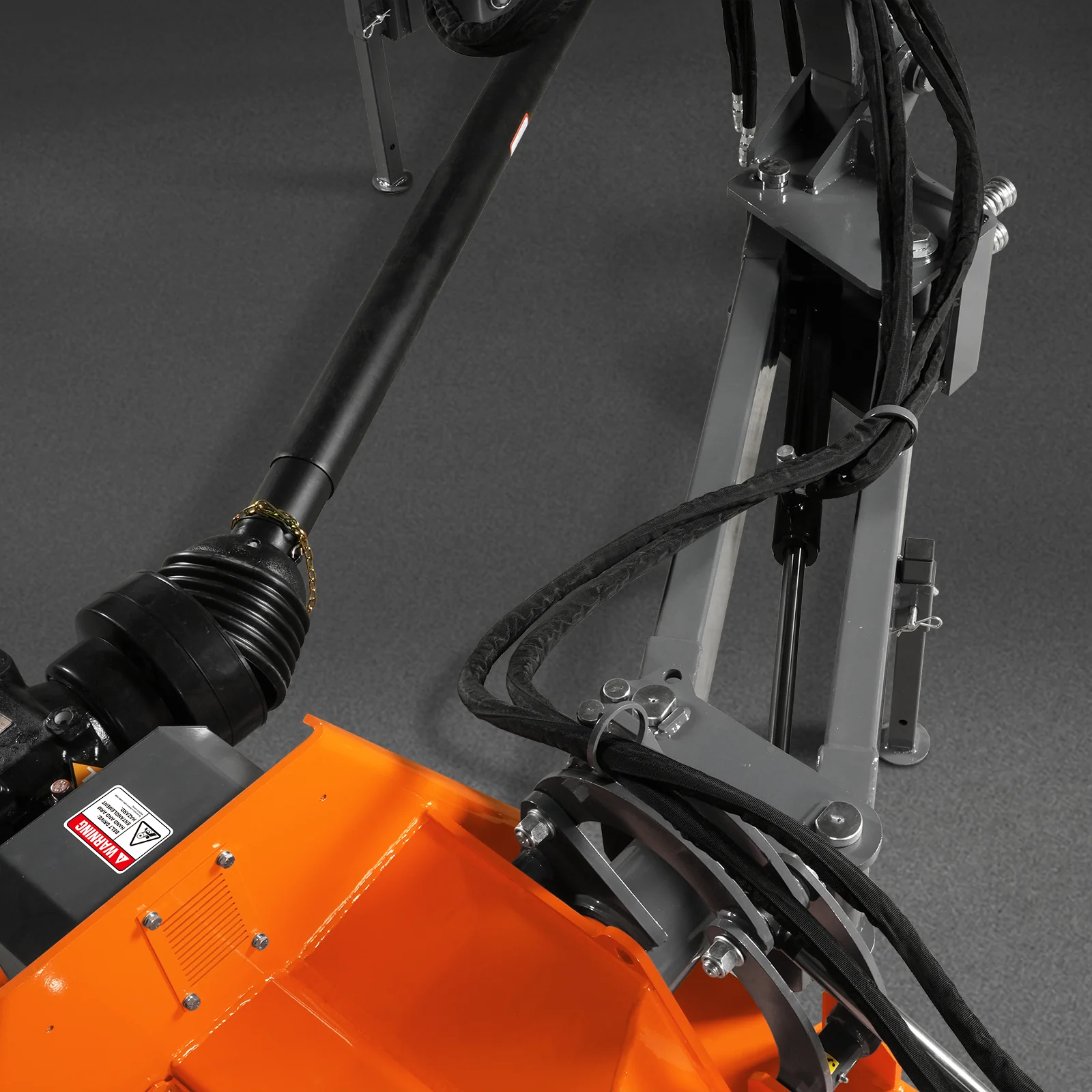

Tilt-Down Angle	55°	Driveline Shaft Length	T6-LF-73  With Shear Bolt ; 73in-126in

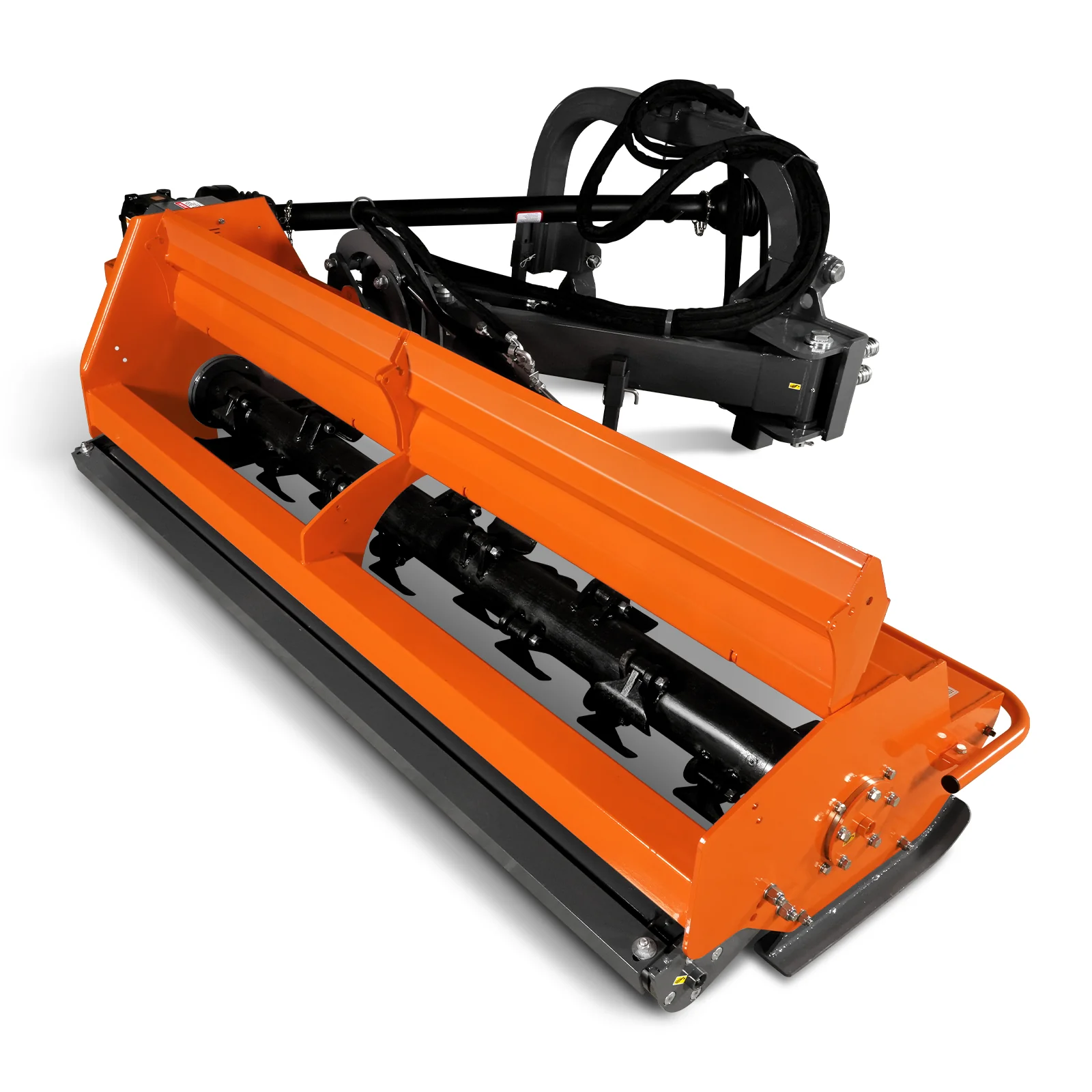

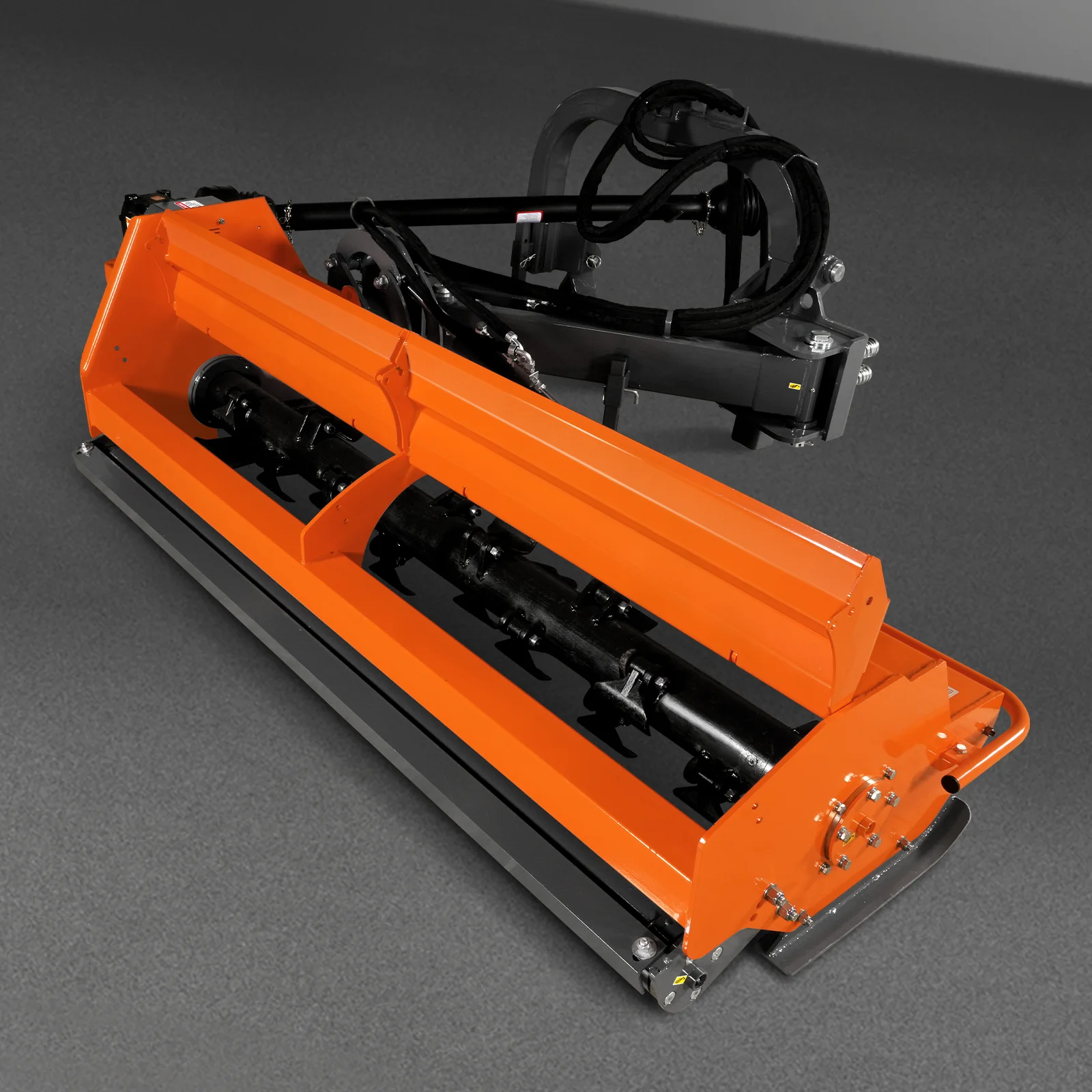

Number Of Blades	20	Spline End	1.375in  Z6
Number of Belts	4	3-Point Hitch	CAT 2

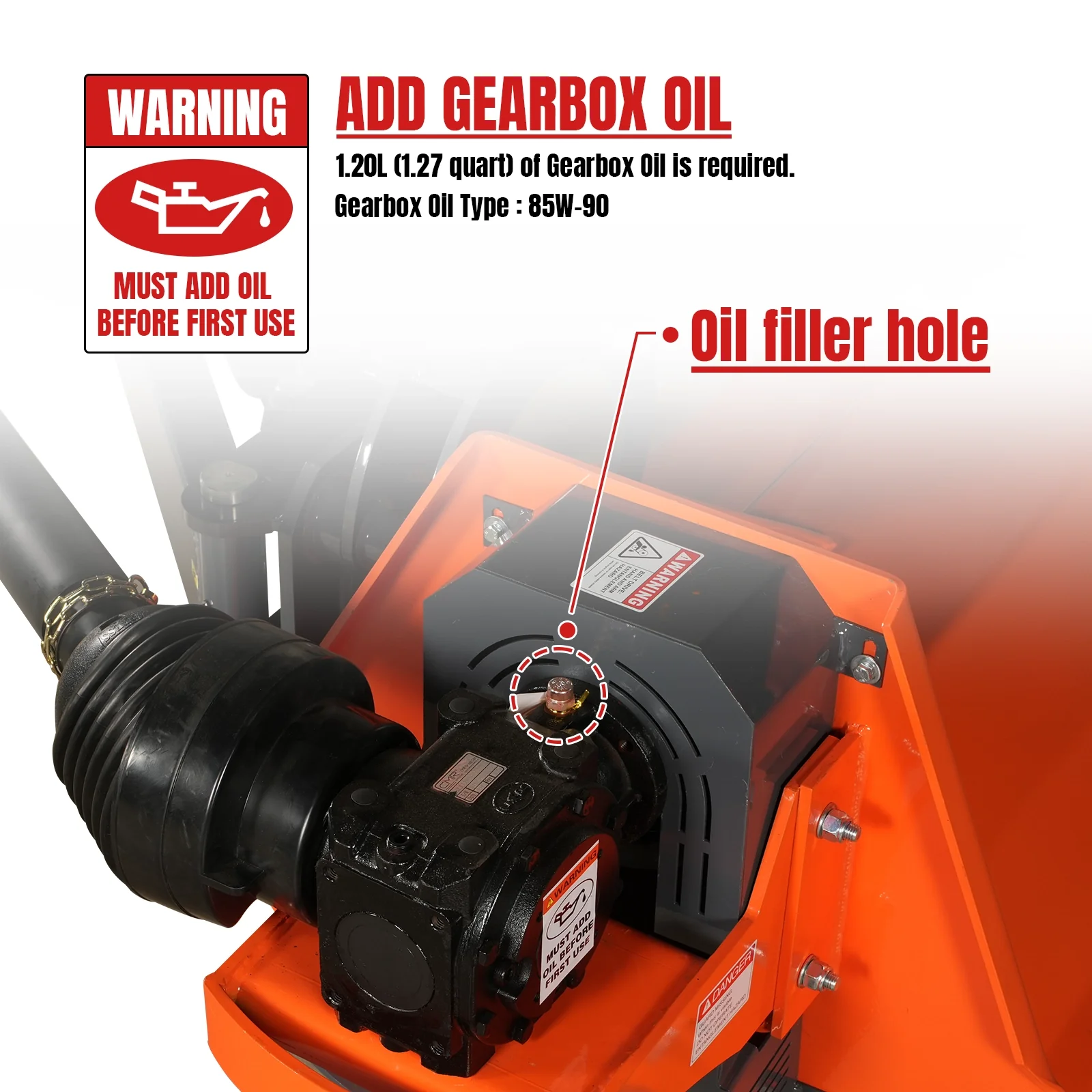

Blade Type	Hammer	Gearbox 0il Type	85W-90
Blade Weight	2.6 lbs	Finish	Powder Coating
Blade Material	Cast Steel	Warranty	1 Year
Belt Adjustment	Bolt Tightening	Shipping Box	109 X 41 X 31in
Working Efficiency450 cu.ft./Hr.	450 cu.ft./Hr.	Weight (N.W./G.W.)	1910 /2121 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
