Engine Power Required	30-60HP	Number Of Belts	4
Working Width	68in	Belt Size	V Belt 17 X 991
Hydraulic Side Shift	8in (Left Or Right)	Drive Belt Tensioner	Yes
Overall Width	74in	Deck Thickness	0.16in
Blade Ground Clearance	0.6in-2in	Side Plate Thickness	0.25in
Max. Cutting Diameter	Depends On The Type Of Grass	PTO Shaft RPM	540 RPM
Number Of Blades	28	Driveline Shaft Length	T6-LF-39" with shear bolt ;39"-49"
Blade Type	Hammer	Spline End	1 3/8" Z6

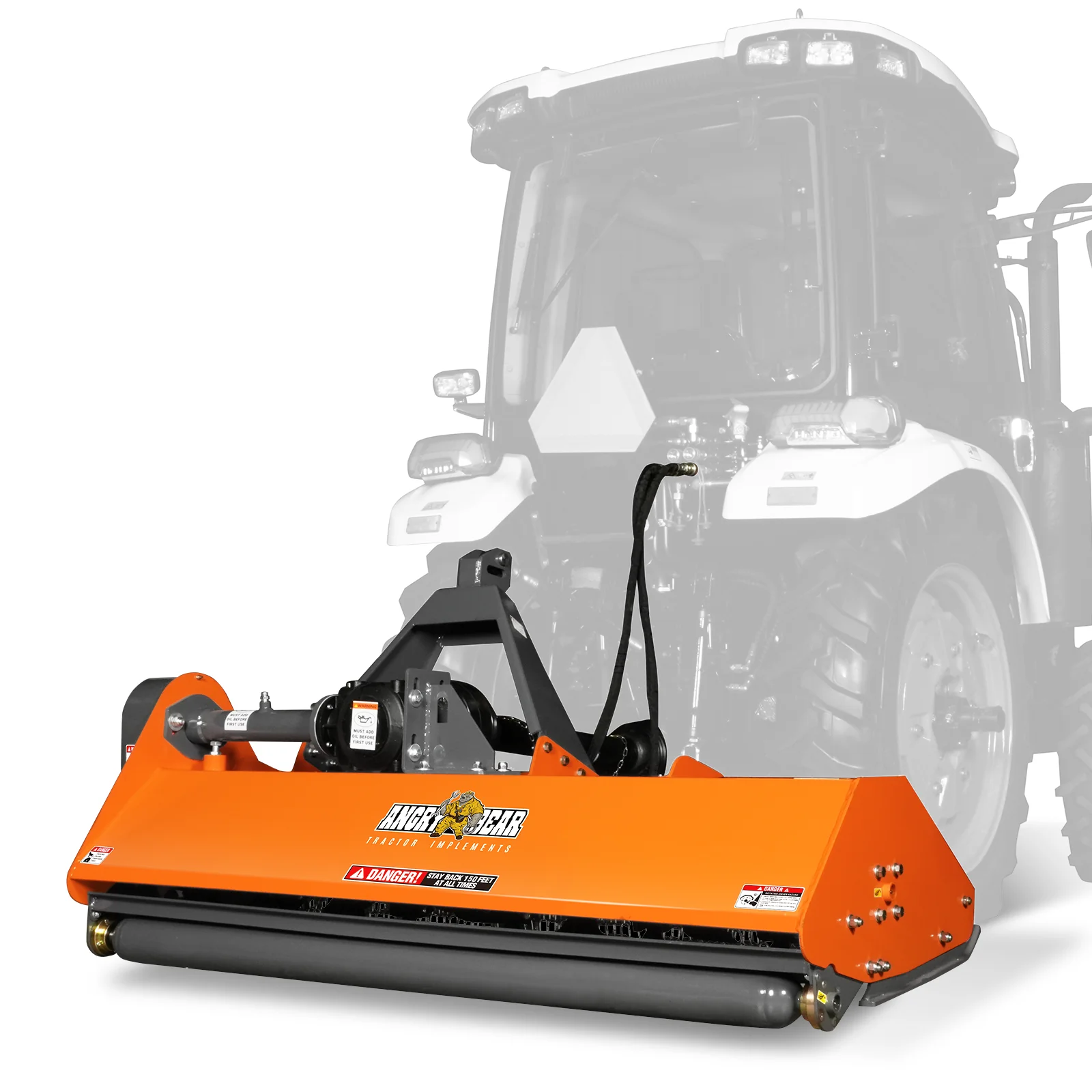

Blade Weight	1.8lbs	3-Point Hitch	CAT 1

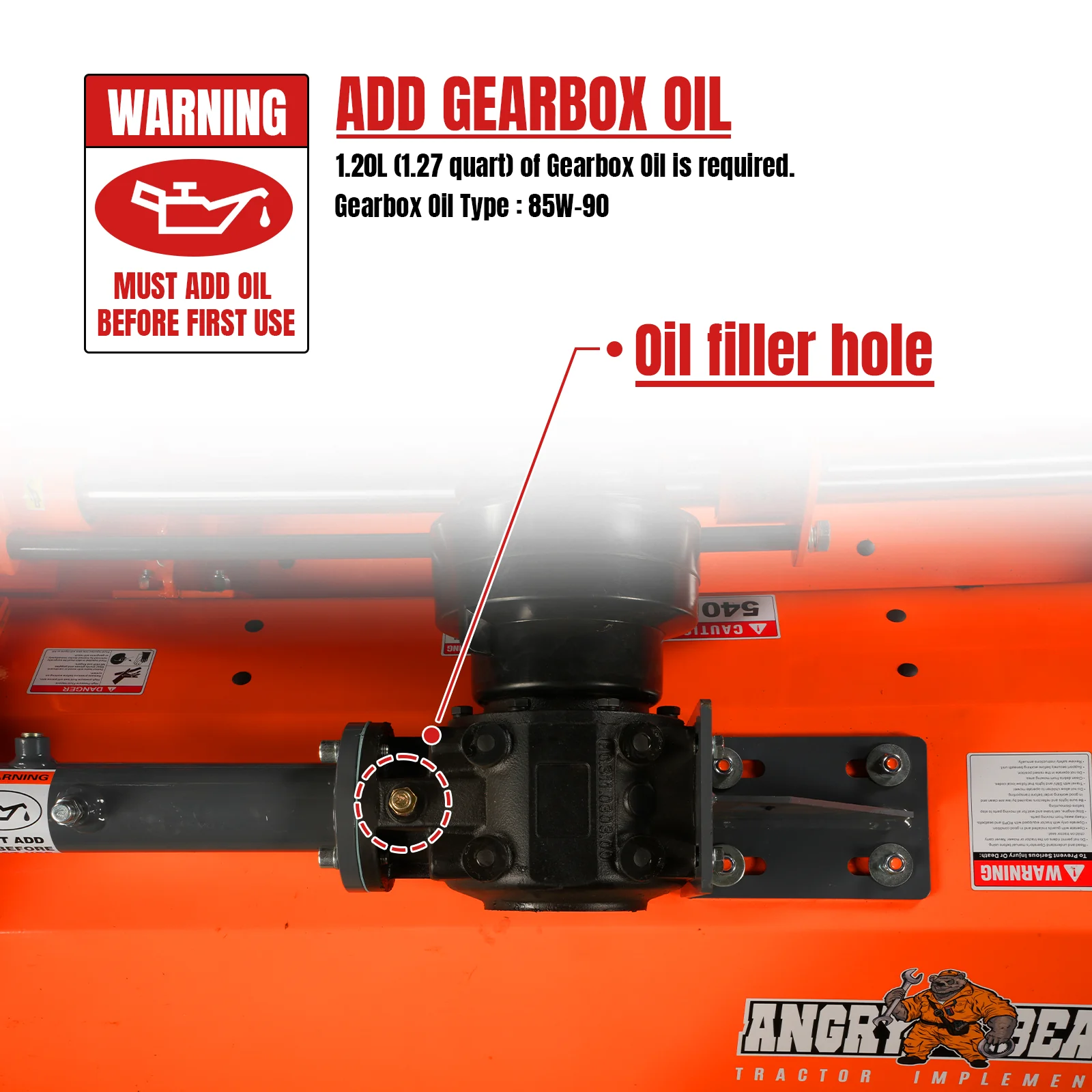

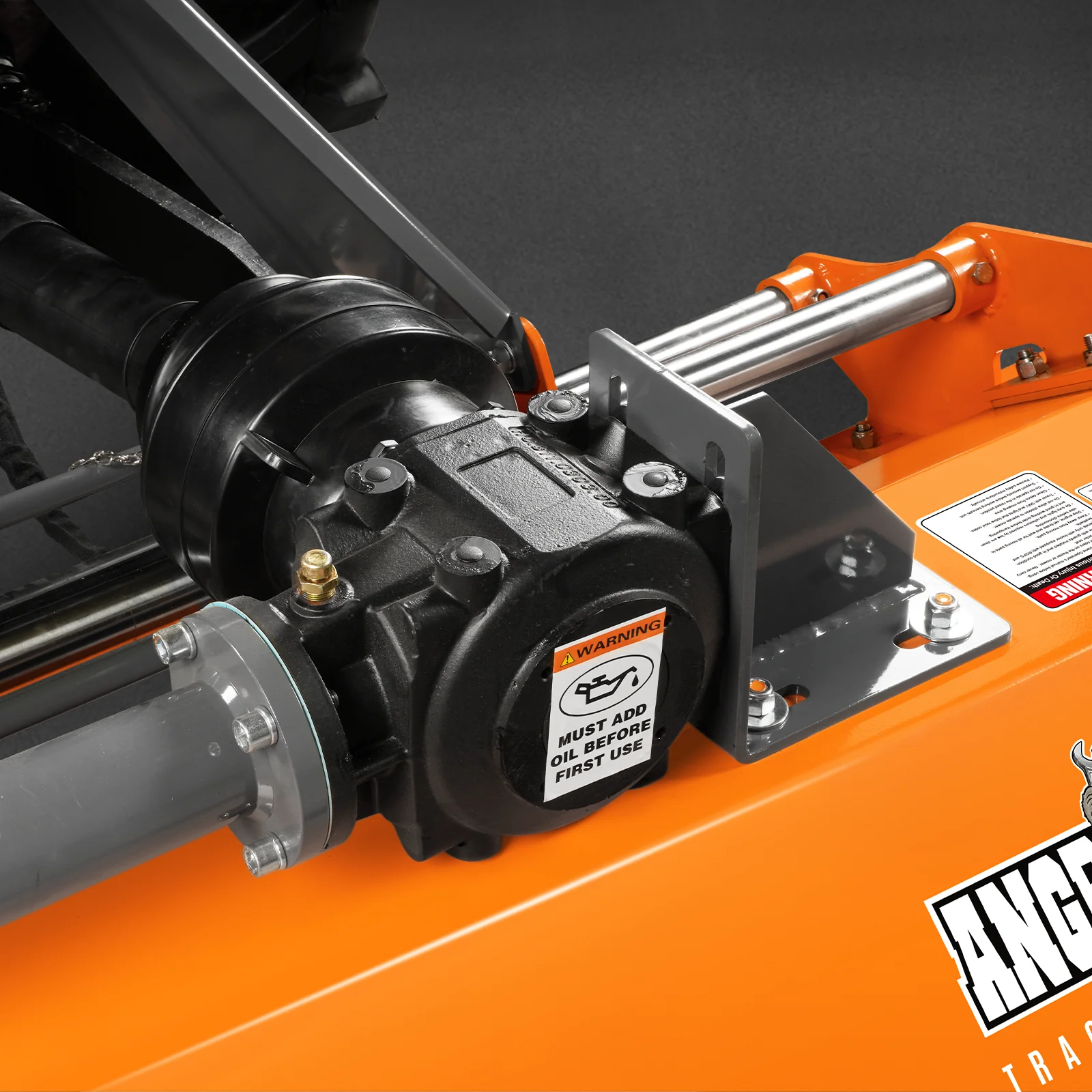

Blade （Tines）Material	Cast Steel	Gearbox Oil Type	85W-90
Rotor Bearing	SKF bearing	Dimensions (L x W x H)	78 x 34 x 26in
Roller Diameter	4in	Finsh	Powder Coat Paint  Galvanized Steel
Rotor Diameter	5in	Warranty	1 year
Rotor Swing Diameter	14in	Weight (N.W./G.W.)	732/820 lbs
Drive Type	Belt drive

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
