Engine Power Required	15-35HP	Blade Speed	142 ft/s
Working Width	48in	Drive Type	Belt drive
Overall Width	56in	Number Of Belts	3
Blade Ground Clearance	0.6in-1.8in	Belt Size	V Belt 13X1041
Max. Cutting Diameter	Depends On The Type Of Grass	Drive Belt Tensioner	yes

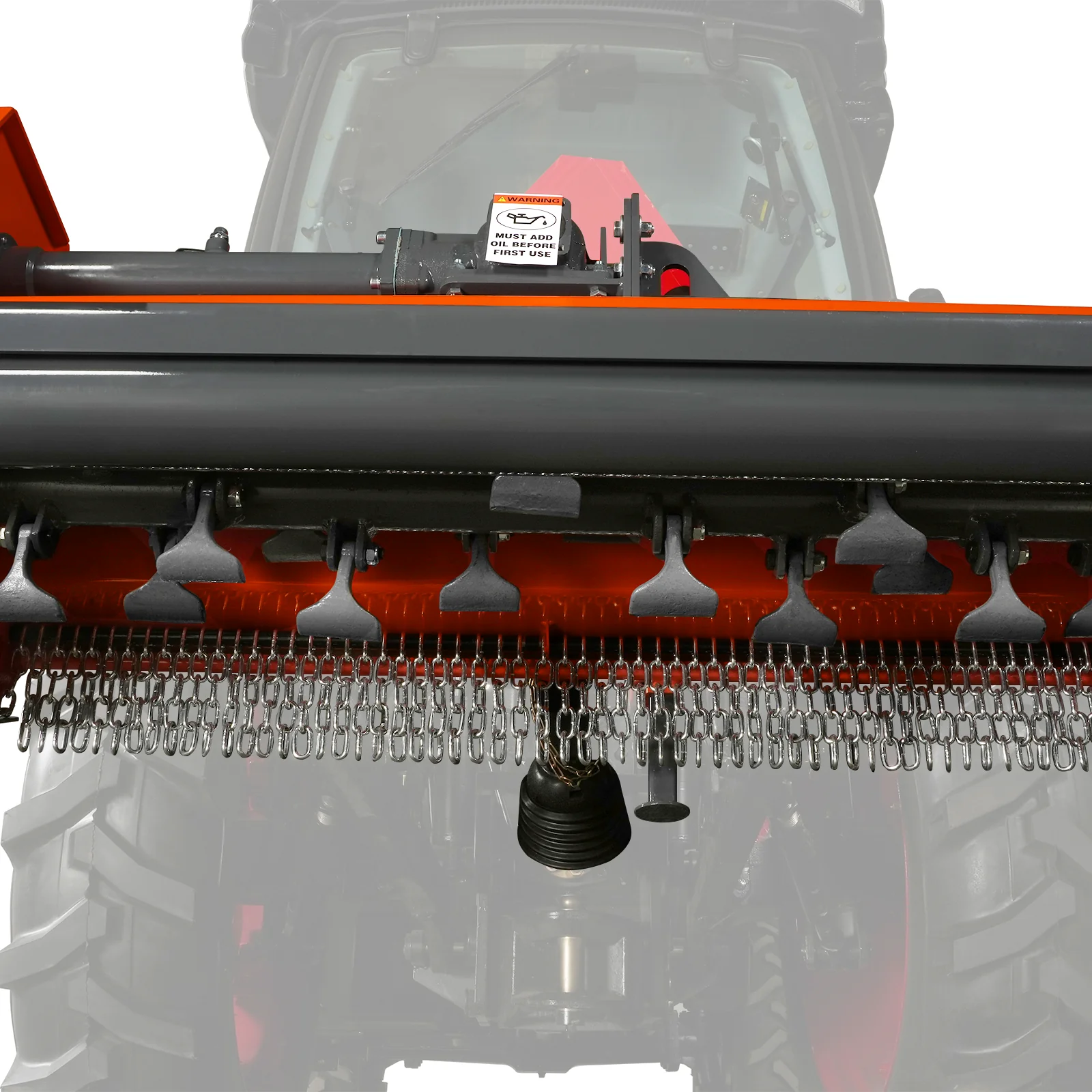

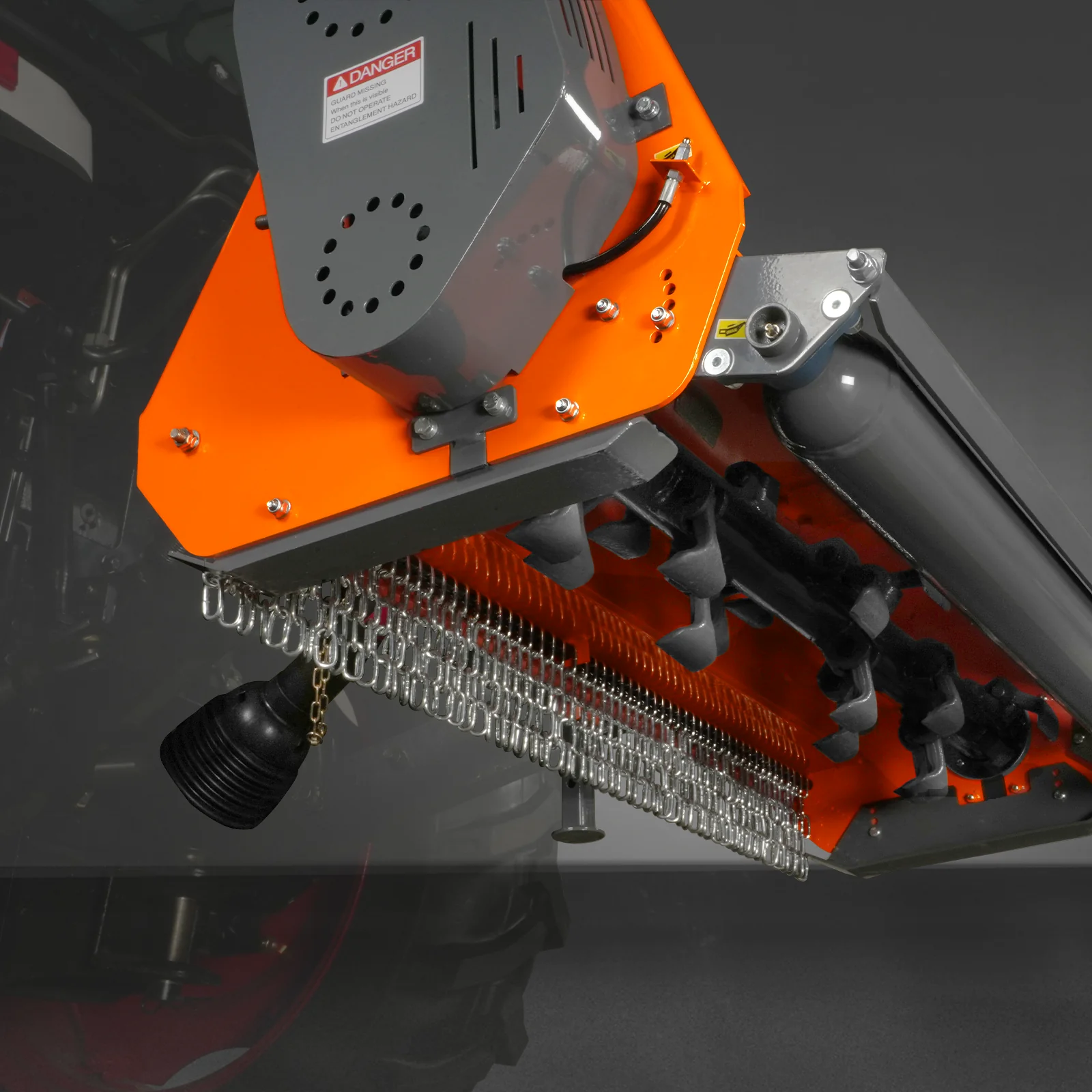

Number Of Blades	20	Deck Material	0.16in
Blade Type	Hammer	Side Plate Material	0.24in
Size Of Blades	3.5 X 3 X 1.6in	PTO Shaft RPM	540 RPM
Blade Weight	0.8lbs	Driveline Shaft Length	T5-LF-31 with shear bolt ；31in- 43in
Blade （Tines）Material	Cast Steel	Spline End	1.375in   z6

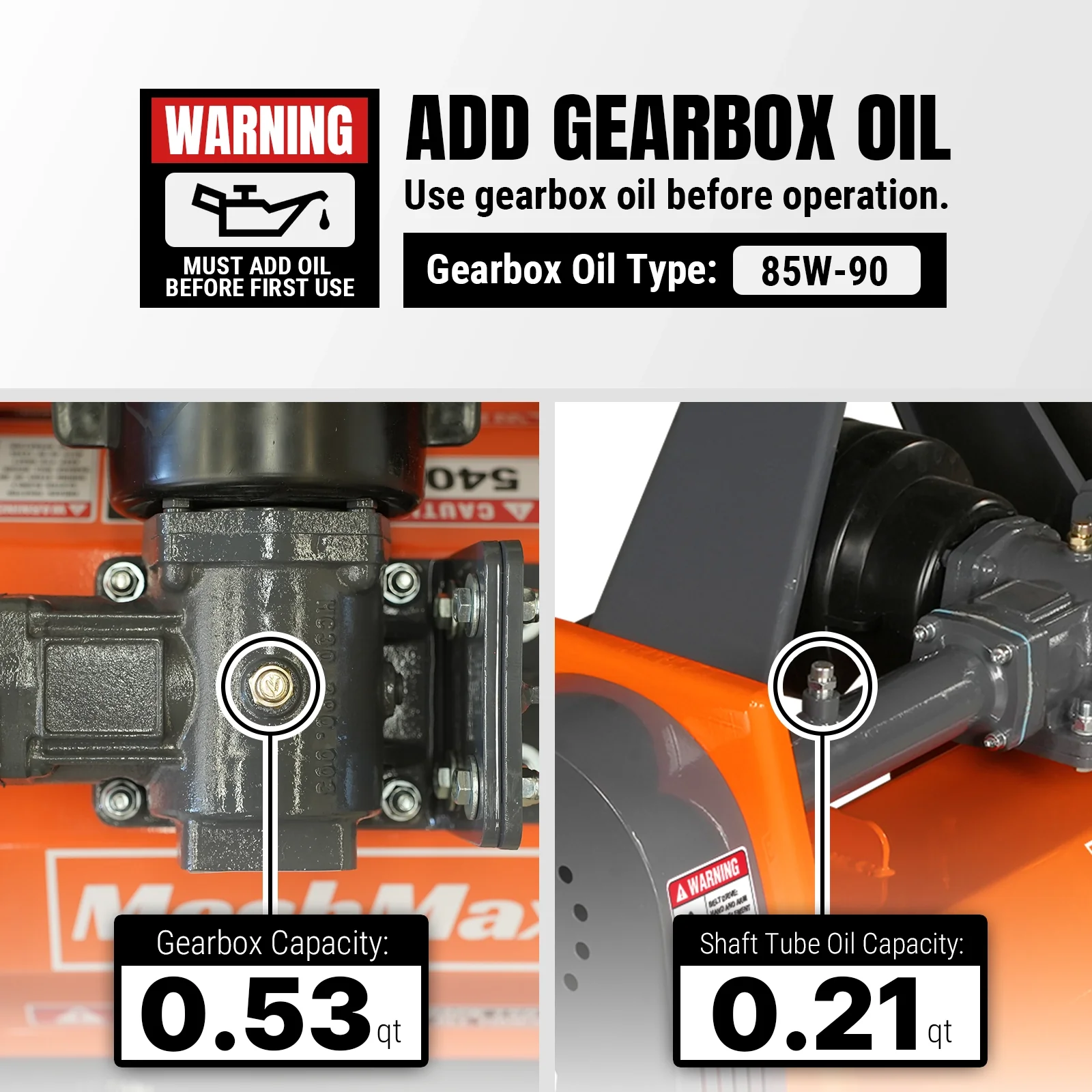

Rotor Bearing	SKF bearing	Gearbox Oil Type	85W-90
Rotor Diameter	3in	Dimensions (L x W x H)	57 X 30 X 28in
Rotor Swing Diameter	11in	Finish	Powder Coating
Rotor Thickness	0.3in	Warranty	1 year
Rotor Shaft Speed	2958 rpm	Weight (N.W./G.W.)	379/470 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
