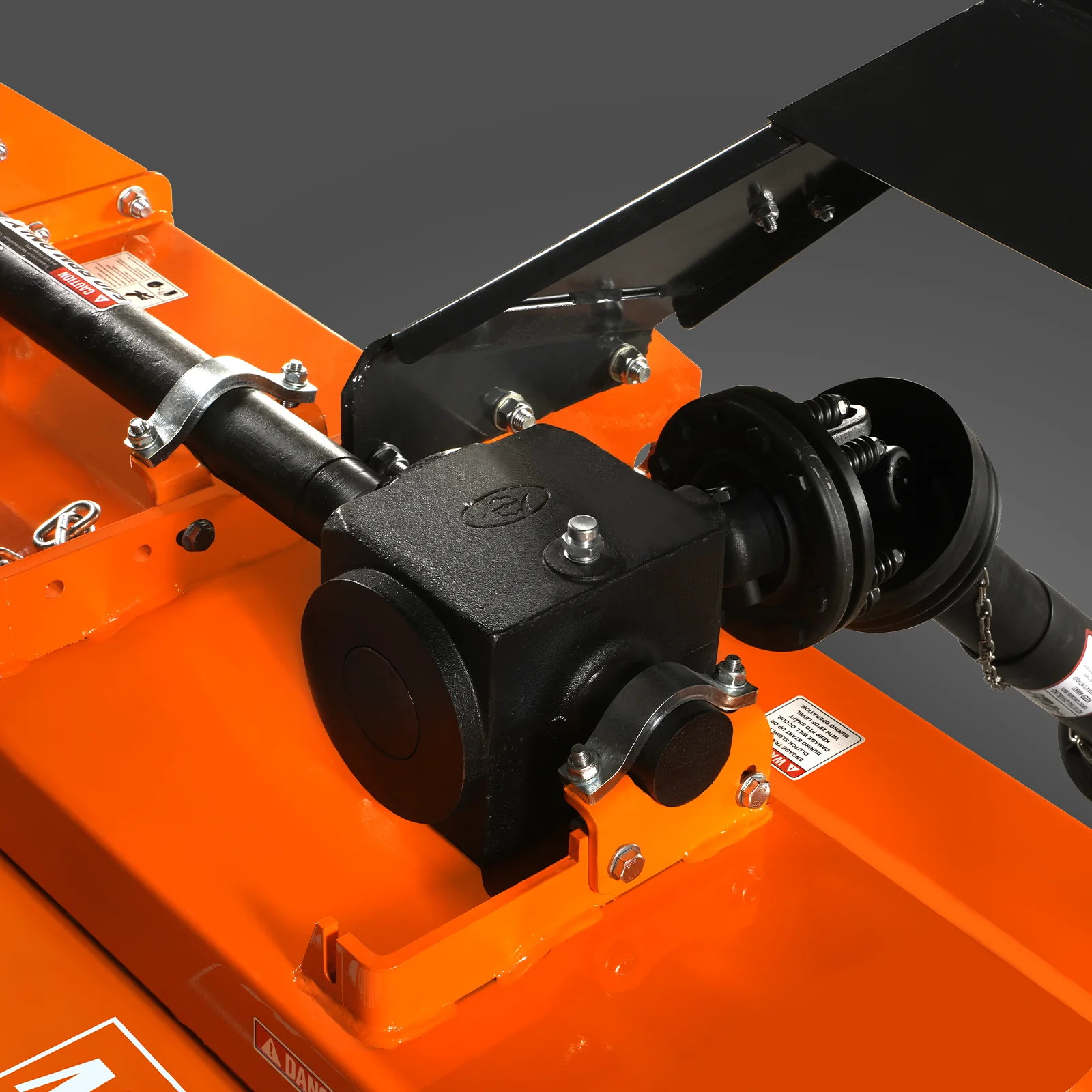

Power Required	30-60HP	Main Gearbox	ASAE 1- 3/8 in – 6 spline shaft, proven cast iron, oil bath gearbox; ratio is 1.69:1
Working Width	72 in	Drive Gear Ratio	1:52:1

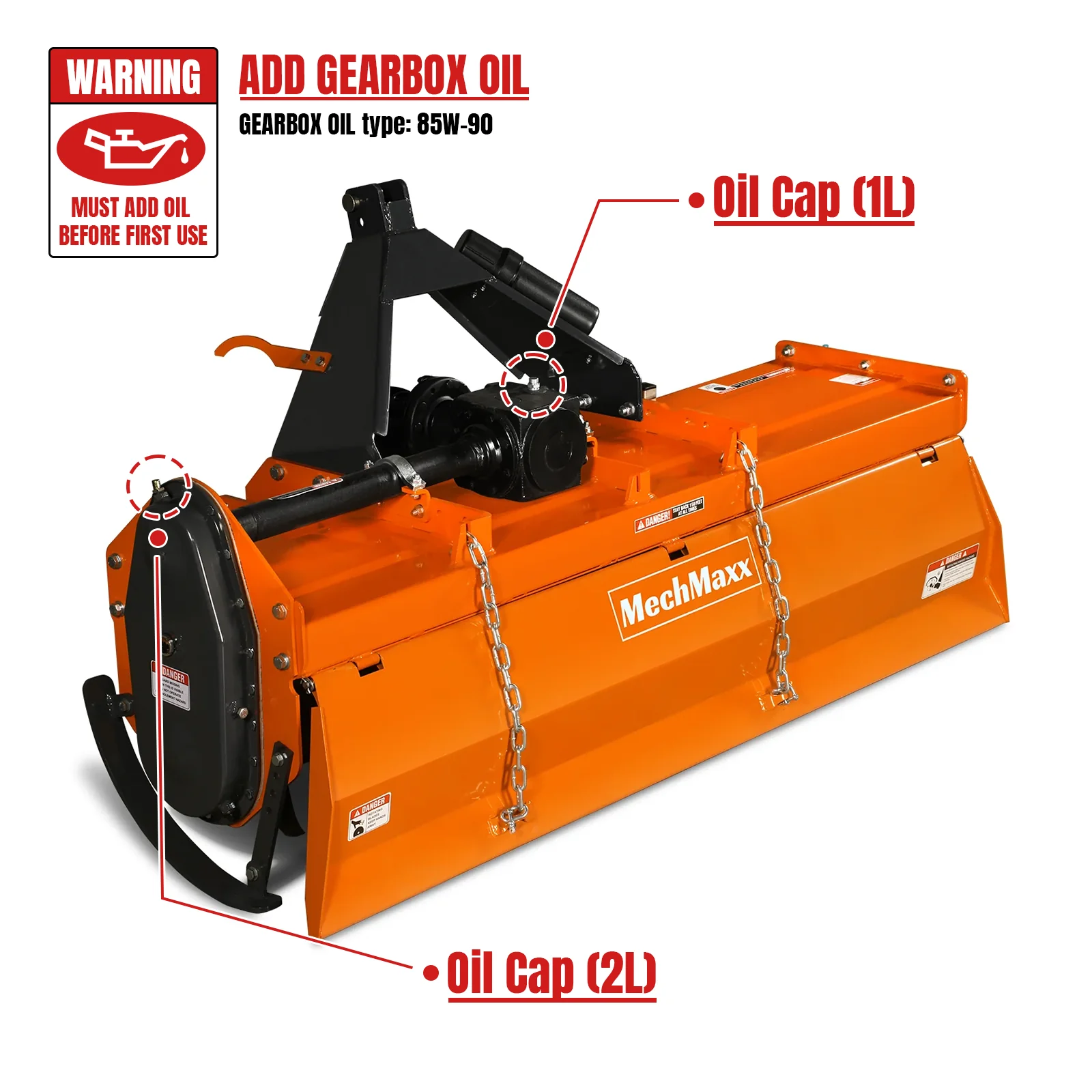

Overall Width	78 in	Gearbox Oil Type	SAE 85W-90
Working Depth	1 in, 2.1 in, 3.1 in, 5.1 in	Deck Thickness	0.16 in
Number Of Flanges	8	Side Plate Thickness	0.31 in
Number Of Blades	42	PTO Shaft RPM	540 RPM

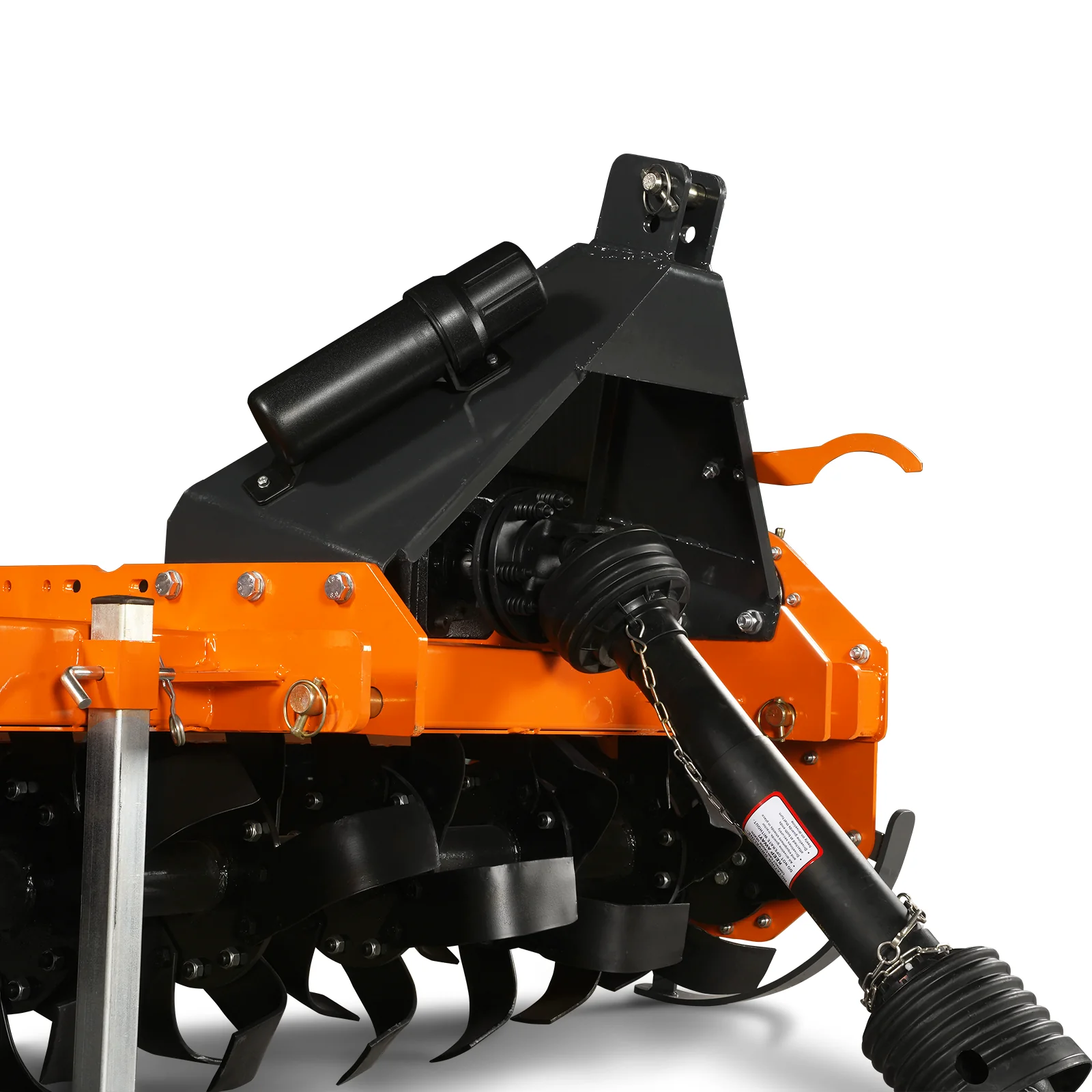

Blade Type	C Type	PTO Shaft	T4-31 in 8 Bolt non-removable slip clutch
Blade Material	60SI2MN	Spline End	1.375 in X Z6
Rotor Bearing	NSK bearing	3-Point Hitch	CAT 2

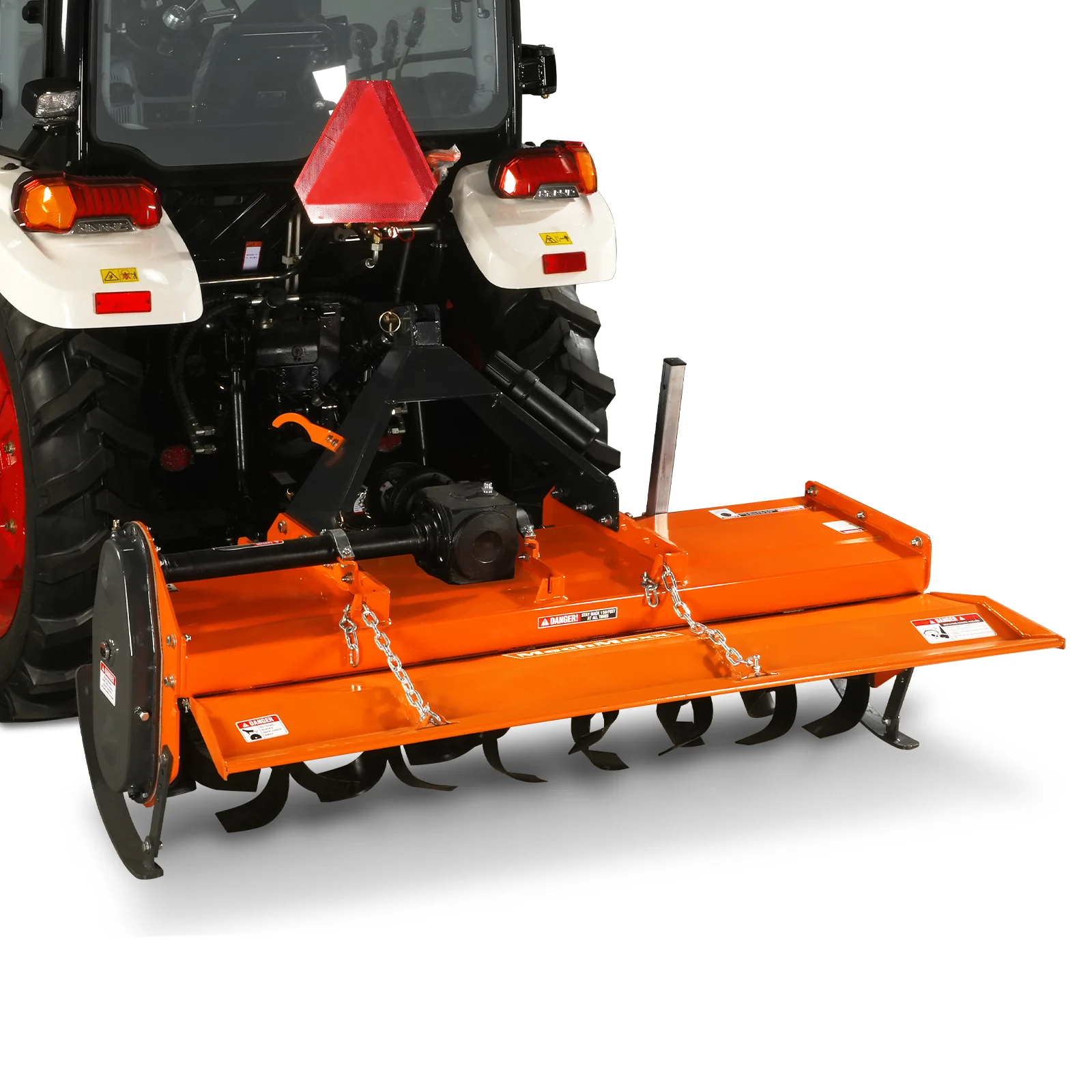

Rotor Diameter	3 in	Deflector	Rear Hinged
Rotor Swing Diameter	19.5 in	Finish	Powder Coating
Rotor Thickness	0.3 in	Dimensions (Lx W x H)	78 X 31.5 X 30.7 in
Rotor Shaft Speed	215 RPM	Warranty	1 year
Rotor Rotation	Forward	Net Weight	785 lbs
Drive Type	Gear Drive	Gross Weight	860 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
