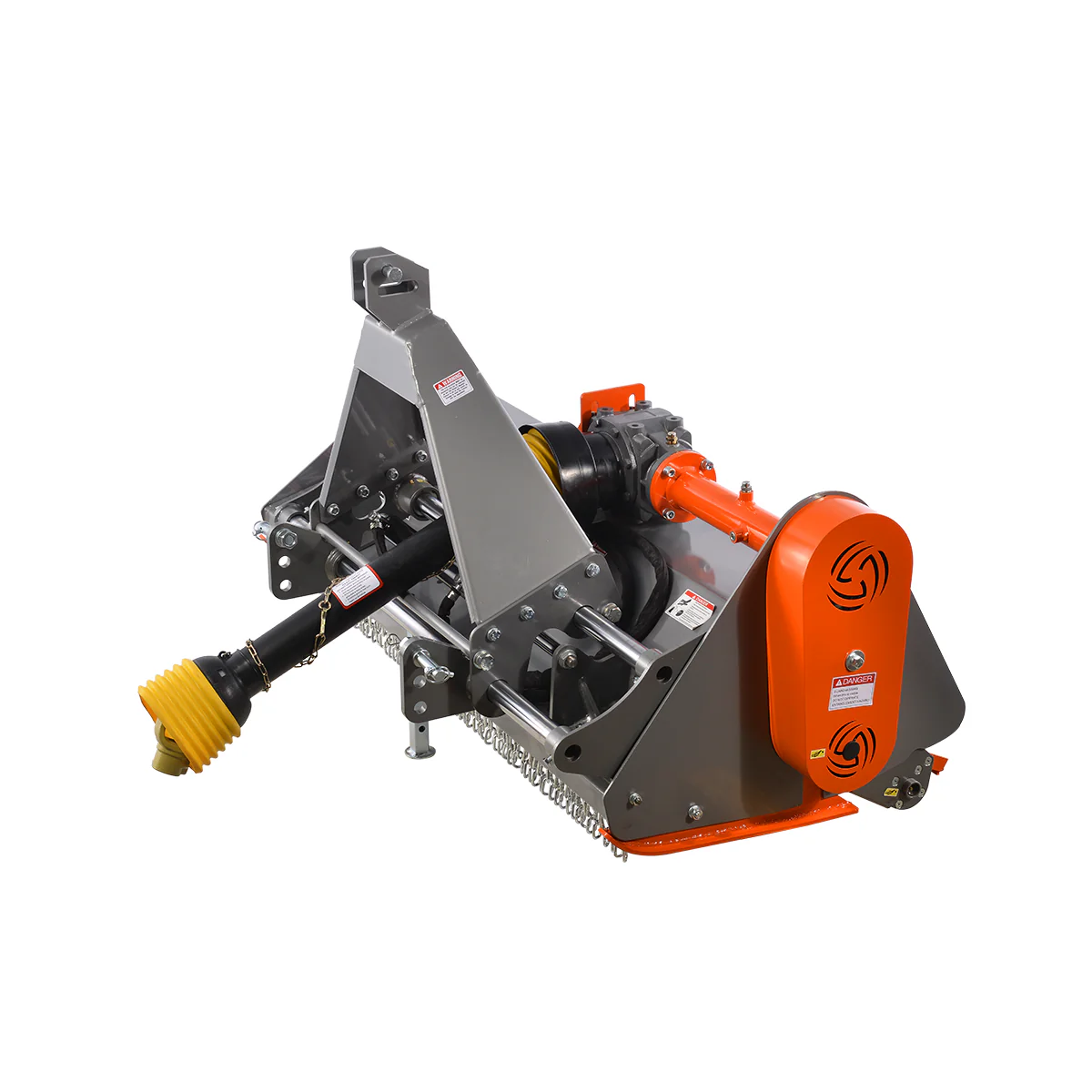

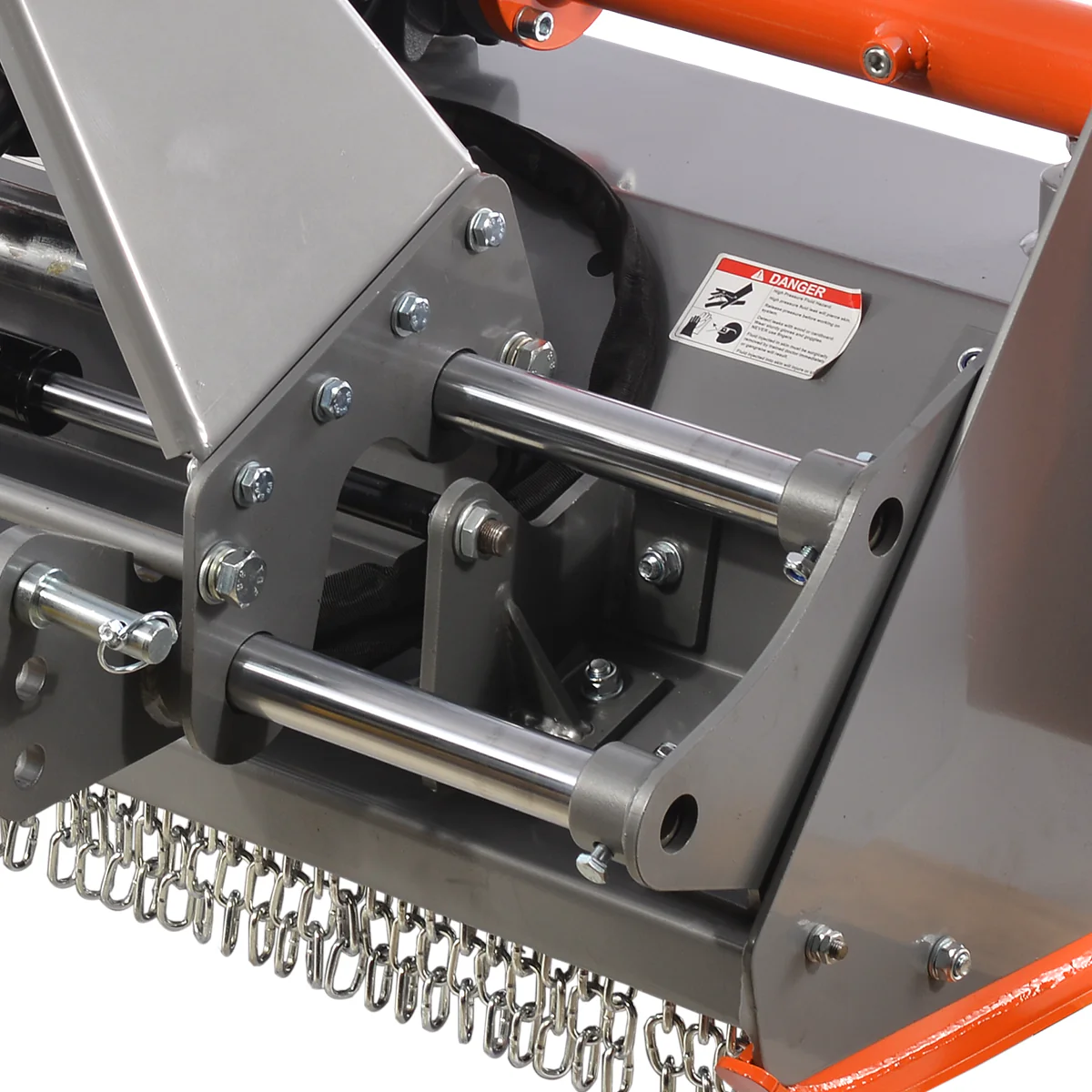

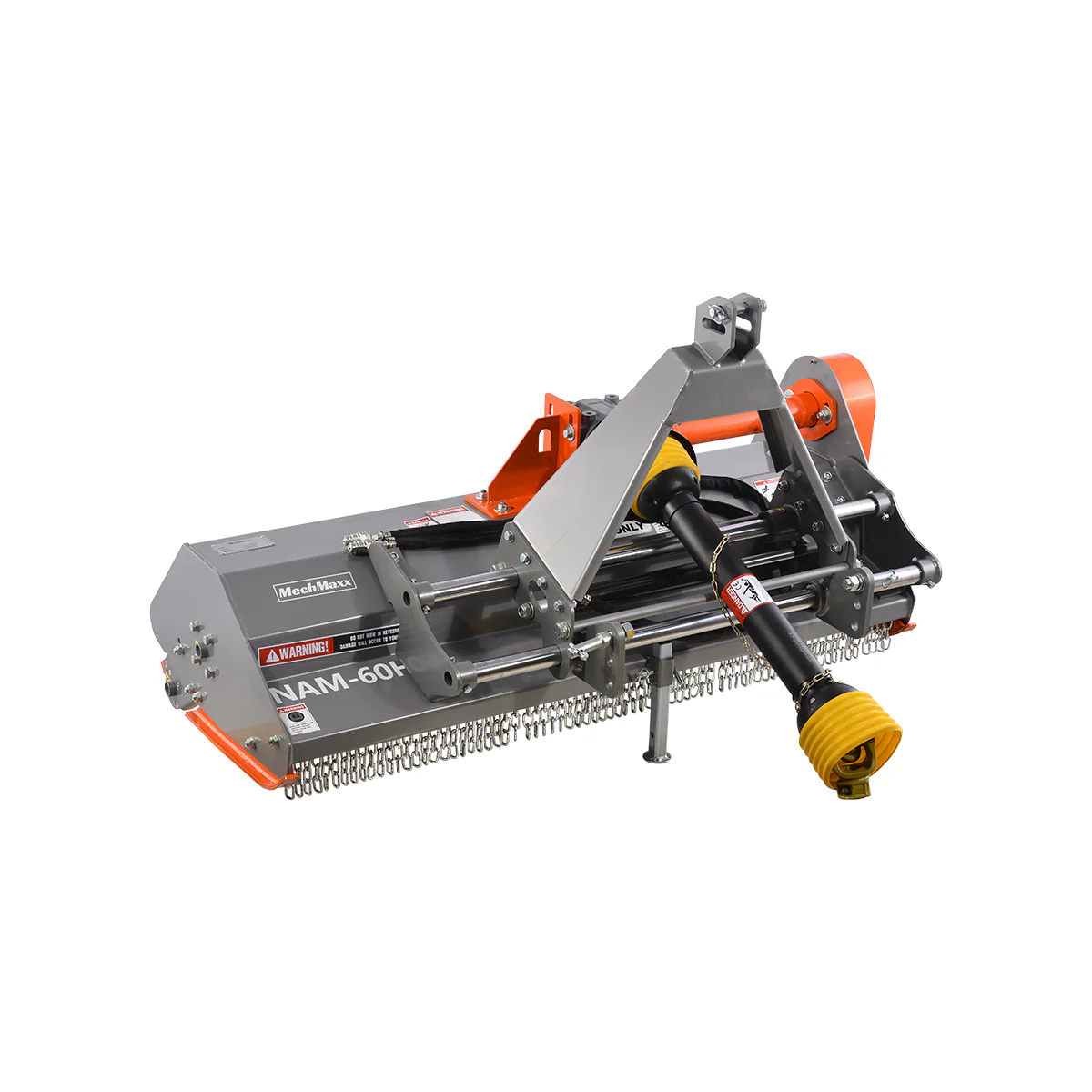

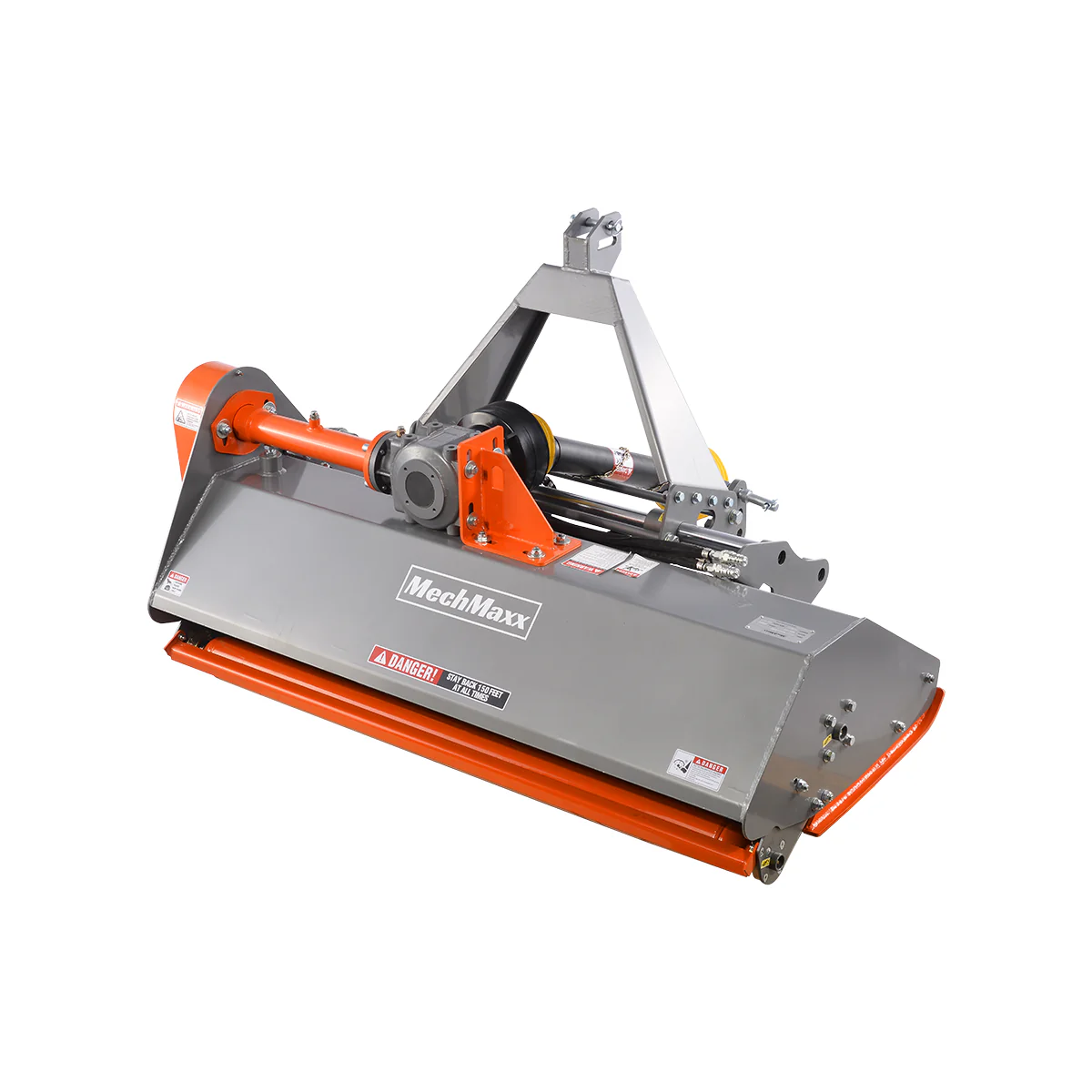

60” PTO Flail Mower with Hydraulic Side Shift 3 Point 30-60hp , NAM60H
| Power Required | 30-60HP | Number of Belts | 3 |
| Working Width | 60in | Belt Size | V Belt 17 X 991 |
| Hydraulic Side Shift | 8in (Left Or Right) | Drive Belt Tensioner | Yes |
| Overall Width | 66in | Deck Thickness | 0.16in |
| Blade Ground Clearance | 0.6in-2in | Side Plate Thickness | 0.25in |
| Max. Cutting Diameter | 3in | PTO Shaft RPM | 540 RPM |
| Number Of Blades | 28 | Driveline Shaft Length | T6-LF-39" with shear bolt ;39"-49" |

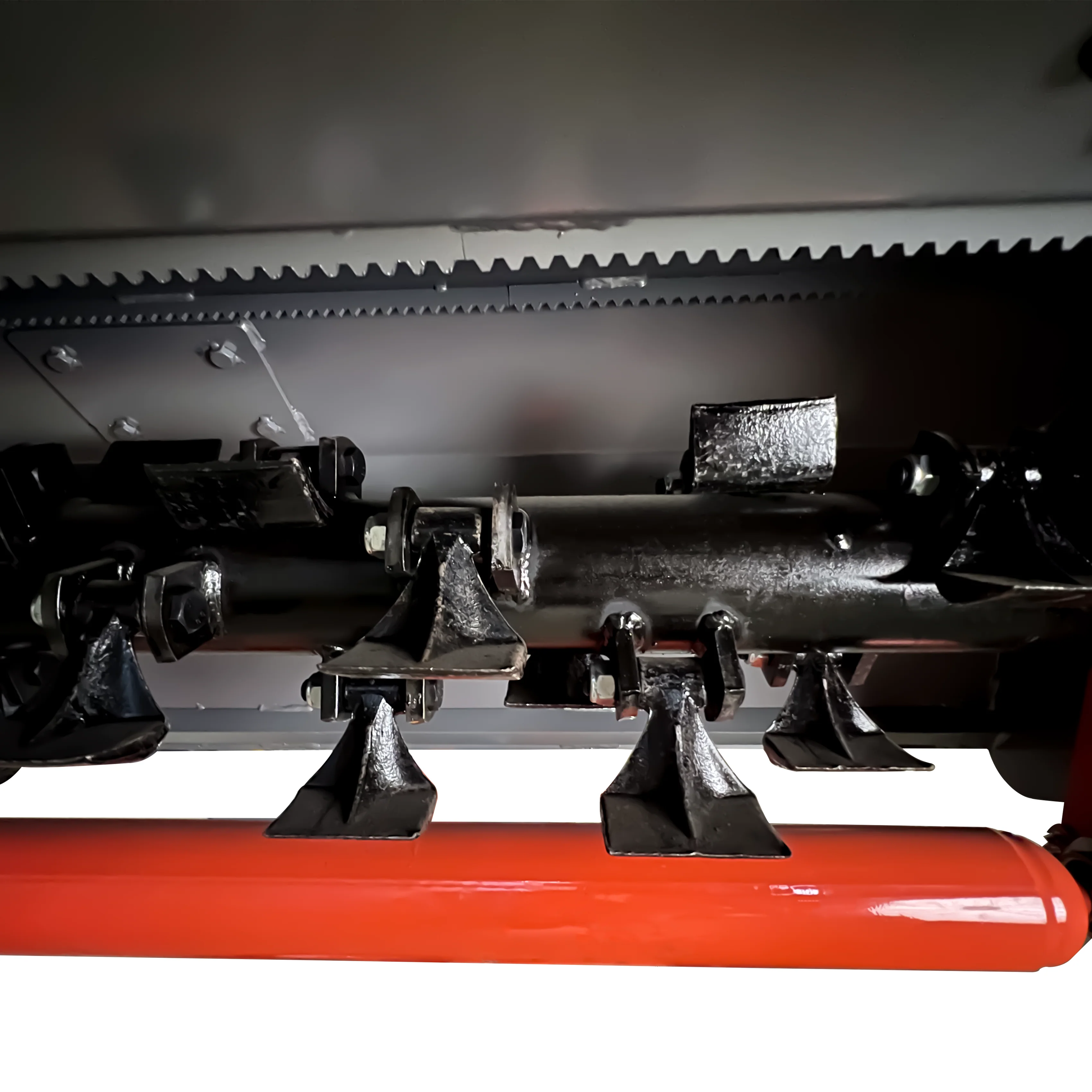

| Blade Type | Hammer | Spline End | 1 3/8" Z6 |
| Blade Weight | 1.8lbs | 3-Point Hitch | CAT 1 |
| Blade （Tines）Material | Cast Steel | Gearbox Oil Type | 85W-90 |
| Rotor Bearing | SKF bearing | Dimensions (L x W x H) | 70 x 34 x 26in |
| Roller Diameter | 4in | Finsh | Powder Coat Paint Galvanized Steel |
| Rotor Diameter | 5in | Warranty | 1 year |
| Rotor Swing Diameter | 14in | Weight (N.W./G.W.) | 595/661lbs |
| Drive Type | Belt drive |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
