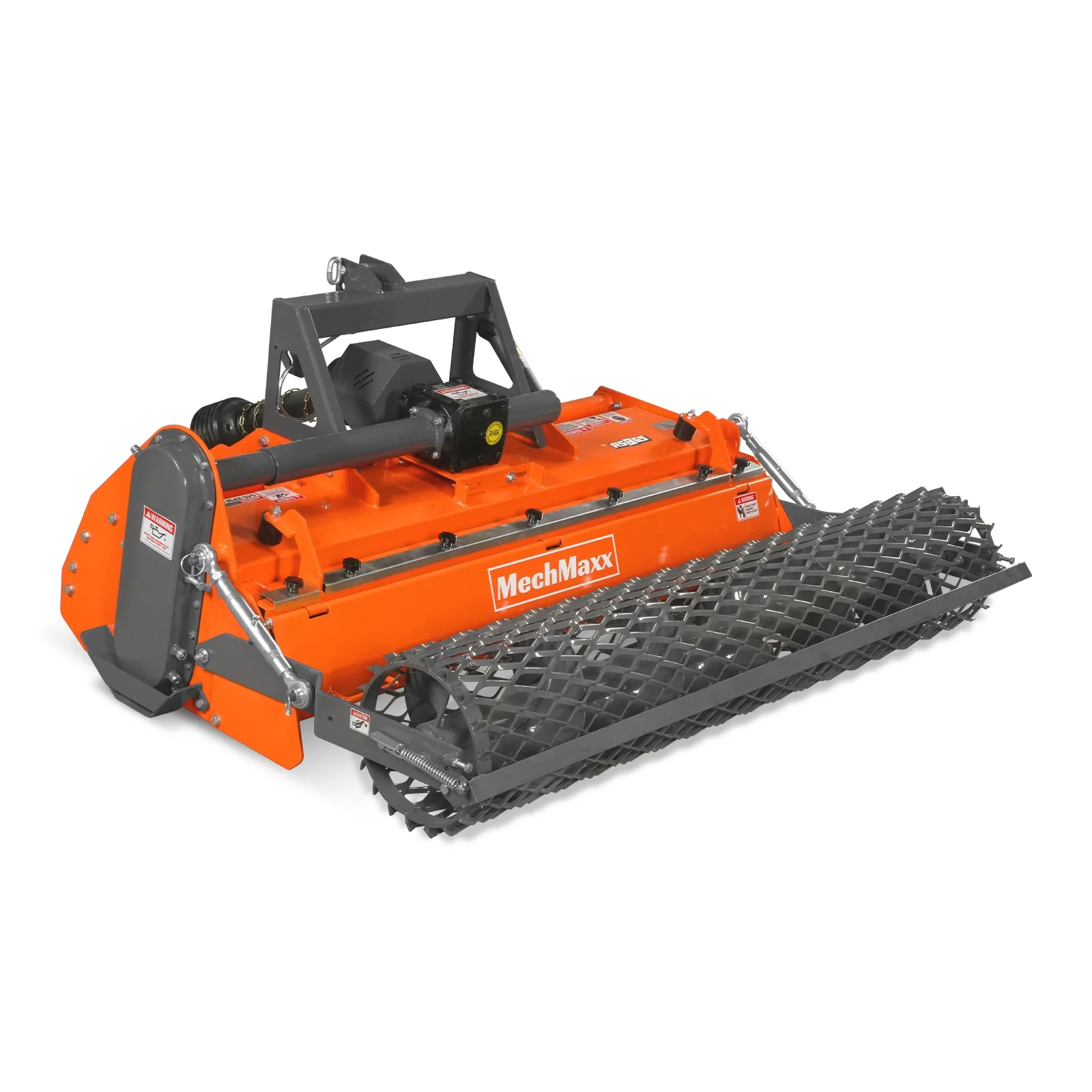

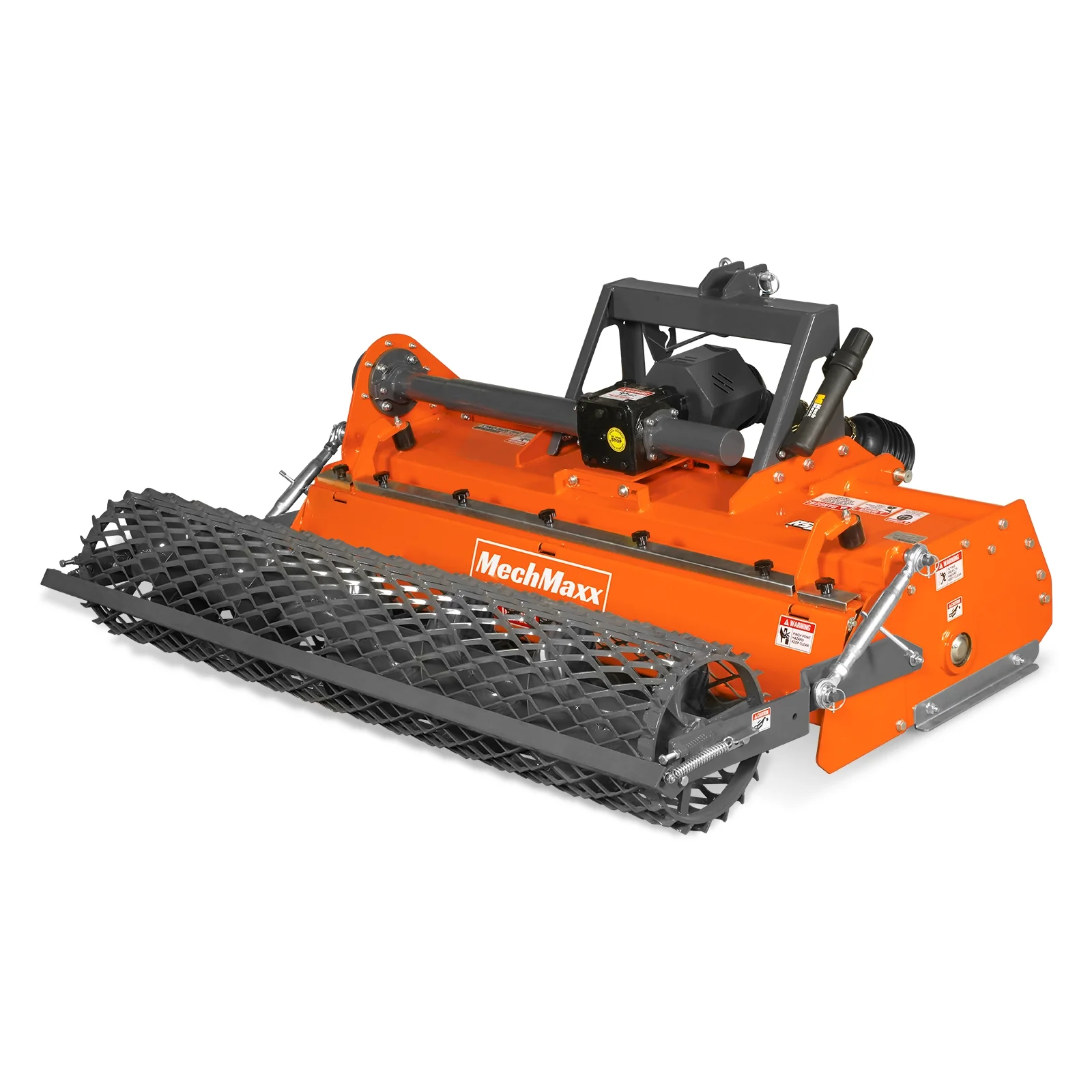

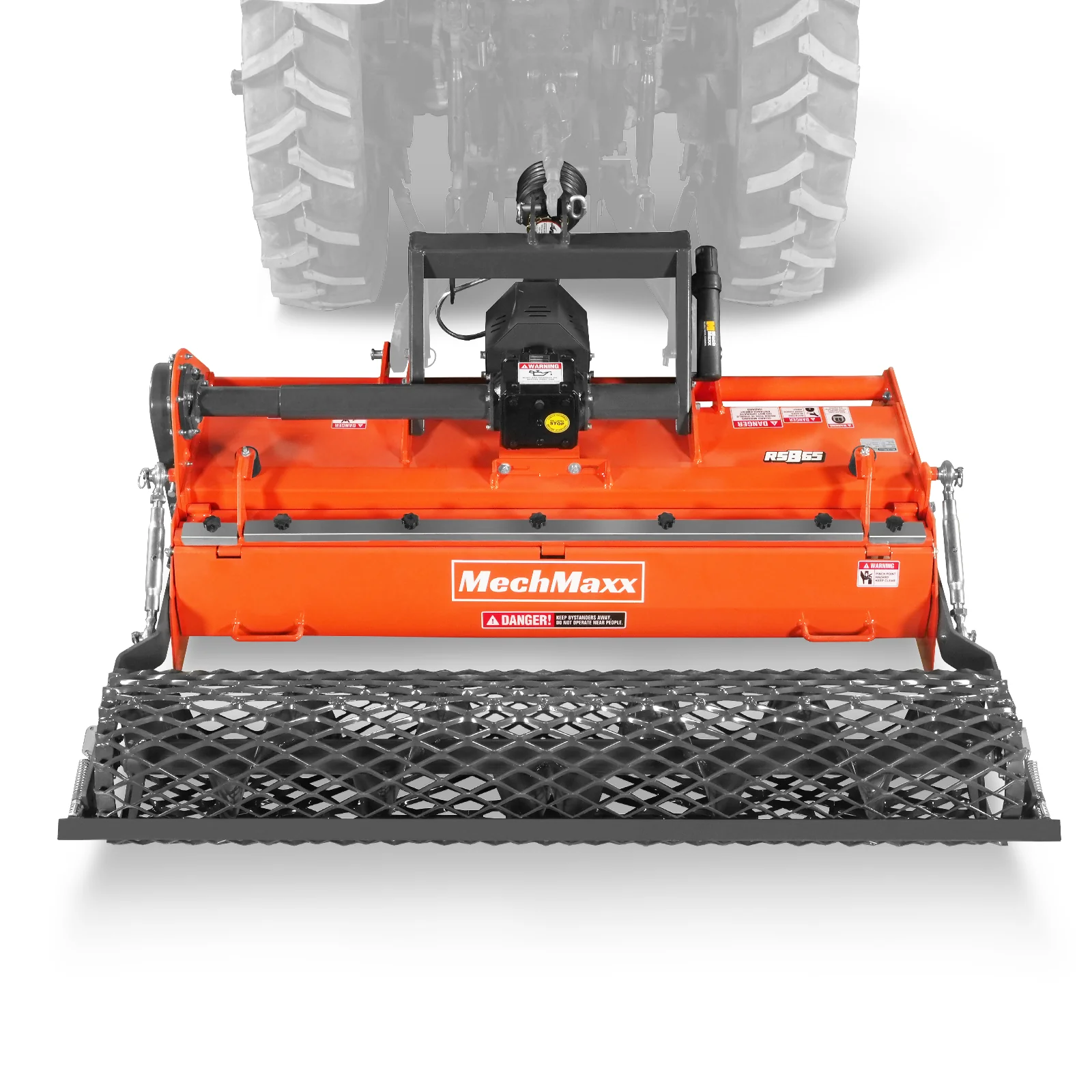

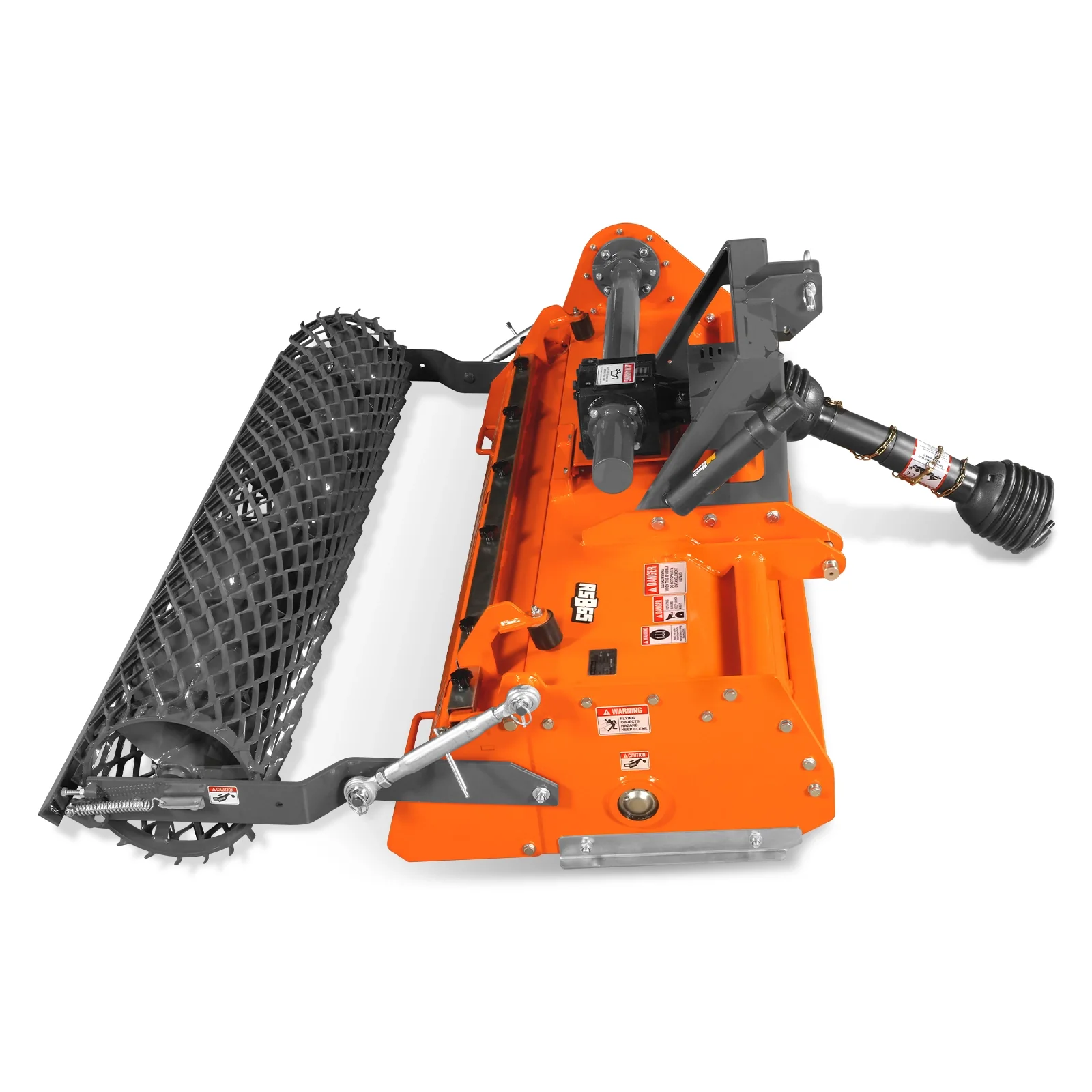

65 in Stone Burier Reverse Rotary Tiller, 3 Point Hitch Cat.1, Chain Drive, PTO Shaft Included with Slip Clutch, 30-55 HP, RSB65
| Working Width | 65 in | Rear Roller Adjustment | Height Adjustable |

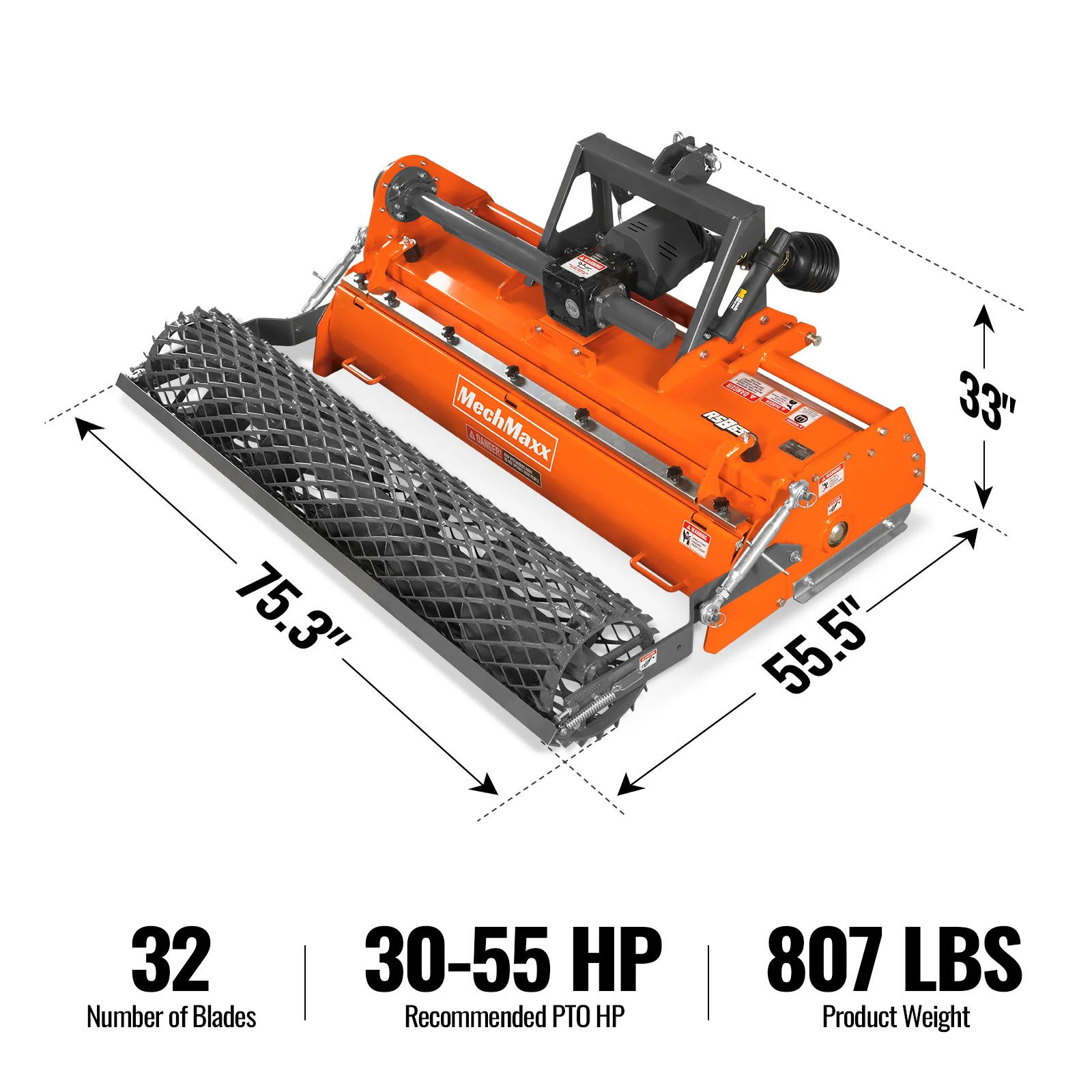

| Overall Dimensions (L×W×H) | 75.3 x 55.5 x 33 in | Number of Flanges | 9 |
| Max Working Depth | 5 in | Number of Blades | 32 |
| Rotor Bearing | NSK Bearing | Blade Arrangement | 7 Center Flanges × 4 Blades 2 End Flanges × 2 Blades |

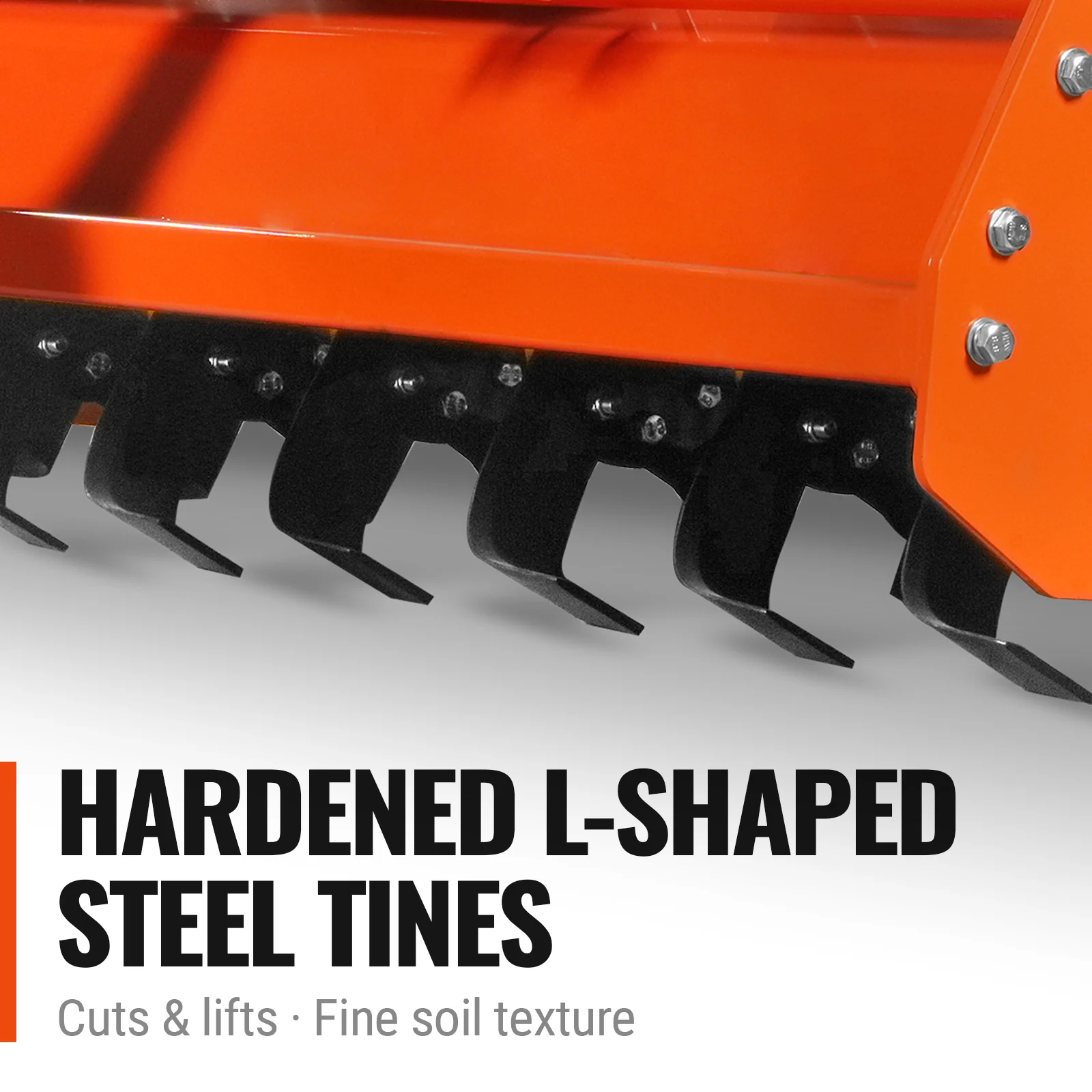

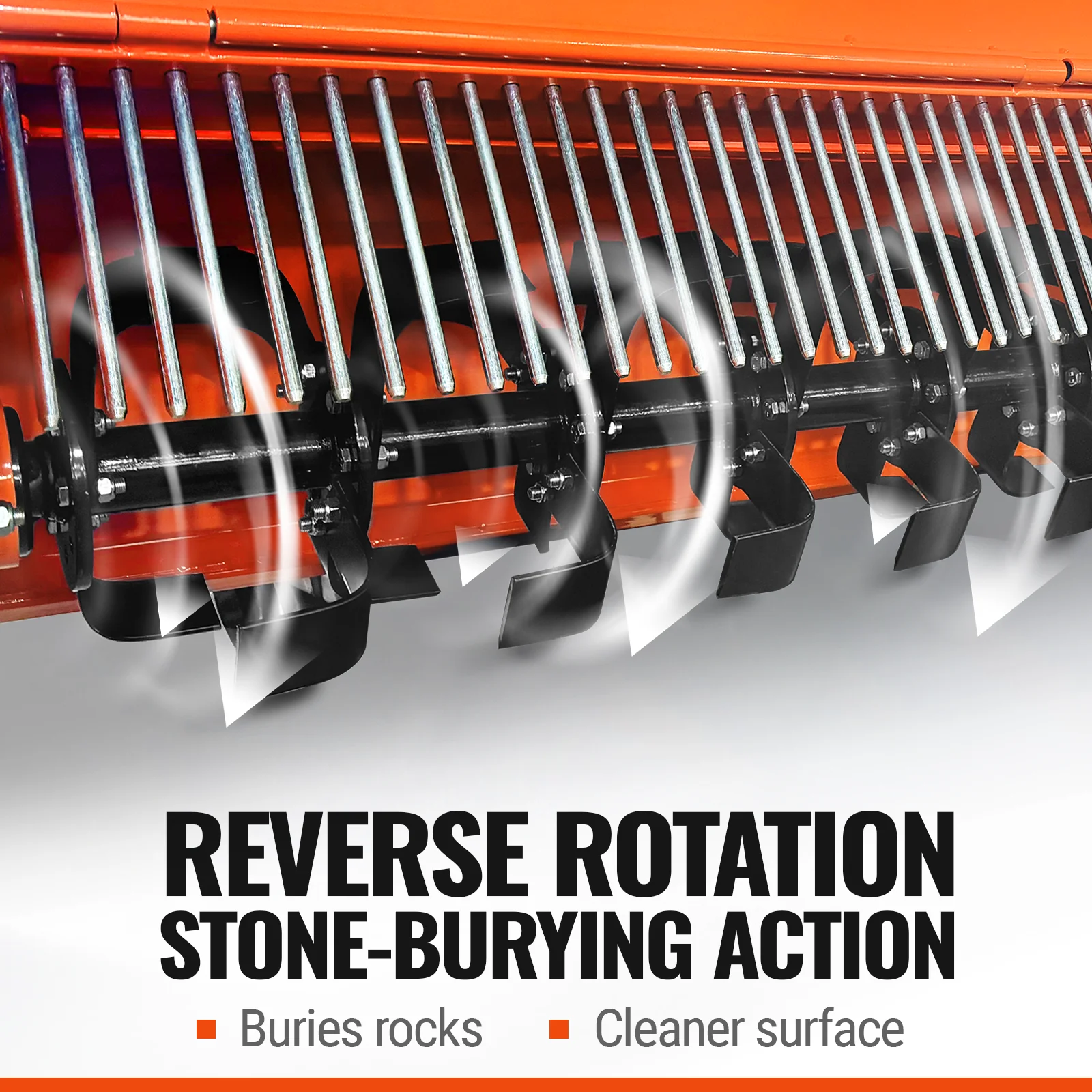

| Rotor Rotation | Reverse | Blade Type | Heat-Treated 60Si2Mn Steel “L”-Shaped |
| Rotor Speed @ 540 PTO RPM | 216 RPM | PTO Shaft Included | Yes |

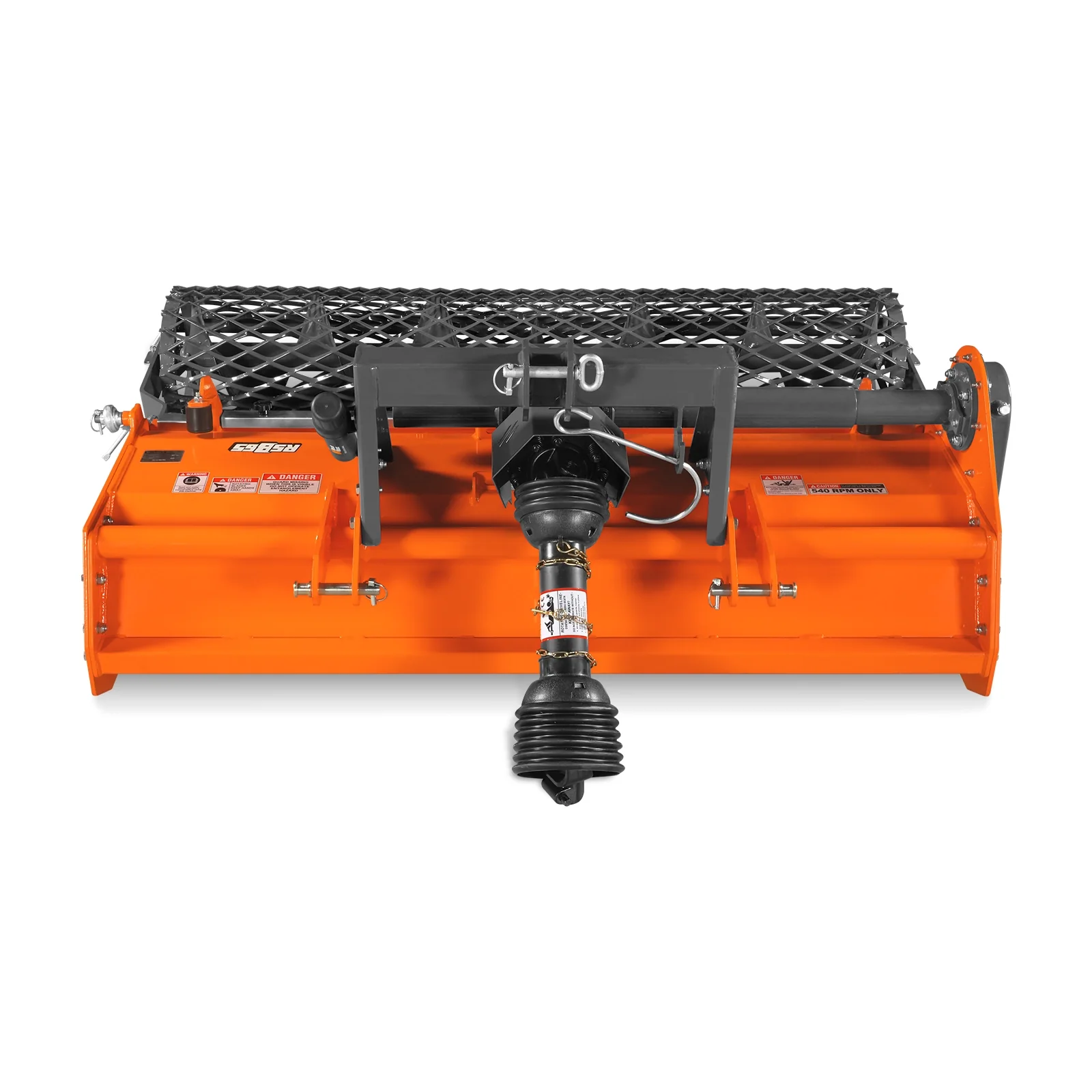

| Rotor Diameter | 2.48 in | PTO Shaft | Series 5 PTO Shaft with Slip Clutch, 1-3/8" × 6-Spline (Both Ends), Length: 27.5-35 in |
| Rotor Swing Diameter | 16.1 in | Tractor PTO Speed | 540 RPM |
| Side Drive Type | Chain Driven | Recommended PTO HP | 30-55 HP |

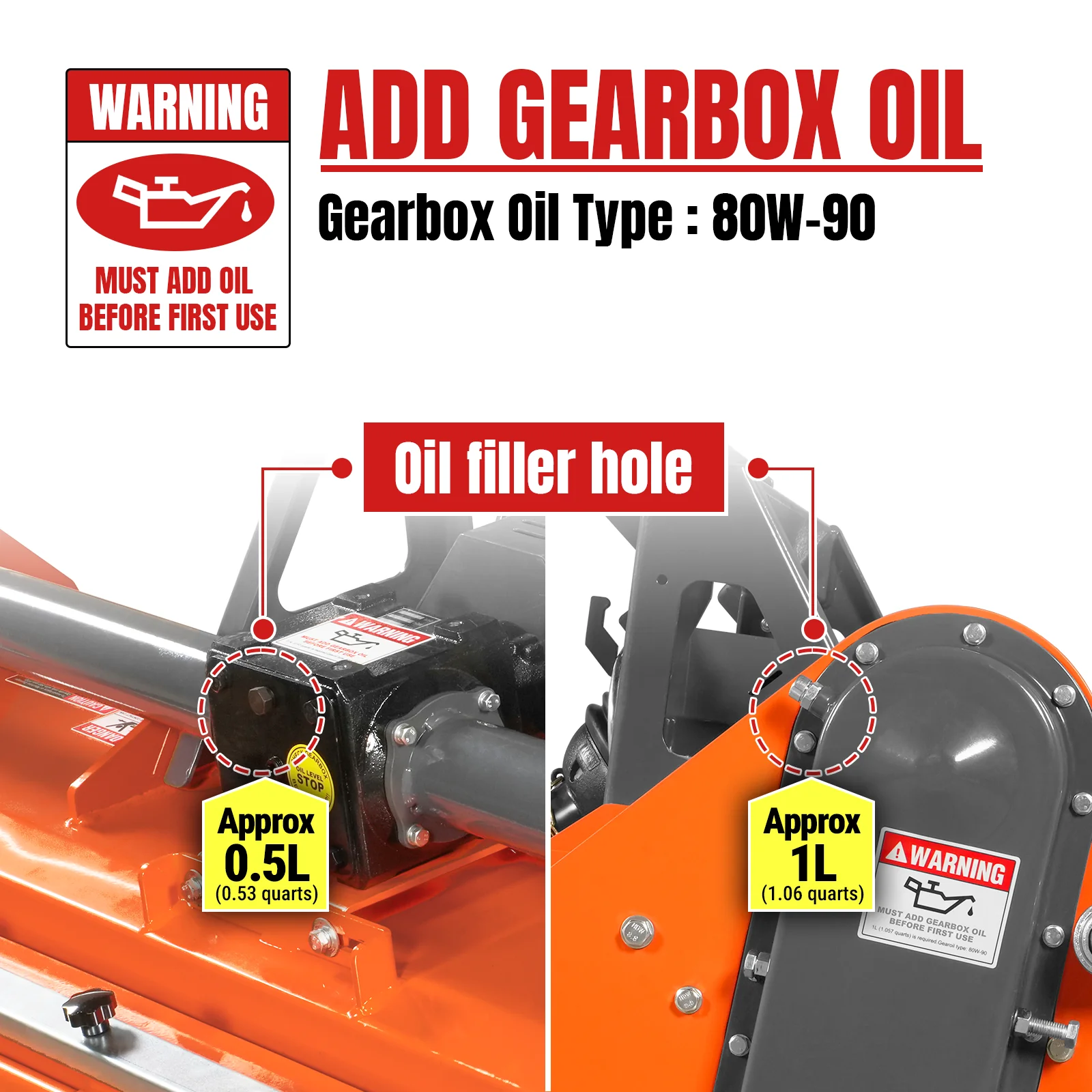

| Side Box Lubrication | SAE 80W-90, Approx. 1 L (1.06 qt) NOTE: SHIPPED WITHOUT OIL. |
3 Point Hitch | Cat.1 |

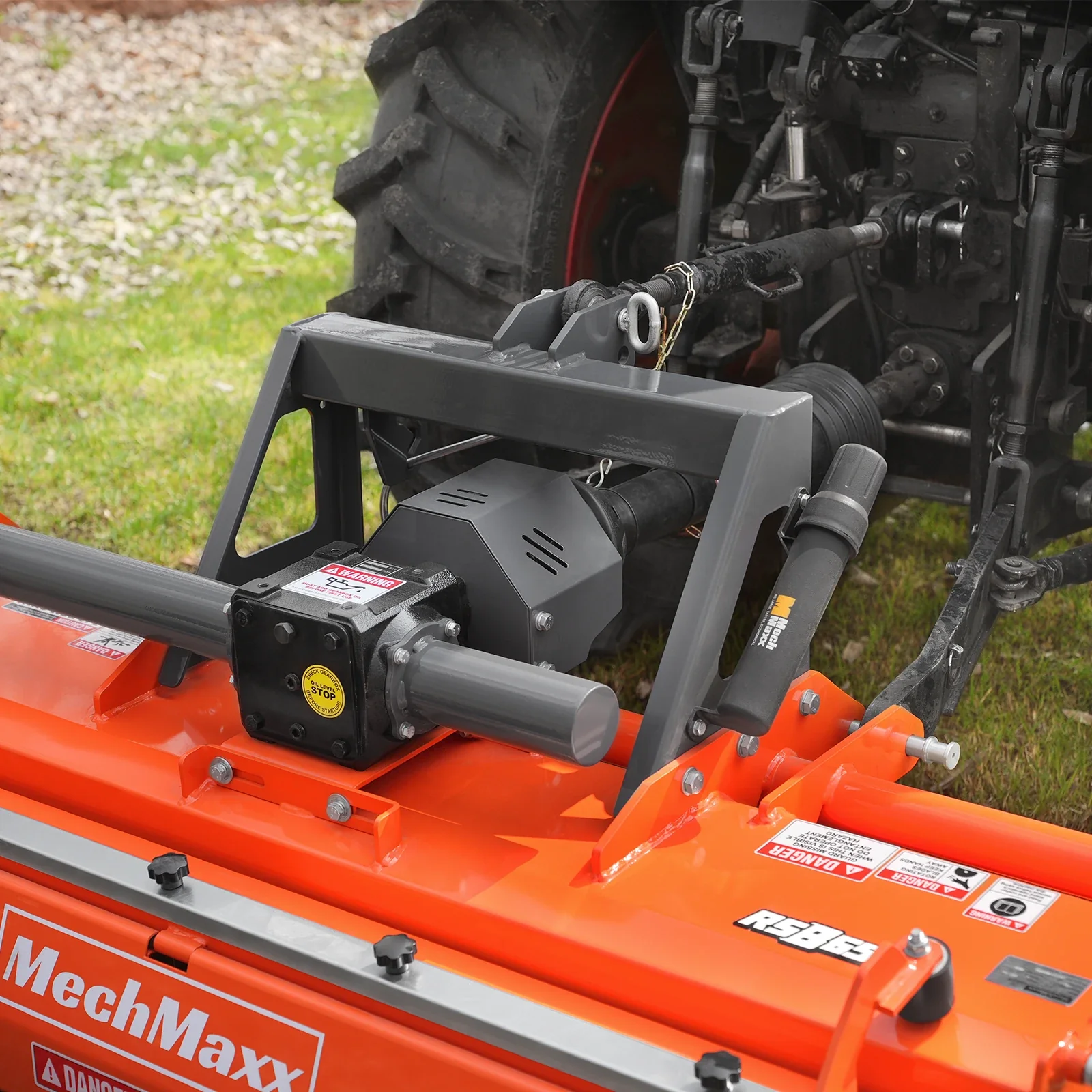

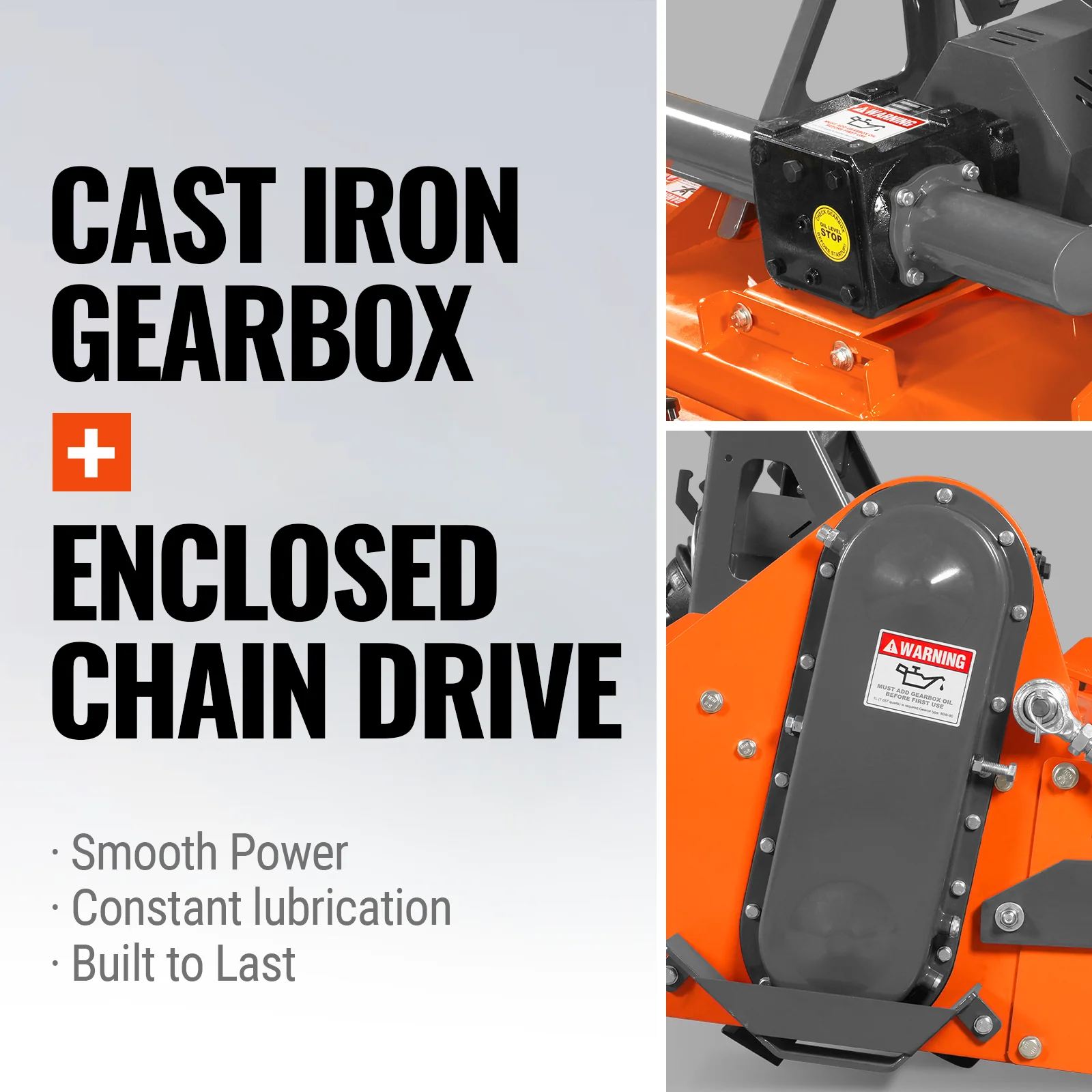

| Main Gearbox | Cast Iron Oil-Bath Gearbox, Gear Ratio 1.46:1 | Quick Hitch Compatibility | Cat.1 Quick Hitch Compatible |
| Gearbox Lubrication | SAE 80W-90, Approx. 0.5L (0.53 qt) NOTE: SHIPPED WITHOUT OIL. |
Parking Stand Included | No |

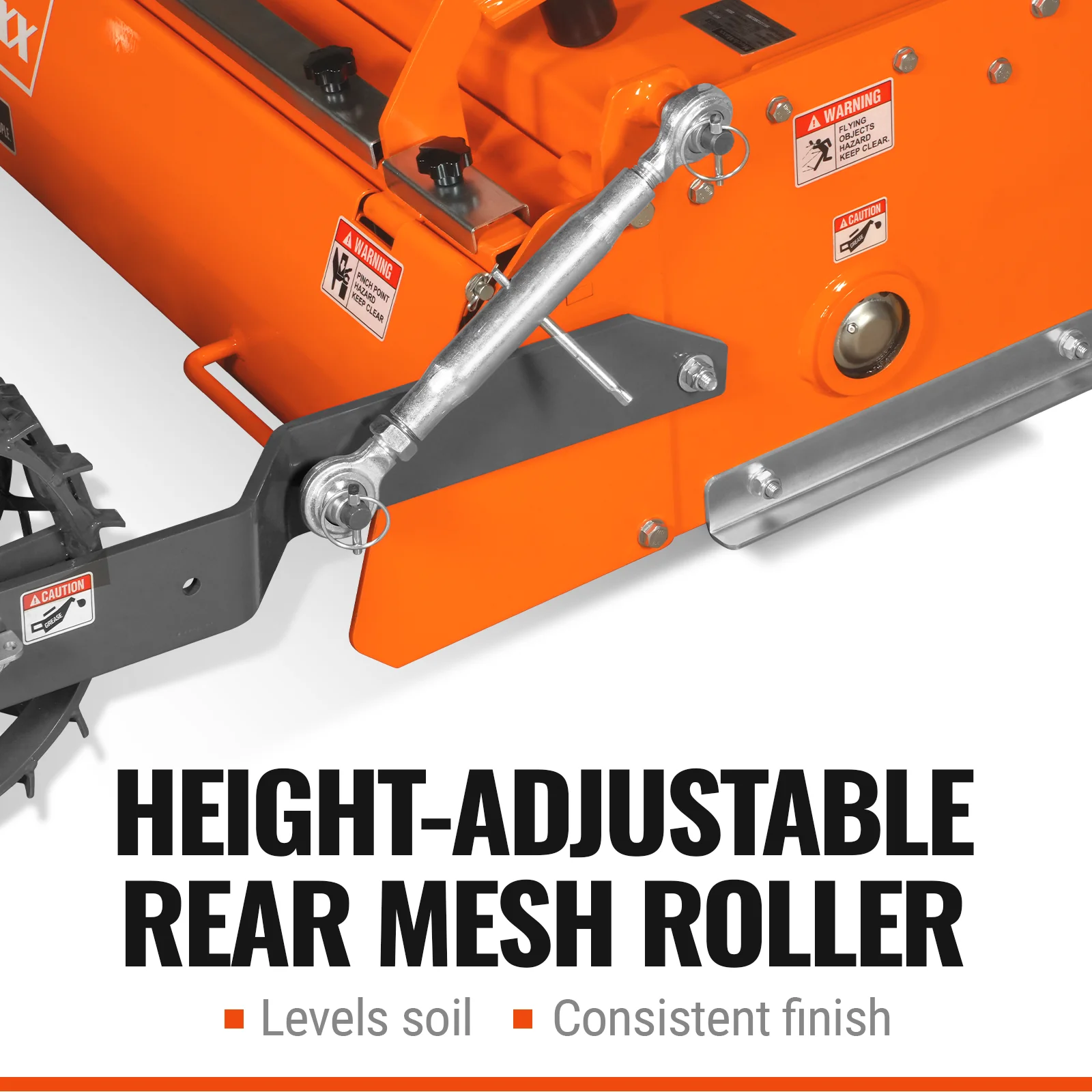

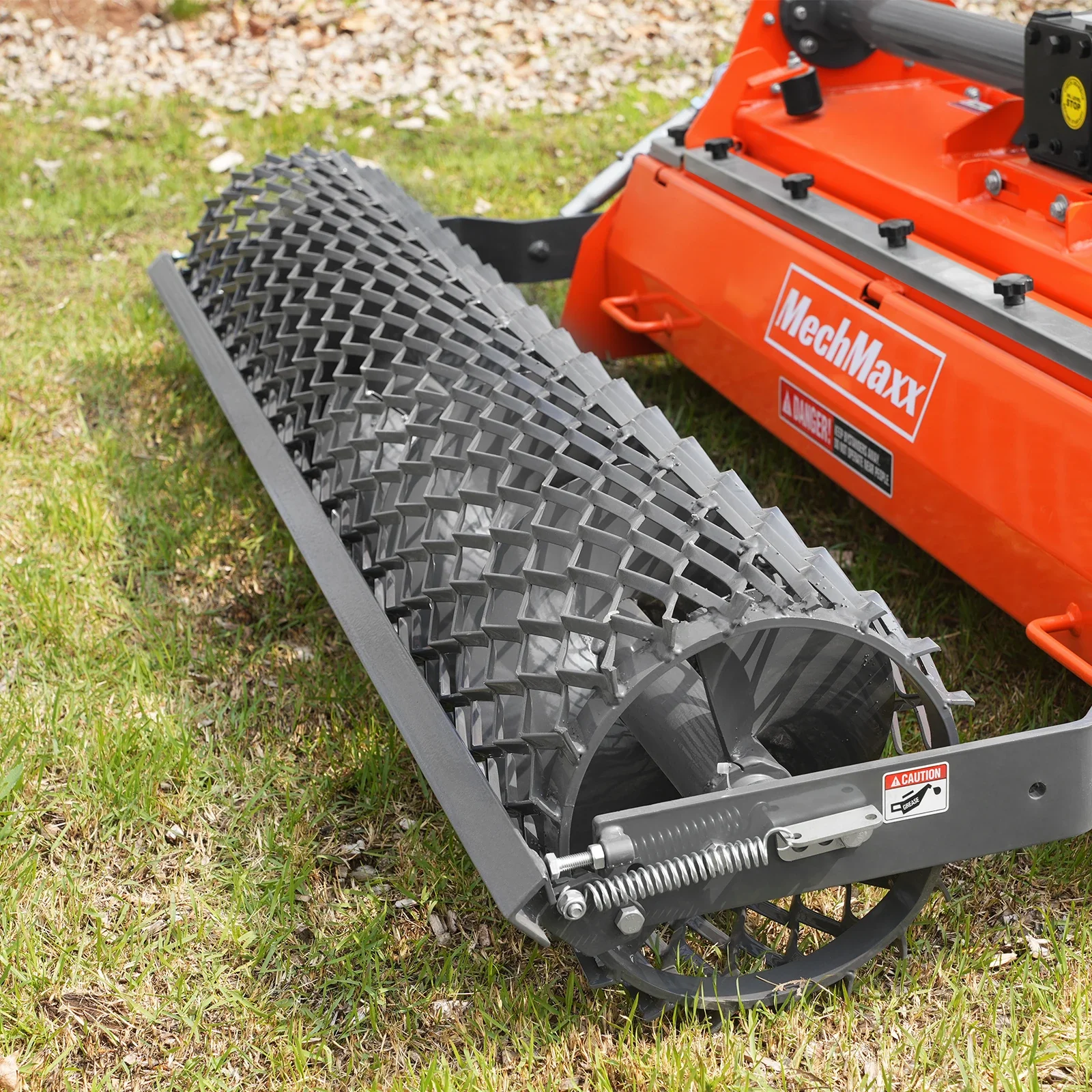

| Rear Roller Type | Mesh Roller | Packing Size (L×W×H) | 79.53 x 42.52 x 33.86 in |
| Rear Roller Diameter | 13.3 in | Weight (N.W/G.W.) | 806.88/955.33 lbs |
| Rear Roller Width | 70.2 in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
