Working Width	48 in	Rear Roller Adjustment	Height Adjustable

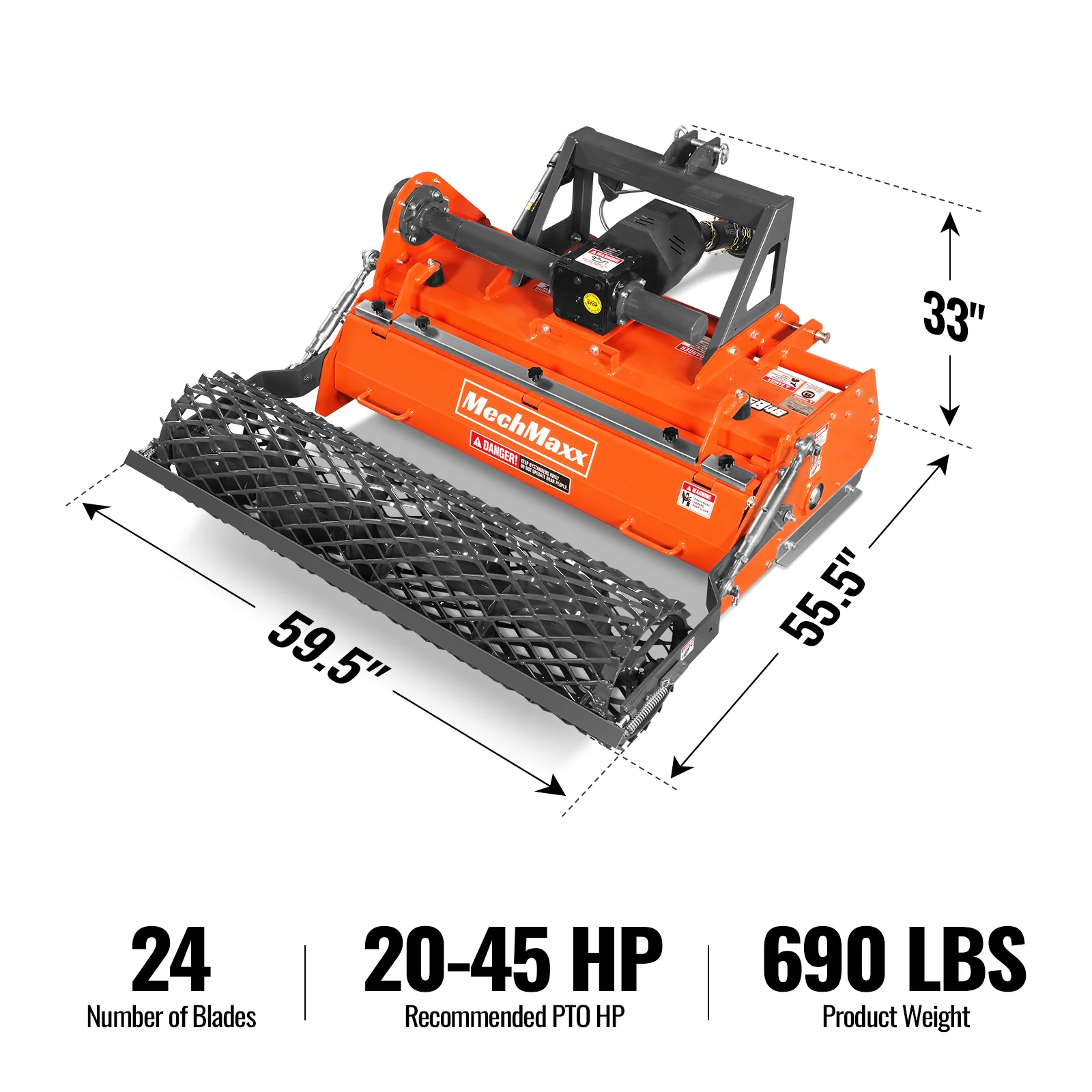

Overall Dimensions (L×W×H)	59.5 x 55.5 x 33 in	Number of Flanges	7
Max Working Depth	5 in	Number of Blades	24
Rotor Bearing	NSK Bearing	Blade Arrangement	5 Center Flanges × 4 Blades 2 End Flanges × 2 Blades

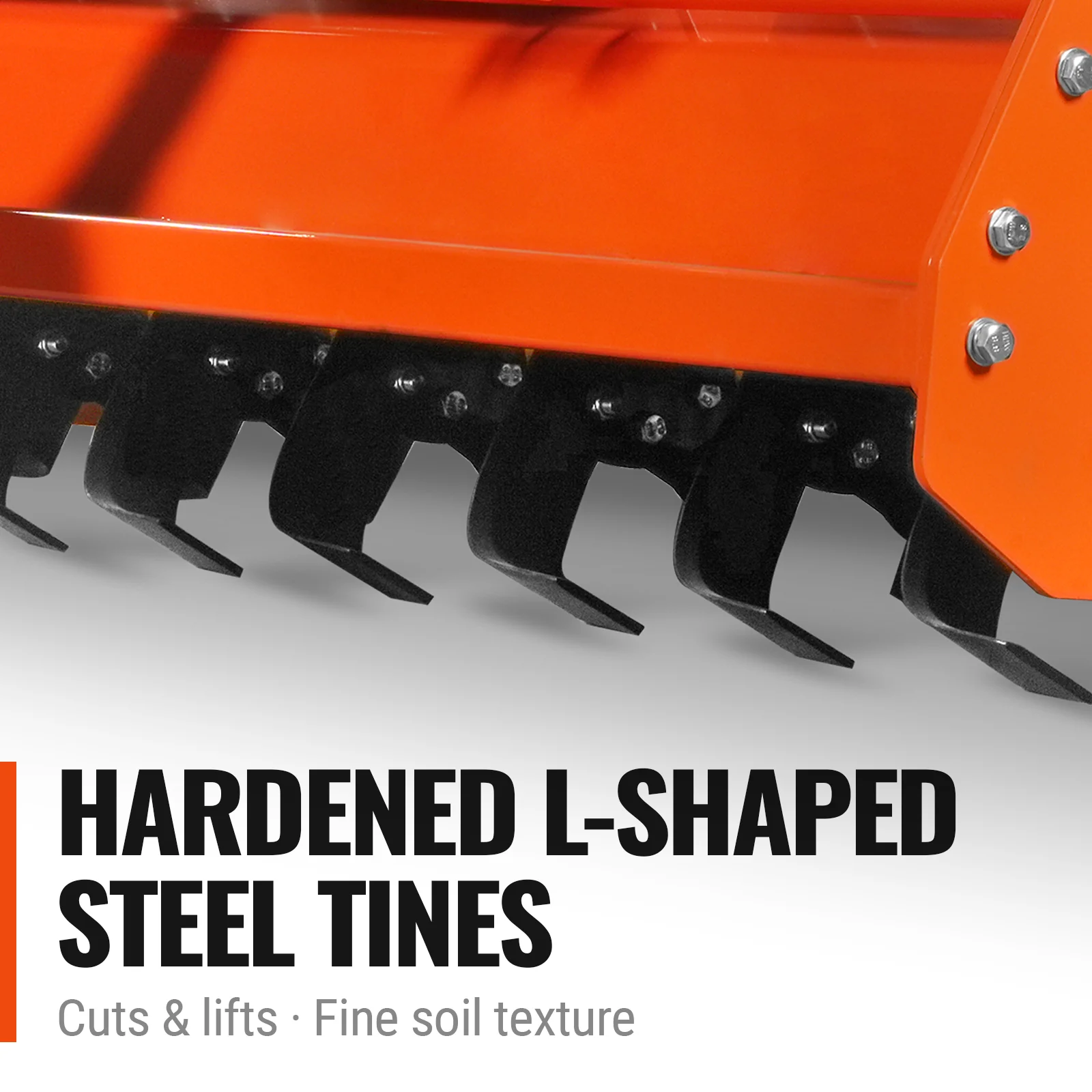

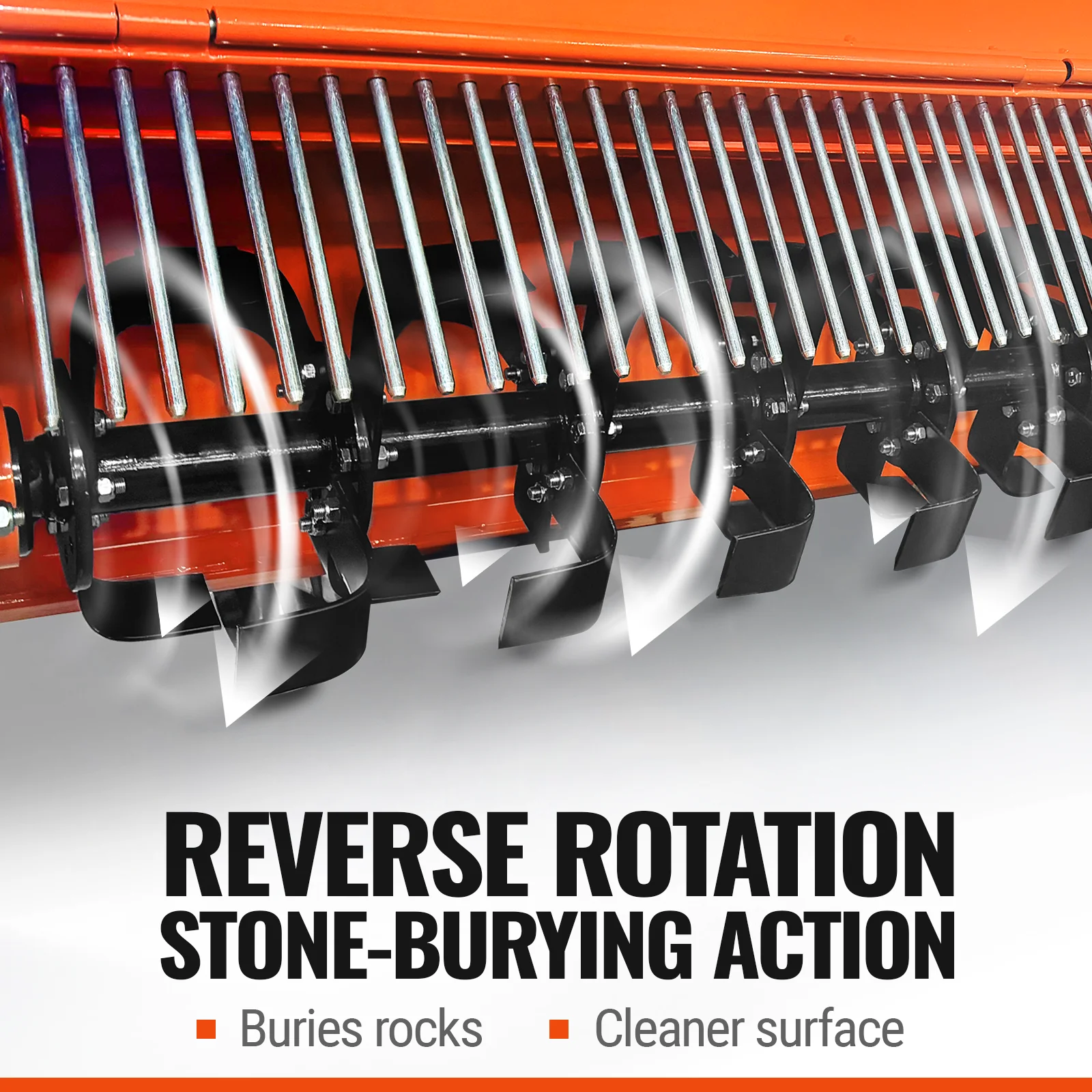

Rotor Rotation	Reverse	Blade Type	Heat-Treated 60Si2Mn Steel “L”-Shaped
Rotor Speed @ 540 PTO RPM	216 RPM	PTO Shaft Included	Yes

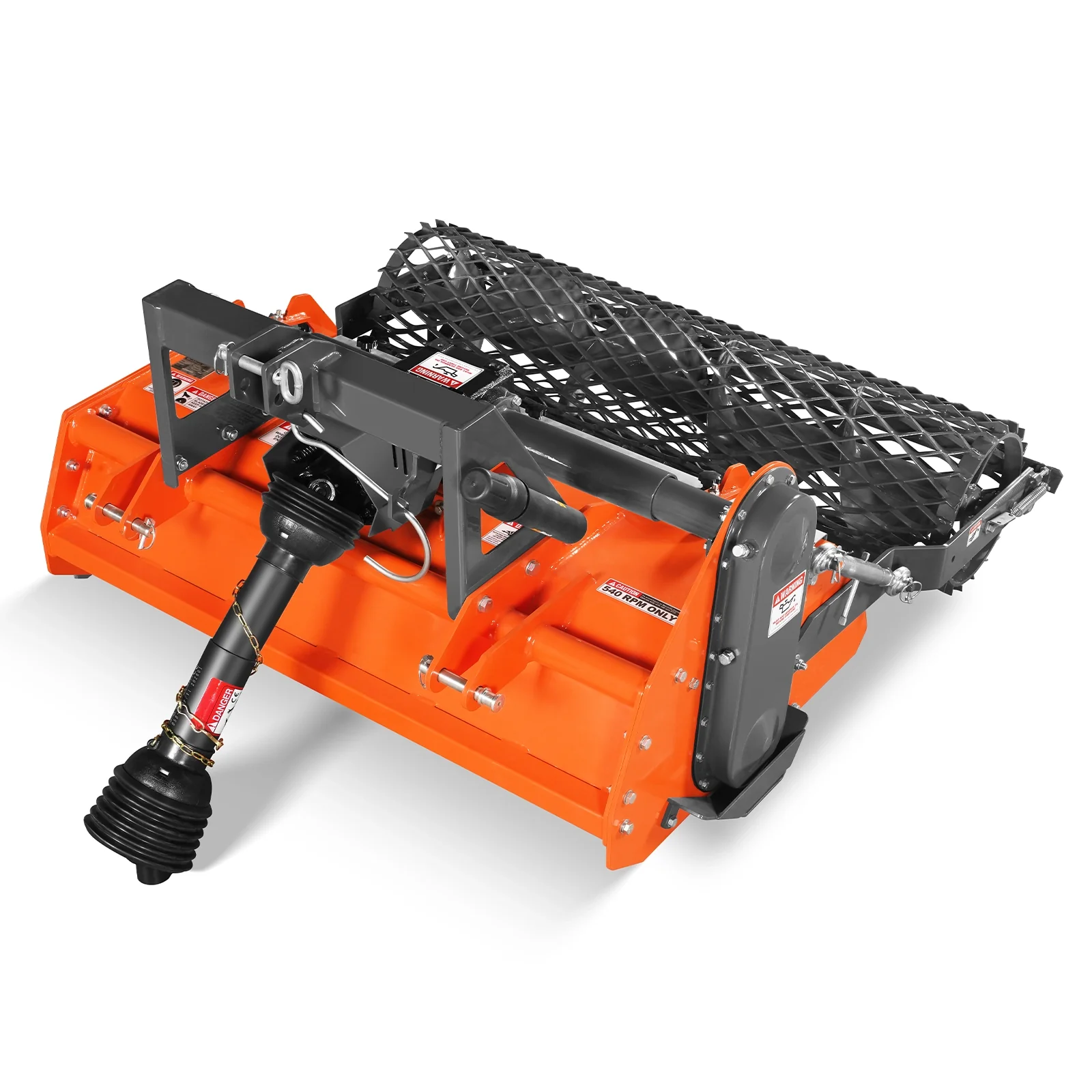

Rotor Diameter	2.48 in	PTO Shaft	Series 5 PTO Shaft with Slip Clutch, 1-3/8" × 6-Spline (Both Ends), Length: 27.5-35 in
Rotor Swing Diameter	16.1 in	Tractor PTO Speed	540 RPM
Side Drive Type	Chain Driven	Recommended PTO HP	20-45 HP

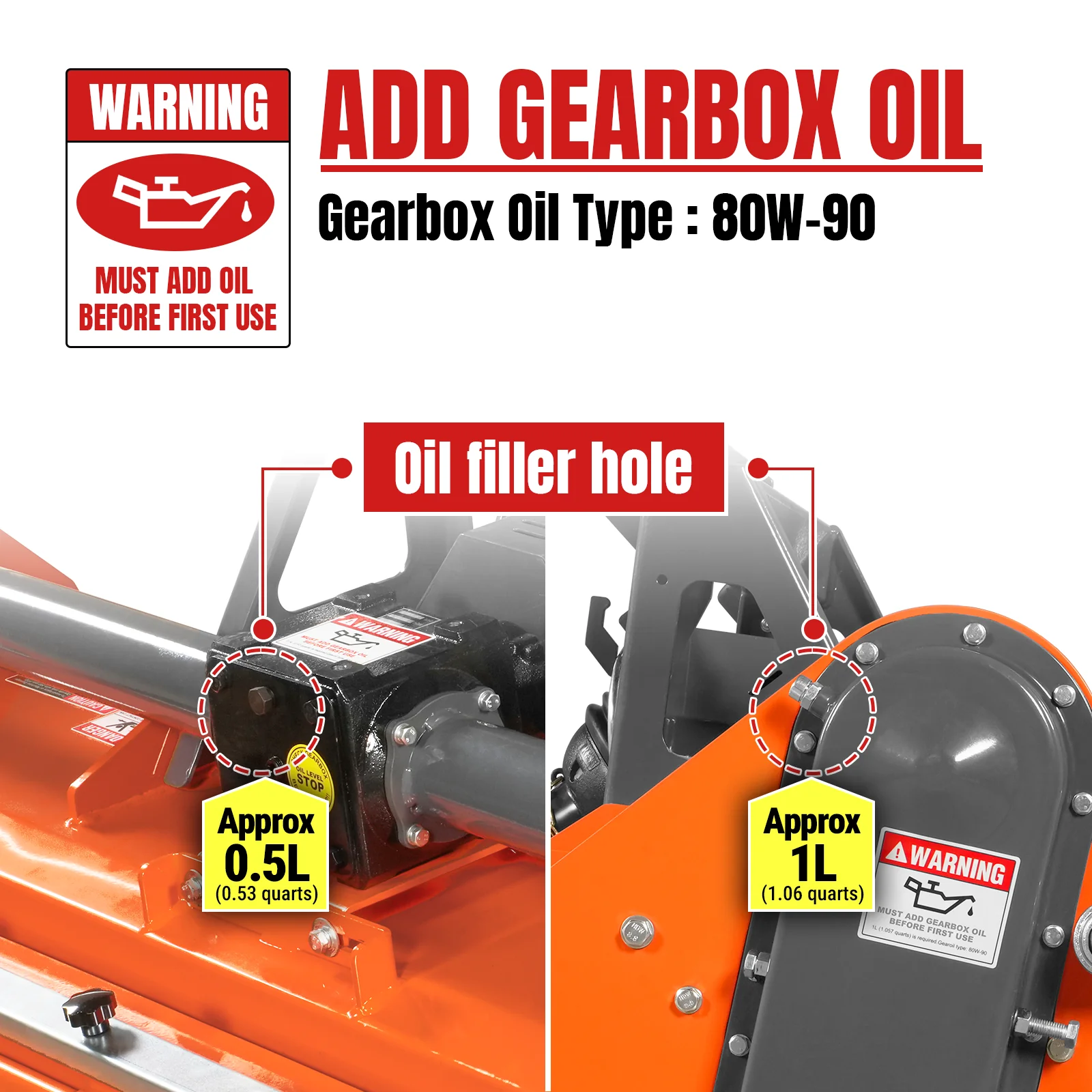

Side Box Lubrication	SAE 80W-90, Approx. 1 L (1.06 qt) NOTE: SHIPPED WITHOUT OIL.	3 Point Hitch	Cat.1

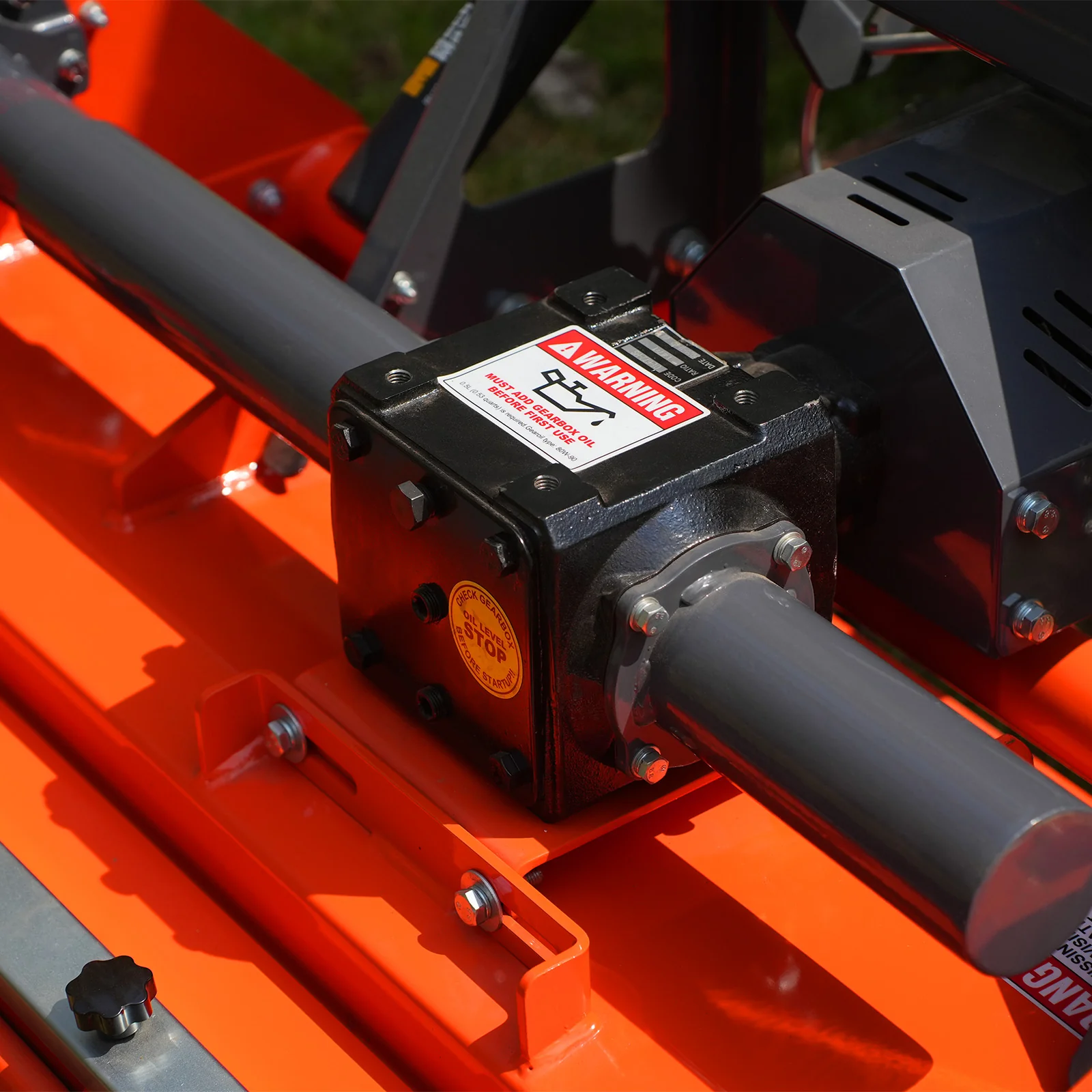

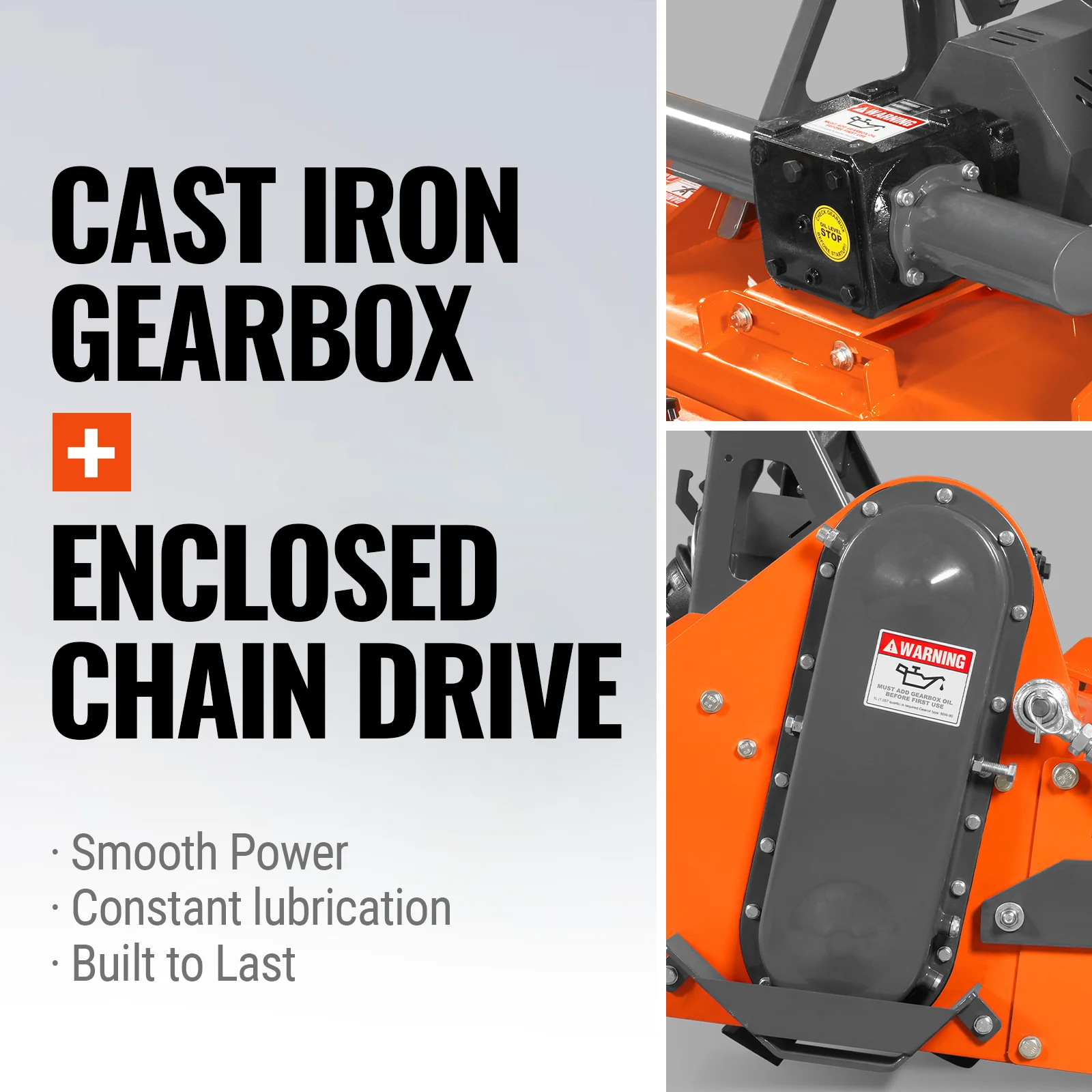

Main Gearbox	Cast Iron Oil-Bath Gearbox, Gear Ratio 1.46:1	Quick Hitch Compatibility	Cat.1 Quick Hitch Compatible
Gearbox Lubrication	SAE 80W-90, Approx. 0.5L (0.53 qt) NOTE: SHIPPED WITHOUT OIL.	Parking Stand Included	No

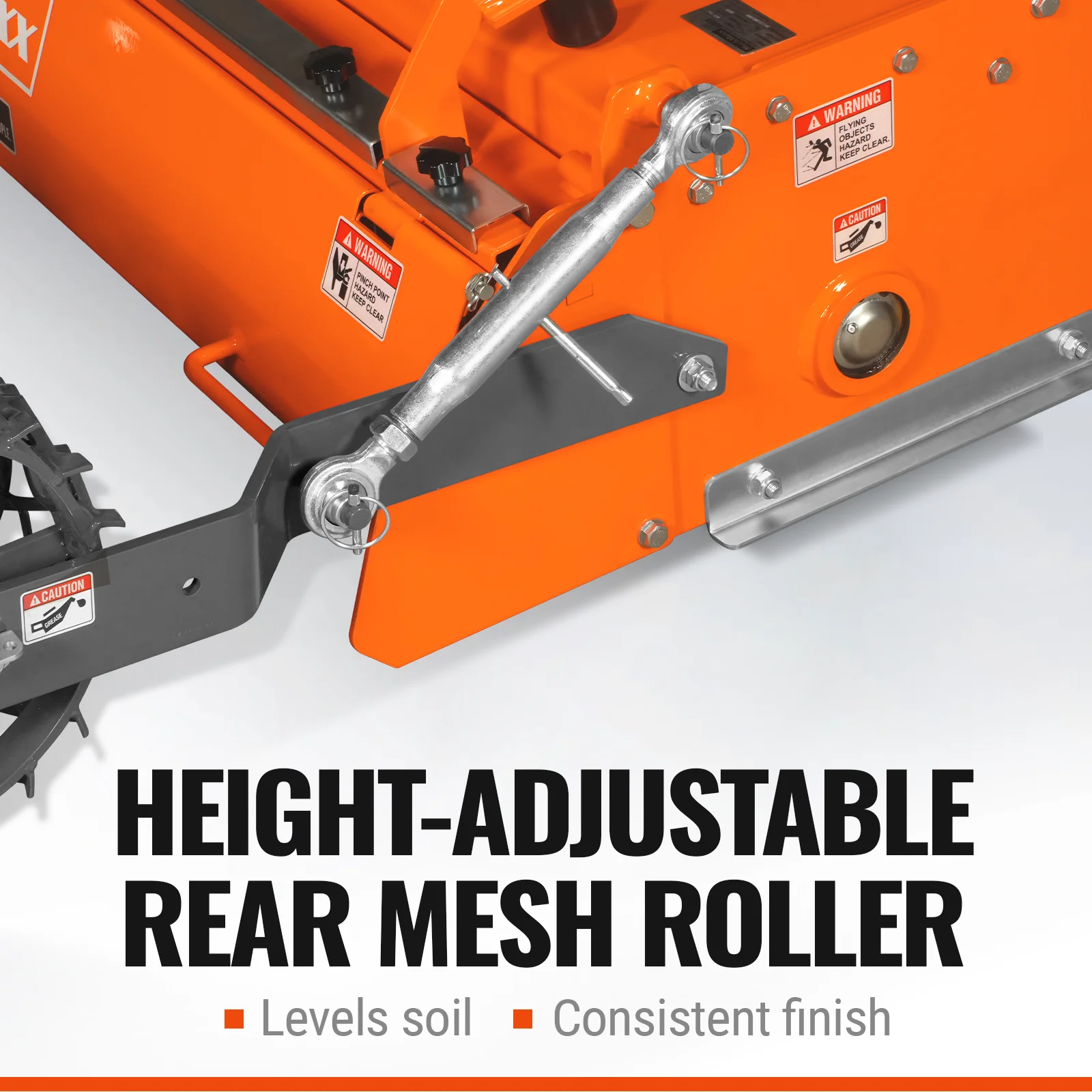

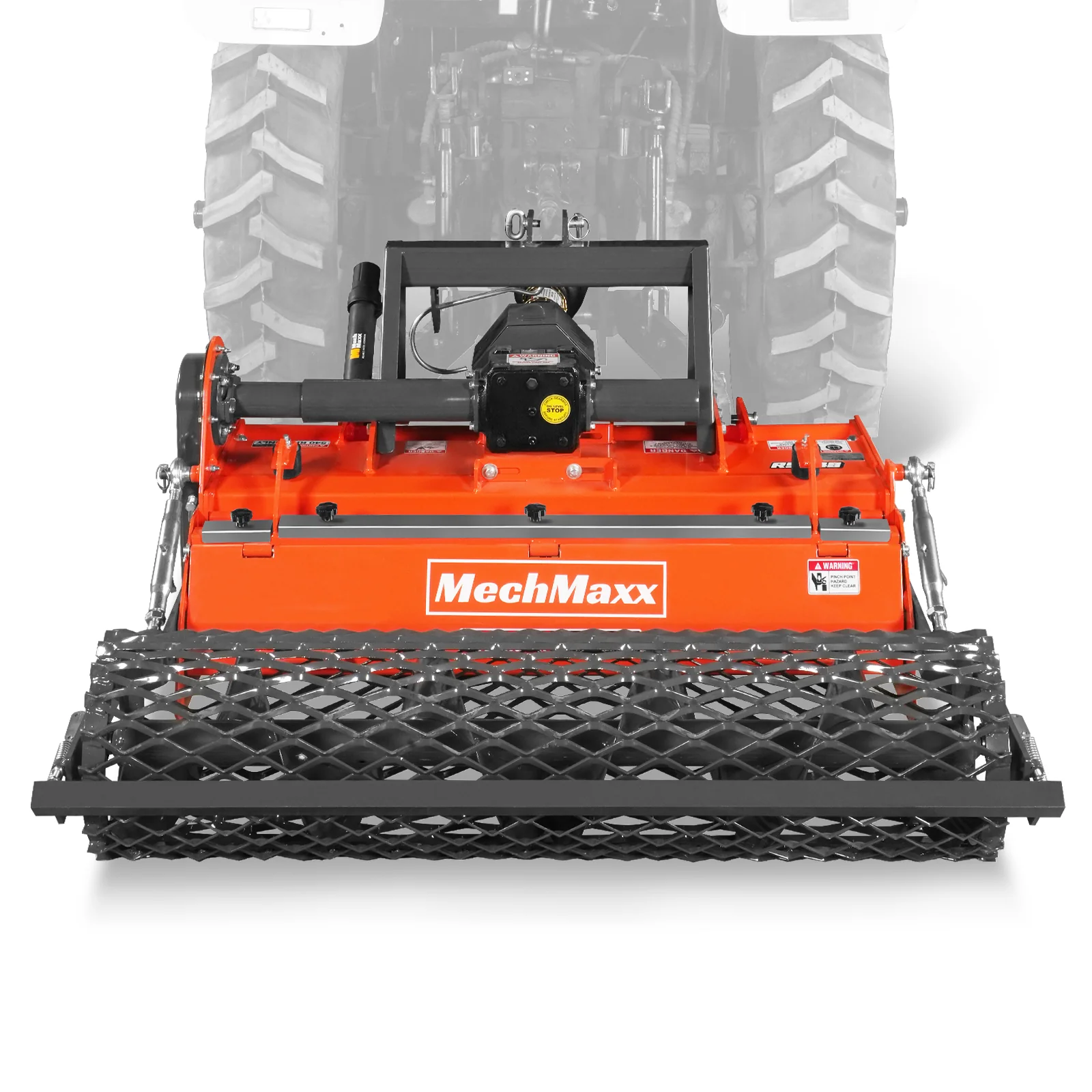

Rear Roller Type	Mesh Roller	Packing Size (L×W×H)	63.78 x 42.52 x 33.86 in
Rear Roller Diameter	13.3 in	Weight (N.W/G.W.)	690.04/823.05 lbs
Rear Roller Width	54.4 in

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
