Working Width	45 in	Number of Flanges	6

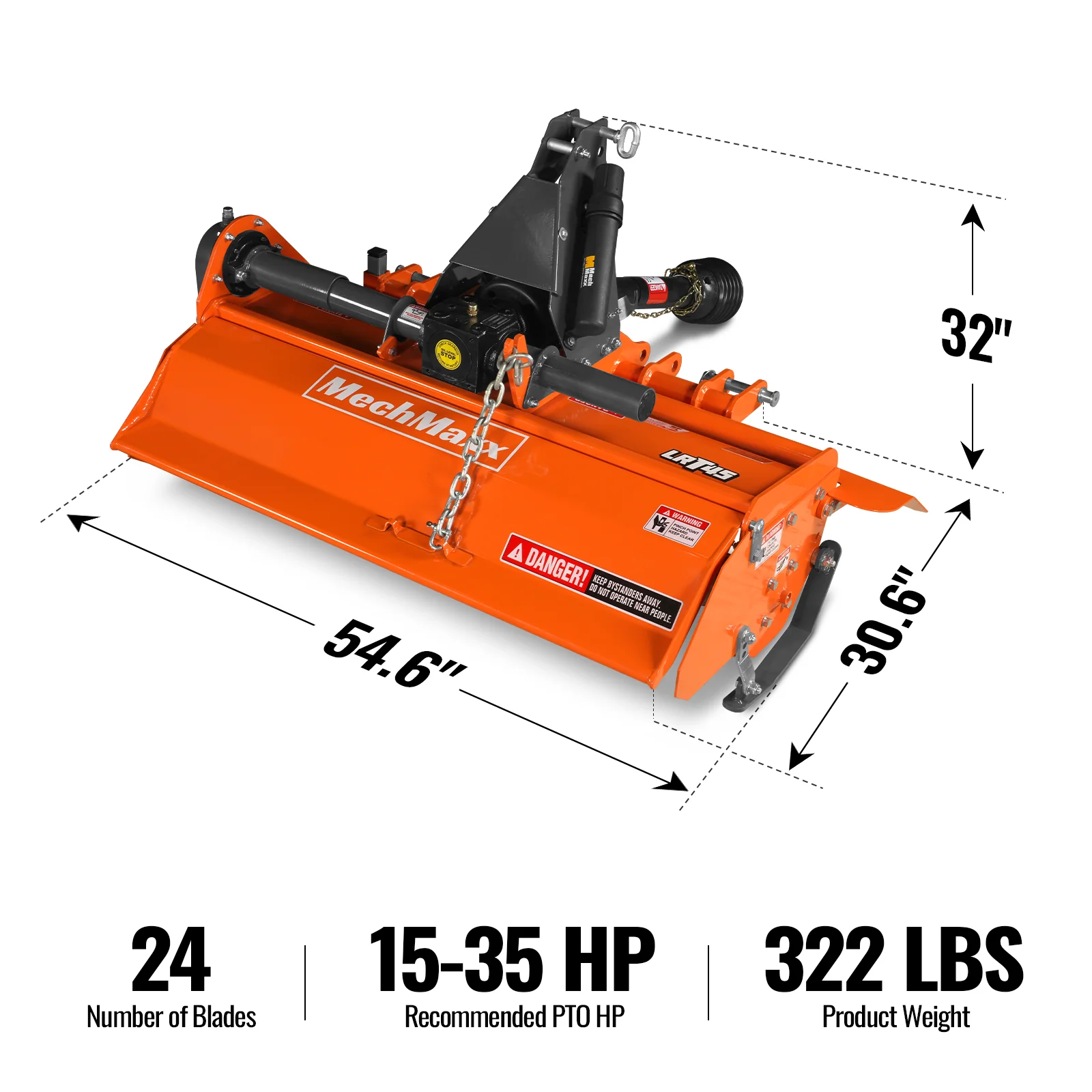

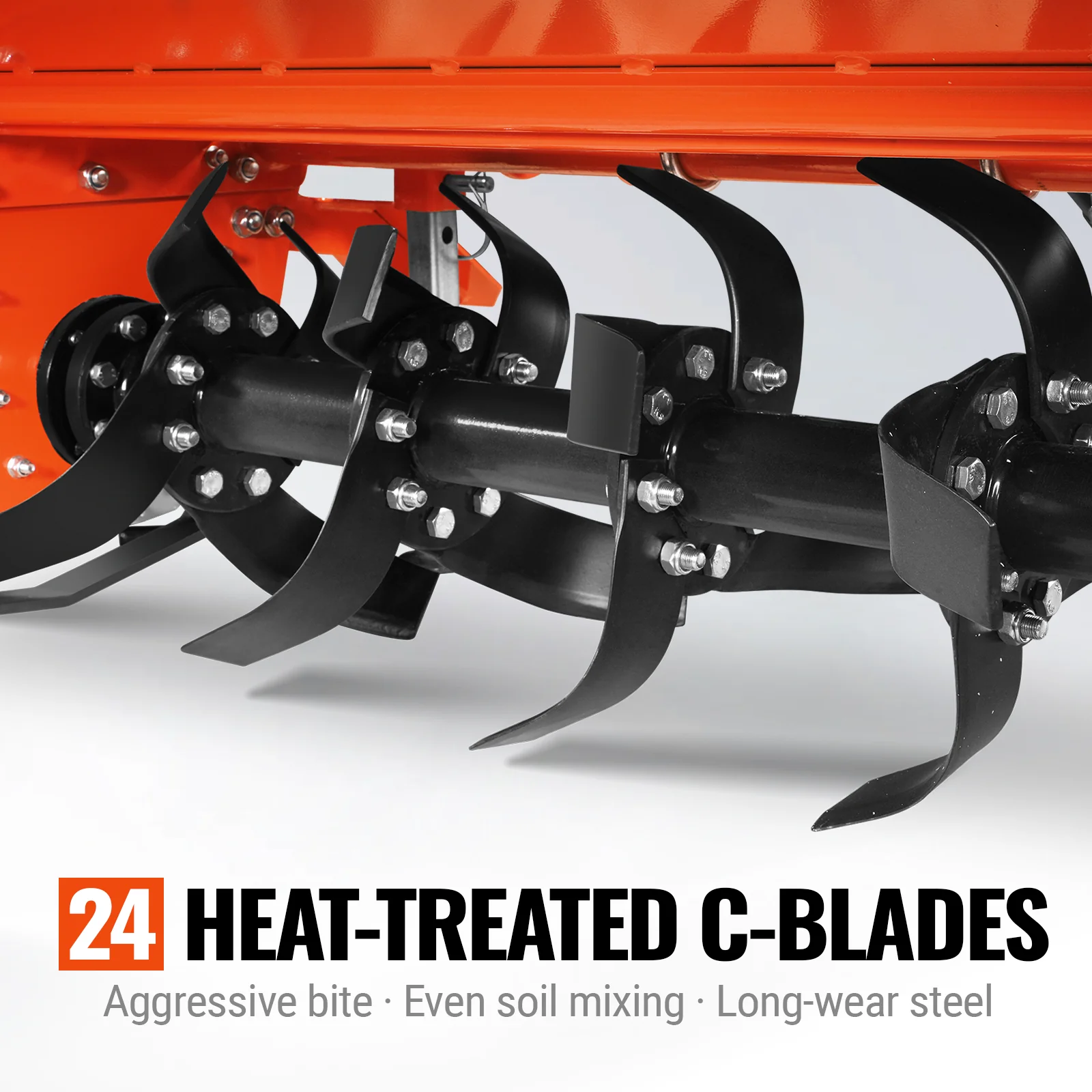

Overall Dimensions (L×W×H)	54.6 x 30.6 x 32 in	Number of Blades	24
Max Working Depth	5 in	Blade Arrangement	4 Blades per Flange

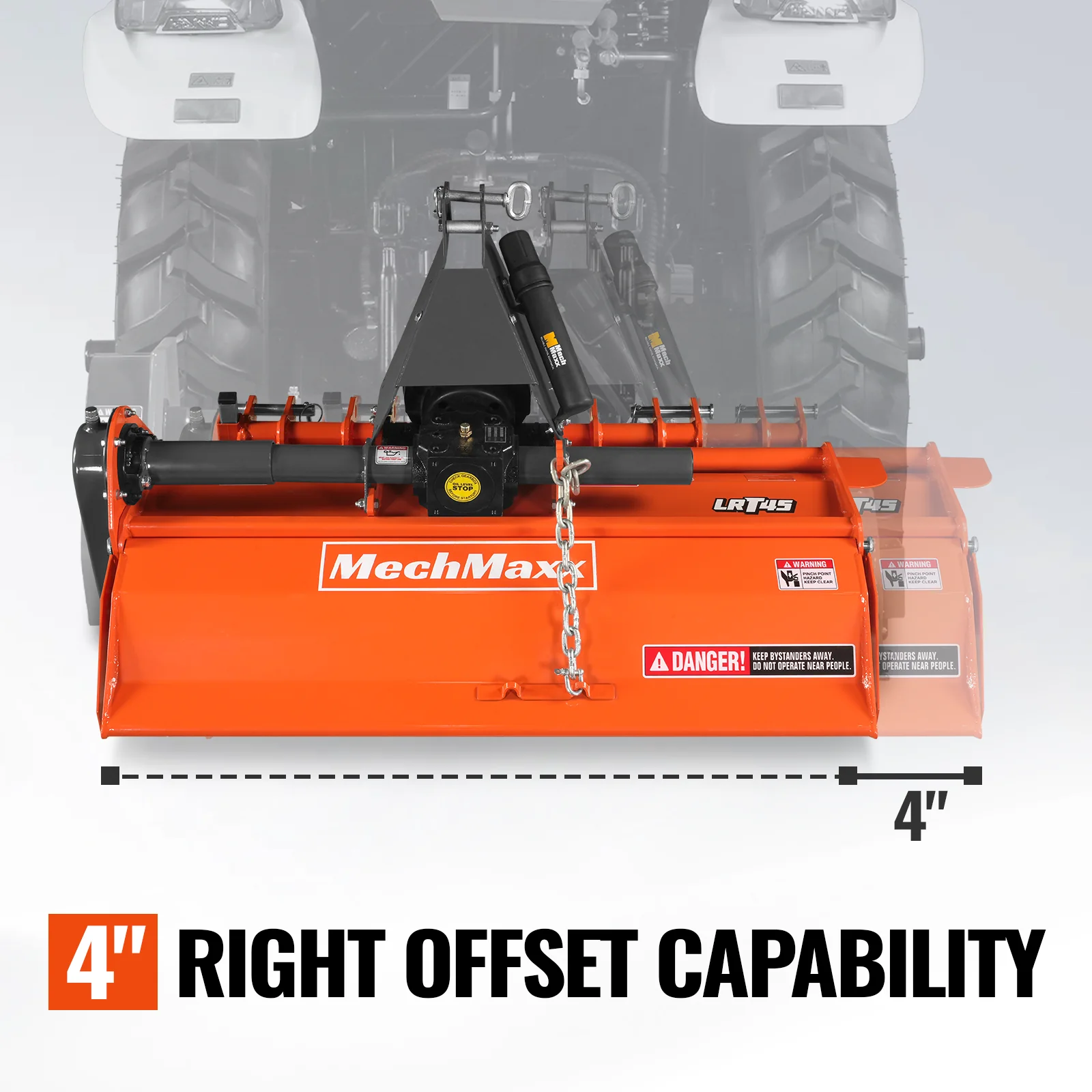

Offset Capability	4 in Left / Right from Center	Blade Type	Heat-Treated 60Si2Mn Steel “C”-Shaped

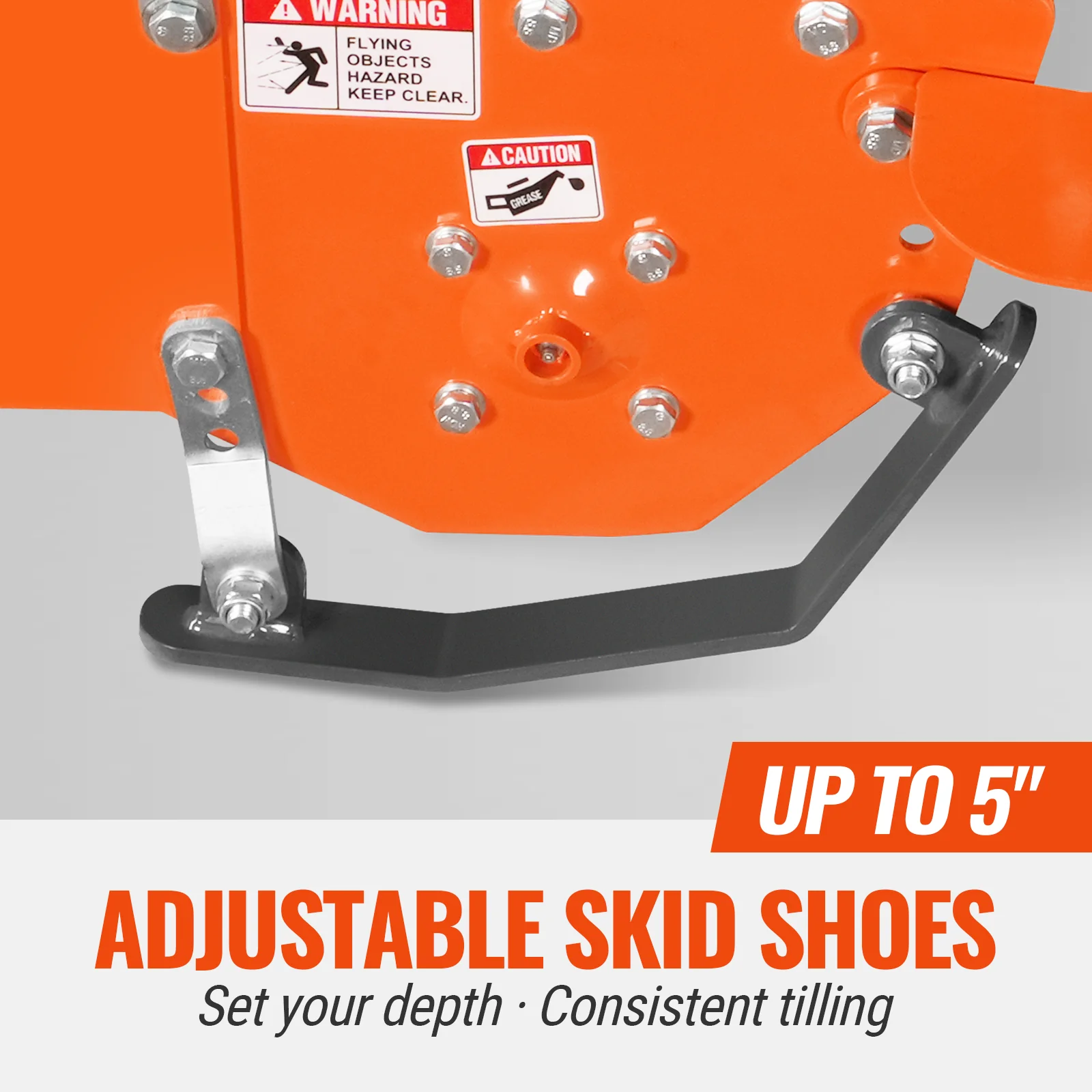

Skid Shoes	Adjustable Depth Control	PTO Shaft Included	Yes

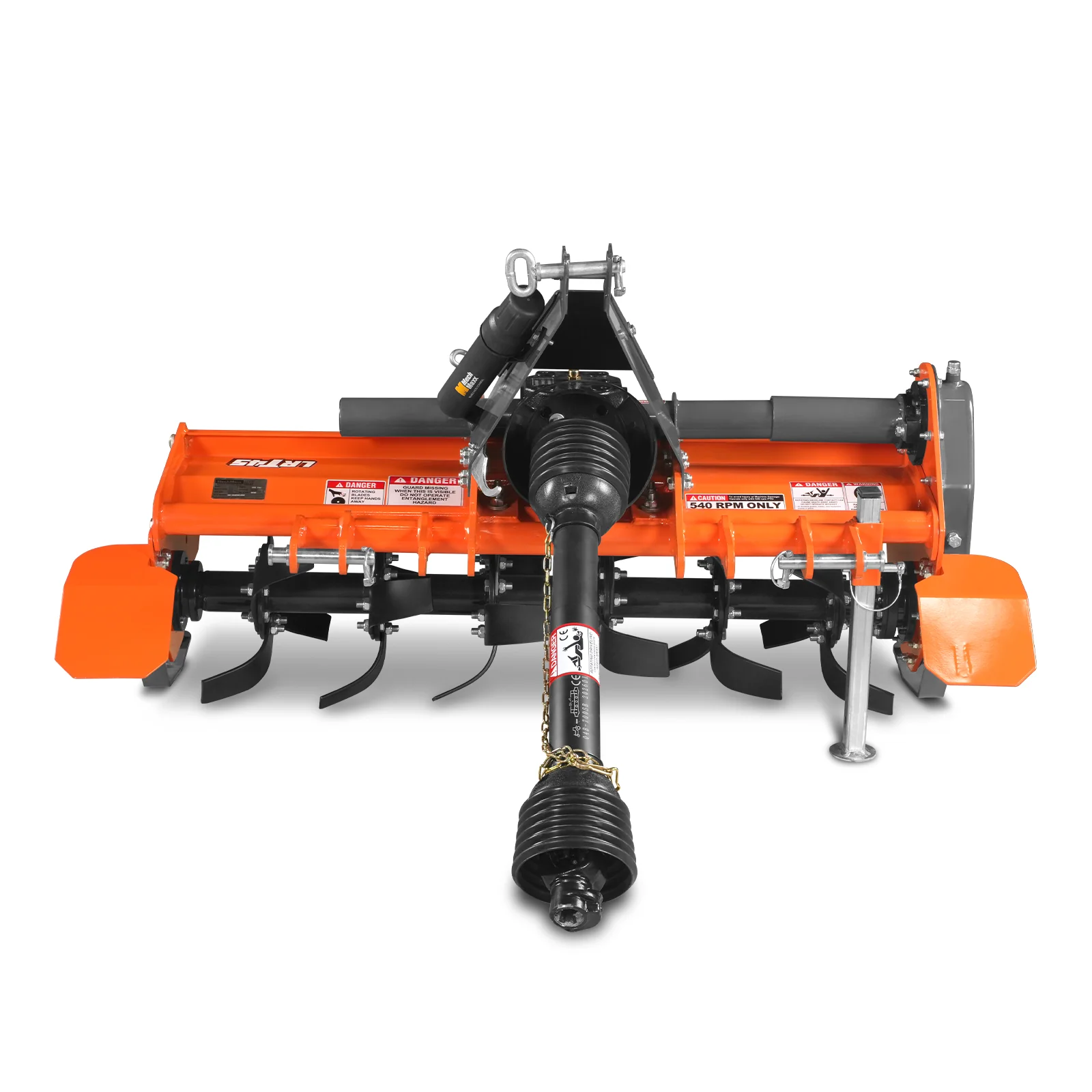

Rotor Bearing	NSK Bearing	PTO Shaft	Series 4 PTO Shaft with Shear Bolt, 1-3/8" × 6-Spline (Both Ends), Length: 27.5-30 in
Rotor Rotation	Forward	Tractor PTO Speed	540 RPM
Rotor Speed @ 540 PTO RPM	284 RPM	Recommended PTO HP	15-35 HP
Rotor Diameter	2.5 in	3 Point Hitch	Cat.1
Rotor Swing Diameter	13.8 in	Quick Hitch Compatibility	Cat.1 Quick Hitch Compatible

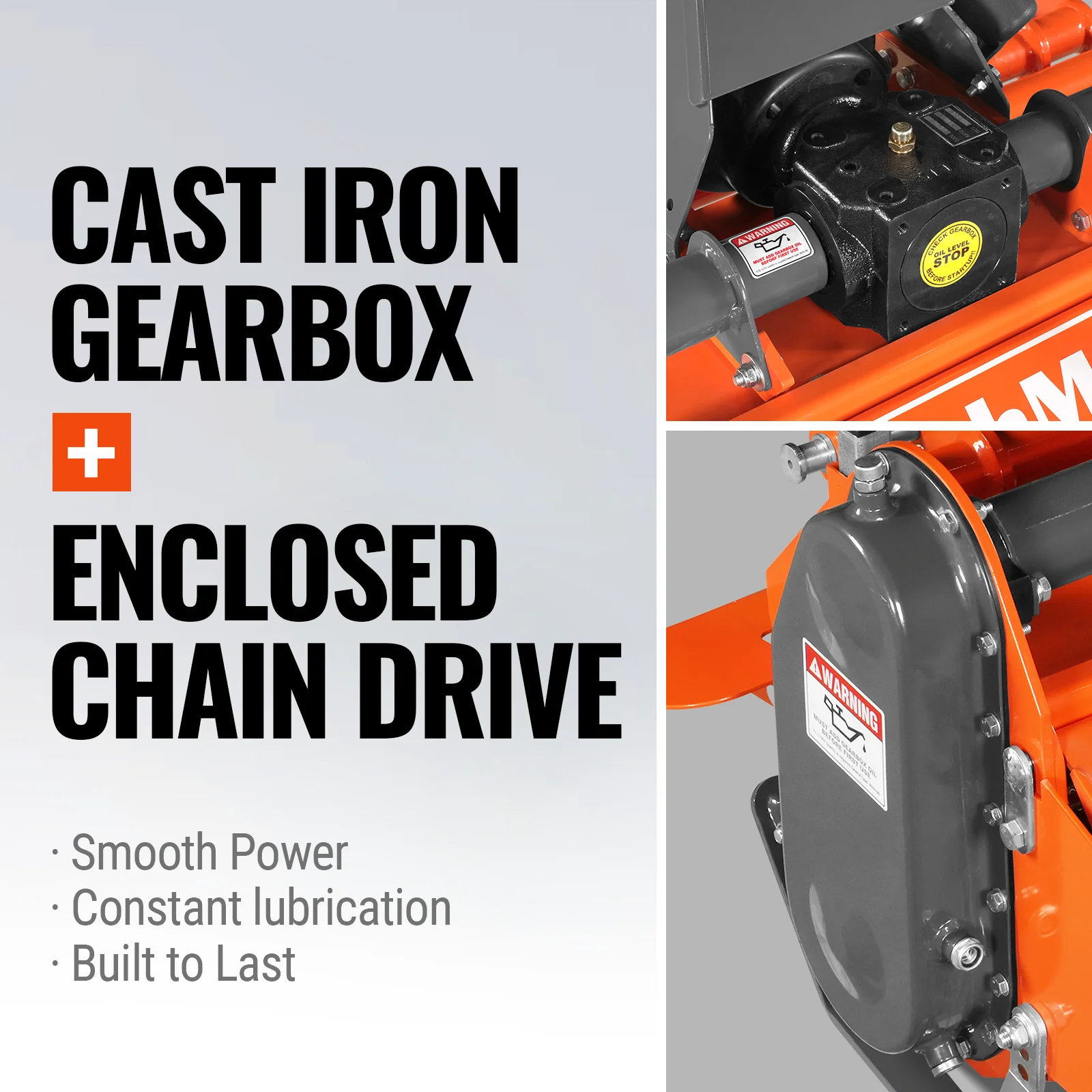

Side Drive Type	Chain Driven	Rear Deflector	Hinged

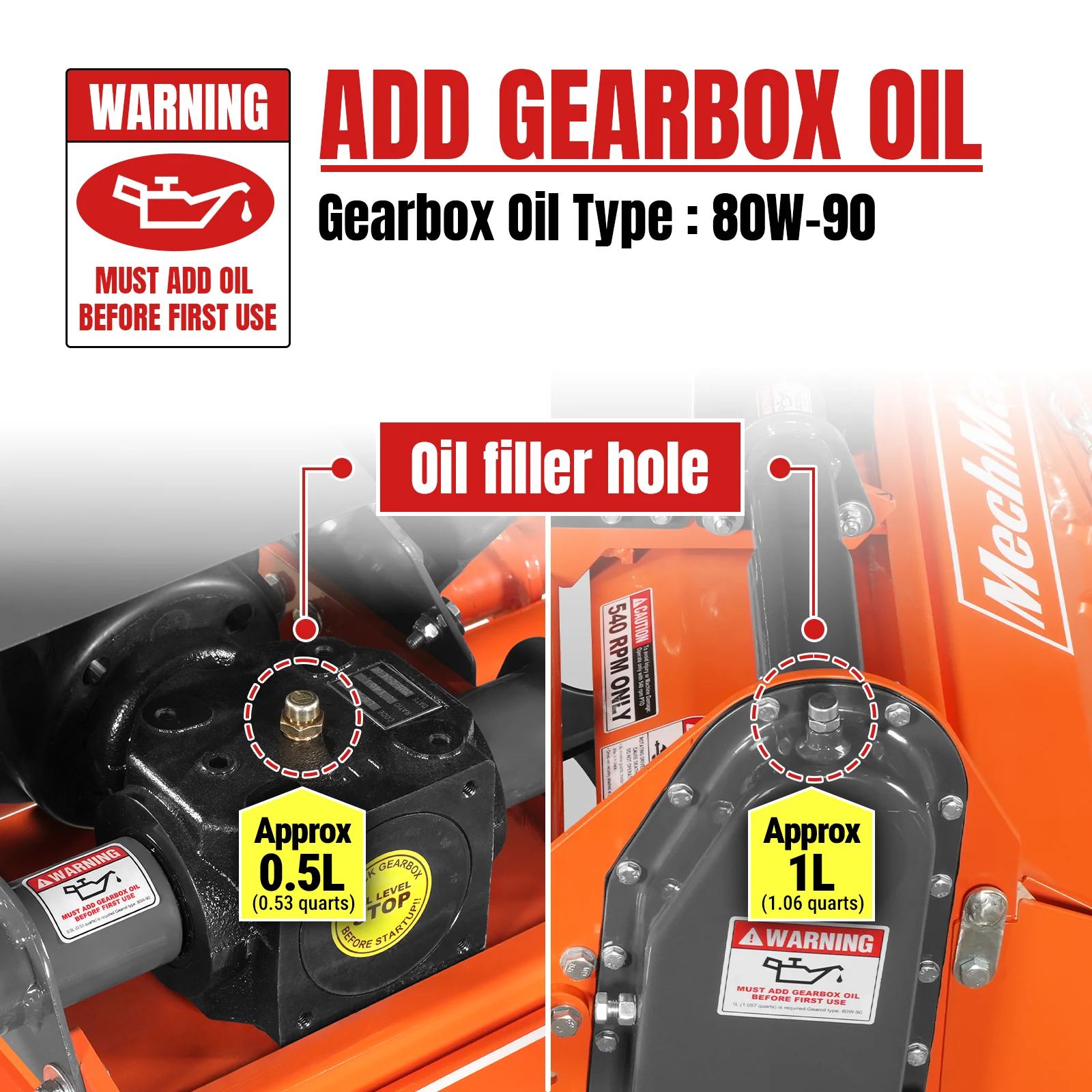

Side Box Lubrication	SAE 80W-90, Approx. 1 L (1.06 qt) NOTE: SHIPPED WITHOUT OIL.	Parking Stand Included	Yes
Main Gearbox	Cast Iron Oil-Bath Gearbox, Gear Ratio 1.46:1	Packing Size (L×W×H)	55.91 x 24.41 x 25.59 in
Gearbox Lubrication	SAE 80W-90, Approx. 0.5L (0.53 qt) NOTE: SHIPPED WITHOUT OIL.	Weight (N.W/G.W.)	321.87/391.32 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
