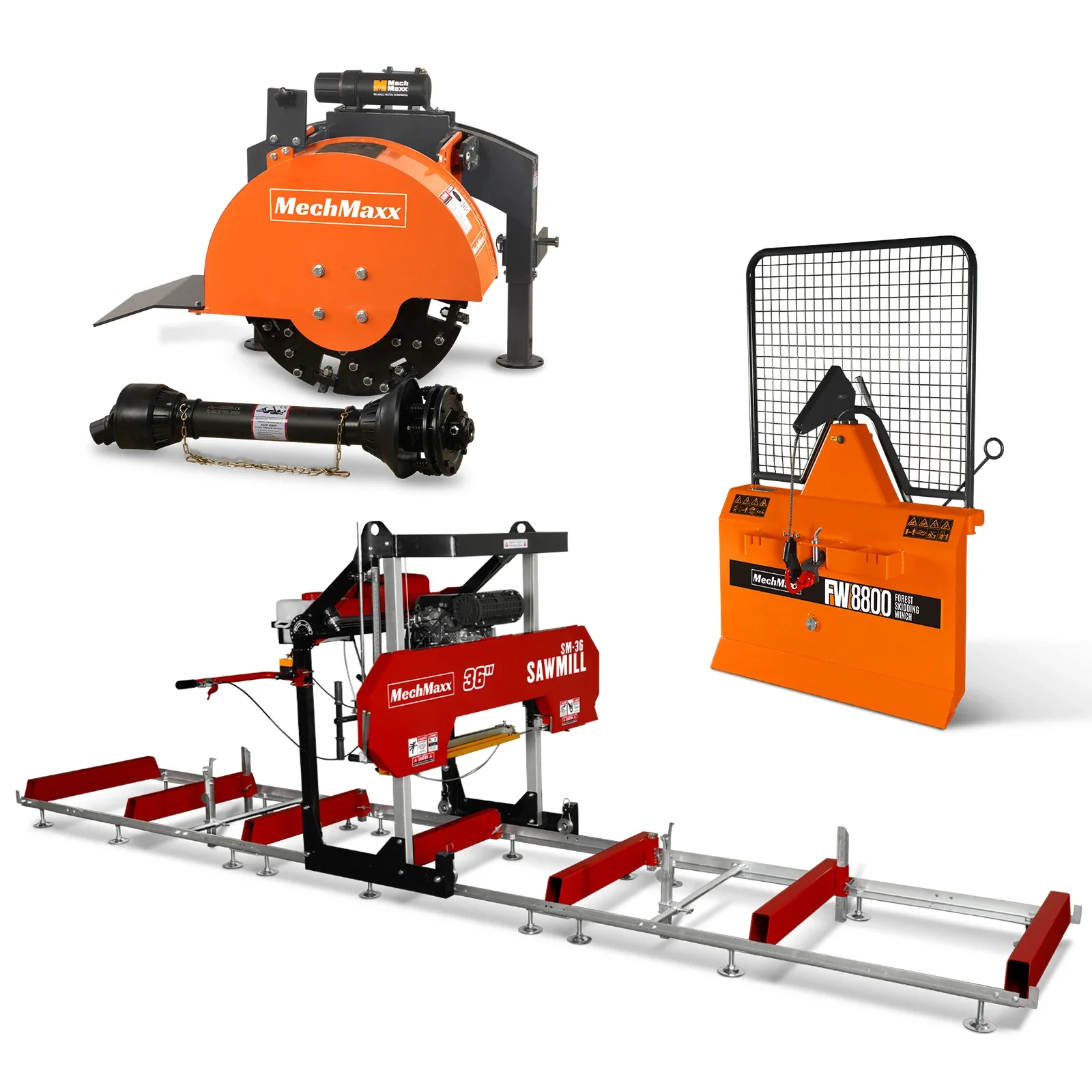

36" MAX Portable Sawmill & 3-Point PTO Stump Grinder & Forestry Log Skidding Winch Combo
3-Point PTO Stump Grinder
| Flywheel Diameter | 24 in | Mounting | 3 Point Hitch Cat. 1 (Quick Attach Compatible) |
| Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |
| Carbid Tip | 34 PCS | Max. Torque | 1200 N·m |
| Carbid Tip Material | YG11C | PTO Shaft Weight | 44 LBS |
| Tip Holder Material | 42CrMo | Dimensions | 29 × 37 × 38 in |
| PTO HP Required | 15–45 HP | Packing | Iron Frame + Carton |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 LBS |
| Friction Torque Limiter (Slip Clutch) | Included |
36" MAX Portable Sawmill
| Engine | ZONSEN GB750 | Lubricant Tank Size | 4 gal |
| Engine Type | Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling | Fuel Tank Size | 6.3 gal |
| Engine Displacement | 750 cc | Track Width | 3 ft 10 in |
| Horsepower | 25 HP | Track Length | 20 ft |
| Start | E-Start | Track Extension Length | 6 ft 6 in |
| Log Diameter | 36 in | Levelling Feet | 18 |
| Max Live Edge Width | 36 in | Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 16 ft 2 in | Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 7 in | Track Bunks | 3 X 6 in |
| Blade Engagement System | Centrifugal Clutch | 4 Post Head Design | Yes |
| Cast Iron Bandwheel Diameter | 19 in | Finish | Powder Coat Paint Galvanized Steel |
| Blade Wheel Engagement | Belt Drive | Sawmill Warranty | 2 Years |
| Blade Guide | By Roller | Engine Warranty | 2 Years |
| Blade Tension | By Adjustable Lever | Package Method | Wood |
| Blade Size | 175 x 1.3 in | Packing Size | 90 x 28.5 x 34 in |
| Blade Pitch | 7/8 in | Weight(N.W./G.W.) | 1115/1239 lbs |
| Blade Lubrication | Water Lube - Manual Valve |
Forestry Log Skidding Winch
| Recommended Tractor Power | 25-60hp |
| Pulling Capacity | 8800lbs |
| Winch Type | Mechanical, Dry Disc Clutch |
| Average Winching Speed | 180 ft/minute |
| Cable Length | 200 ft |
| Cable Diameter | 3/8 in |
| Cable Type | Steel |
| Tractor CAT | CAT 1 |
| PTO Input Speed | 540 RPM |
| PTO Shaft | 1-3/8in 6 Spline Tractor， With Shear Bolt |
| Dimensions | 47 X 20 X 71 in |
| Packing Size | 49 x 21 x 73 in |
| Weight (N.W/G.W.) | 602/659 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
