34 Ton Kinetic Log Splitter

Splitting Force	34 Ton

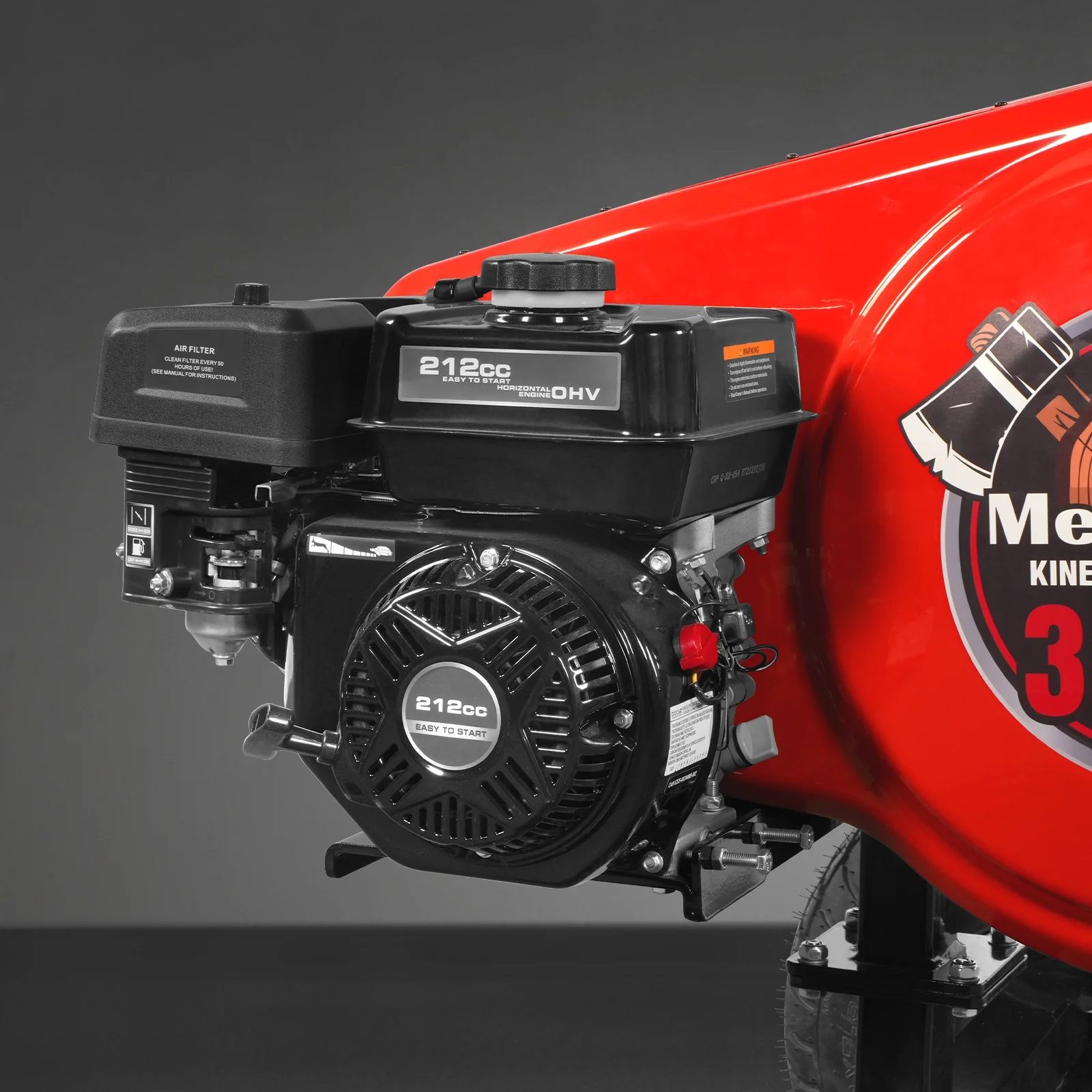

Engine	DUCAR DH212
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Displacement	212 cc; 7 HP
Belt	A1524Li*1pcs
Wedge Height	7in
Log Length Capacity	21.5in
Log Diameter Capacity	28 in
Cycle Time	3 seconds (Approximate）
Sprocket Rate	1 : 8
Flywheel Max RPM	450
Tire	19 x 7.0-8 Tubeless
H-beam Height	26in
Wheelbase	87in
Towing	Tow Bar With 2 in Coupler
Product Size (L*W*H)	110*51*47in
Packing Size (L*W*H)	68.5*29.5*27.5in
Weight (N.W./G.W.)	545/595 lbs
Machine Warranty	1 Year
Engine Warranty	1 Year



 Firewood Conveyor

Engine Power	DUCAR DH212  7hp
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Conveyor Belt length	236 in
Conveyor Belt Wide	16 in
Max Discharge Height	124 in
Min Discharge Height	60 in
Drive System	Hydraulic
Hydraulic Pump	5.7 GPM Single Stage Pump
Hydraulic Fluid Type	AW-46
Hydraulic Tank Capacity	4.2 gal
Hydraulic Oil Filter Fineness	10 micron
Towing	Tow Bar with 2 in Coupler
Maximum Towing Speed	45 MPH
Tires Rims	13 in
Tires	19 in Radial (O. D.)
Overall Dimensions (LxWxH)	261x60x63 in
Finish	Powder Coating
Package Method	Plywood Case
Packing Size (LxWxH)	90x38x33 in
Warranty	1year
Weight (N.W./G.W.)	992/1124 lbs



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
