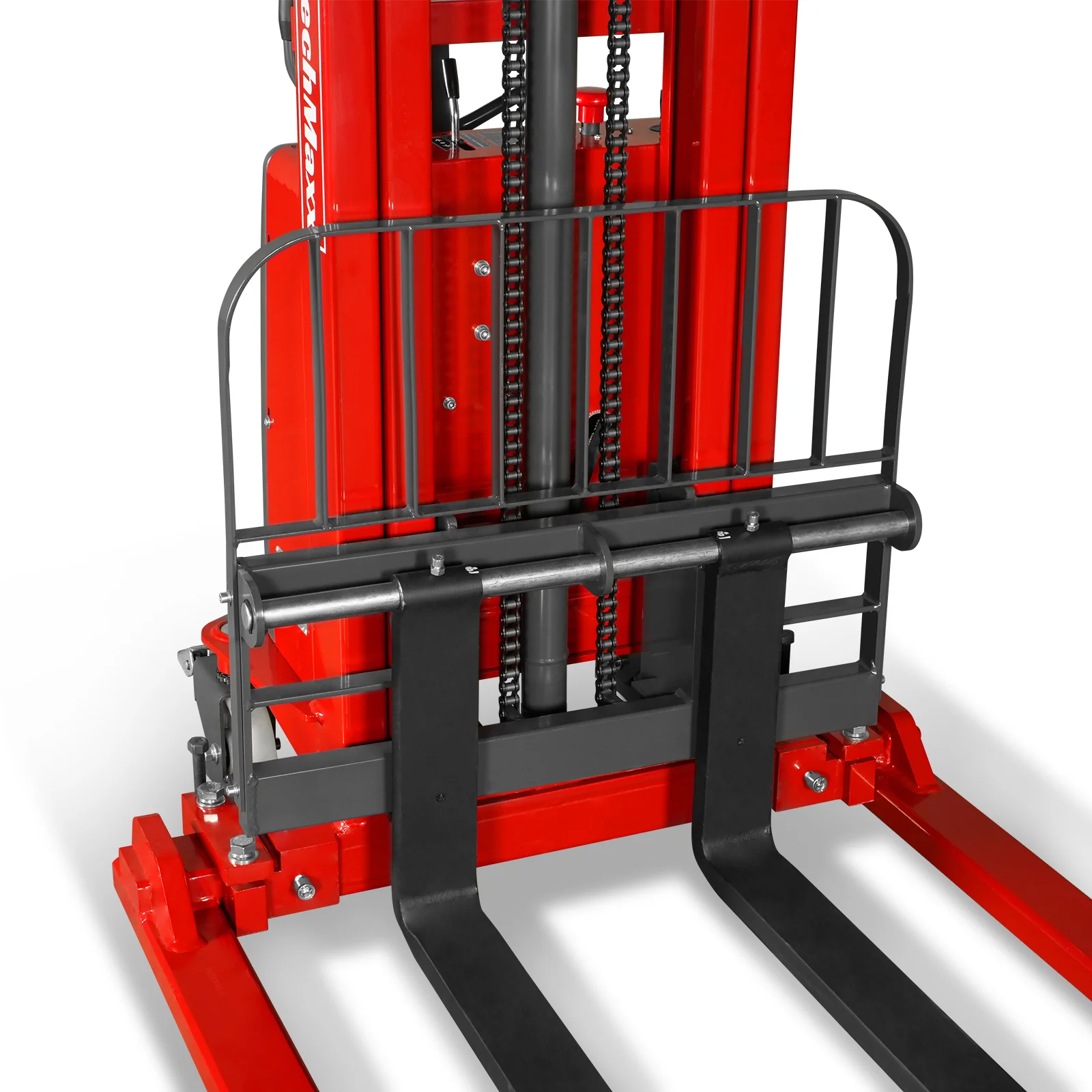

Load Capacity	3300 lbs	Fork Overall Width	8.3 - 33.5 in
Operator Position	Walkie	Fork Size (TxWxL)	1.4 x 4 x 45.3 in
Tire Type	Polyurethane	Turing Radius	53.2 in
Overall Length	70 in	Lifting Speed (laden/unladen)	15/28.2 fpm
Max Lift Height	138 in	Lowering Speed (laden/unladen)	21.3/19.1 fpm

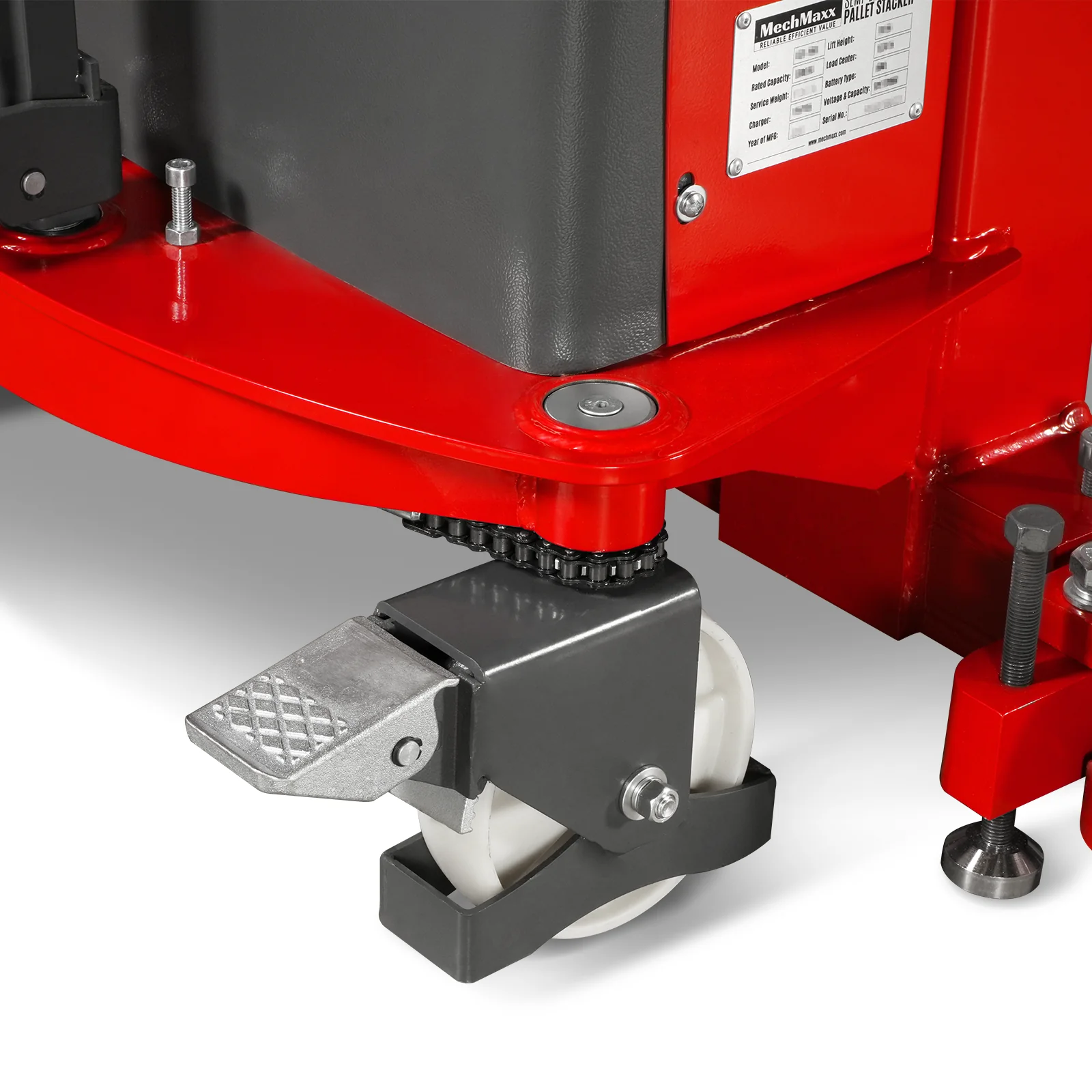

Min Lift Height	2.4 in	Service Brake	Foot Pedal

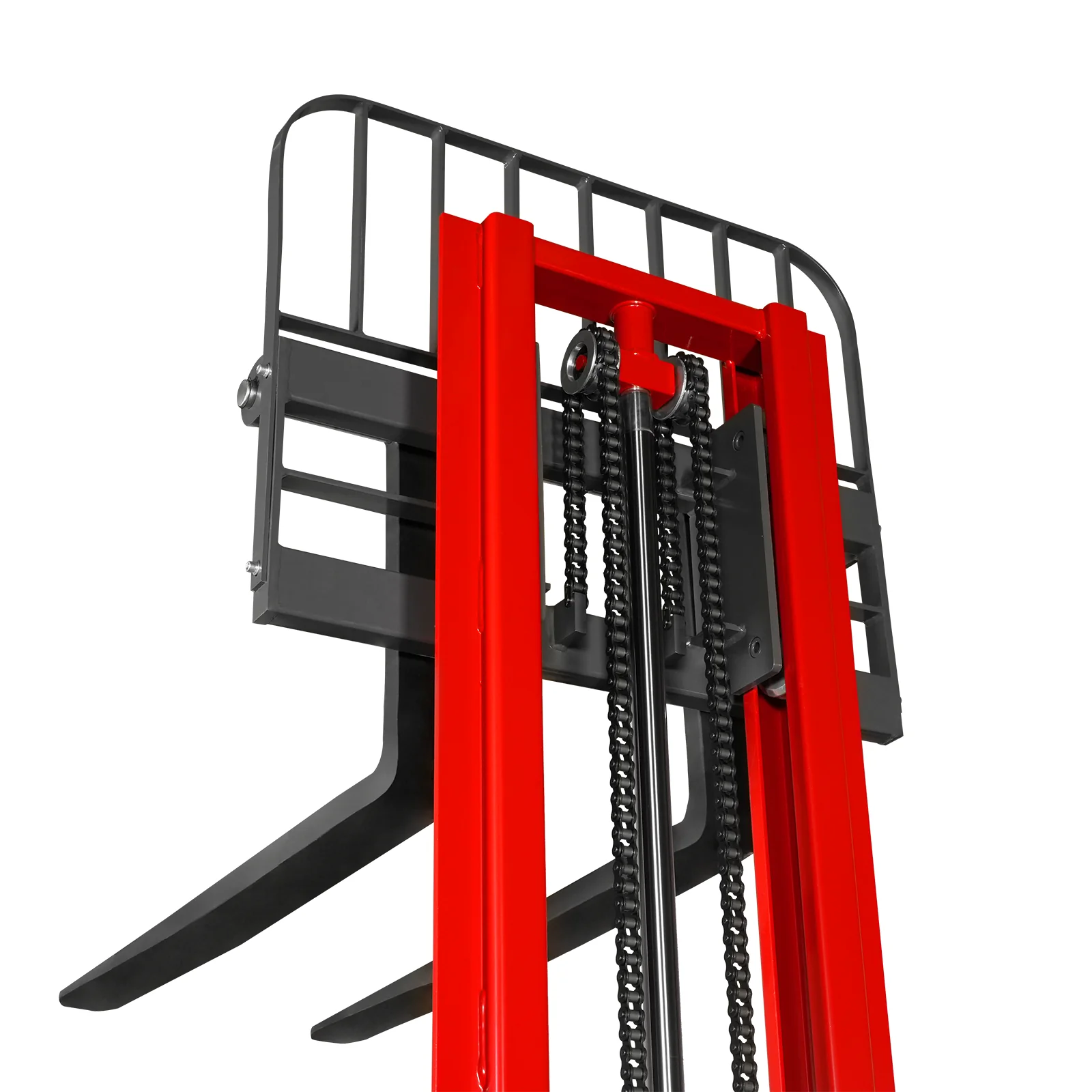

Mast Height (raised)	162 in	Battery	12V/120Ah Maintenance-free AGM Battery

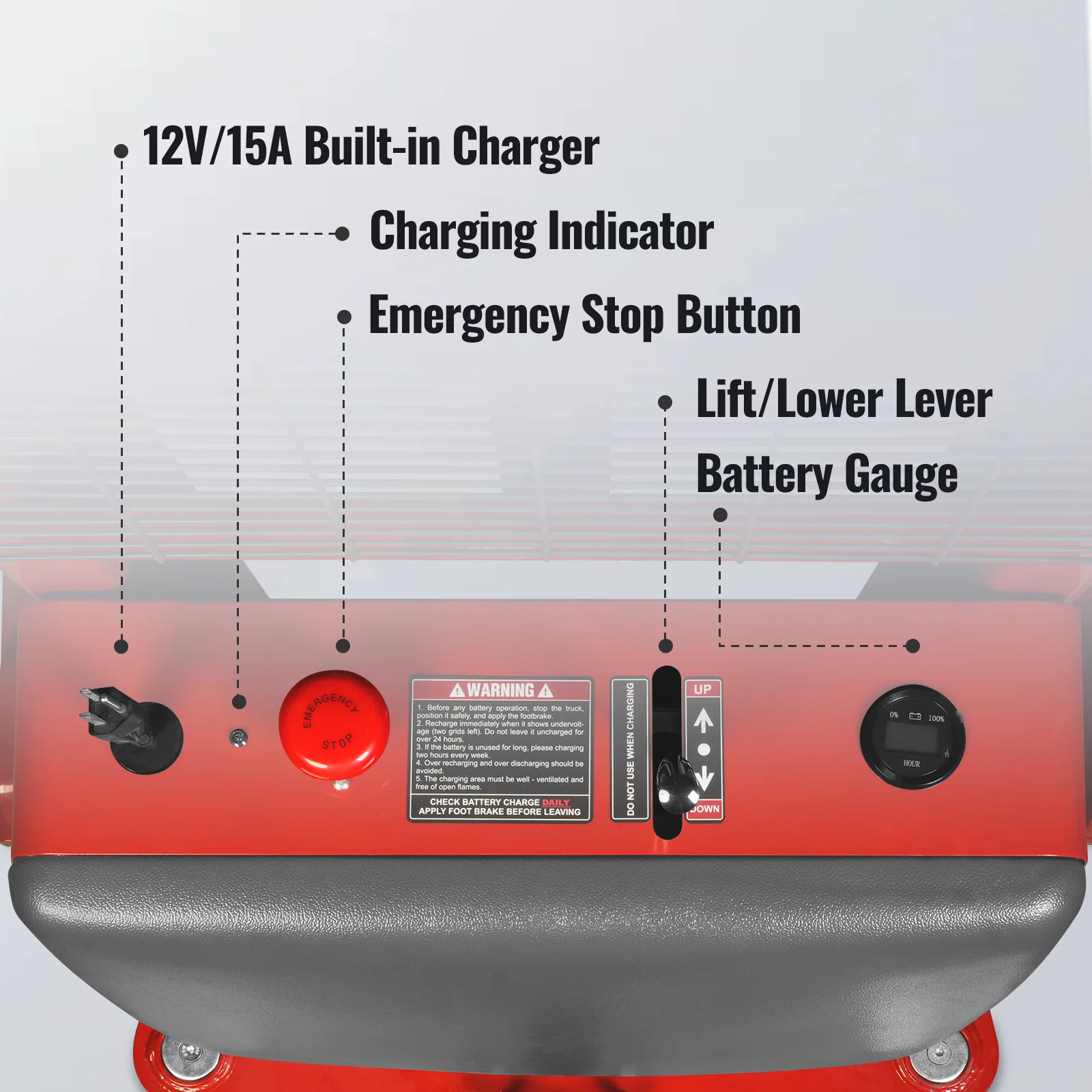

Mast Height (lowered)	94.3 in	Charger	12V/15A Built-in

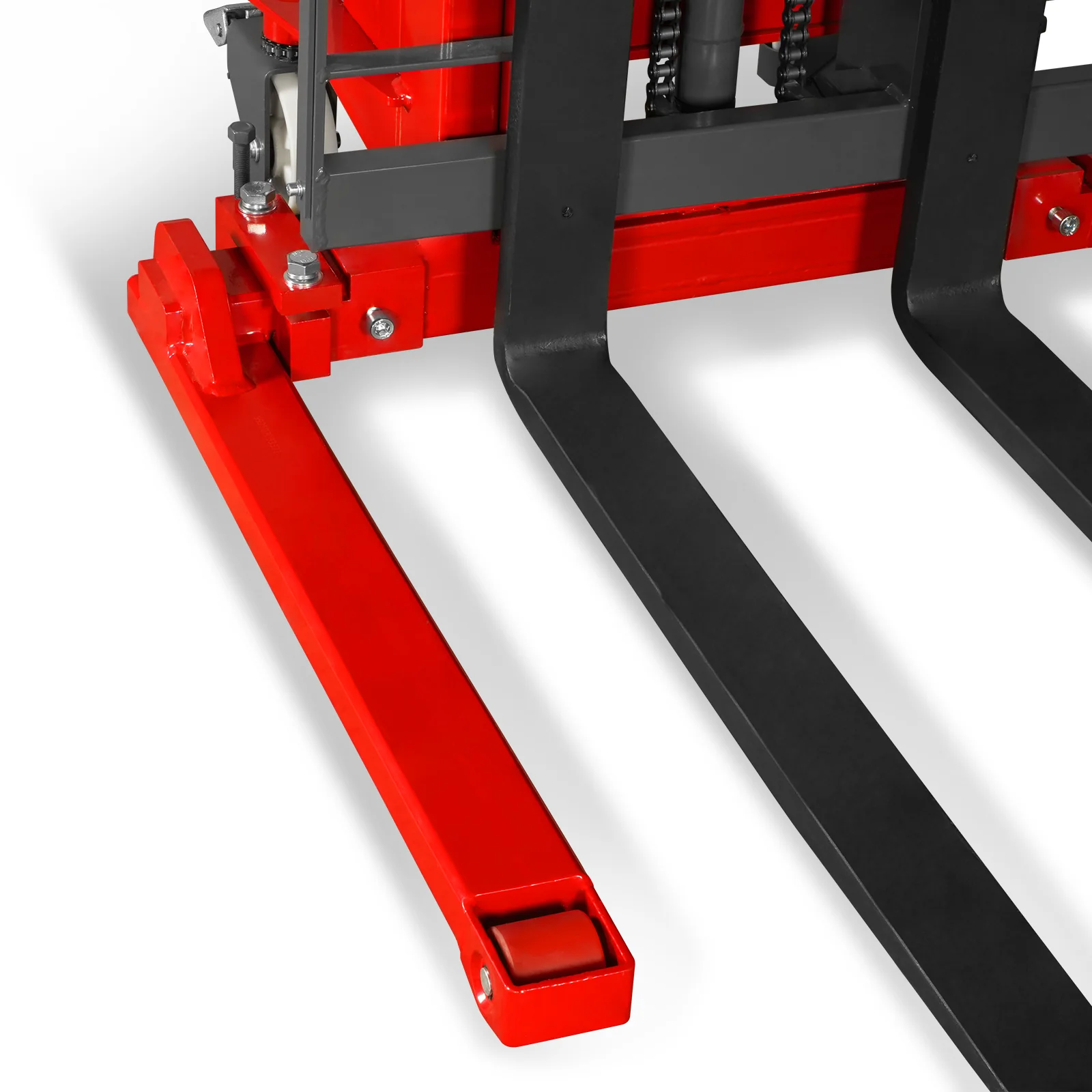

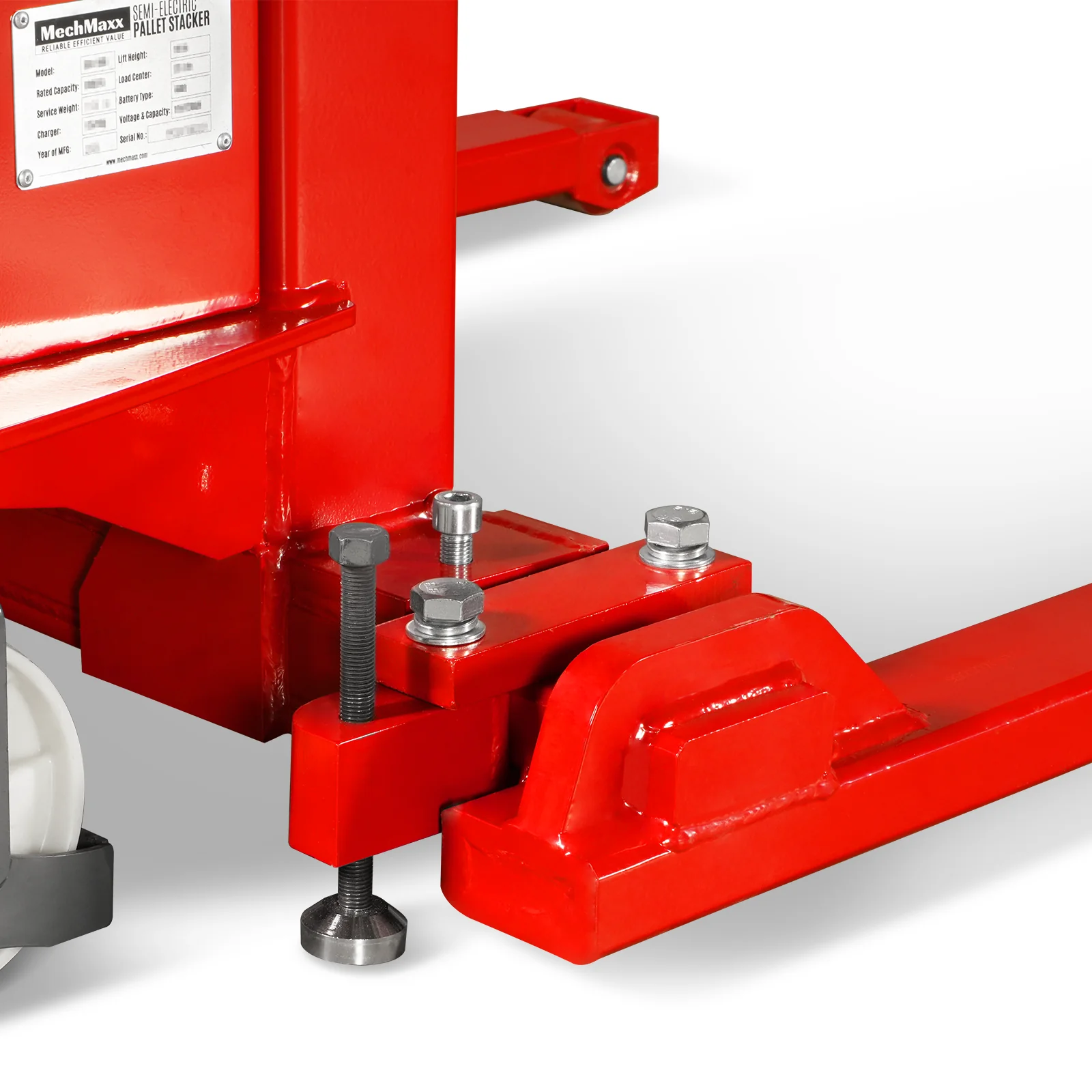

Straddle Leg Width (I.D.)	35.4 - 51.2 in	Lift Motor	1.6 kW
Straddle Leg Width (O.D.)	43.3 - 59 in	Packing Size (LxWxH)	39 x 37 x 97 in
Load Center	23.6 in	Weight (N.W/G.W.)	1180/1334 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
