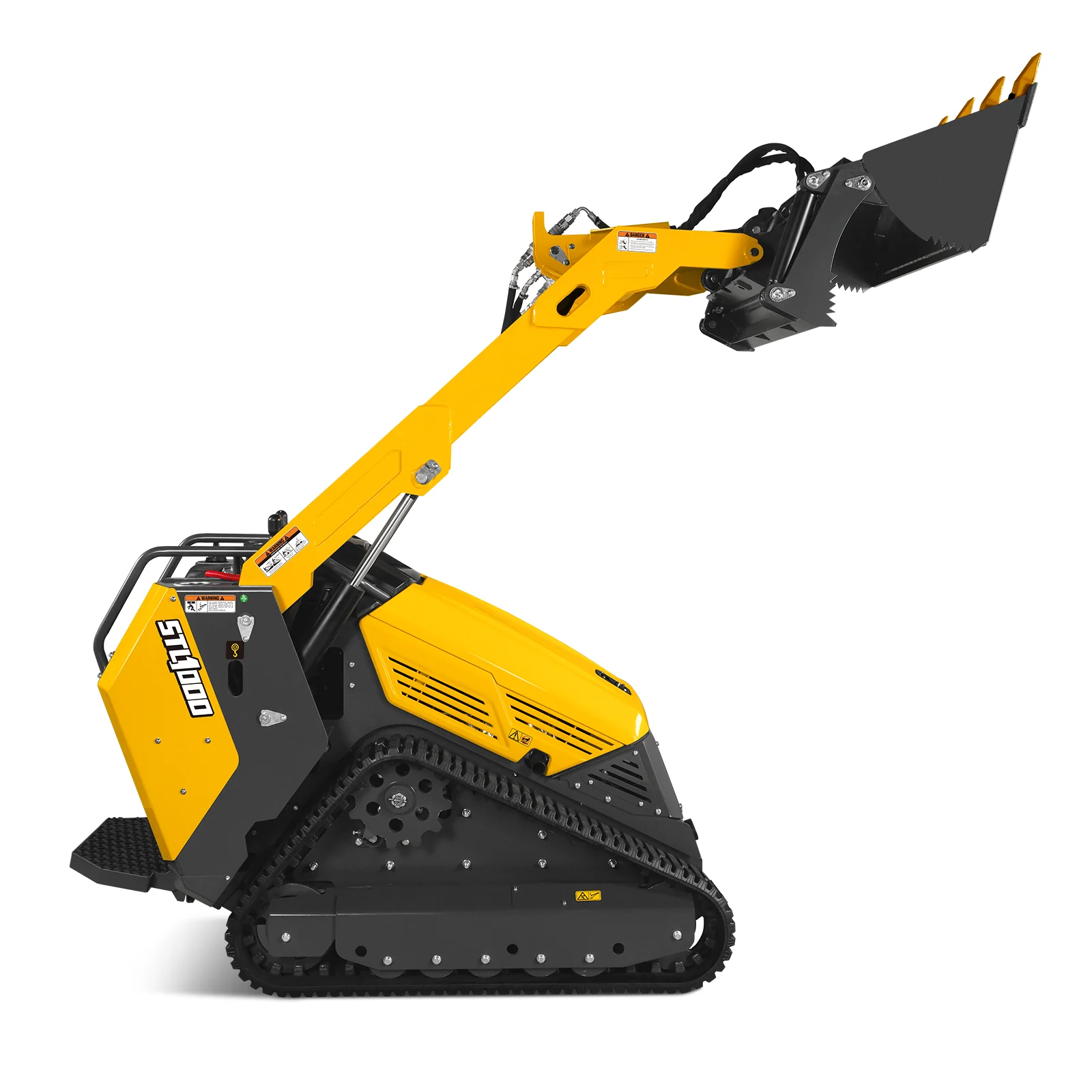

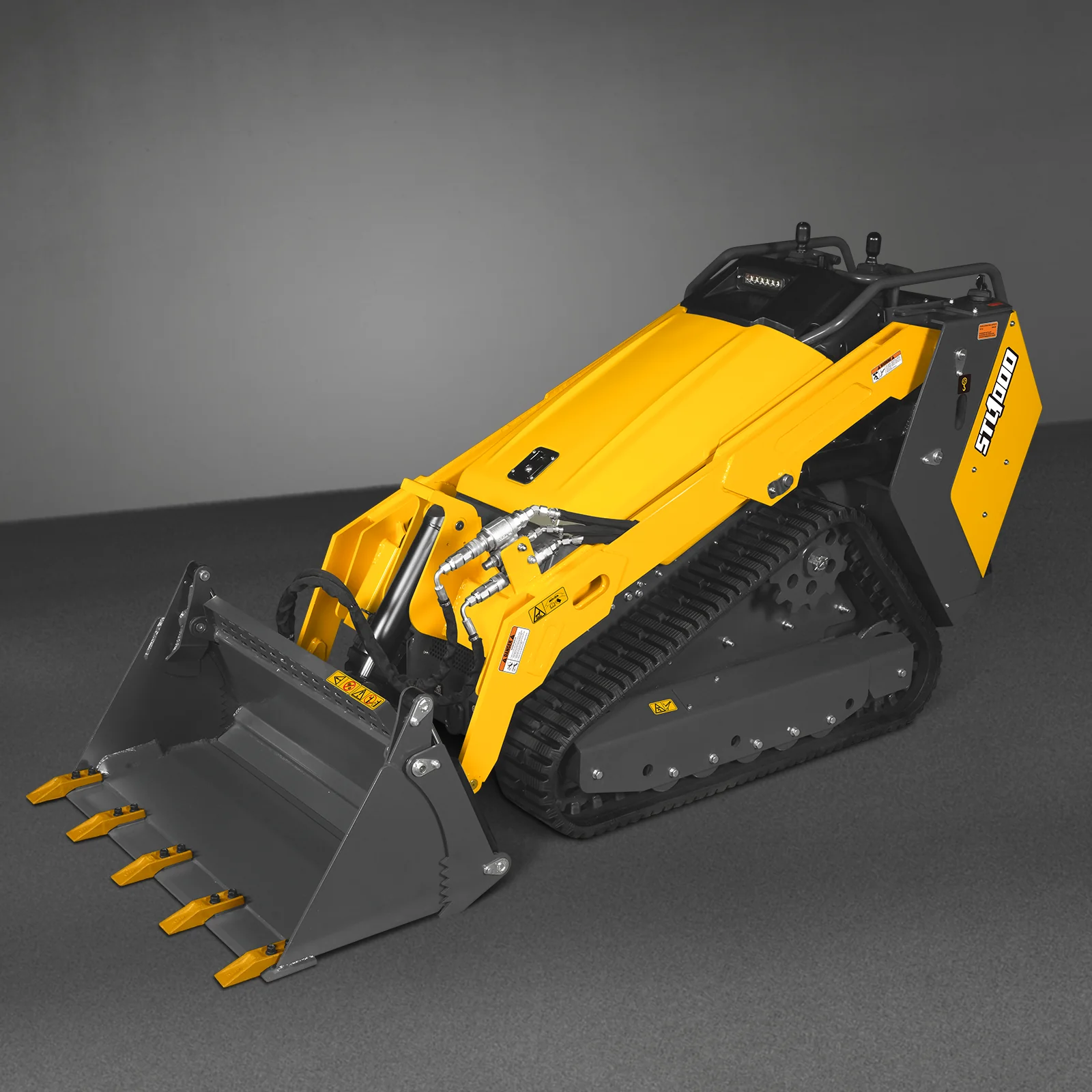

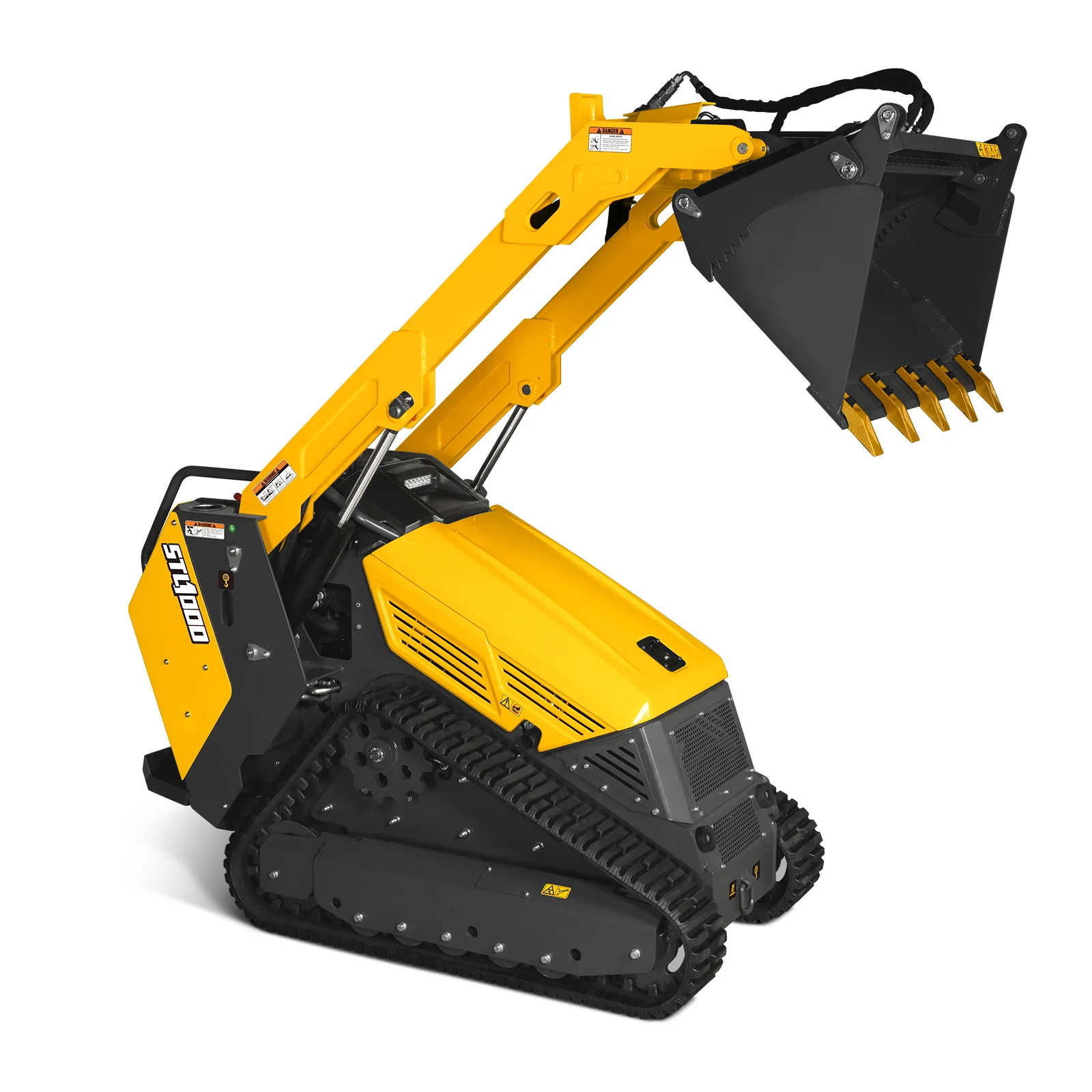

Mini Skid Steer Stand On Compact Track Loader ( 4 in 1 bucket included ) with 25HP KUBOTA D1105 Diesel Engine, Common Industry Interface (CII), CROBA STL1000
| ENGINE | |
| Engine Model | KUBOTA D1105-E4B-CWL-1 |
| Type | Vertical, water-cooled, 4-cycle diesel |
| Total Displacement | 68 cu.in. |
| Number of cylinder | 3 |
| Brake Horse Power -Net intermittent without fan ISO 14396 | 18.2 kw/3000 rpm |
| Rated Speed | 3000 rpm |
| Max. Torque | 70.4Nm/2200 rpm |
| Low Idling Speed | 850-950 rpm |
| DIMENSIONS | |
| Overall Length (With 4-In-1 Bucket Parallel To Ground) | 109 in |
| Overall Length (w/o 4-In-1 Bucket) | 83 in |
| Overall Height | 51.6 in |
| Overall Width With 4-In-1 Bucket | 43.7 in |
| Overall Width w/o 4-In-1 Bucket Bucket | 35.87 in |
| Weight With 4-In-1 Bucket (w/o Operator) lbs | 3206 lbs |
| Weight w/o 4-In-1 Bucket | 2895 lbs |
| Rated Operating Capacity (35%) | 1,000 lbs ROC |
| Tipping Load | 2,857 lbs |
| Wheelbase | 42 in |

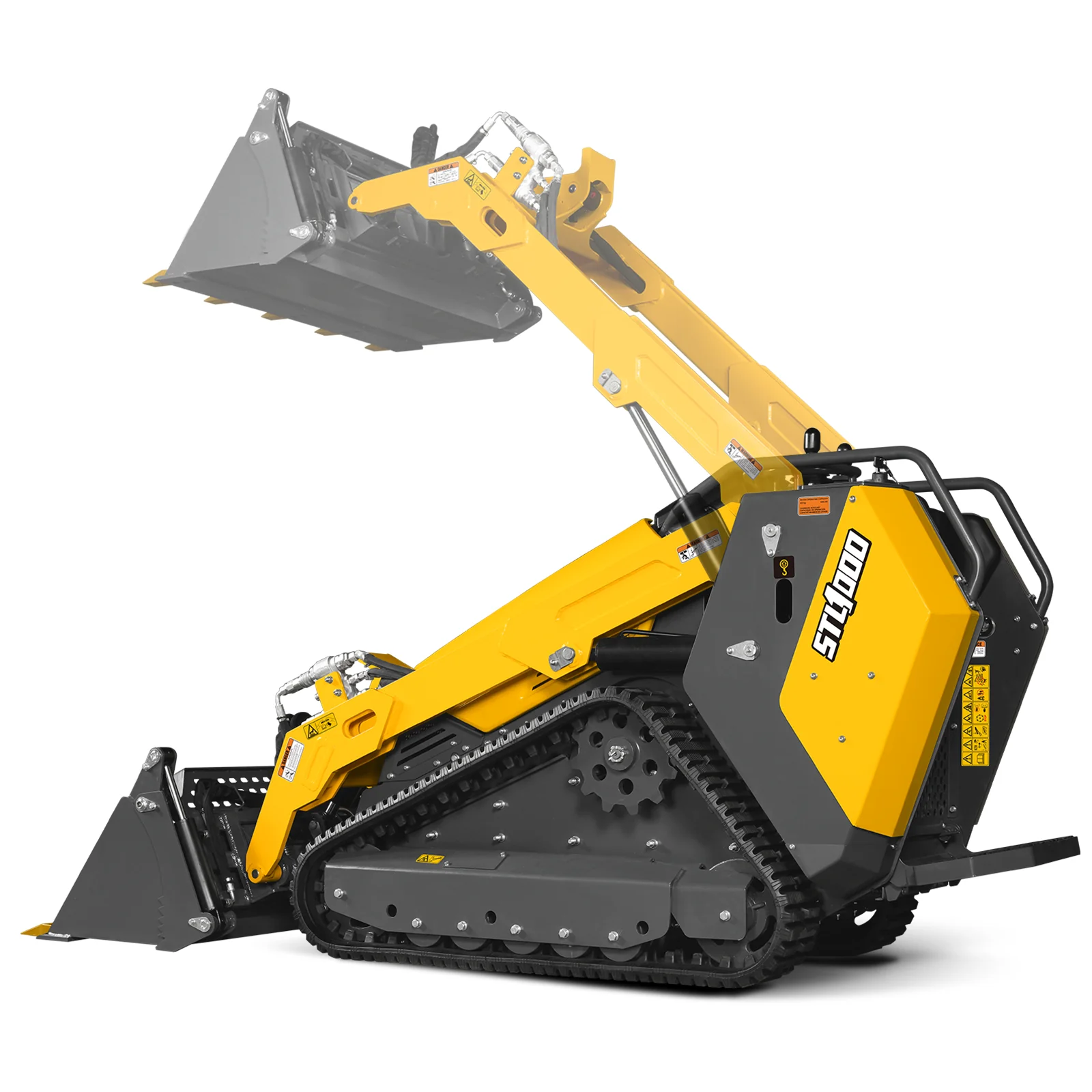

| Hinge Pin Height At Max. Lift | 83.5 in |
| Reach At Max. Lift And 45° Dump | 19.2 in |
| Bucket Capacity | 6.53 cu.ft. |
| Track Width | 7.87 in |
| Ground Clearance | 6.30 in |
| Angle of Departure | 24.8° |
| OPERATION | |
| Steering And Drive | Dual axis, pilot-operated joystick |
| Lift And Tilt | Dual axis, manual-operated joystick |

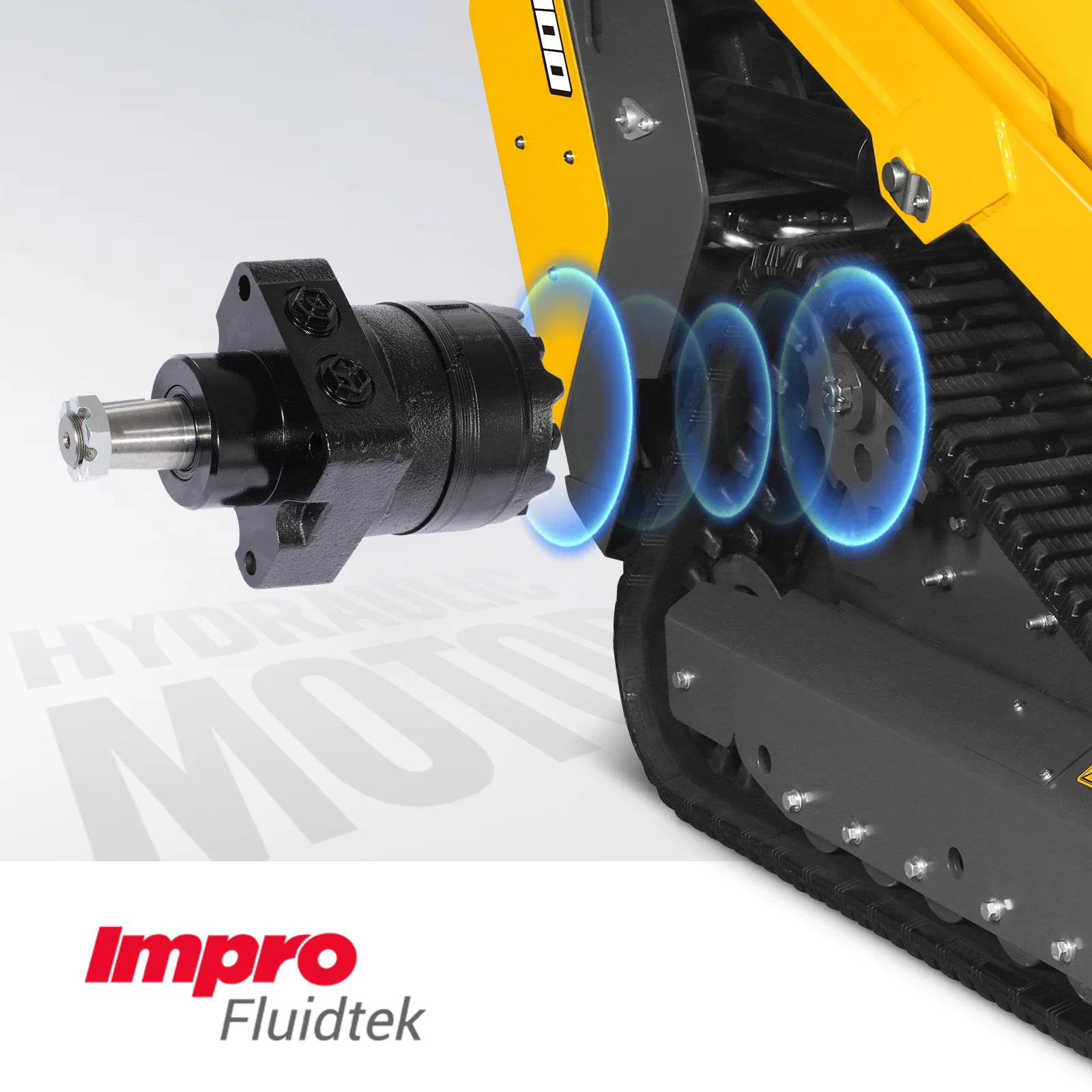

| Transmission | Hydrostatic track drive system |
| Attachment | One lever with dual direction detent |
| PERFORMANCE | |
| Attachment Mounting System | CII (Common Industry Interface) |

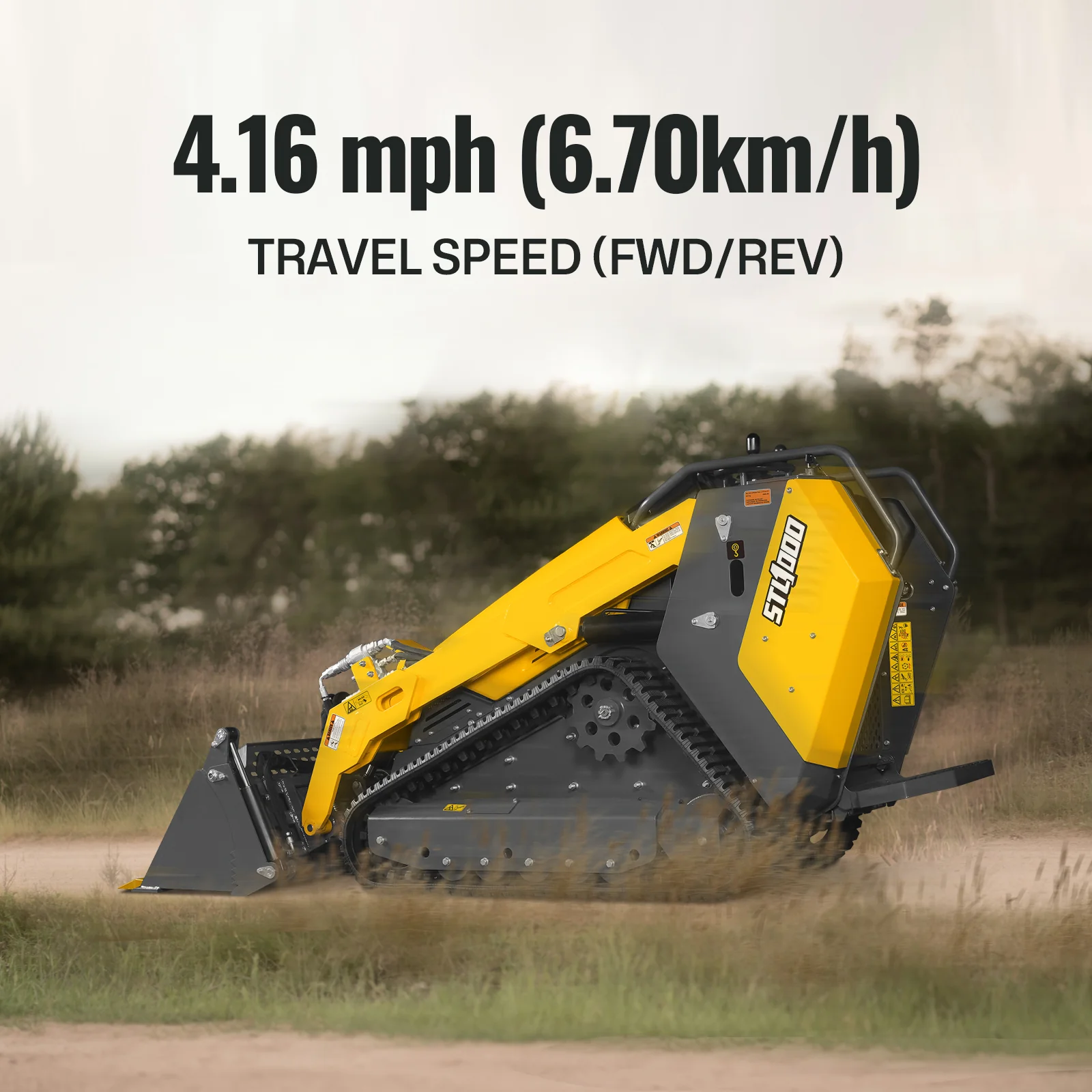

| Travel Speed (Fwd/Rev) | 4.16 mph (6.70km/h) |
| Ground Pressure (with Operator) | 4.12 psi (28.4kpa) |
| Battery Capacity | 12V, 55Ah |
| Auxiliary Hydraulic Flow | 13.5 gal/min |
| Auxiliary Hydraulic Pressure | 2828 psi (19.5Mpa) |
| SERVICE & FILL CAPACITIES | |
| Fuel Tank Capacity | 8.32 gal |
| Hydraulic System | 5.54 gal |
| Package Method | Wood Case |
| Warranty for Machine | 1 Year |
| Warranty for Engine | 2-Year or 2,000-Hour Warranty, Whichever Comes First. |
| Packing Size | 87 x 38 x 59 in |
| Shipping Weight | 3087 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
