Engine Power Required	25-50 hp	Rotor Shaft Speed	2356 rpm
Working Width	48in	Hydraulic Fittings Size	G1/2 in
Overall Width	56in	Hydraulic Hoses Quantity	4
Ground Clearance (Two Gears)	0.5-0.6in	Drive Type	Belt Drive
Max. Cutting Diameter	Depends On The Type Of Grass	Spline End	1.375in  Z6
Offset Distance From The Center (Maximum)	69in	Driveline Shaft Length	T6-LF-63 With Shear Bolt ;  63-77in [05B-1600]

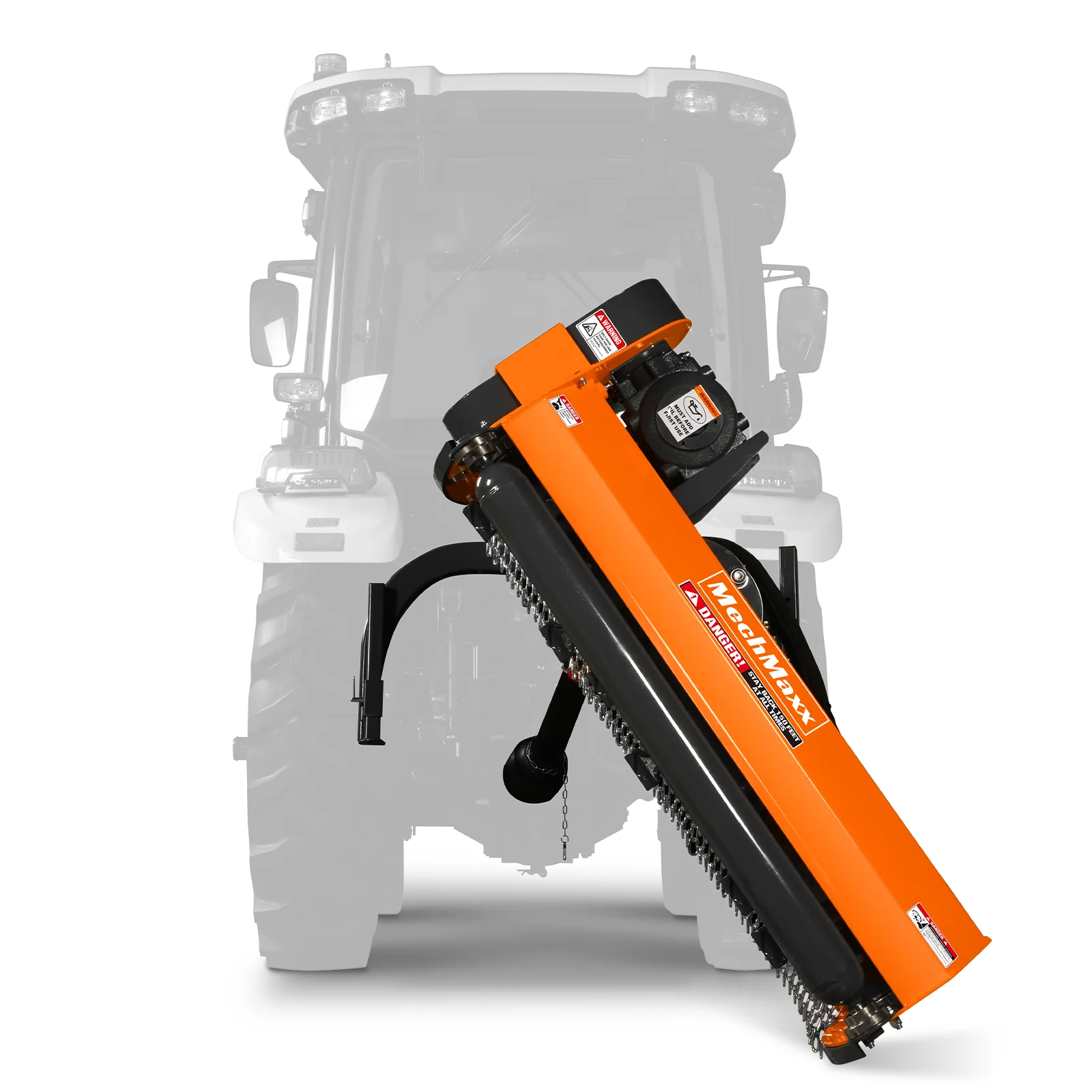

Tilt-Up Angle	90°	PTO Shaft Speed	540 rpm
Tilt-Down Angle	60°	Deck Thickness	0.16in
Number Of Blades	20	Side Plate Thickness	0.25in
Blade Type	Hammer	3-Point Hitch	CAT 1
Size of Blades	3.5 x 3.2 x 1.6in	Gearbox 0il Type	85W-90
Blade Weight	0.9 lbs	Number of Belts	3
Blade  Material	Cast Steel	Belt Size	V Belt 17 x 991
Rotor Bearing	SKF Bearing	Finish	Powder Coating
Rotor Diameter	4.3in	Warranty	1 Year
Blade Swing Diameter	14in	Dimensions (L x W x H)	56 x 27.5 x 28in
Rotor Thickness	0.3in	Weight (N.W./G.W.)	613/723 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
