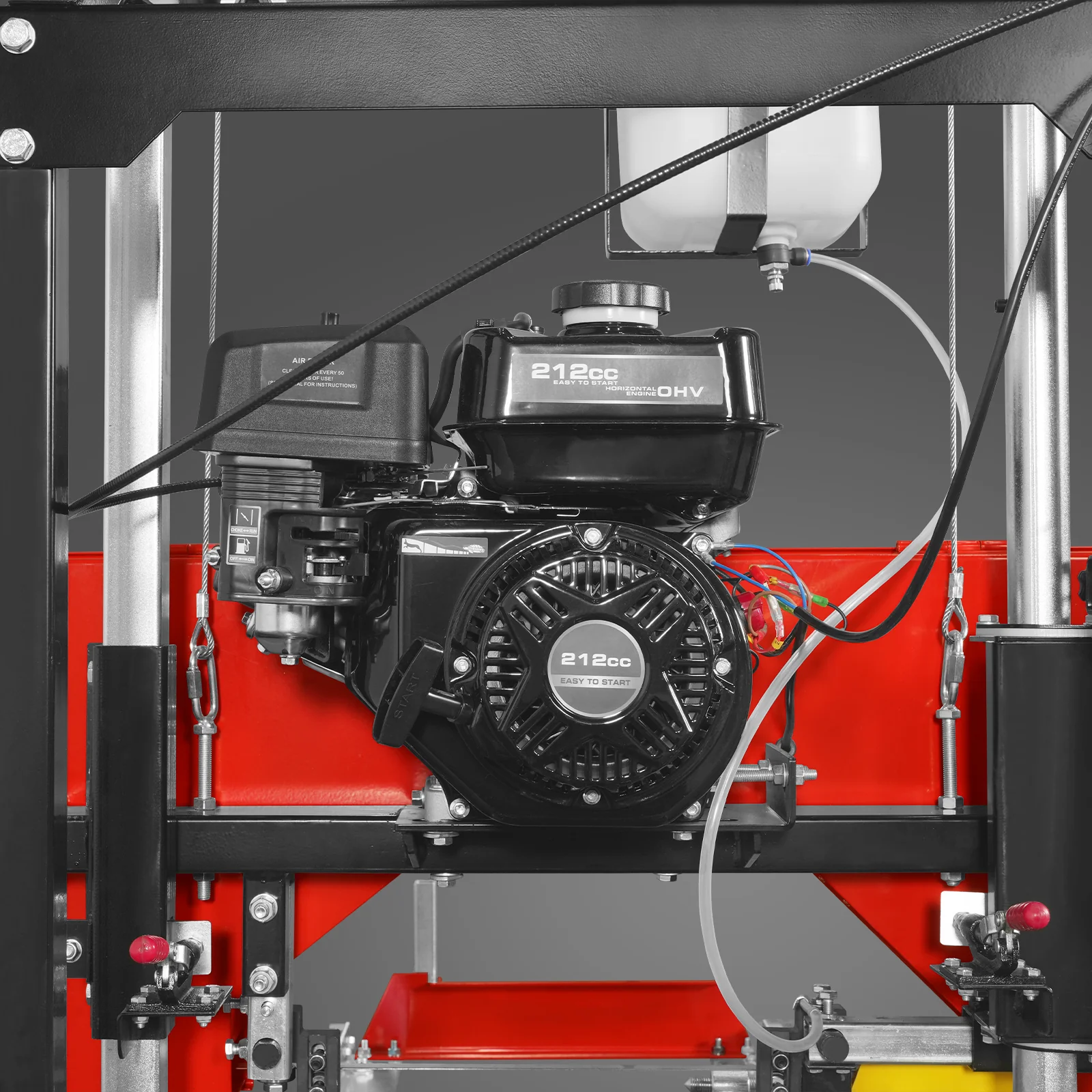

Engine	DUCAR	Blade Lubrication	Water Lube - Manual Valve
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Lubricant Tank Size	2.6 gal
Engine Displacement	212 cc	Track Width	1 ft 11 in
Horsepower	7 HP	Track Length	10 ft
Start	Recoil	Track Extension Length	4 ft 9 in

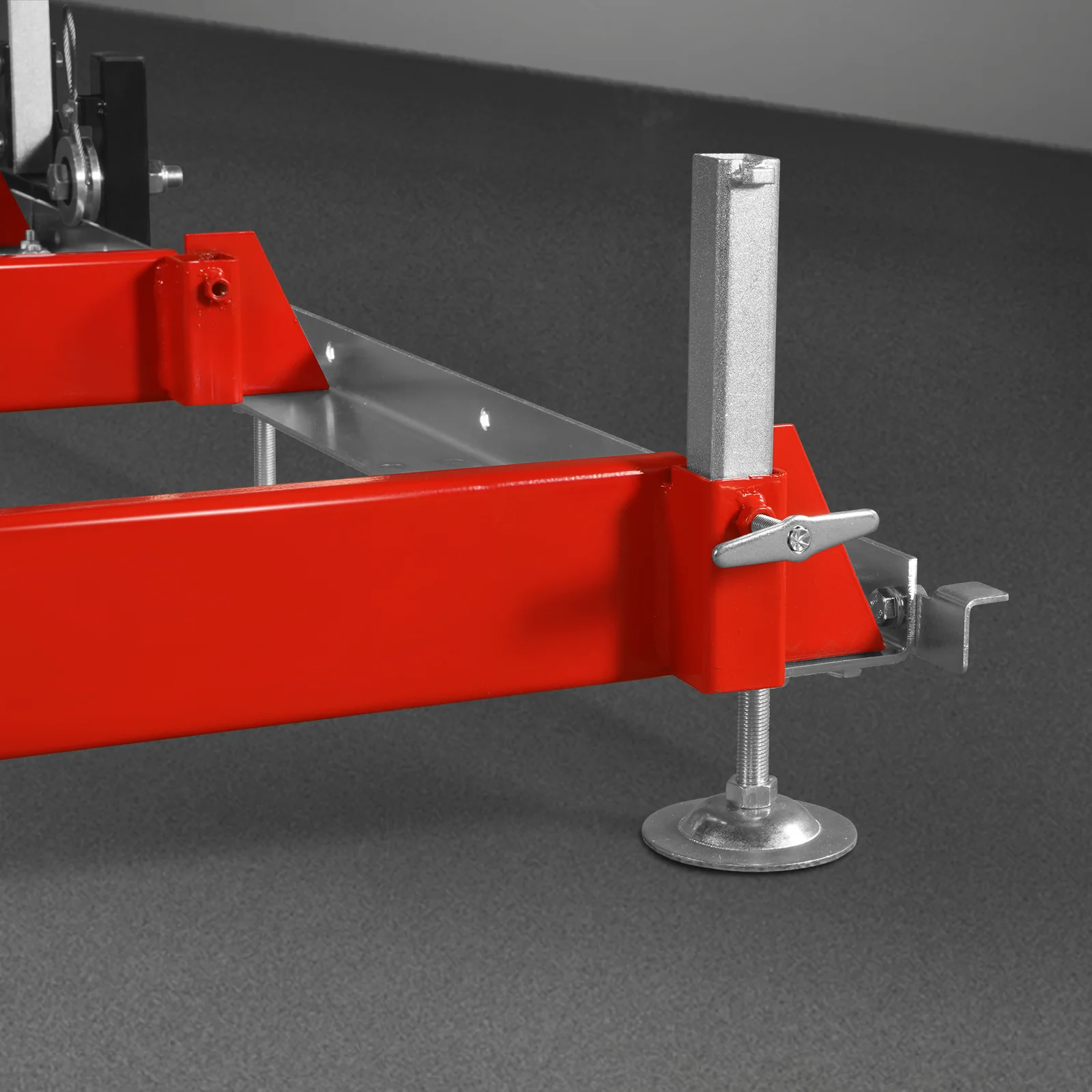

Log Diameter	18 in	Leveling Feet	12
Max Live Edge Width	15 in	Log Rests	4

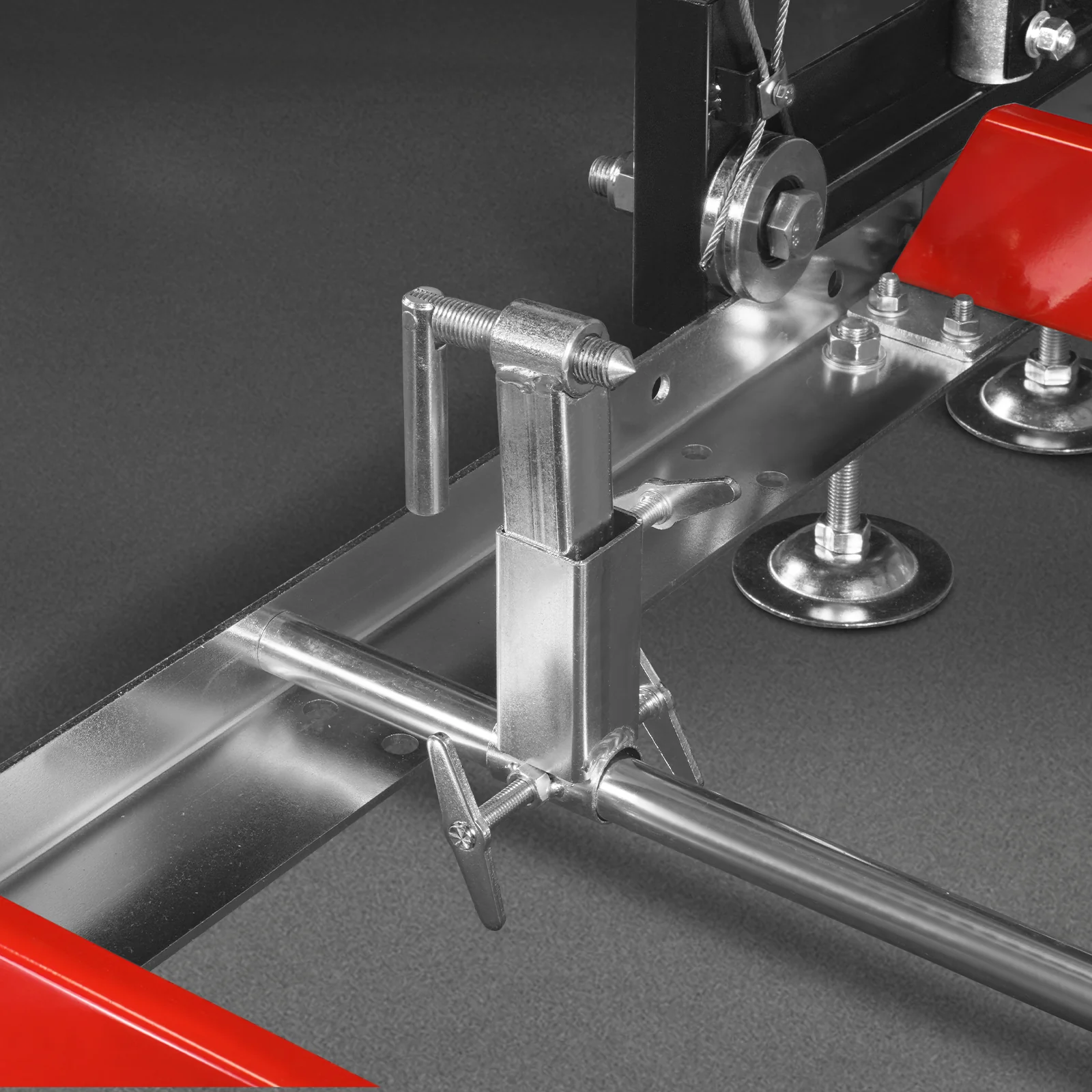

Standard Cutting Length	8 ft 1 in	Log Clamps	2 x Quick Lock
Max Board Thickness	6 in	Track Bunks	1.2 x 3 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes

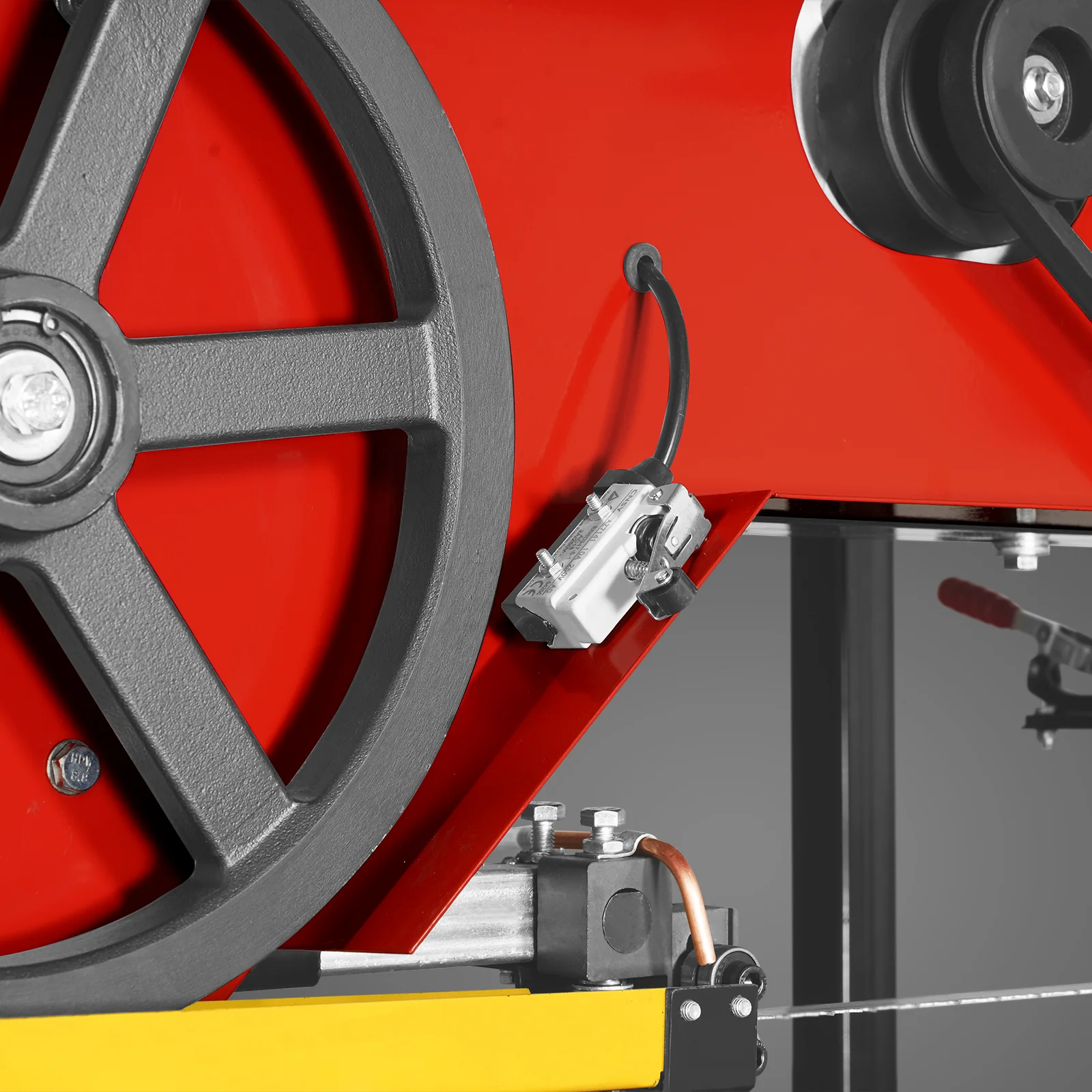

Cast Iron Bandwheel Diameter	14 in	Finish	Powder Coat Paint Galvanized Steel

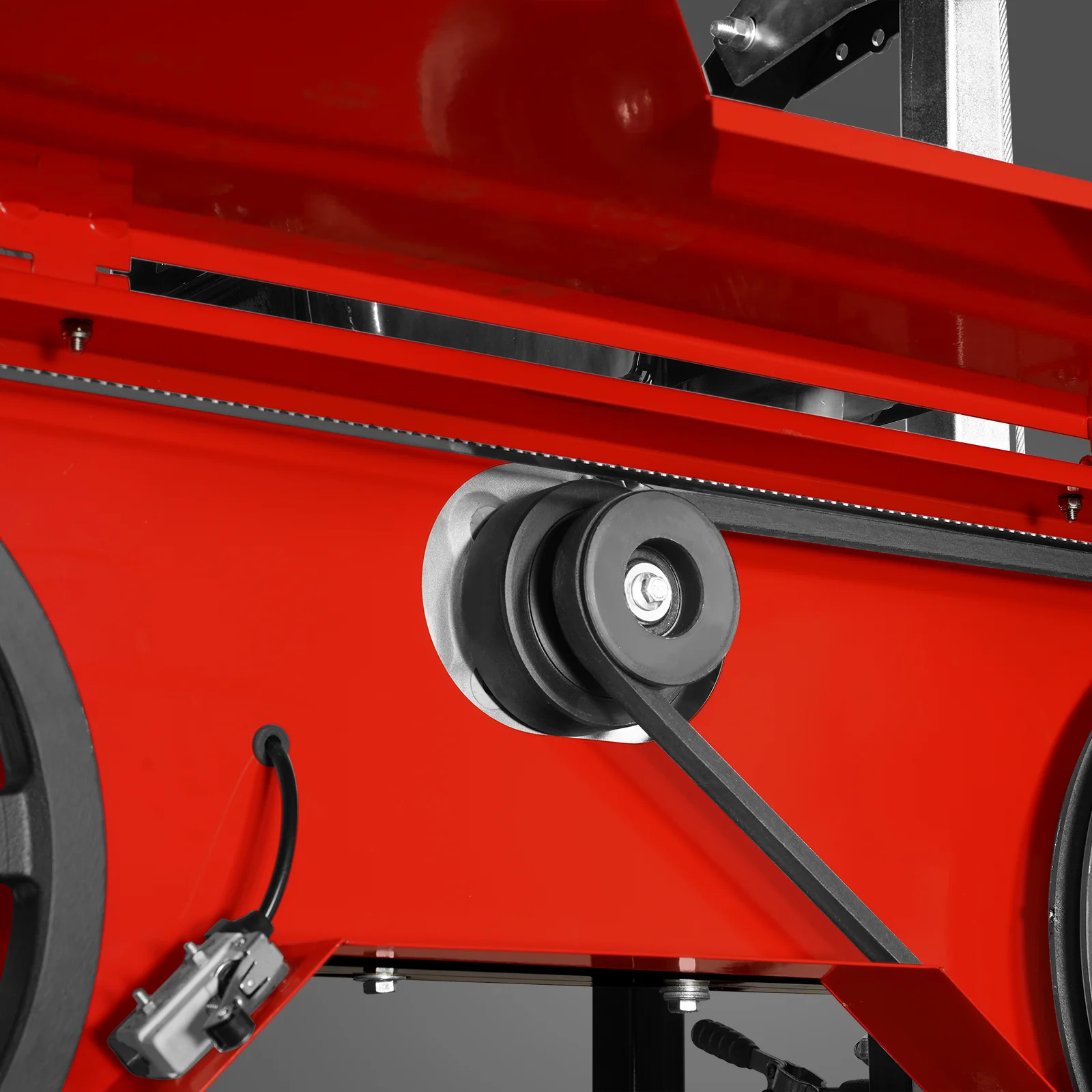

Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years

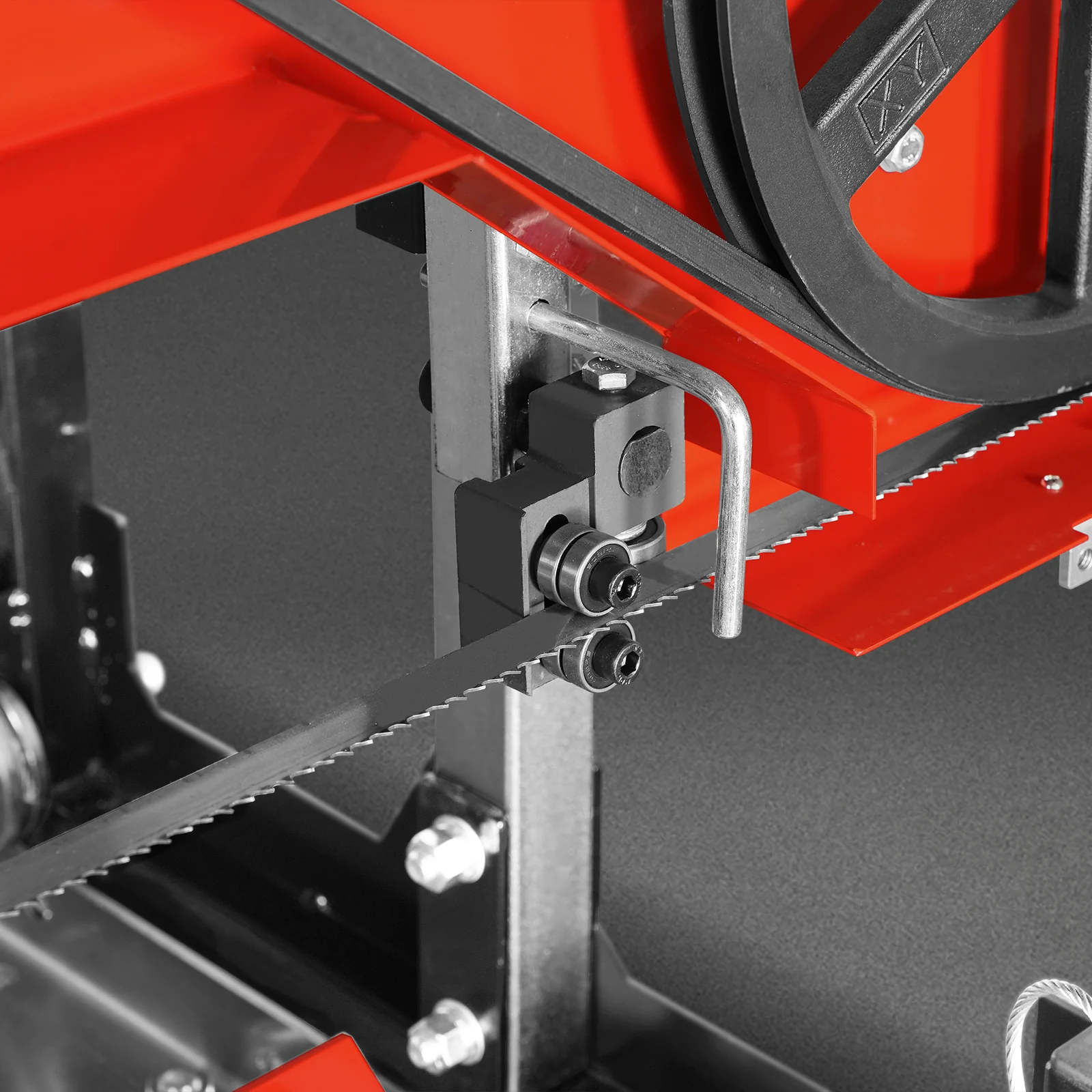

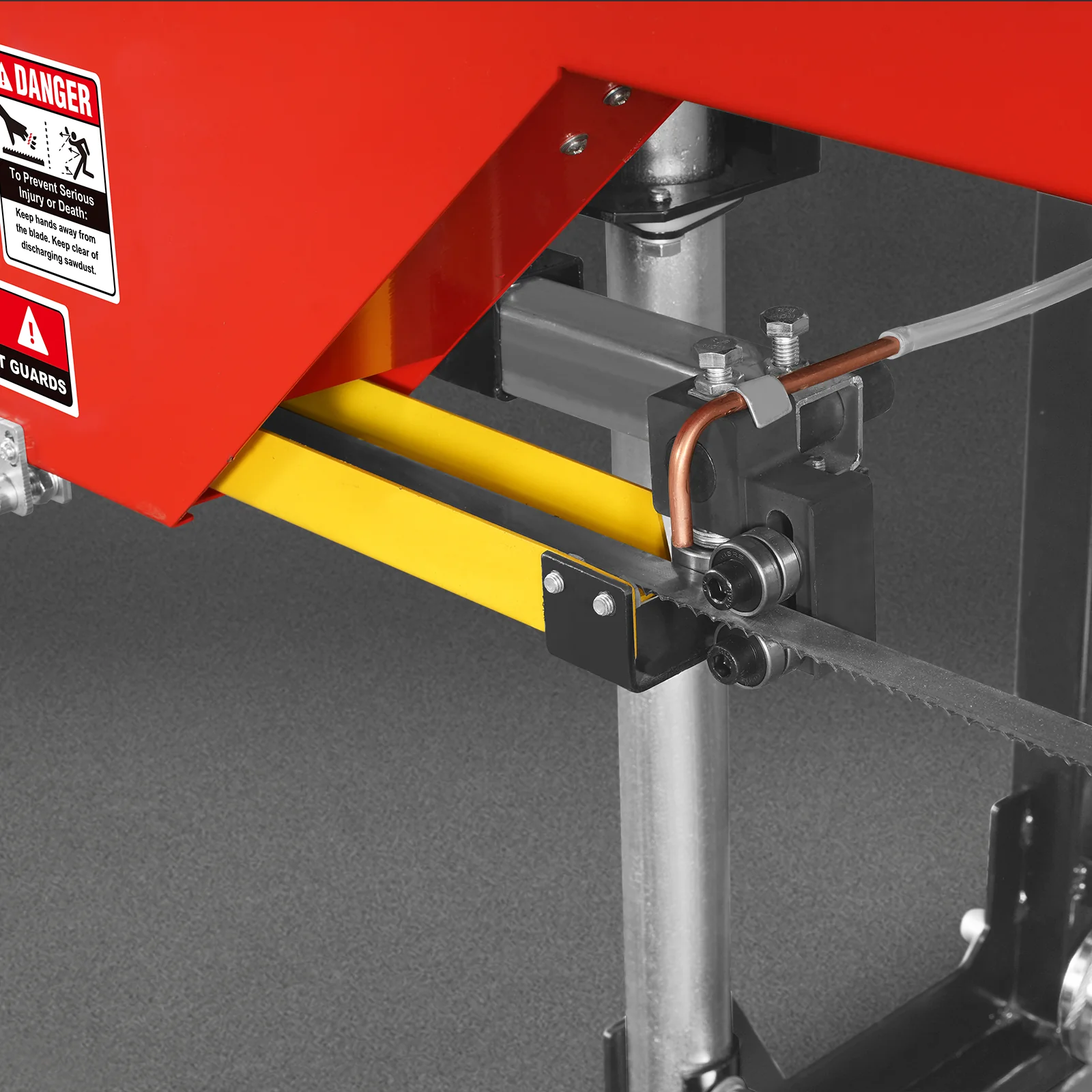

Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	108 x 0.7 in	Packing Size	62 x 21 x 30 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	335/463 lbs
