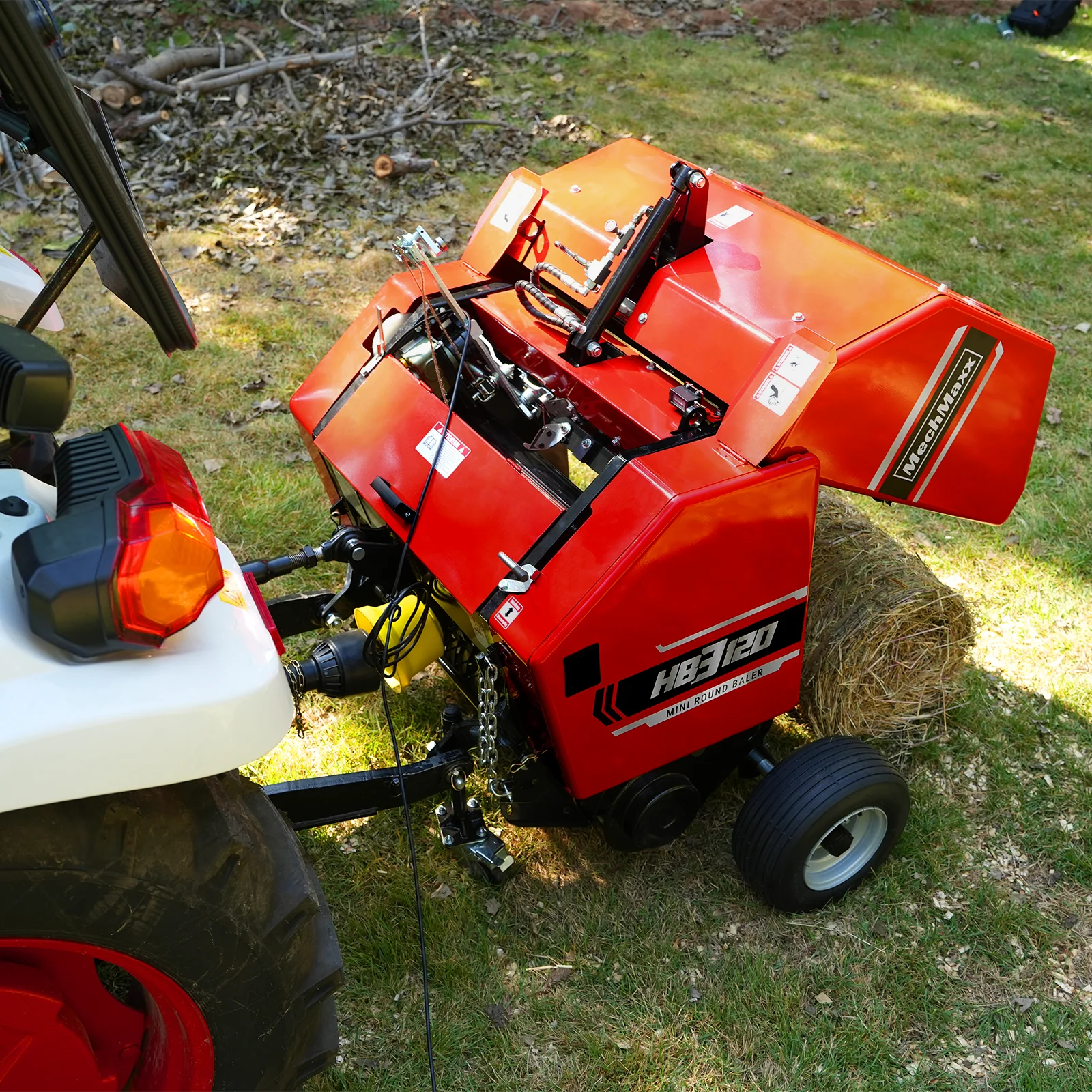

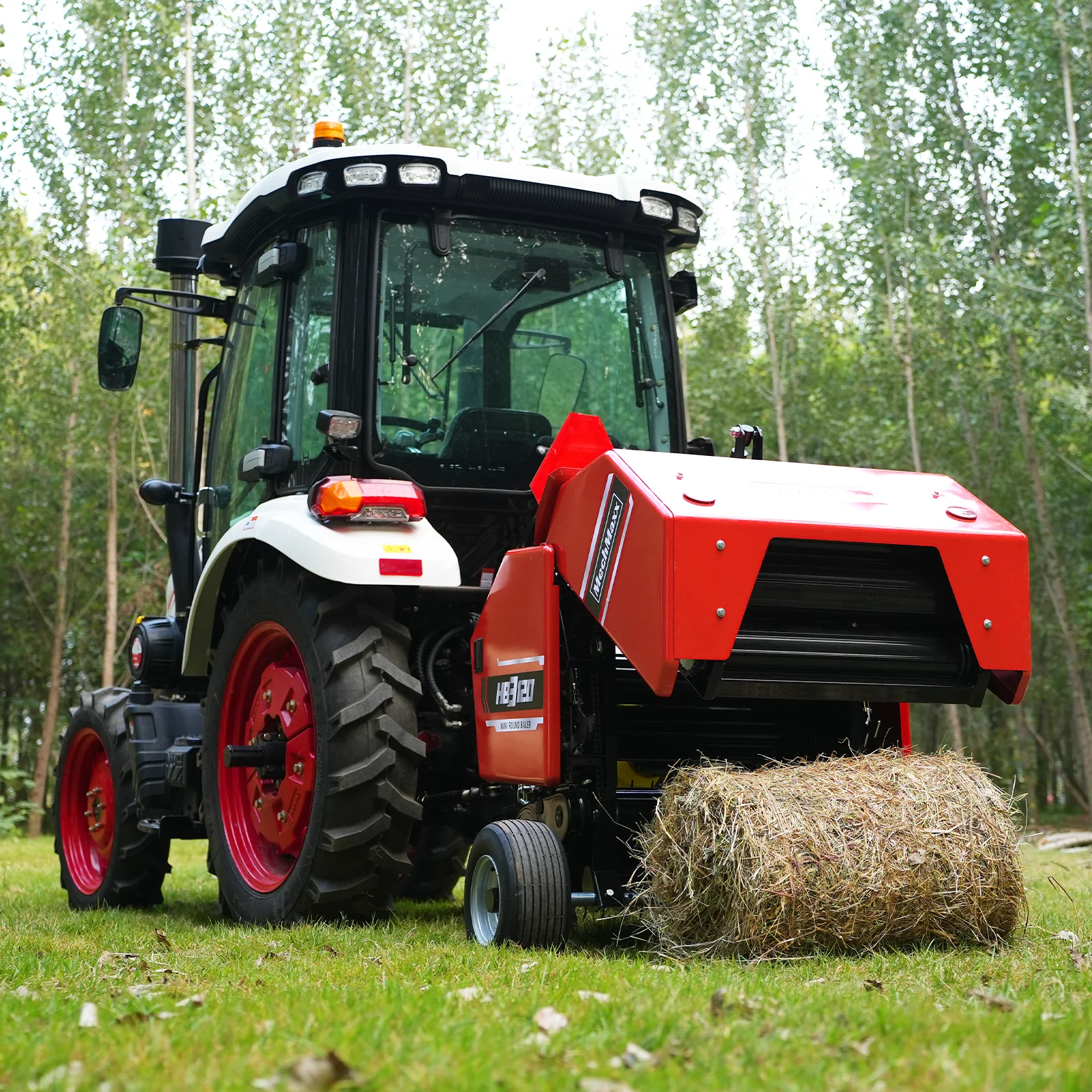

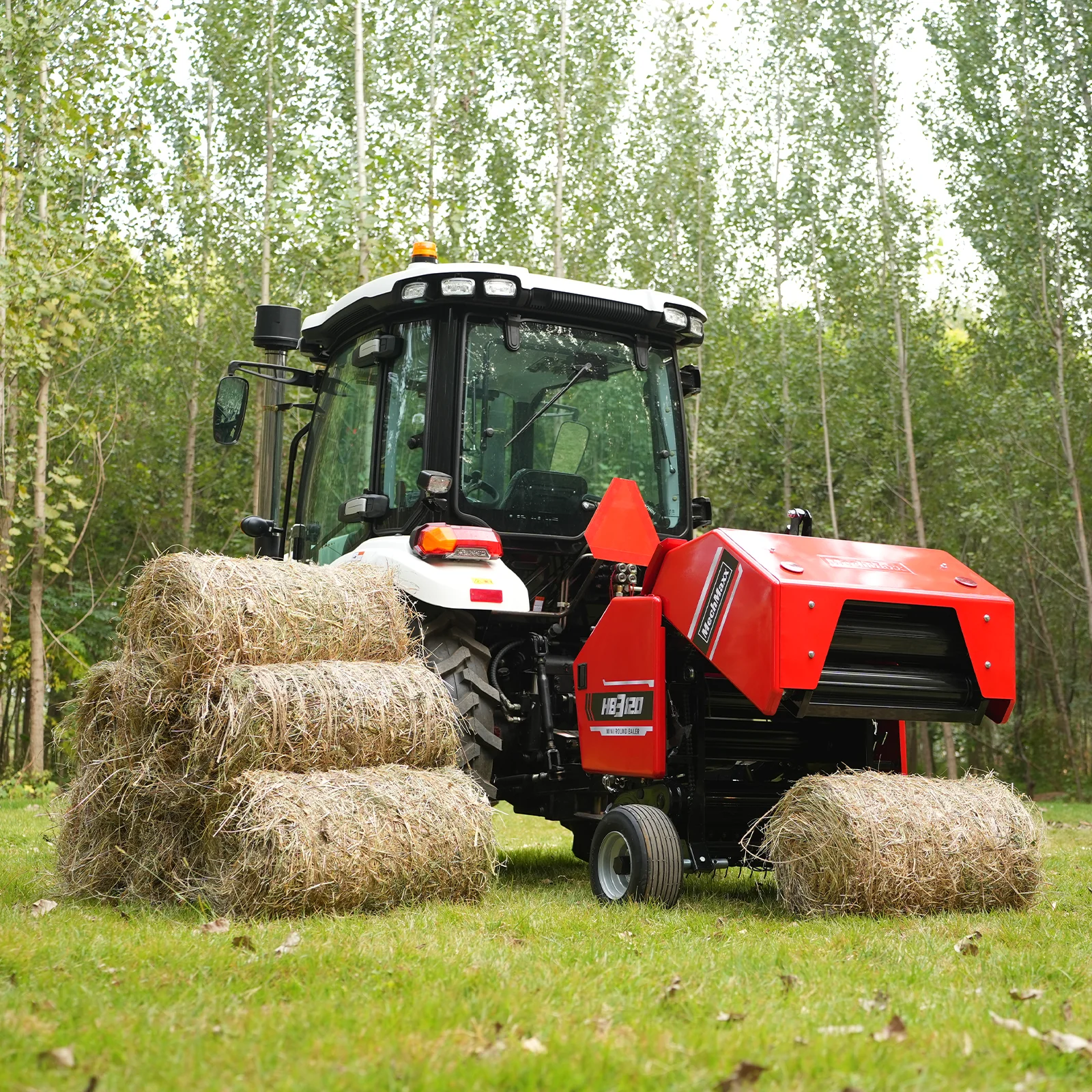

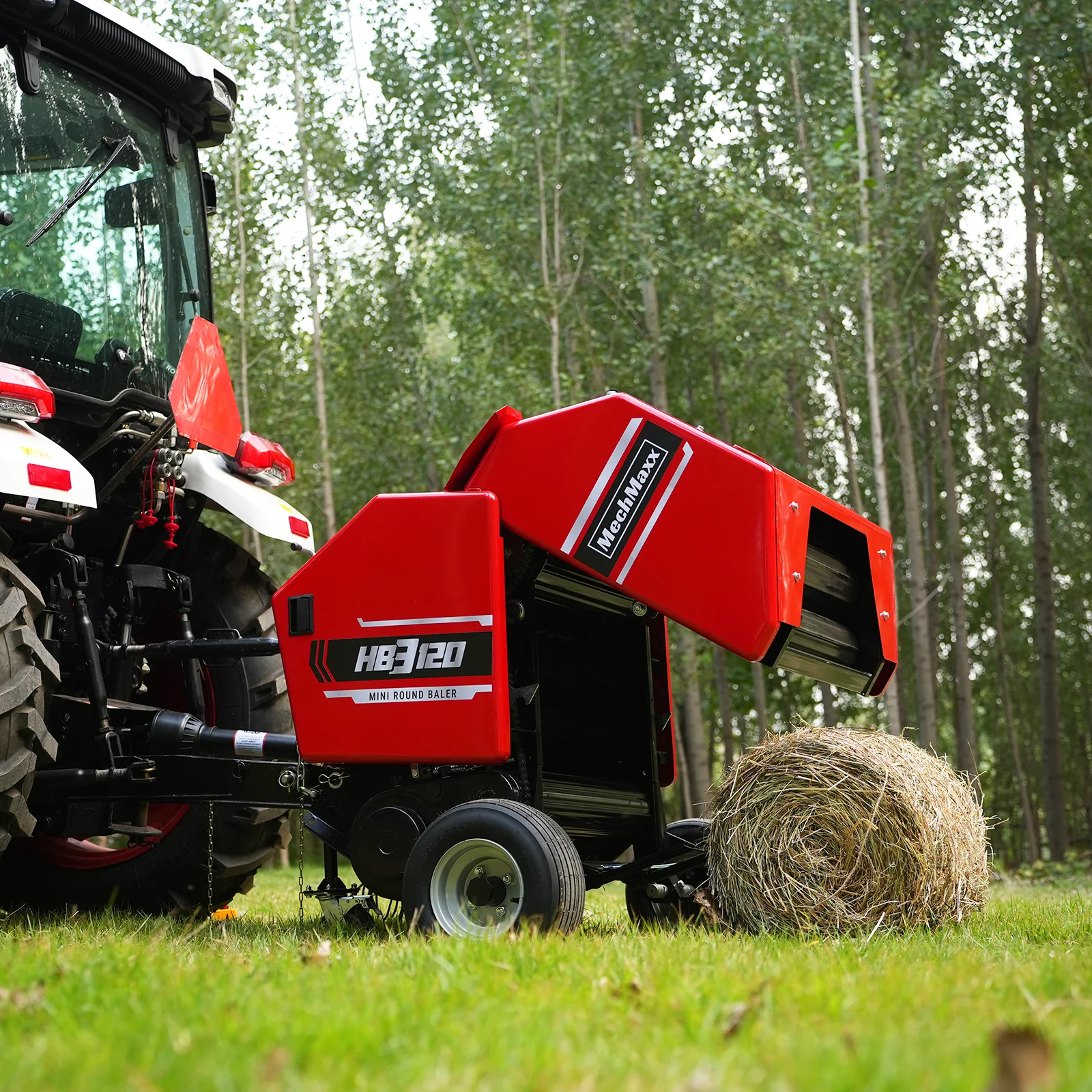

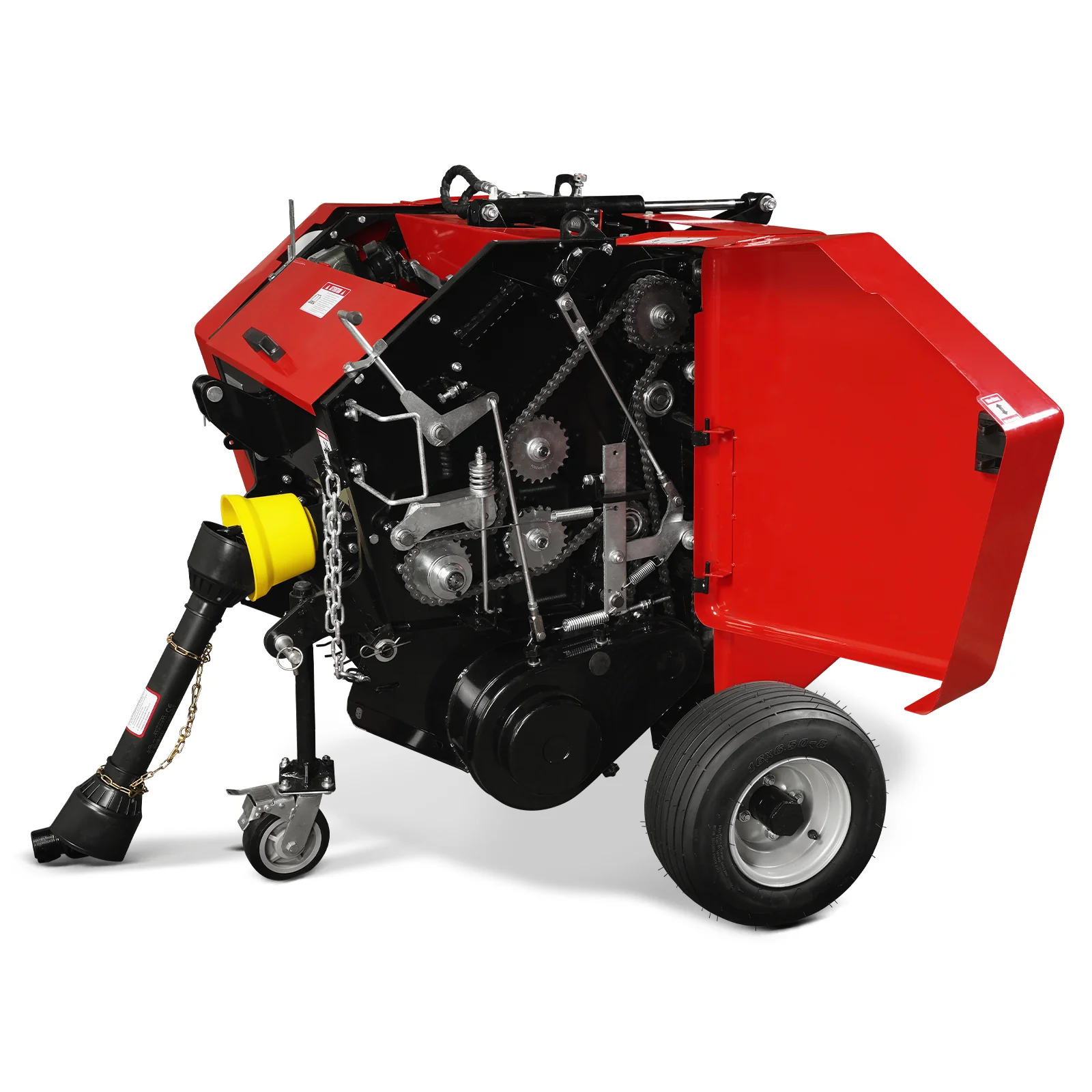

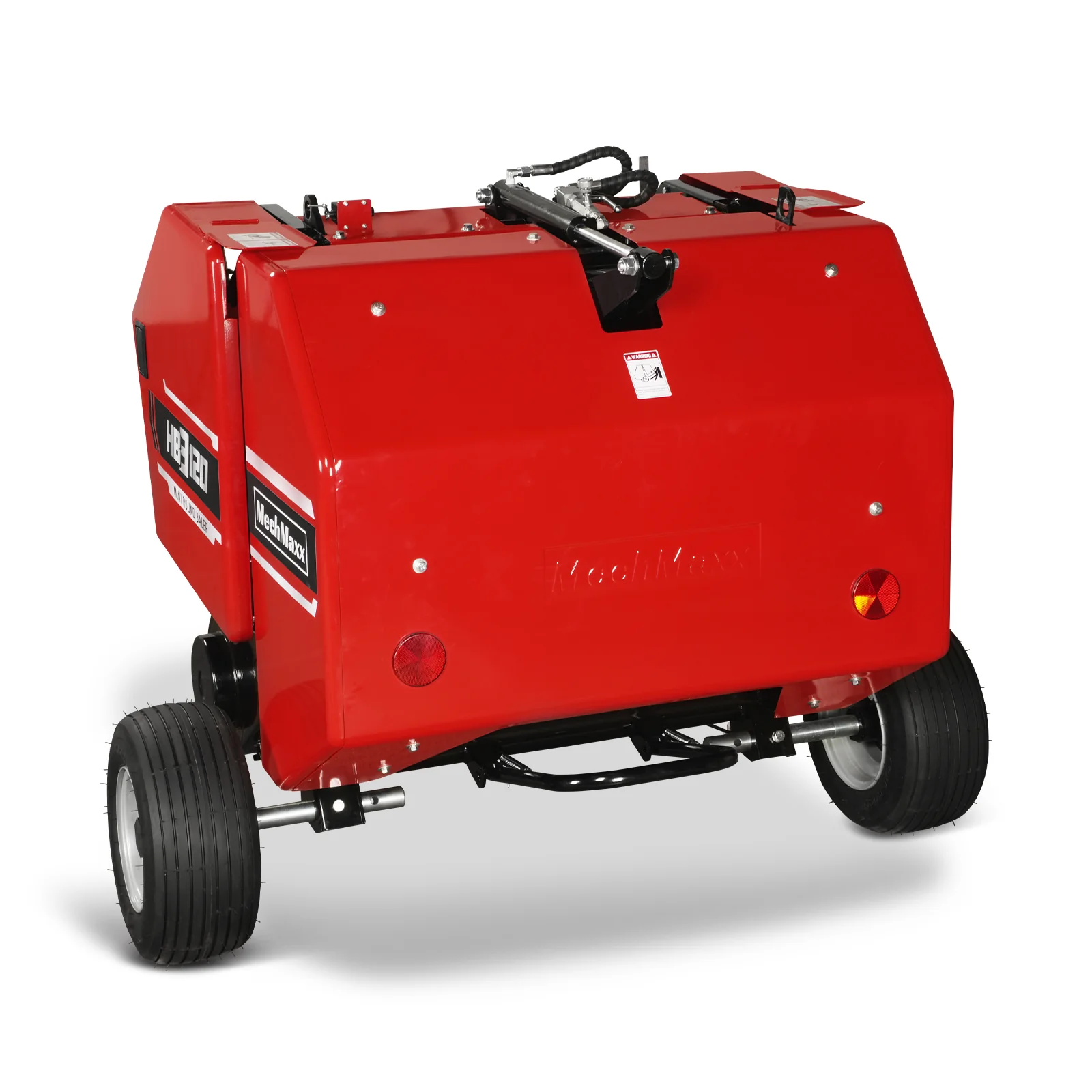

Hay Baler  HB3120

Power Required	15-50 Hp
Minimum Tractor Weight	1500 lbs
Bale Size （Diameter X  Width）	φ20 X 28 in
Bale Weight	30 - 50 lbs
Overall (L x W x H)	45 x 51 x 47 in
Pickup Width	31.5 in
Efficiency	1.24-3.11 mi/h
Capacity	80 - 100 Bales / Hour
Bale Wrapping	Twine Wrap
Hydraulics	Independent Hydraulic Power Unit, No Need Tractor Hydraulics
Electrical	Aviation Plug, Easy To Connect With Tractor
Tire Size	16 x 6.5 in
PTO Shaft Speed	540 rpm
Spline End	1.375in  Z6
3-Point Hitch	CAT 1
Gearbox Oil Type	80W90 EP Gear Oil
Finish	Powder Coating
Warranty	1 Year
Shipping Box	47 x 45 x 47 in
Weight (N.W./G.W.)	970 /992 lbs

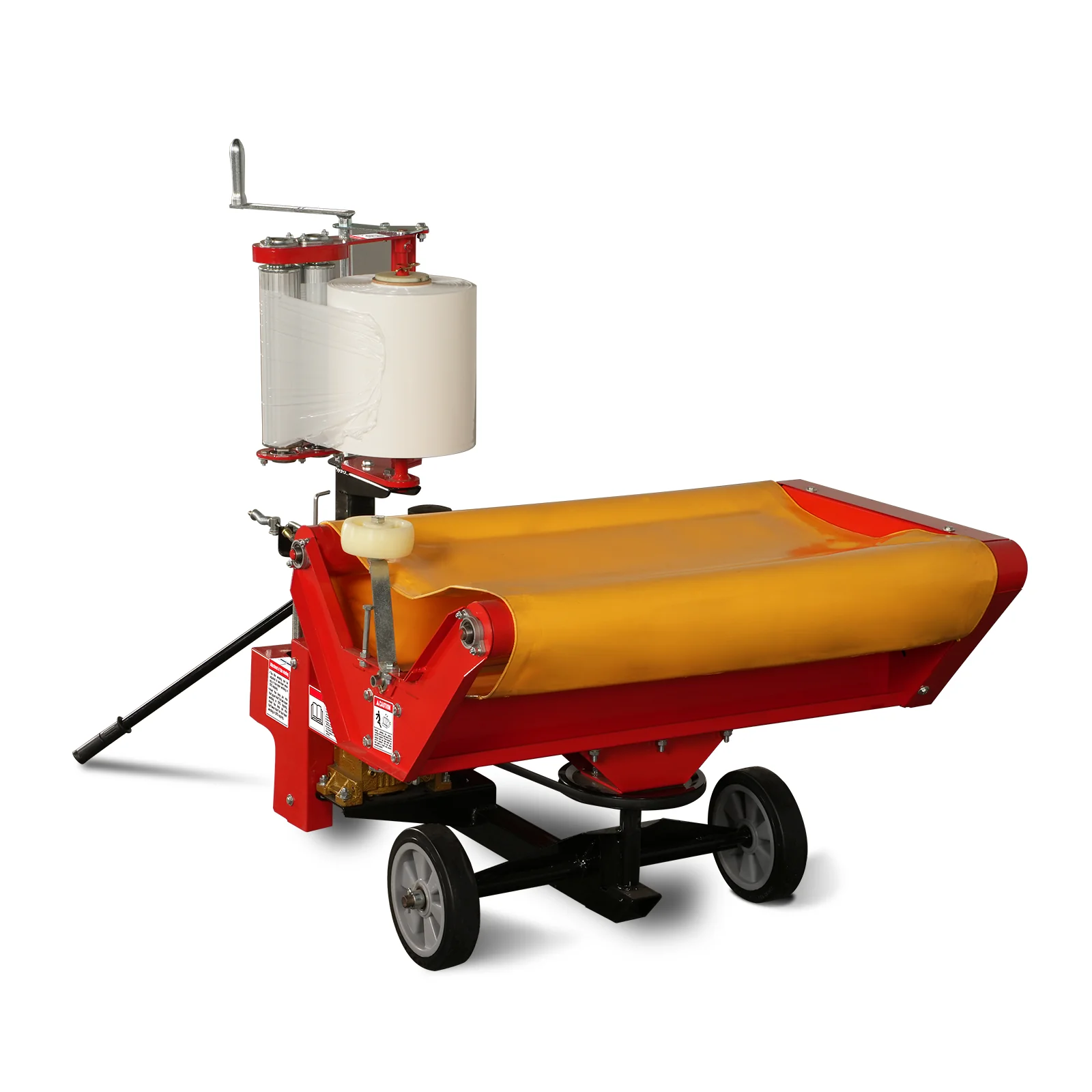

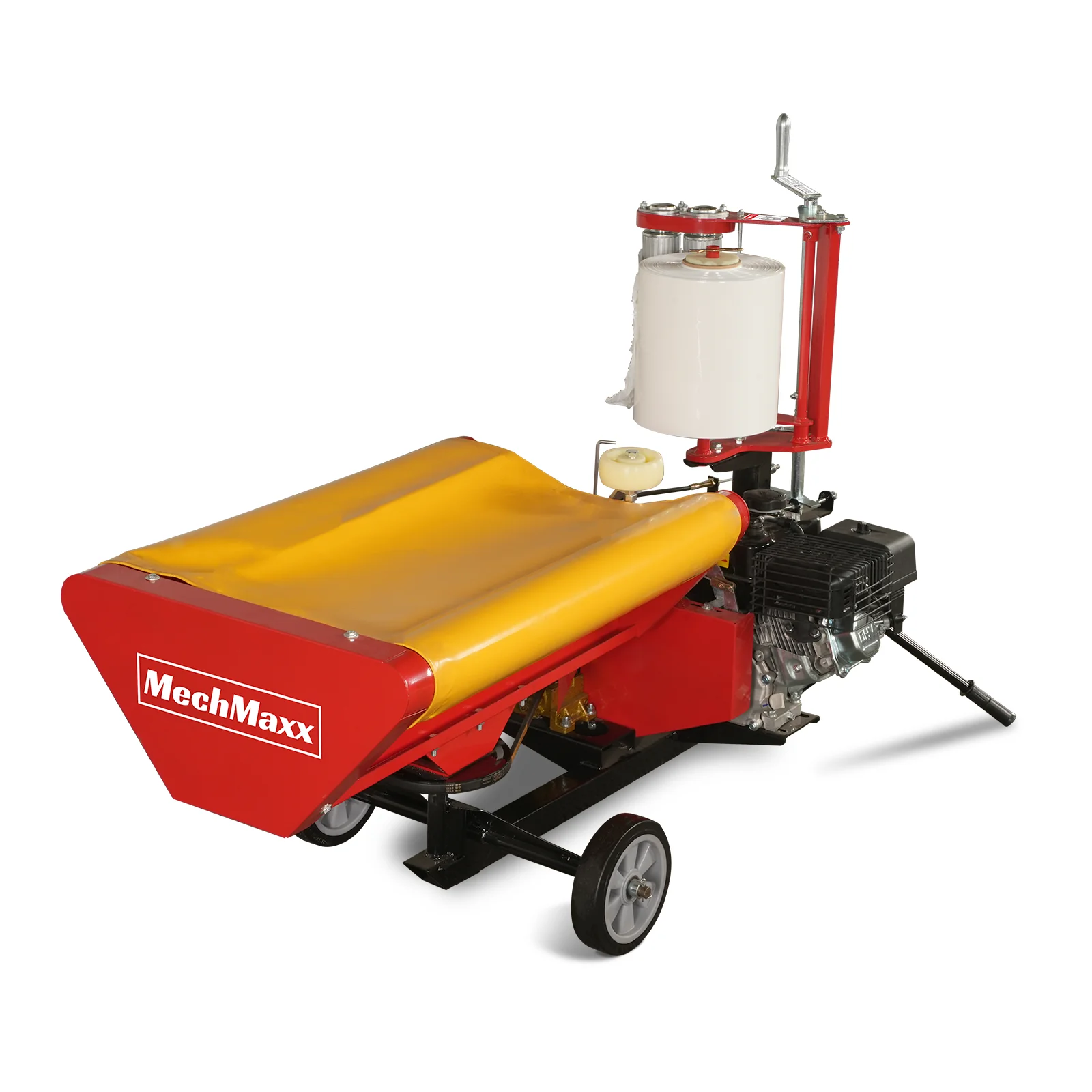

Hay Wrapper HW20

Engine	DUCAR DH212
Suitable Bale Size	20 x 28 in ; 24 x 28 in
Overall (L x W x H)	59 x 34 x 40.5 in
Finish	Powder Coating
Warranty	1 Year
Shipping Box	61 x 27 x 27 in
Weight (N.W./G.W.)	220.5/298 lbs



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
