Load Capacity	4400 lbs	Turing Radius	56.1 in
Operator Position	Walkie	Driving Speed (laden/unladen)	2.6/2.8 mph
Tire Type	Polyurethane	Gradeability (laden/unladen)	6/10%

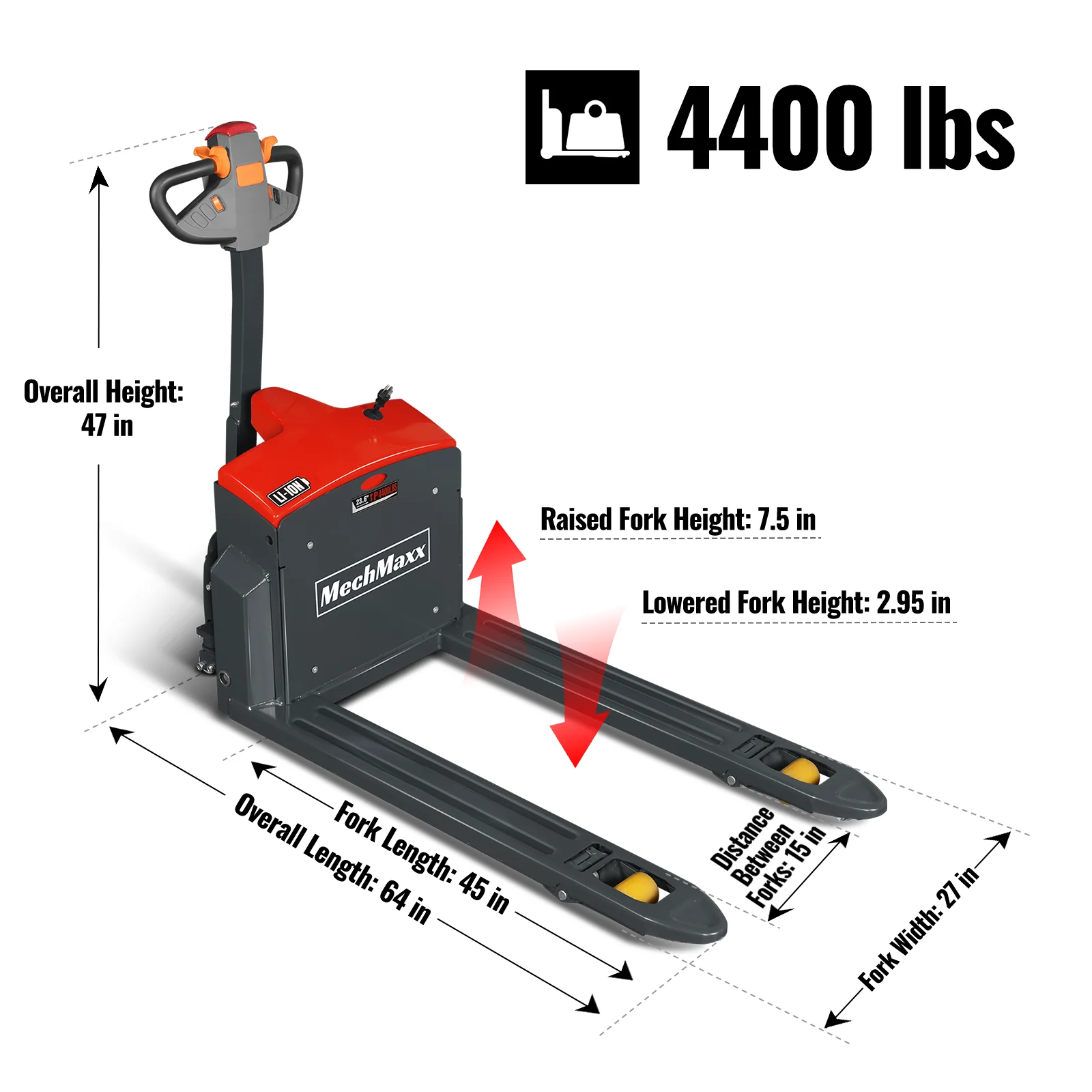

Overall Length	64 in	Service Brake	electromagnetic

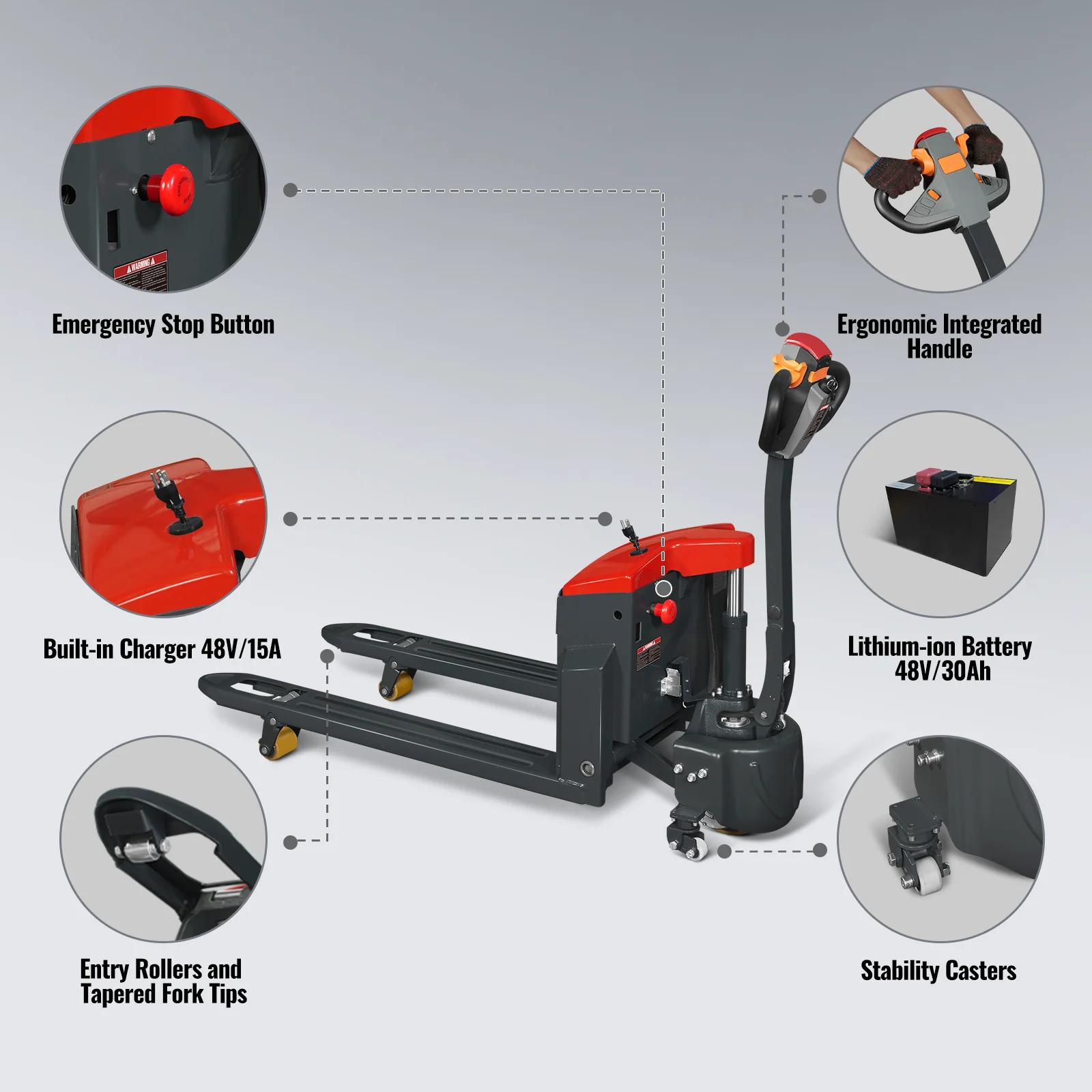

Overall Width	27 in	Battery	48V/50Ah Maintenance-free Li-ion Battery
Overall Height (handle raised)	47 in	Charger	48V/15A Built-in
Fork Length	45.3 in	Controller Brand	Curtis

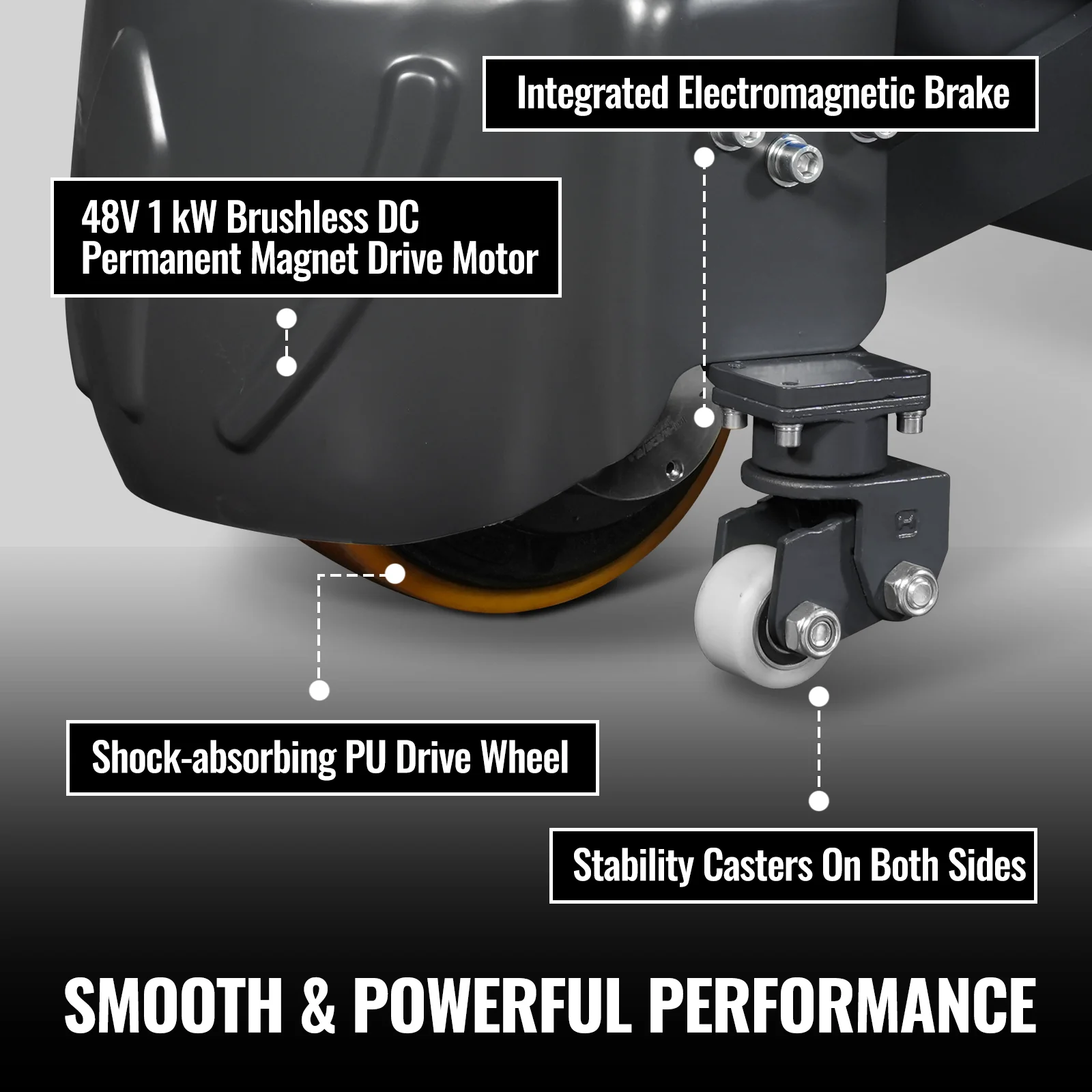

Distance Between Forks	15 in	Drive Motor	1 kW Brushless DC Permanent Magnet Drive Motor
Load Center	23.6 in	Lift Motor	0.8 kW
Fork Height (raised)	7.5 in	Packing Size (LxWxH)	68 x 28 x 31 in
Fork Height (lowered)	2.95 in	Weight with Battery (N.W/G.W.)	397/507 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
