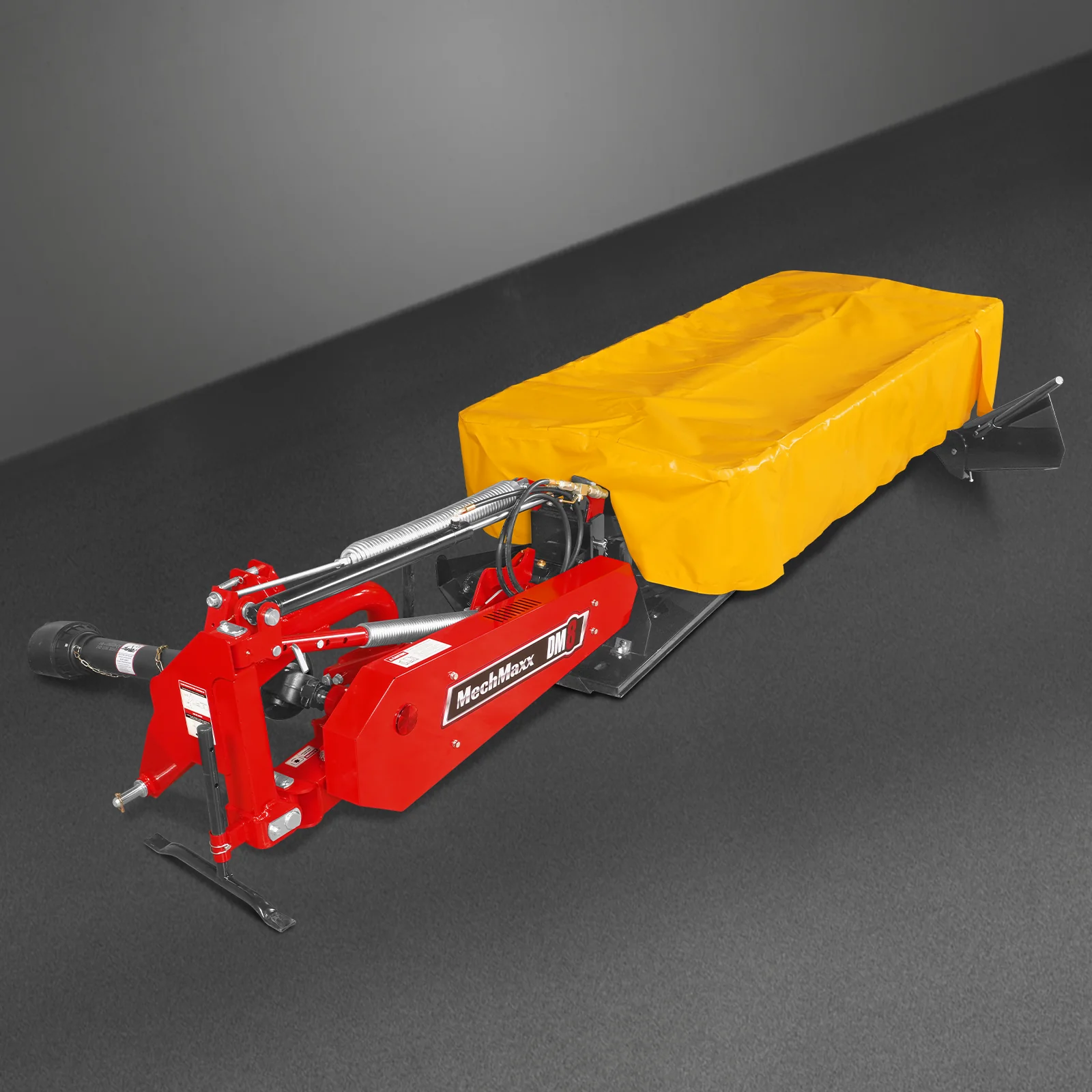

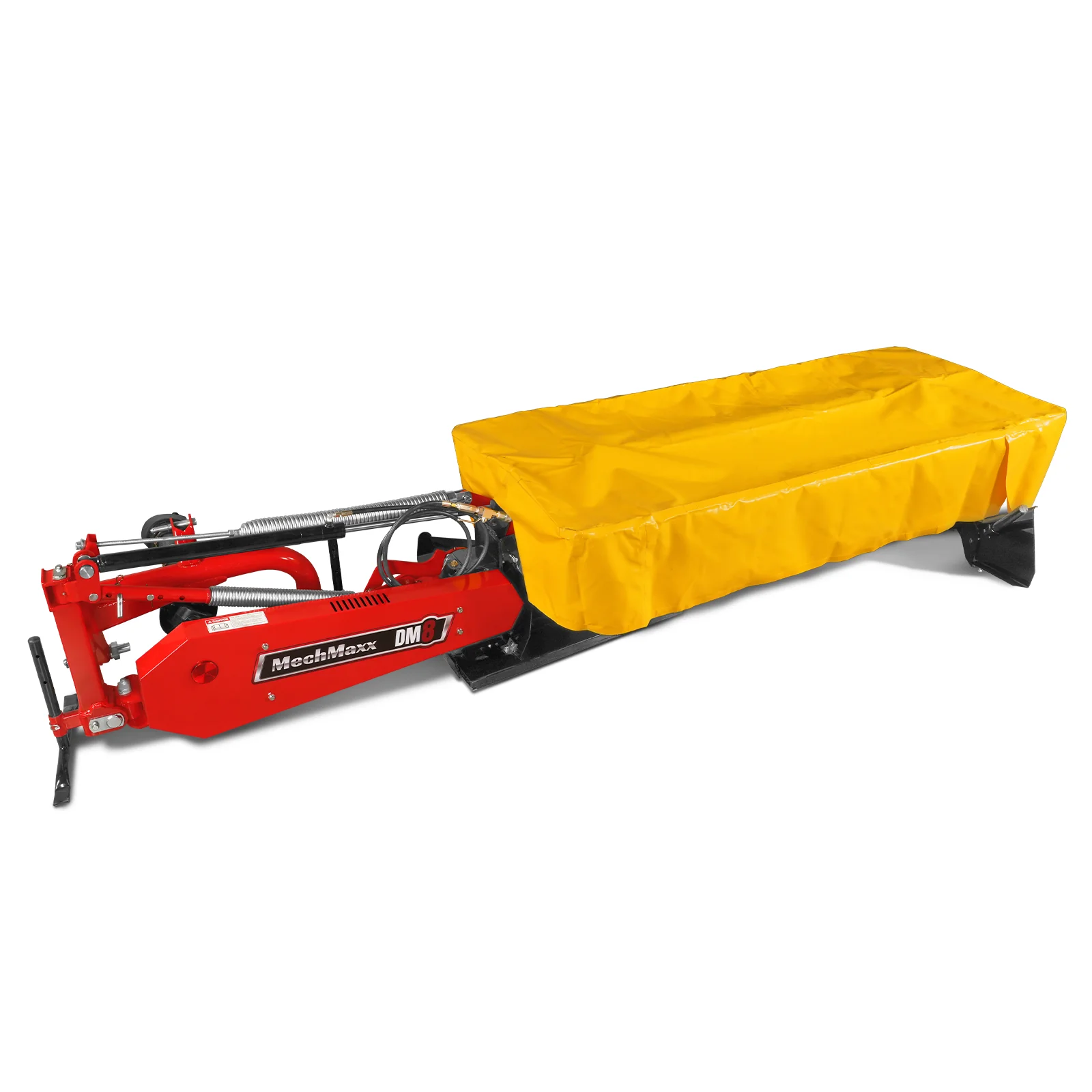

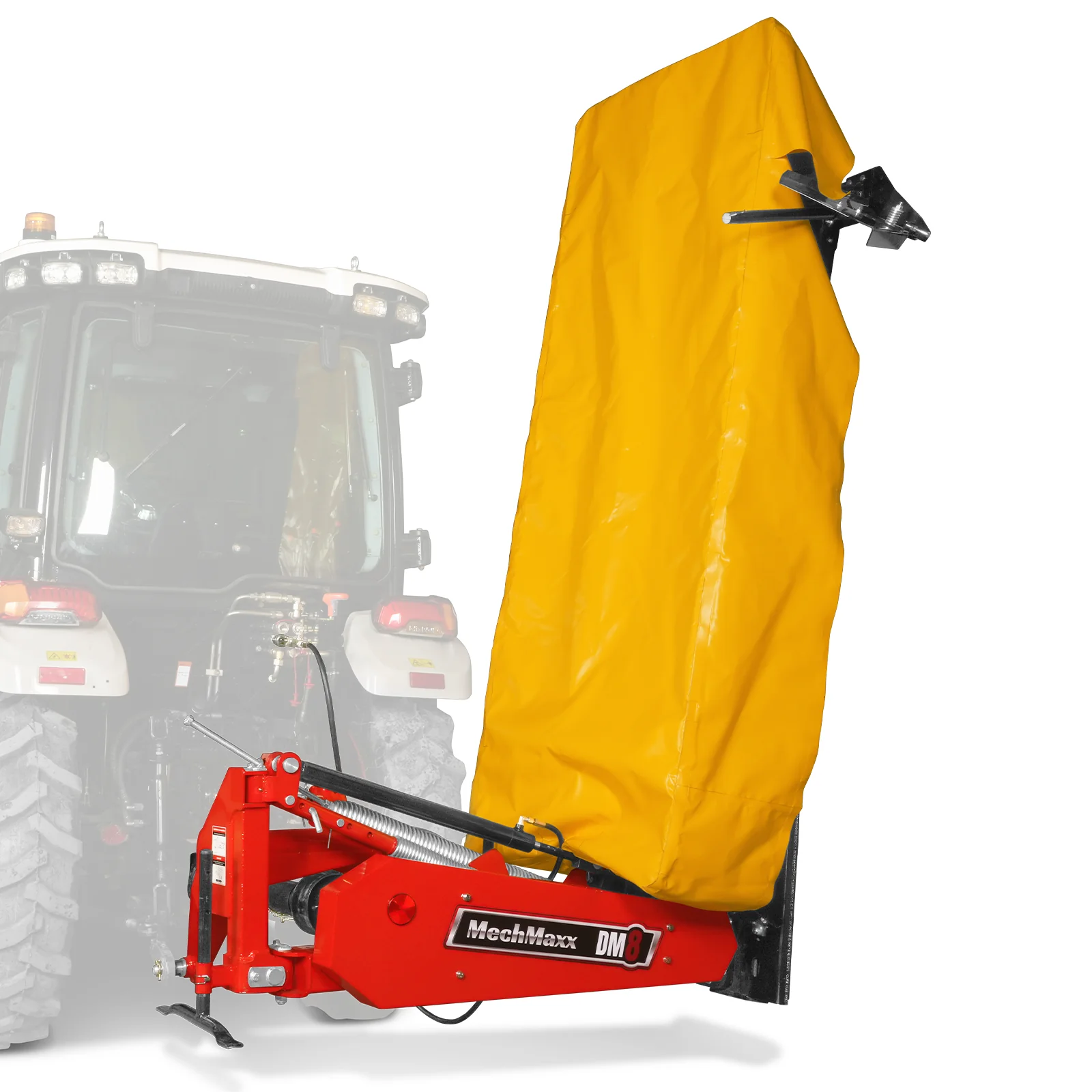

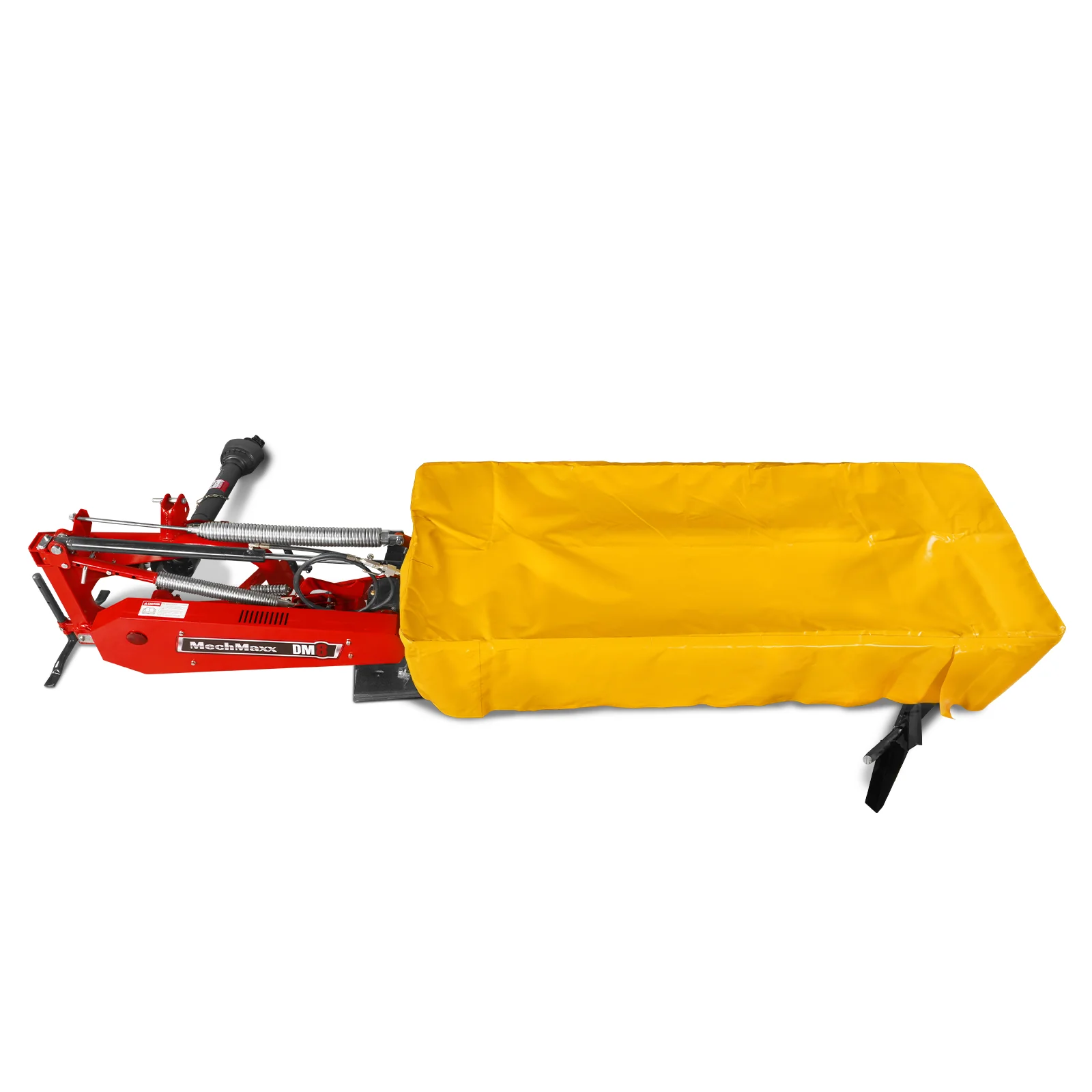

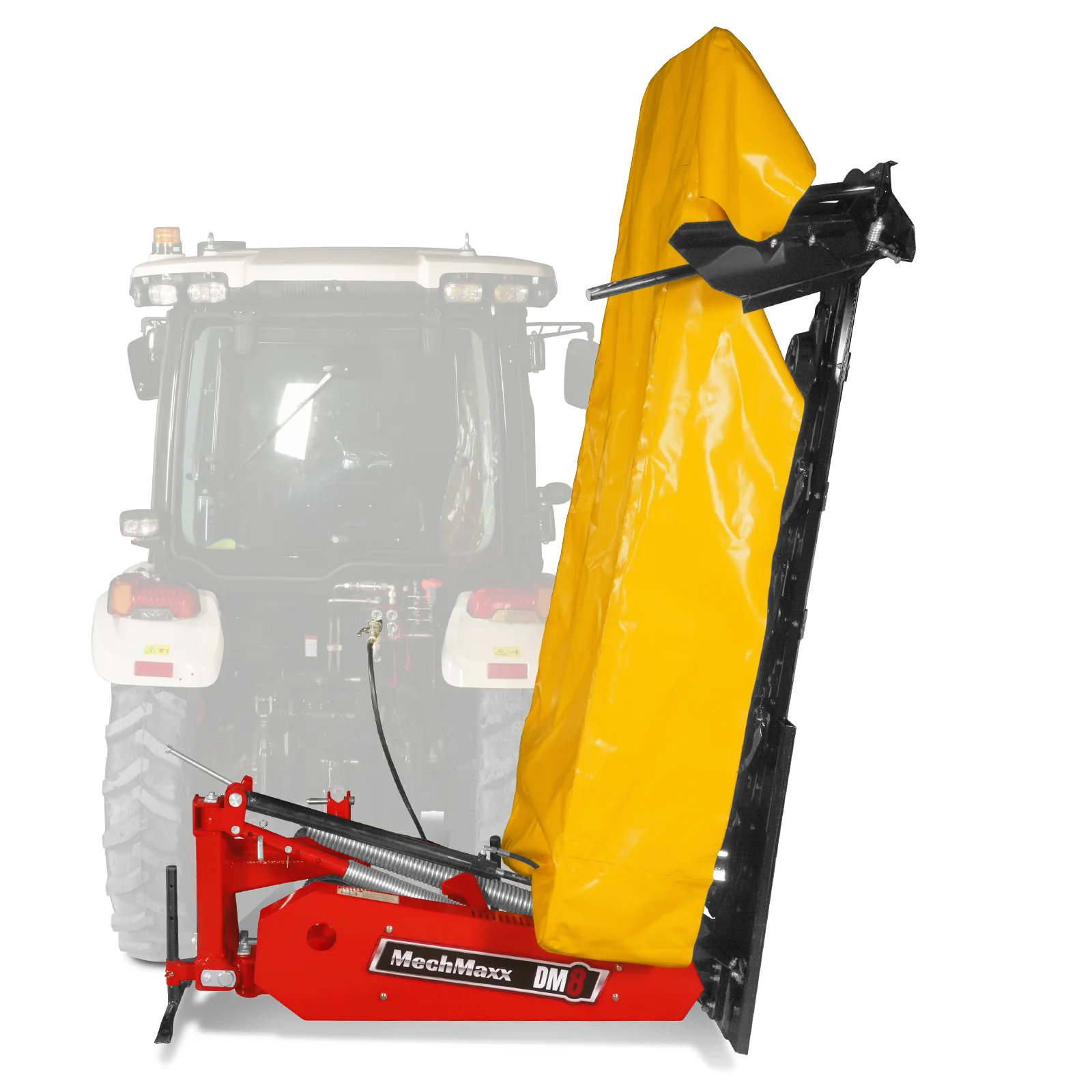

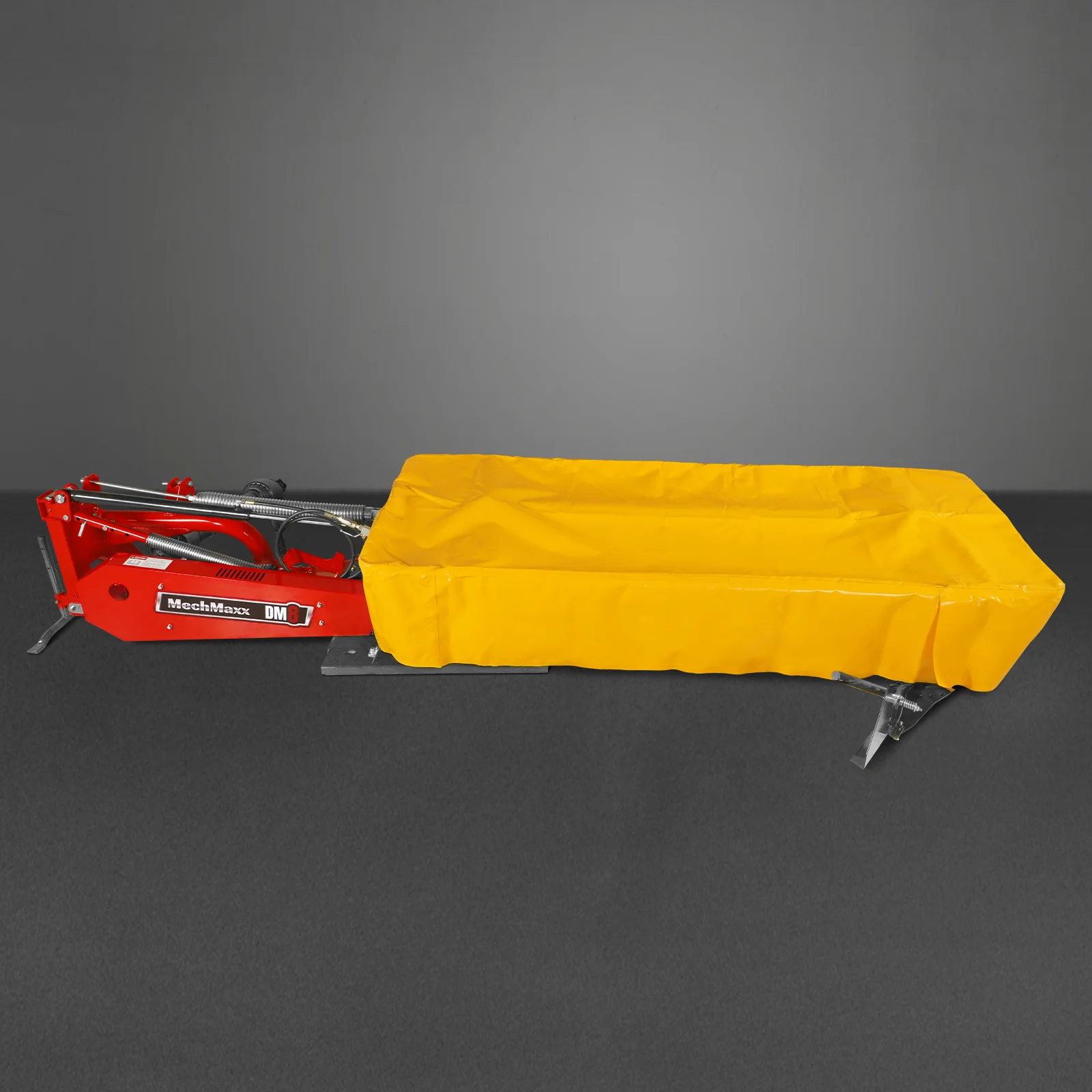

8FT 3-Point Disc Mower, 6 Disc, 50-100HP Tractor, Cat.2, DM8
| Power Required | 50-100 hp | Tilt-Down Angle | 30°-40° |
| Working Width | 7.7 ft | Min. Tractor Weight | 2000 lbs |
| Working Speed | 2.5-6.2 mi/h | Gearbox Oil Type | 90SAE Oil |
| Stubble Height | 2 in | 3-Point Hitch | CAT 2 |
| Number Of Disk | 6 pcs | PTO Shaft Speed | 540 rpm |
| Disc Length | 15.4 in | Spline End | 1.375 in Z6 |
| Disc Diameter（Including Blade） | 19.7 in | Safety Coth Material | PVC |
| Side Disc Height | 9.5 in | Finsh | Powder Coating |
| Number Of Blades | 12 pcs | Product Size (L*W*H) | 167 x 55 x 30 in |
| Blades Material | 65 Mn | Package Size (L*W*H) | 102 x 29 x 67 in |
| Number Of Belts | 4 | Machine Warranty | 1 Year |
| Tilt-Up Angle | 80° | Weight (N.W./G.W.) | 1191/1389 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
