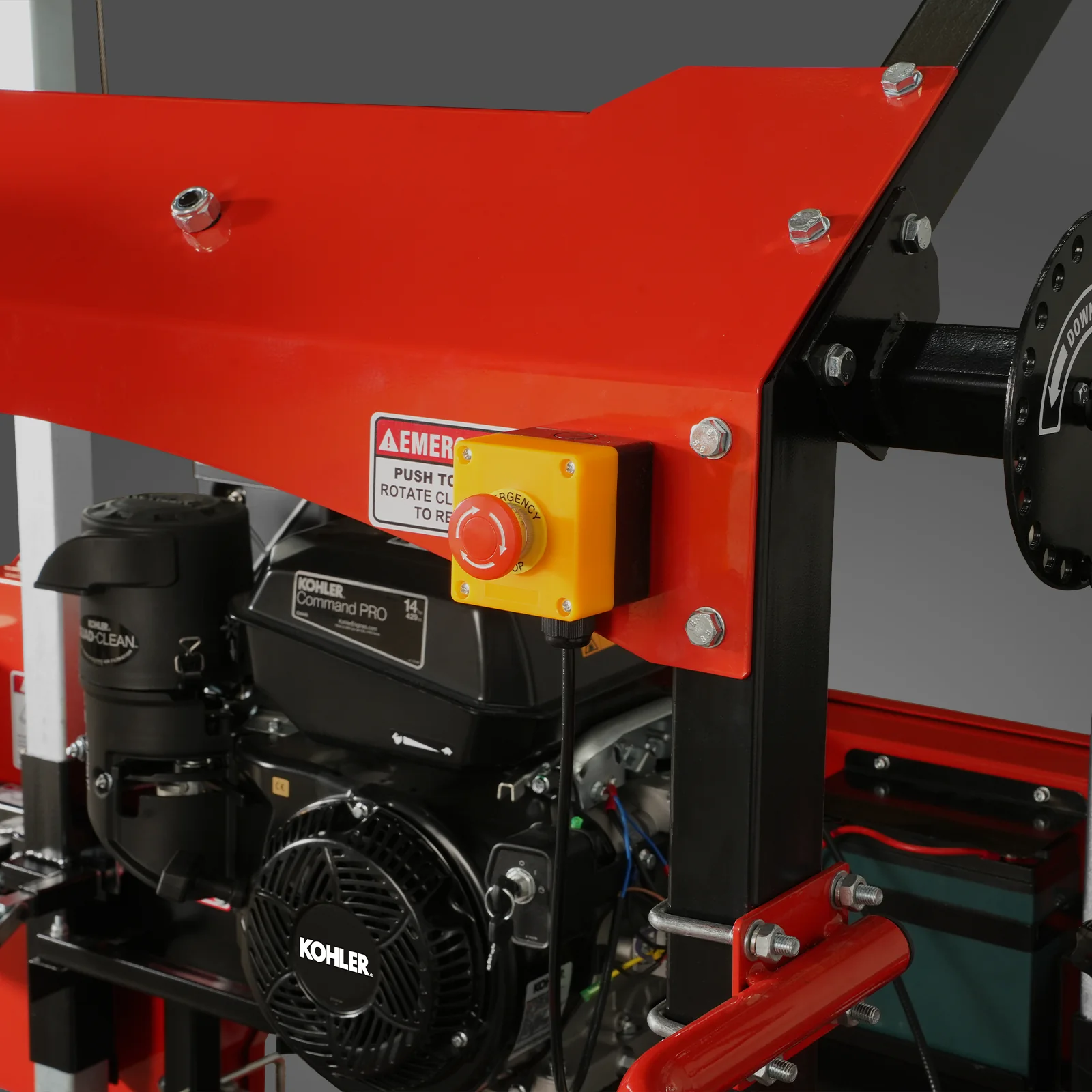

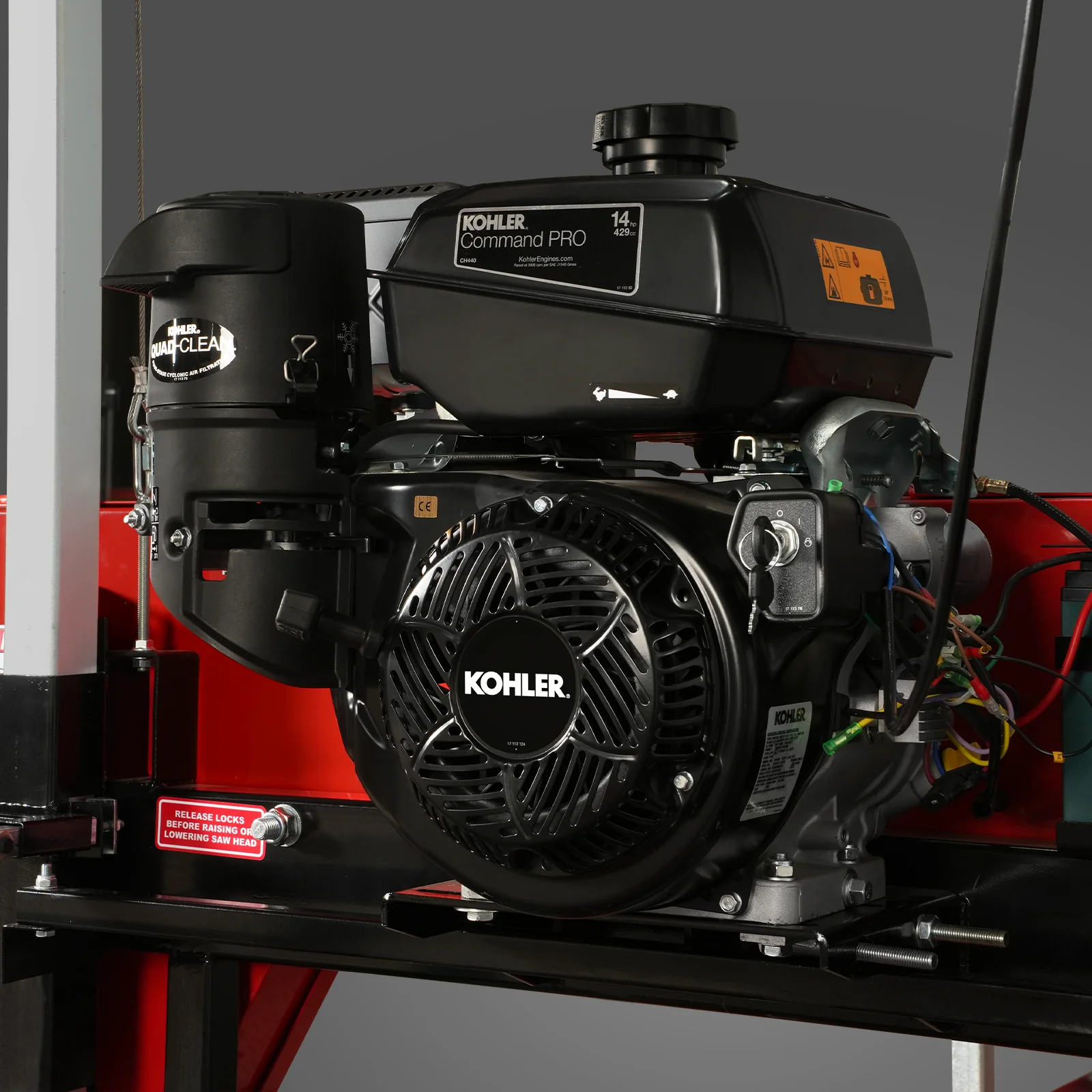

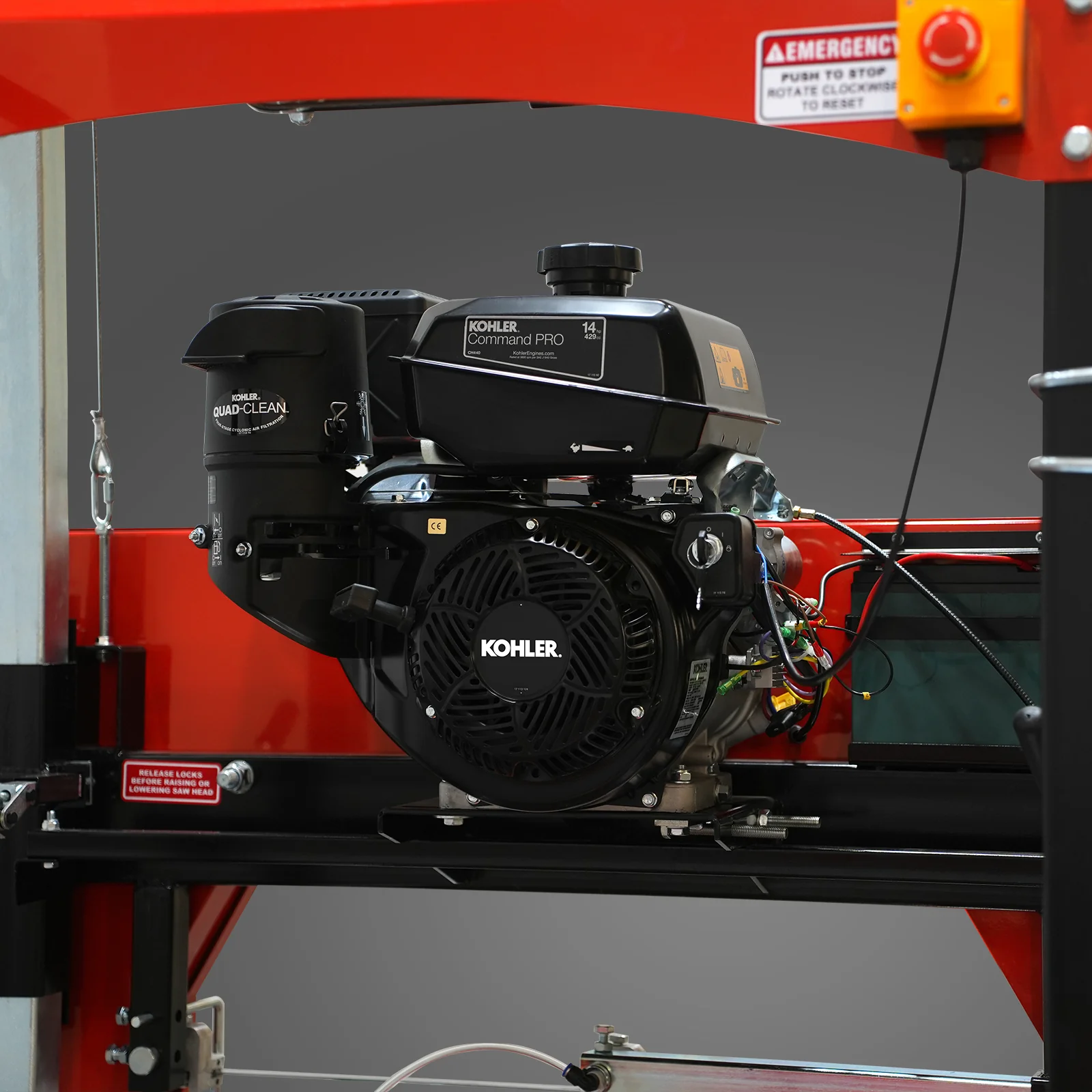

Engine	KOHLER CH440	Track Load-Bearing	5 ton
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Width	3 ft 1 in
Engine Displacement	429 cc	Track Length	20 ft
Horsepower	14 HP	Track Extension Length	6.4 ft
Start	E-Start	Height (Max Head Position)	83 in
Log Diameter	32 in	Leveling Feet	18
Max Live Edge Width	26.5 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	16.3 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 x 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes

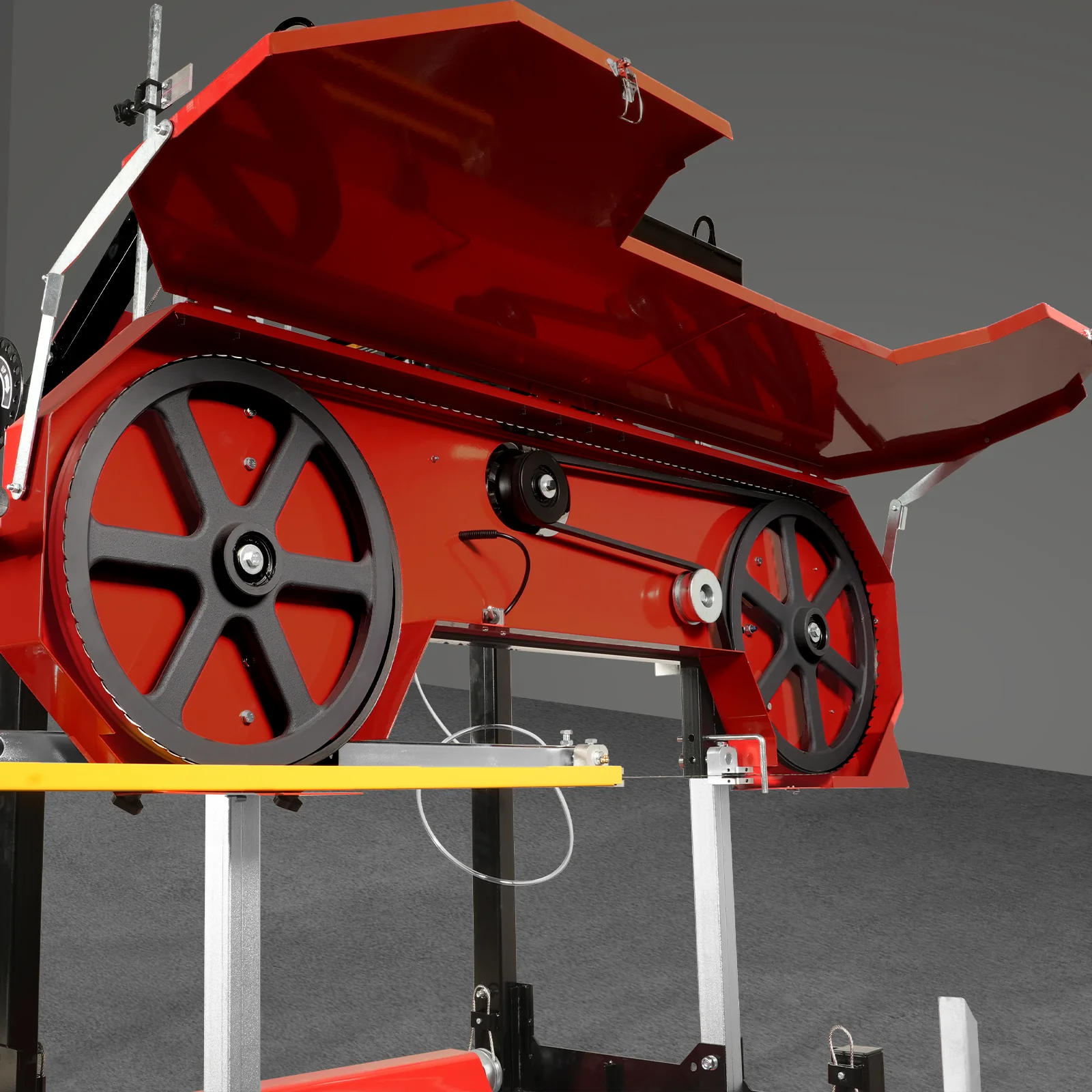

Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel

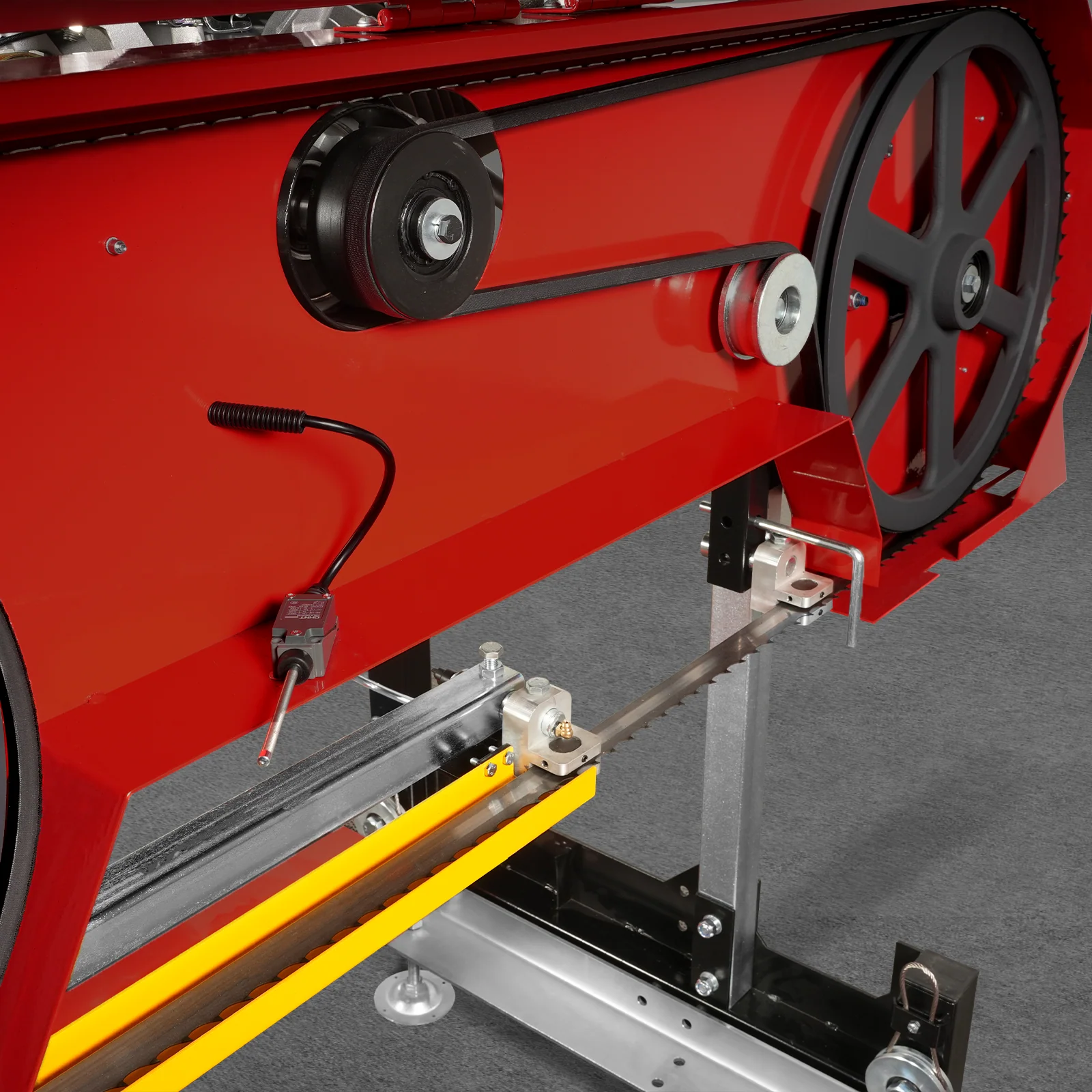

Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years

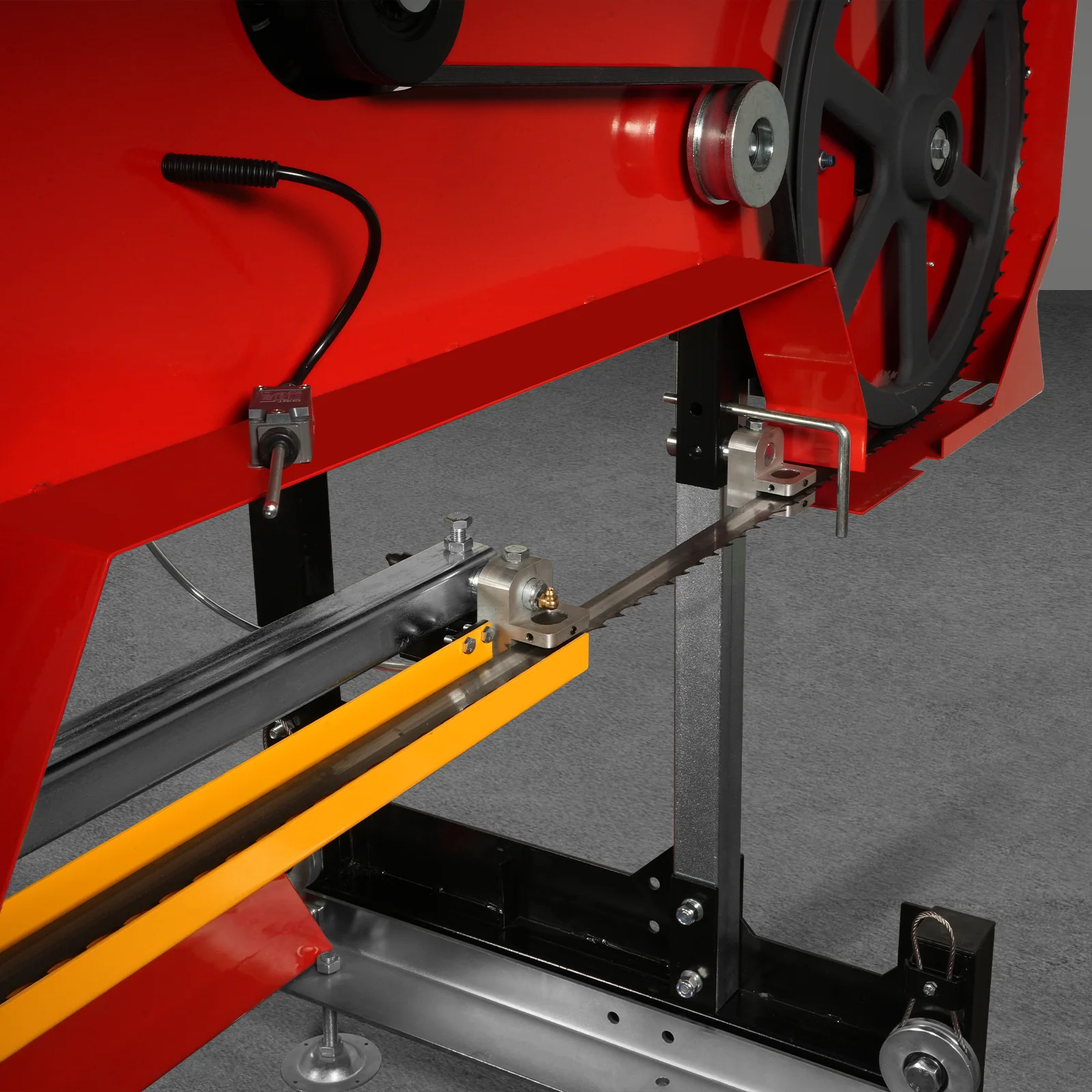

Blade Guide	By Roller	Engine Warranty	3 Years

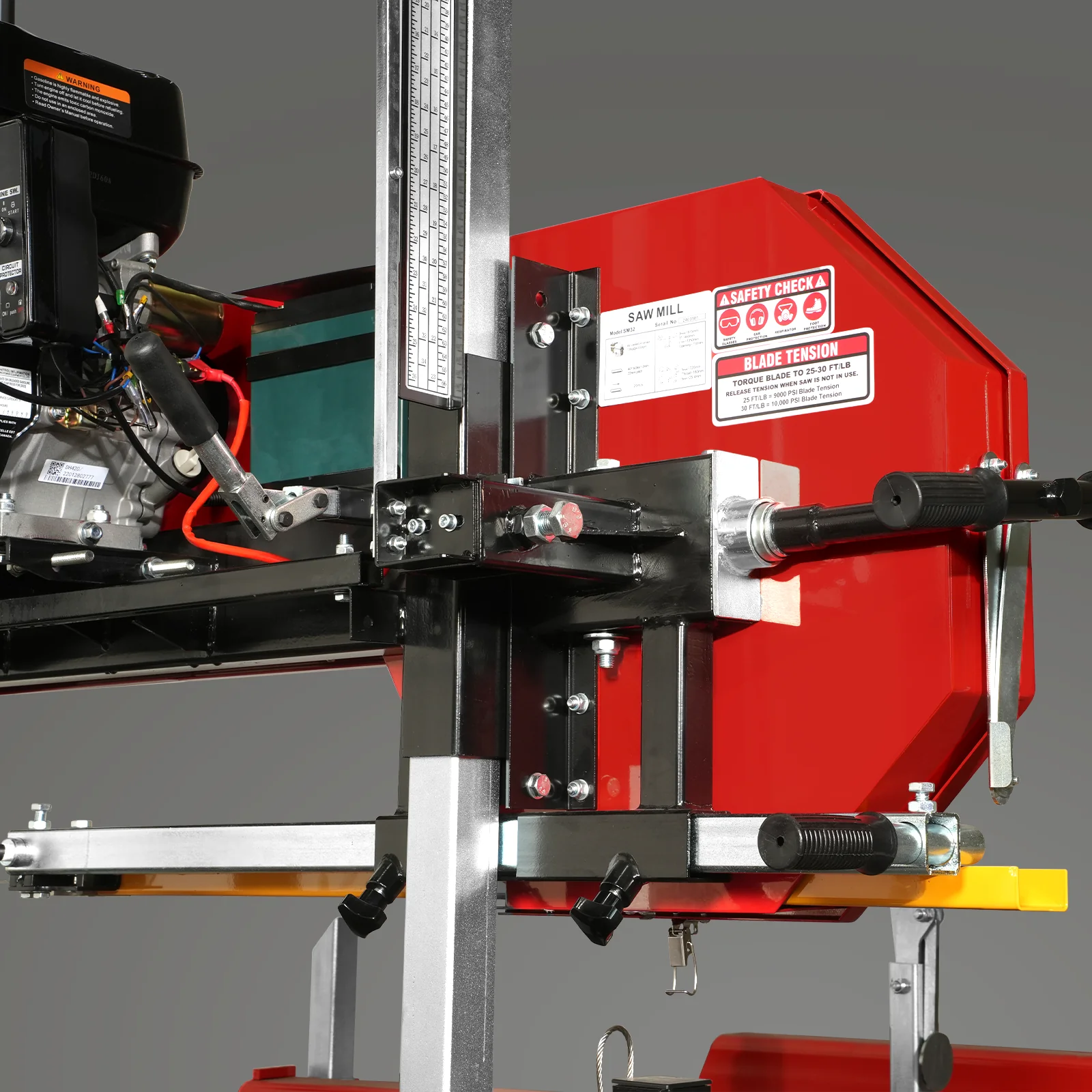

Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	158 x 1.3 in	Packing Size	90 x 25 x 34 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	953/1047 lbs
Blade Lubrication	Water Lube - Manual Valve	Package Contents	Sawmill x 1, Blade x 5, Cant Hook x 1
Lubricant Tank Size	2.6 gal



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
