Overall Height	32 in
Overall Width	90 in
Overall Depth	38 in
Drum Width	80 in
Drum Diameter	23.6 in

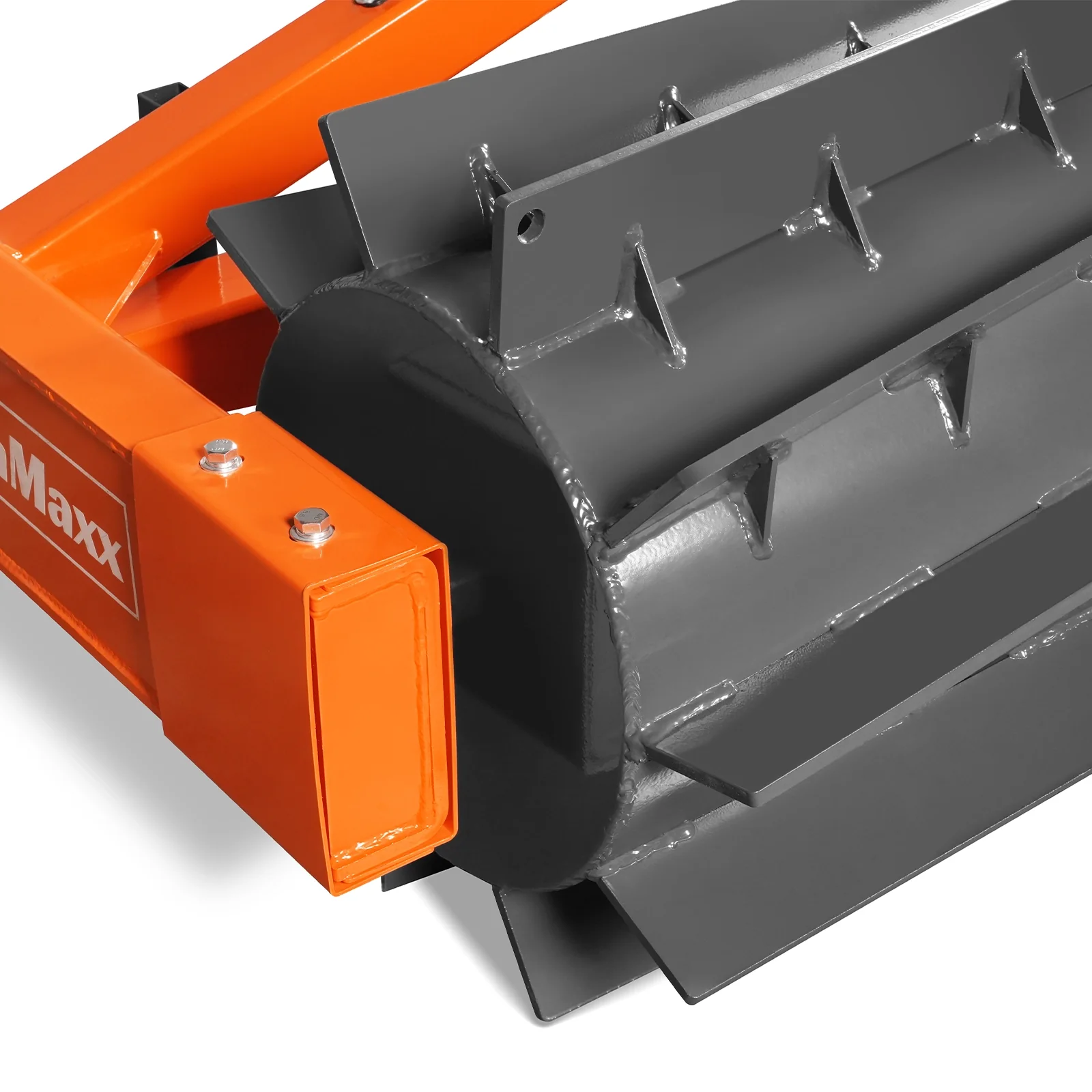

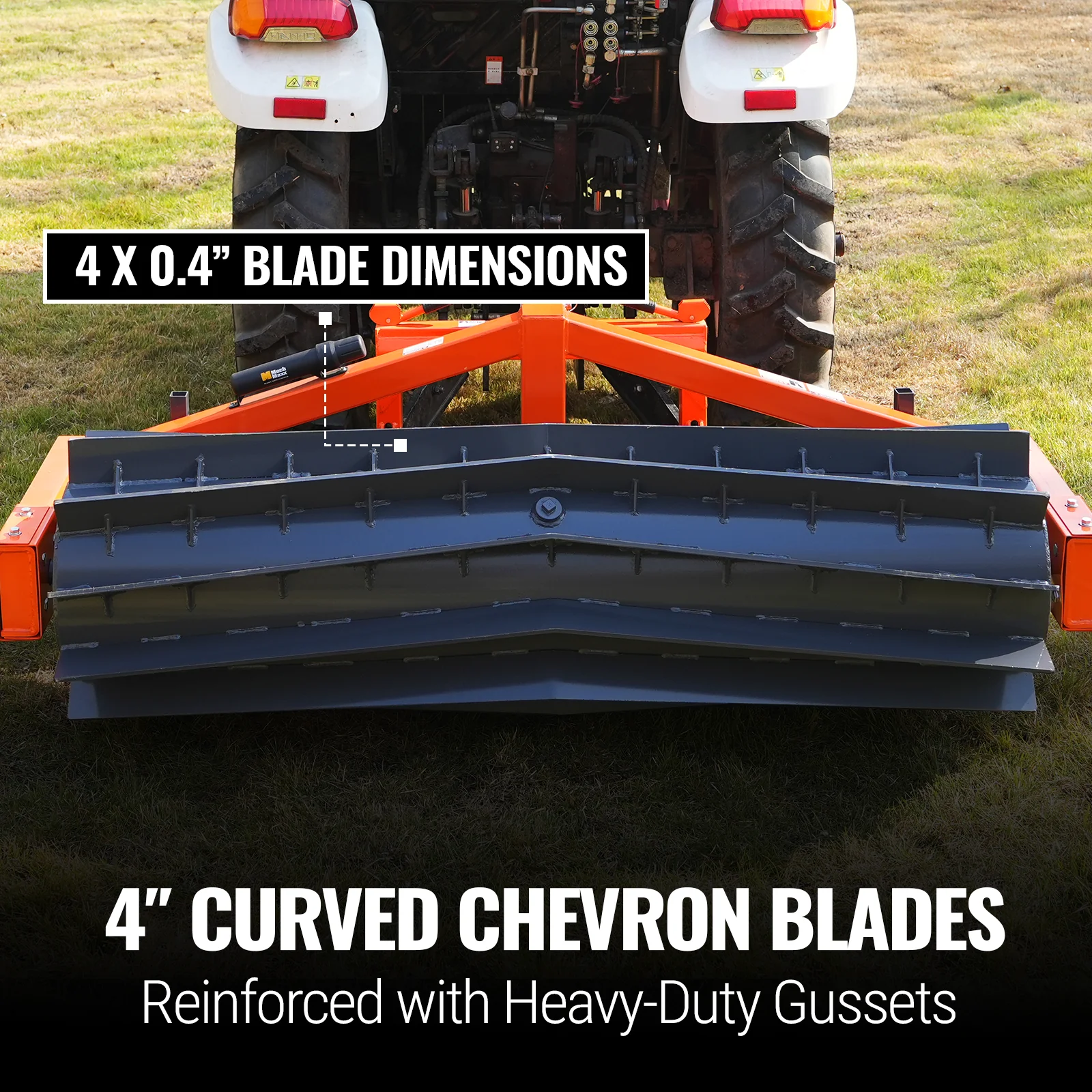

Blade Dimensions	4 x 0.4 in
Min Tractor HP	35 HP

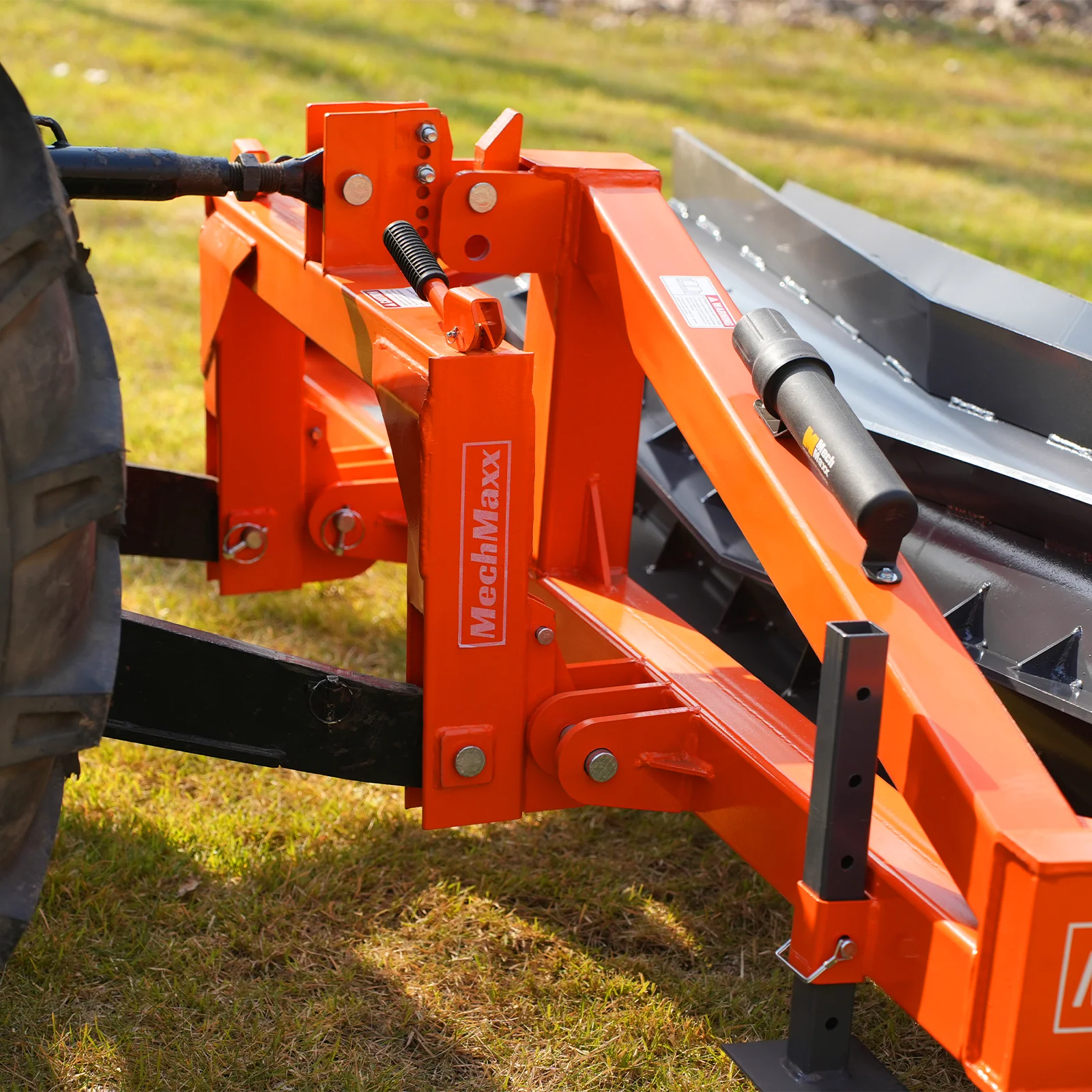

Hitch Type	Cat.1, 2 (Quick Hitch Compatible)

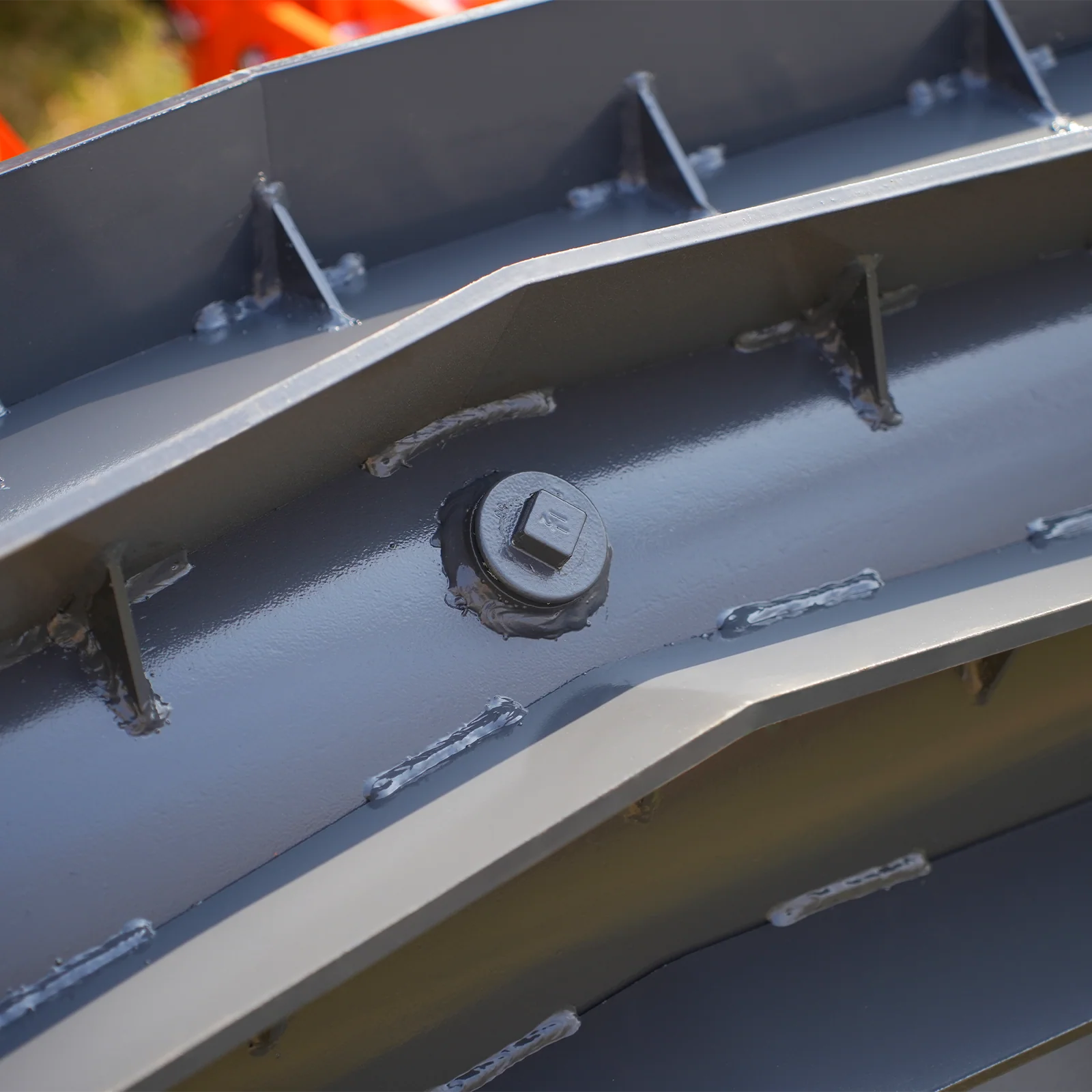

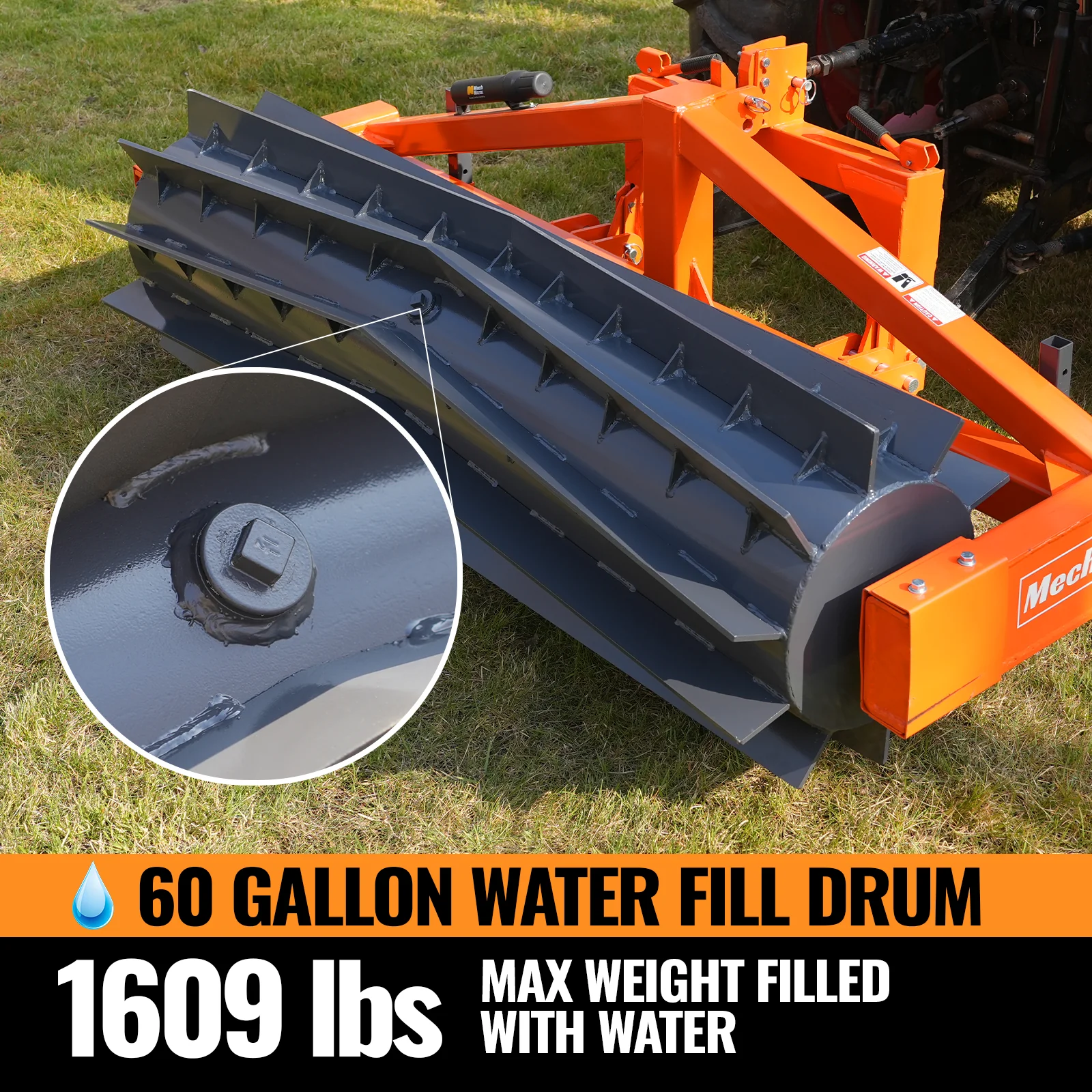

Max Fill Capacity	60 Gal of Water
Max Weight Filled with Water	1609 lbs
Axle	2 in Solid Steel
Frame Tubing	4 x 4 in
Packing Size (LxWxH)	90.6 x 38.6 x 32.7 in
Weight (N.W/G.W.)	1107/1173 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
