Engine	ZONSEN GB460	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Load-Bearing	5 ton
Engine Displacement	459 cc	Track Width	2 ft 7 in
Horsepower	15 HP	Track Length	20 ft
Start	E-Start	Track Extension Length	6.4 ft
Log Diameter	26 in	Height (Max Head Position)	79 in
Max Live Edge Width	20 in	Leveling Feet	18
Standard Cutting Length	16.4 ft	Log Rests	2 Long and 2 Short Rests
Max Board Thickness	7 in	Log Clamps	2 x Quick Lock
Blade Engagement System	Centrifugal Clutch	Track Bunks	3 x 6 in

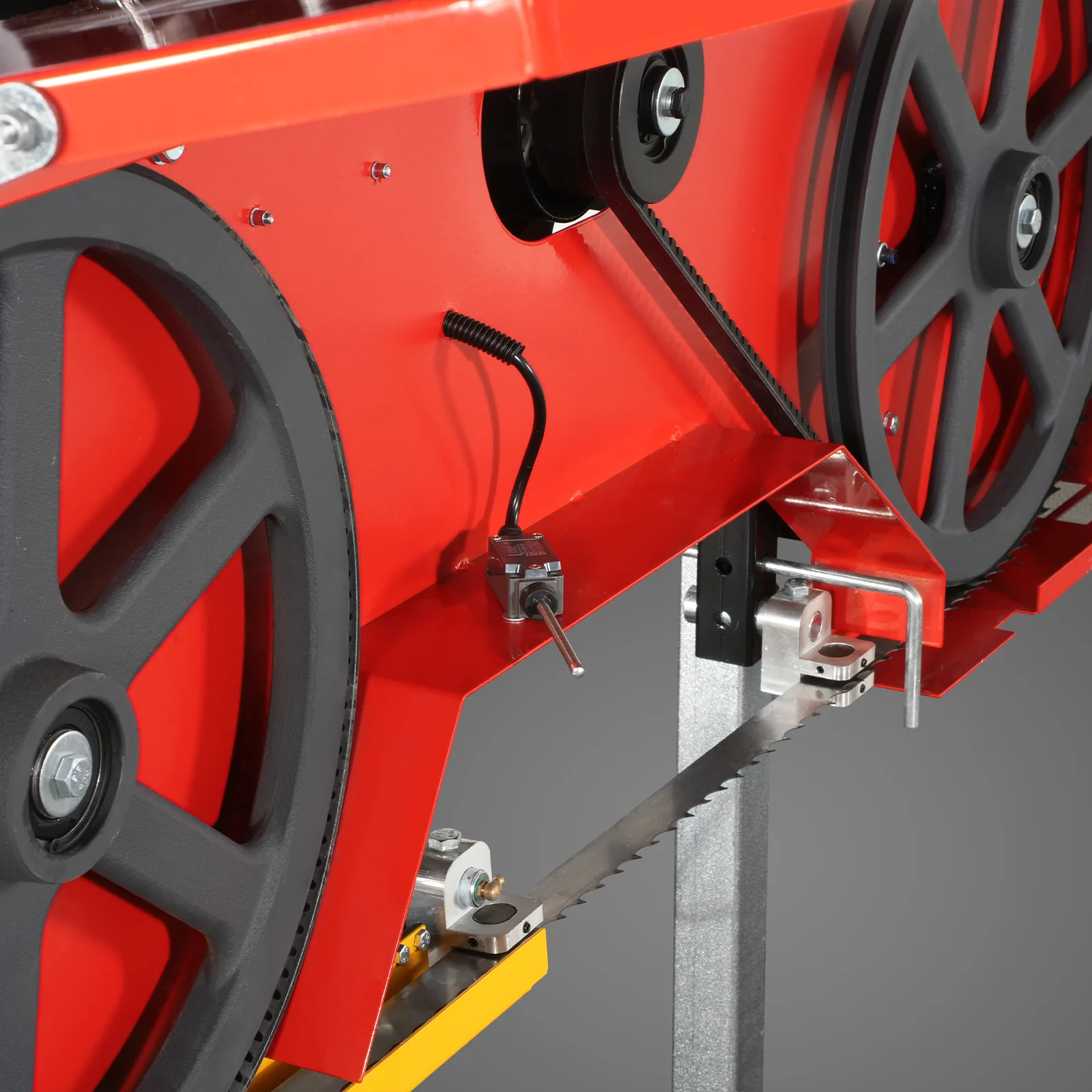

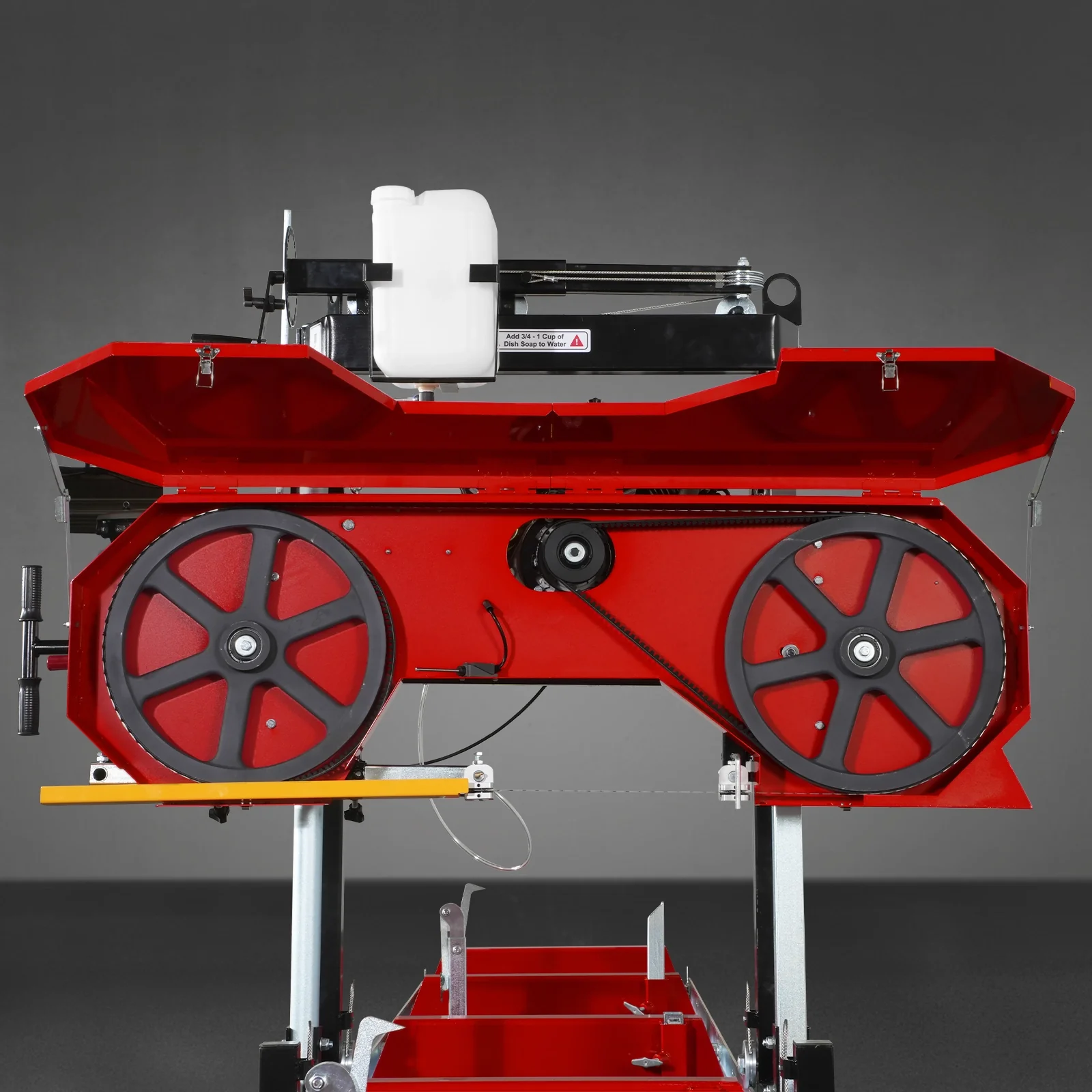

Cast Iron Bandwheel Diameter	19 in	4 Post Head Design	Yes
Blade Wheel Engagement	Belt Drive	Finish	Powder Coat Paint Galvanized Steel

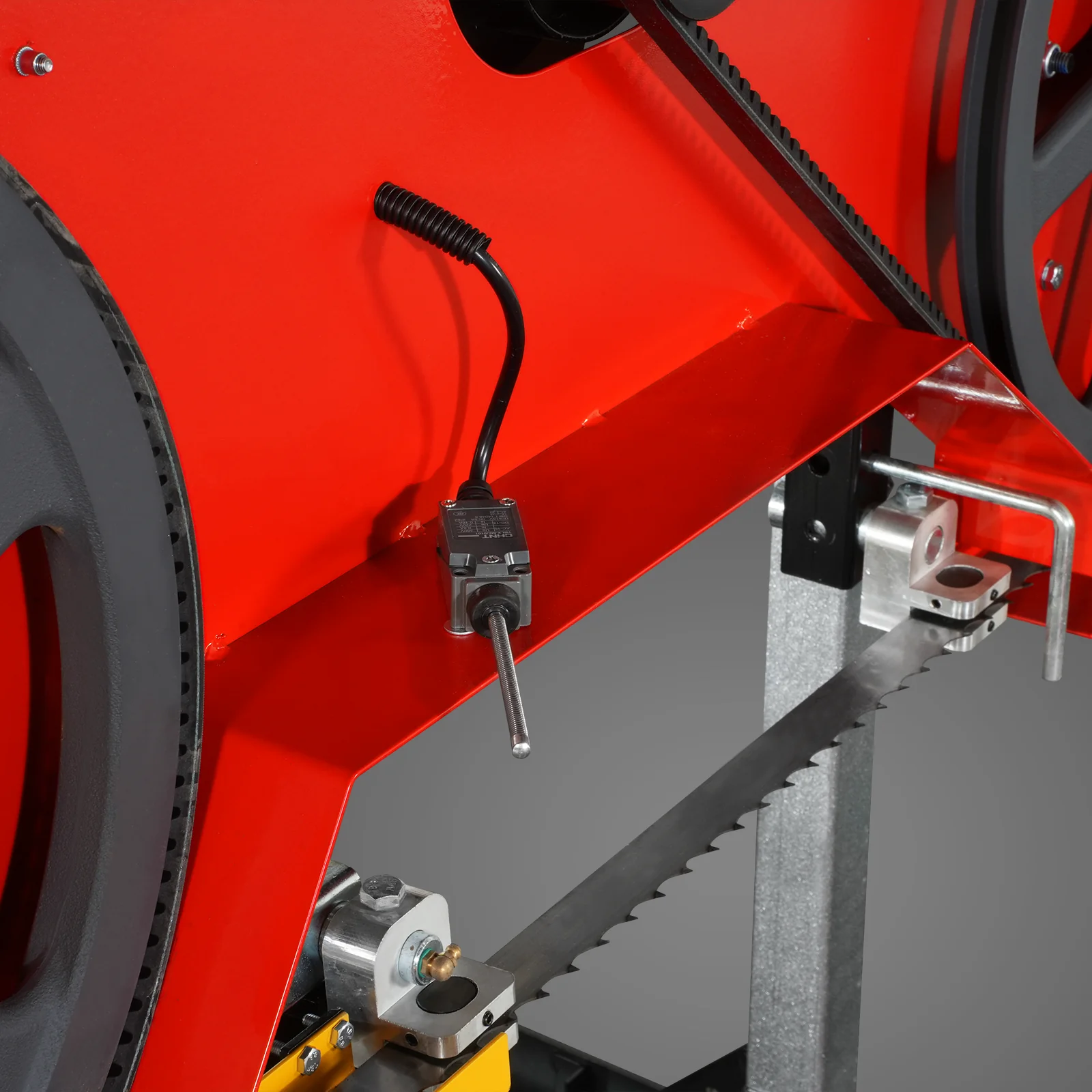

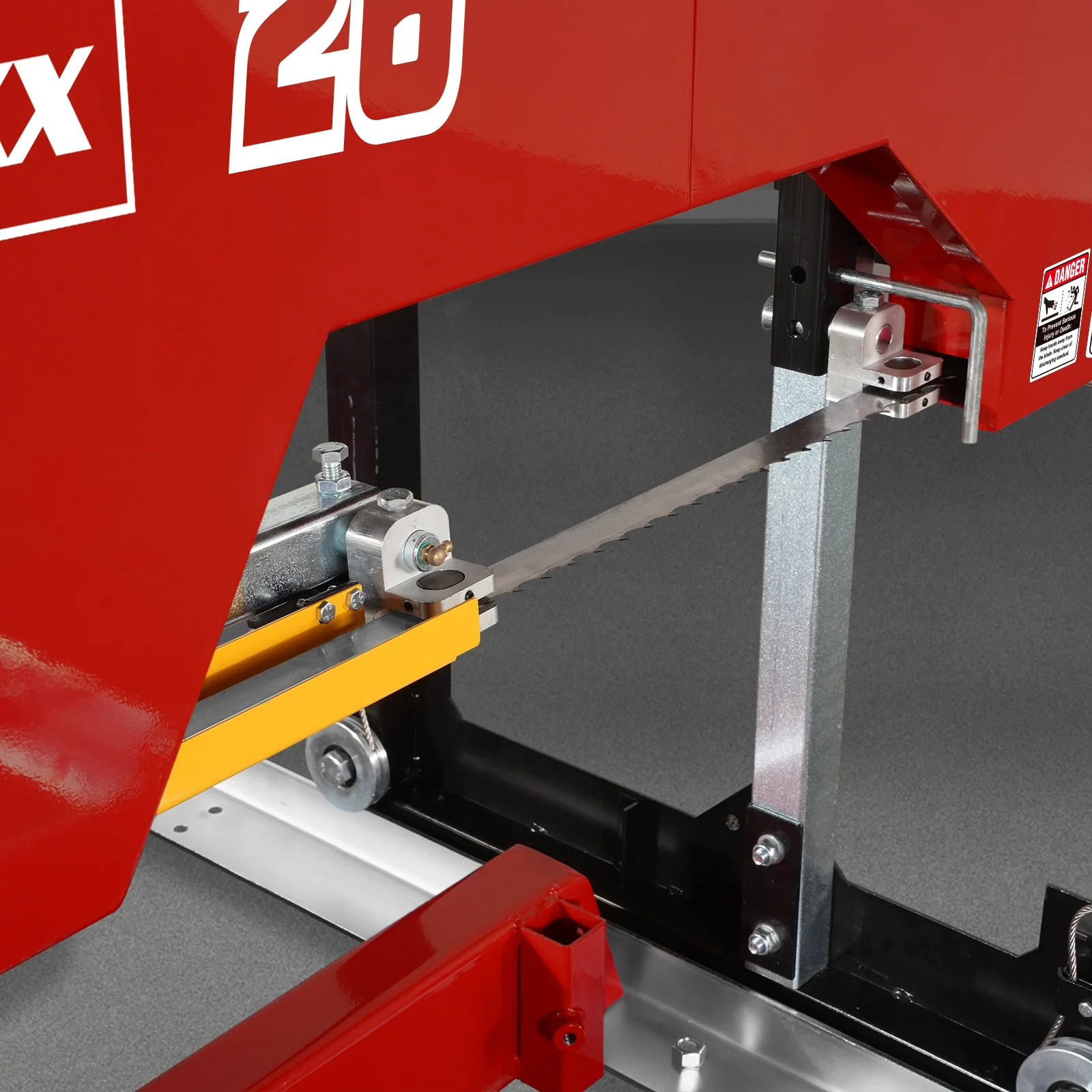

Blade Guide	By Roller	Sawmill Warranty	2 Years
Blade Tension	By Adjustable Lever	Engine Warranty	1 Year
Blade Size	144 x 1.3 in	Package Method	Wood
Blade Pitch	7/8 in	Packing Size	89 x 25 x 34 in

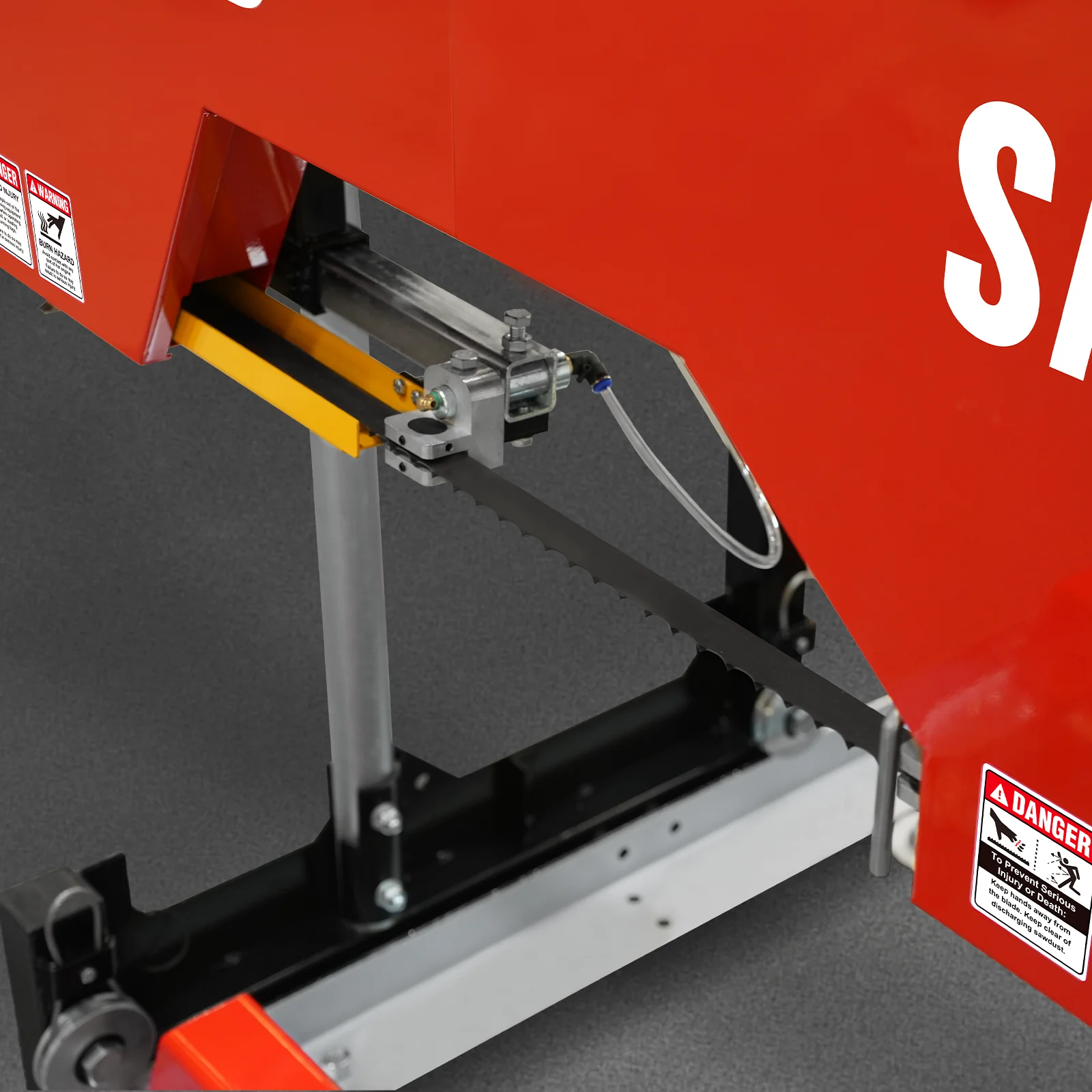

Blade Lubrication	Water Lube - Manual Valve	Weight (N.W./G.W.)	864/944 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
