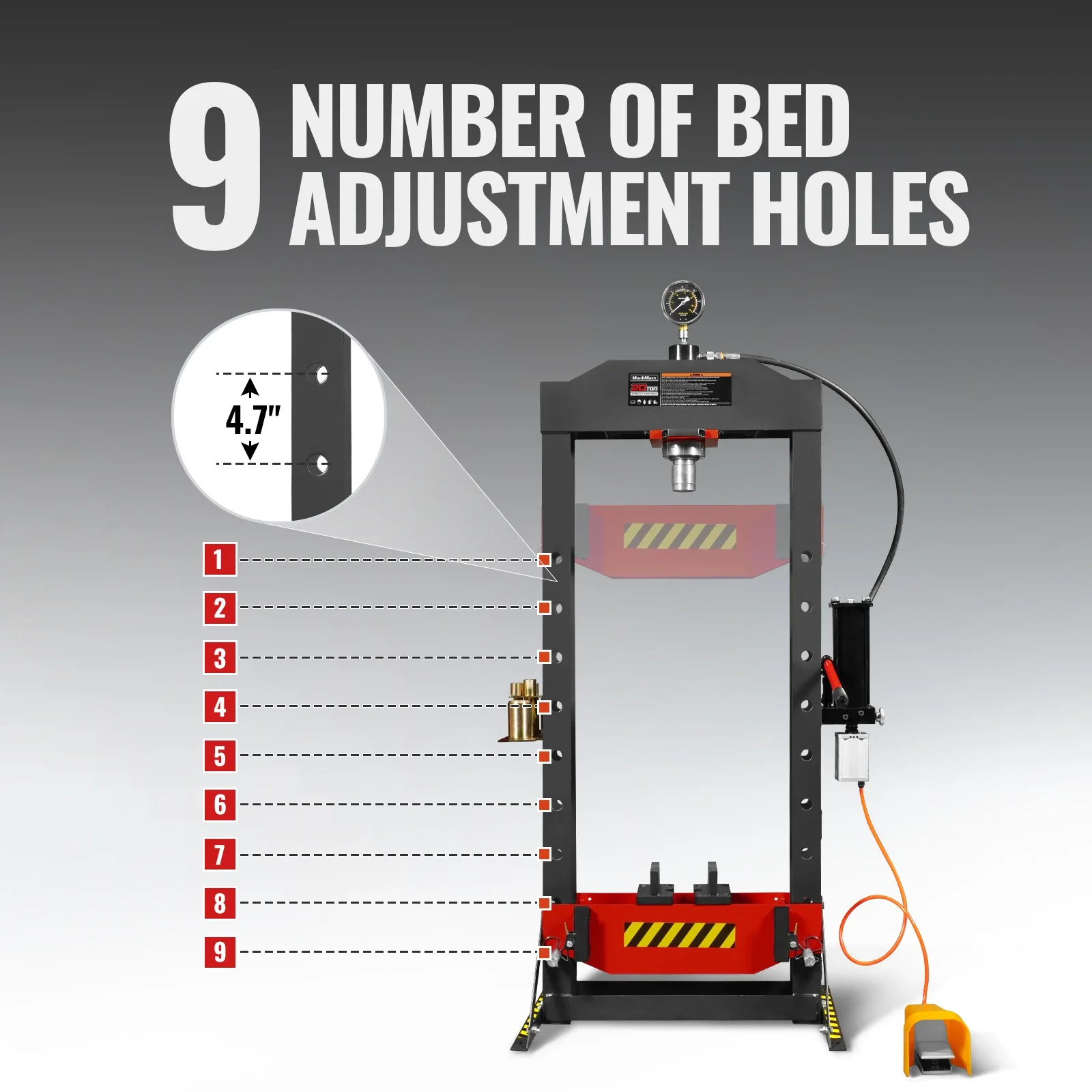

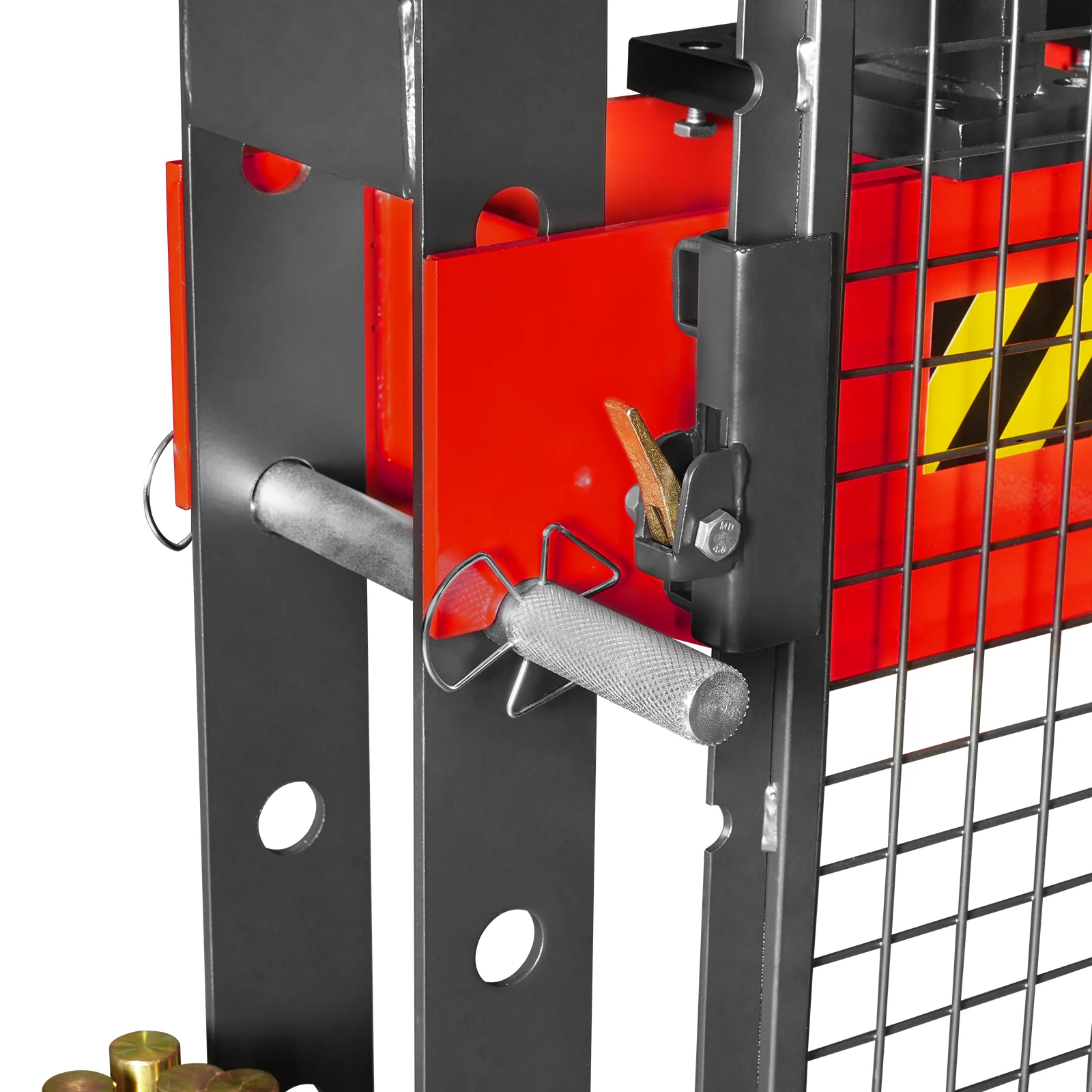

Rated Capacity	20 Tons	Number of Bed Adjustment Holes	9

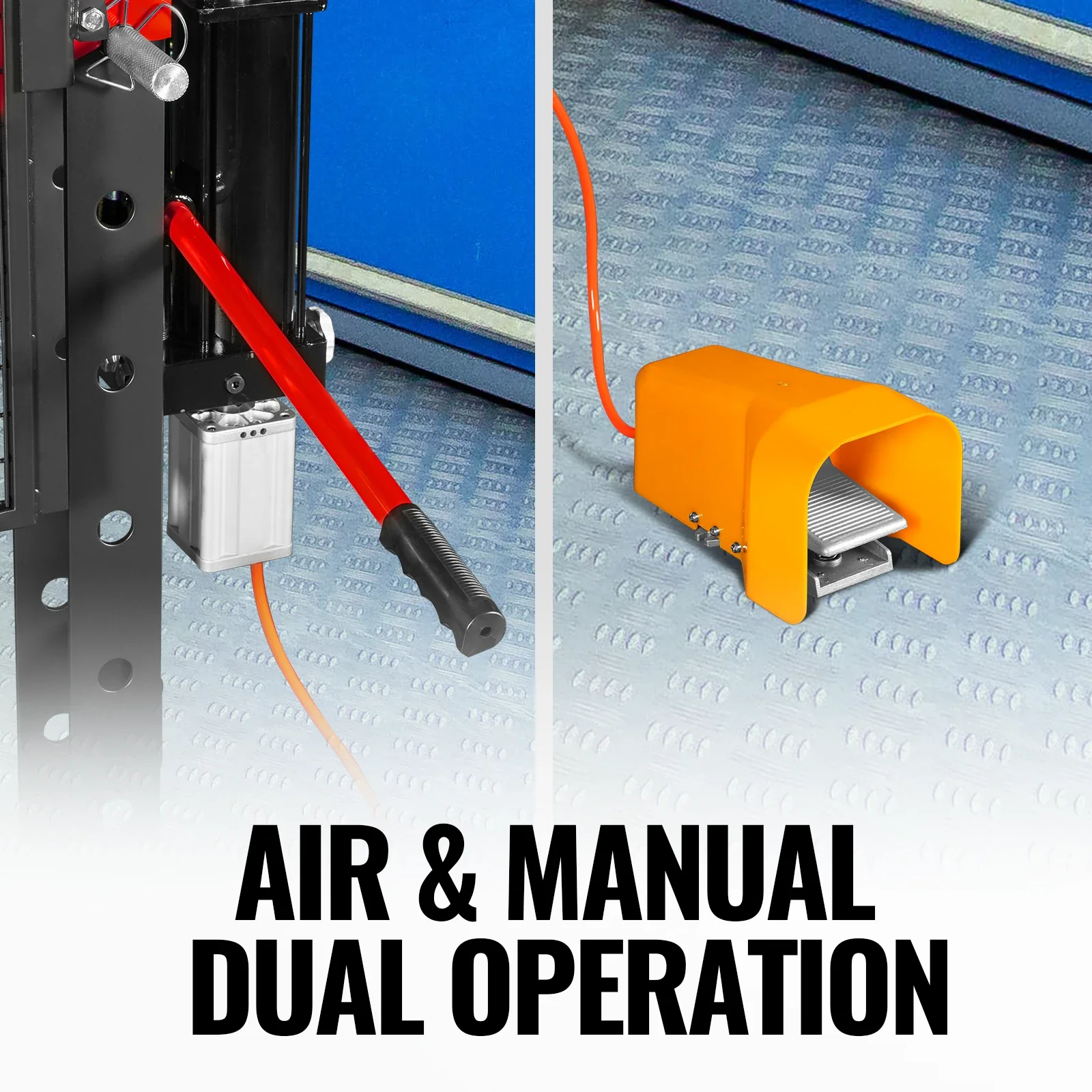

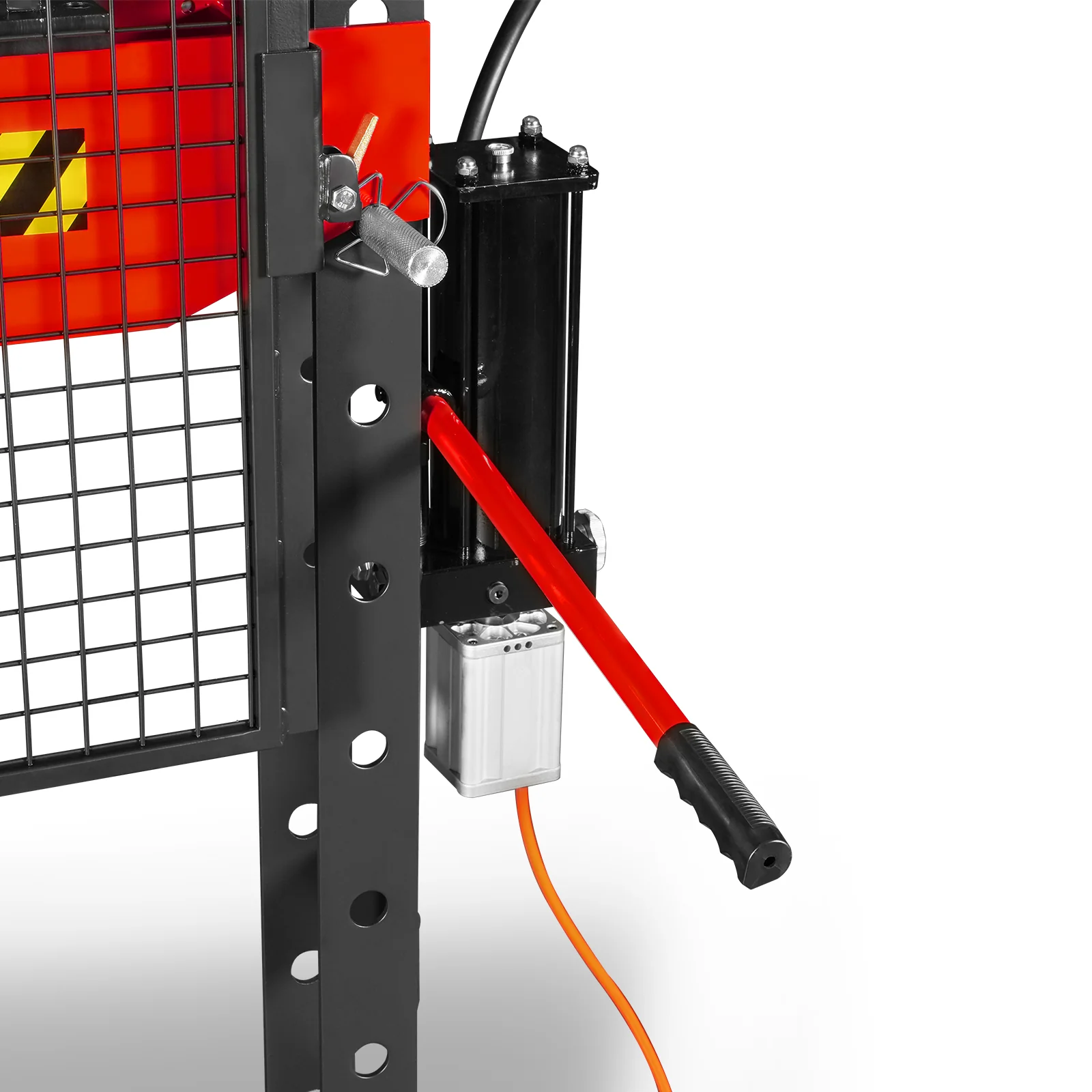

Operation Type	Air & Manual Dual Operation	Bed Adjustment Hole Spacing	4.7 in

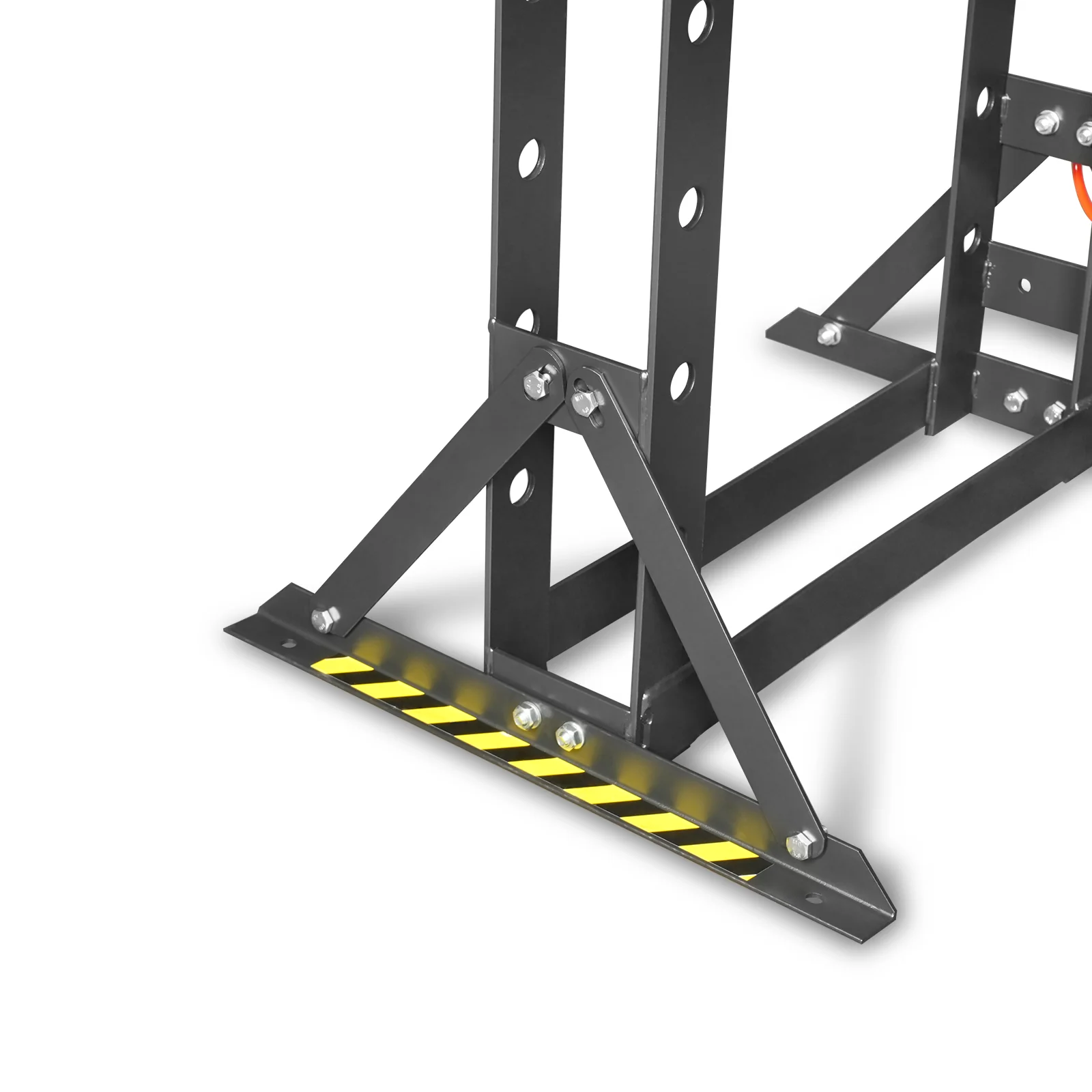

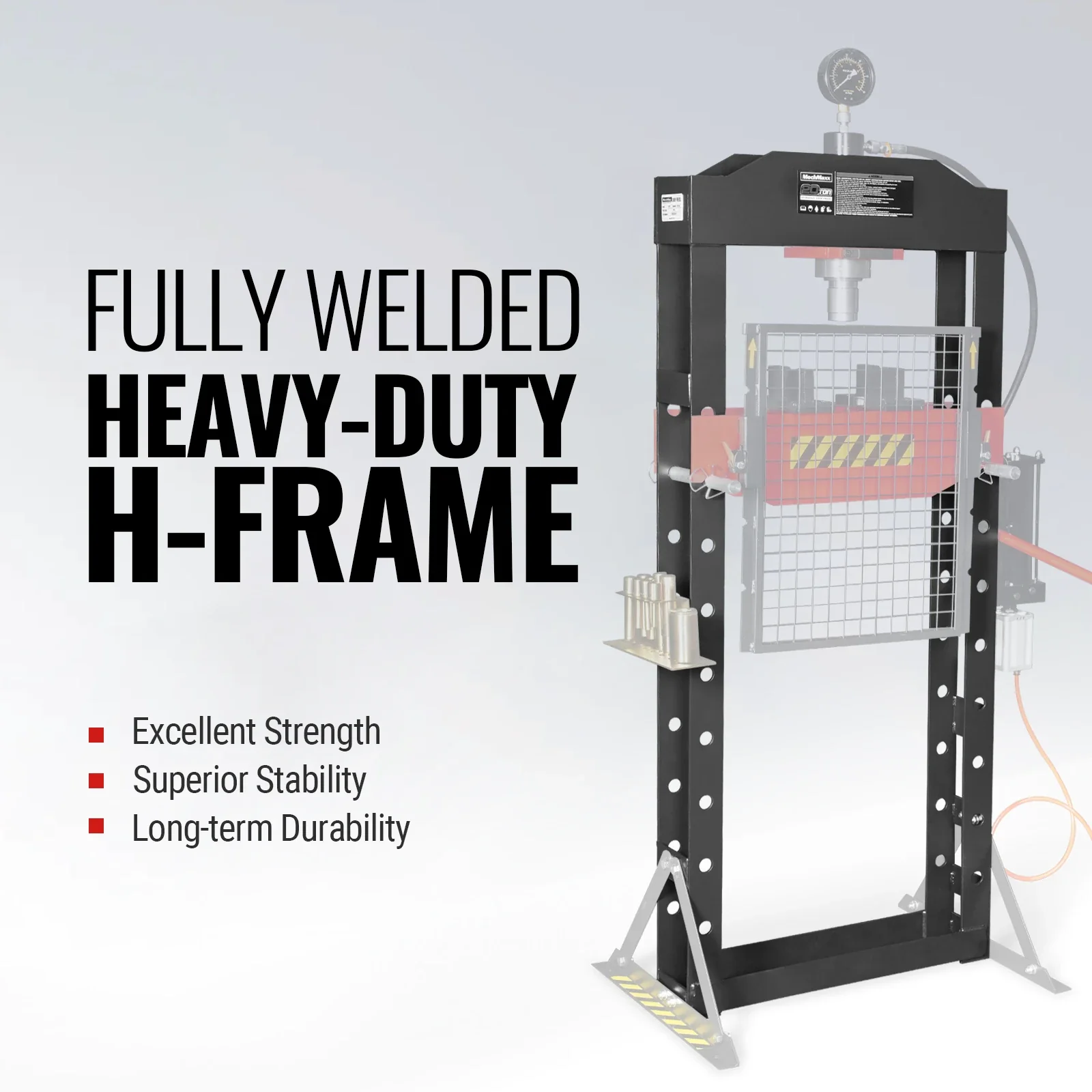

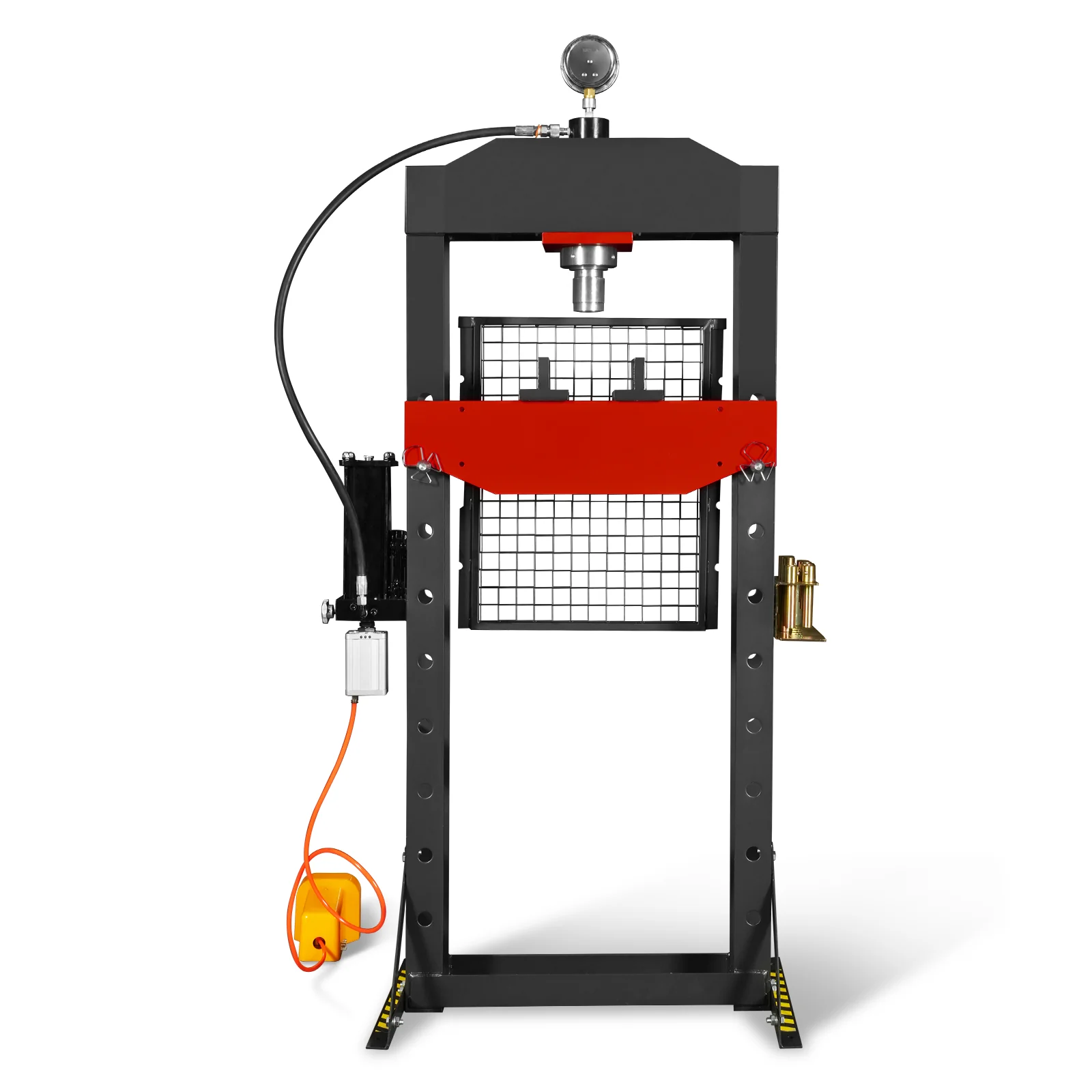

Air Pressure	110-125 PSI	Frame Construction	Fully Welded Heavy-Duty H-Frame

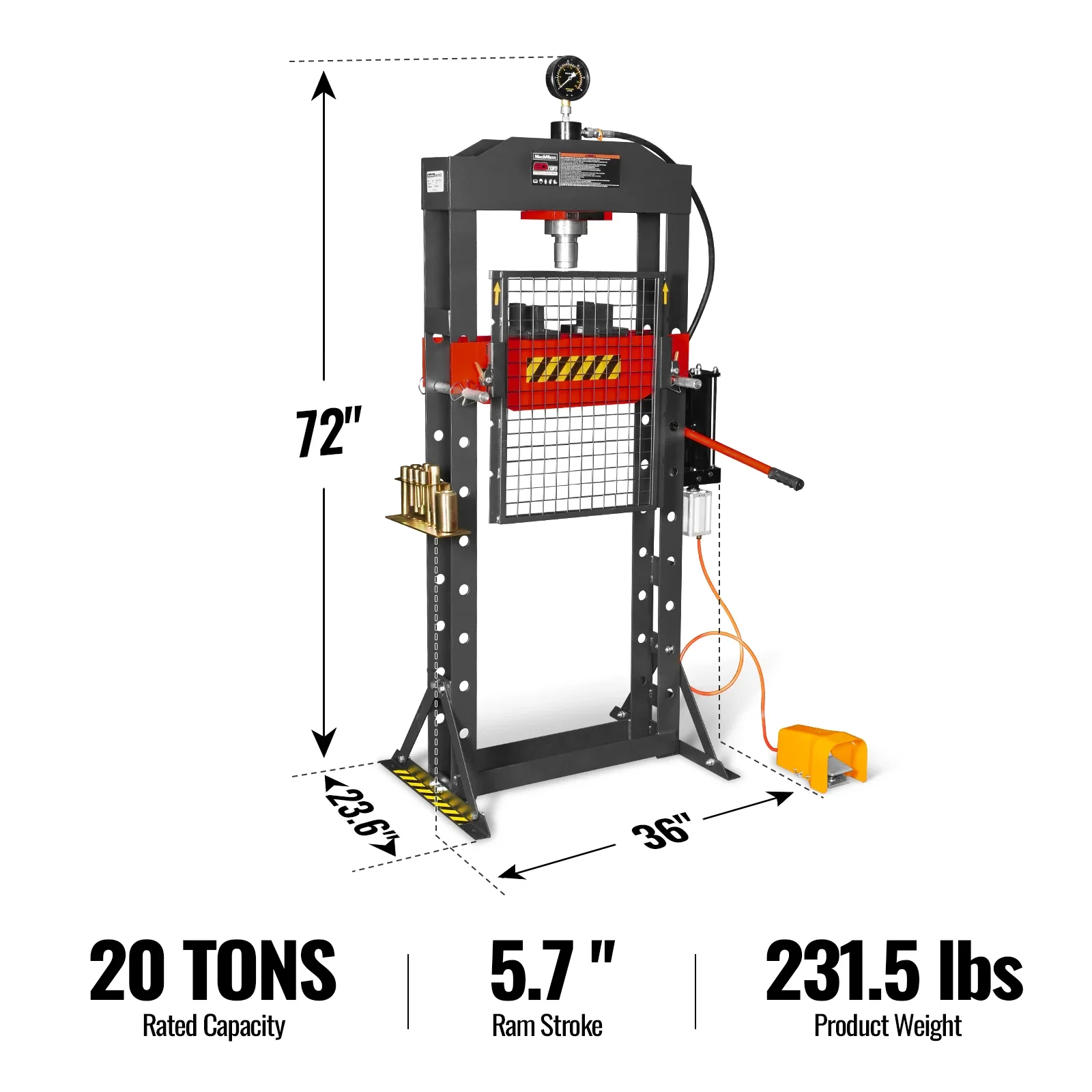

Ram Stroke	5.7 in	Assembled Size (H x D x W)	72 x 23.6 x 36 in

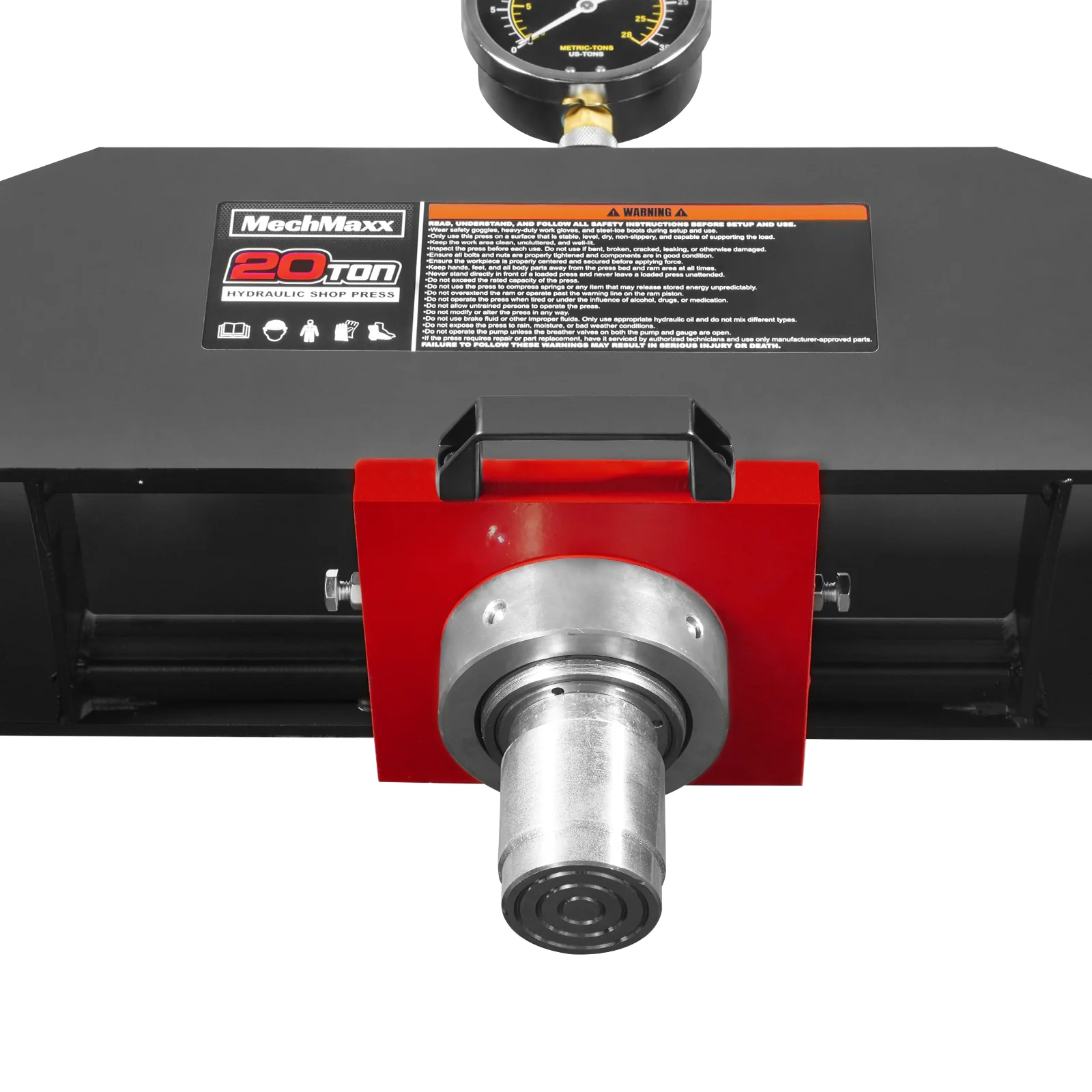

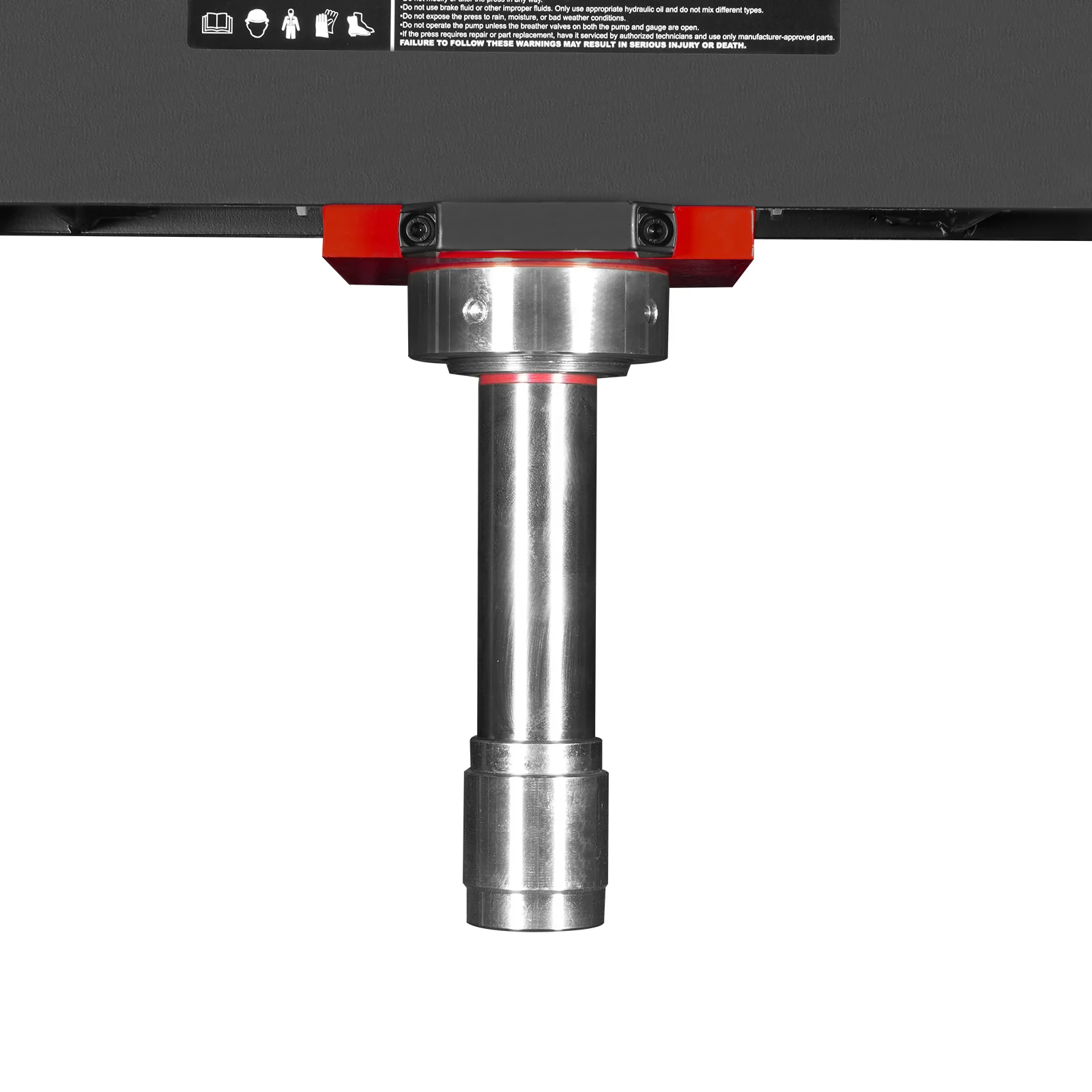

Ram Diameter	1.9 in	Internal Frame Width	21.3 in

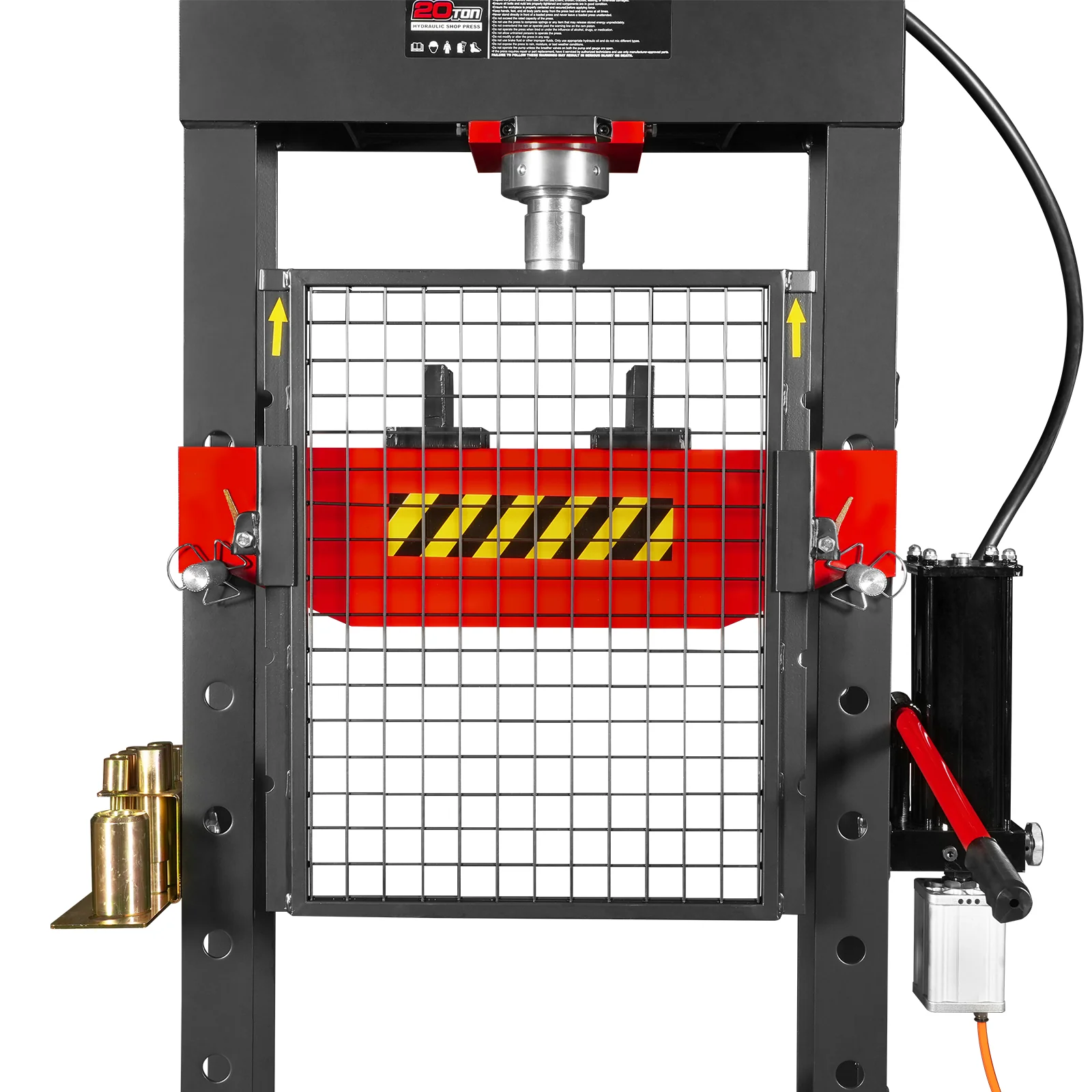

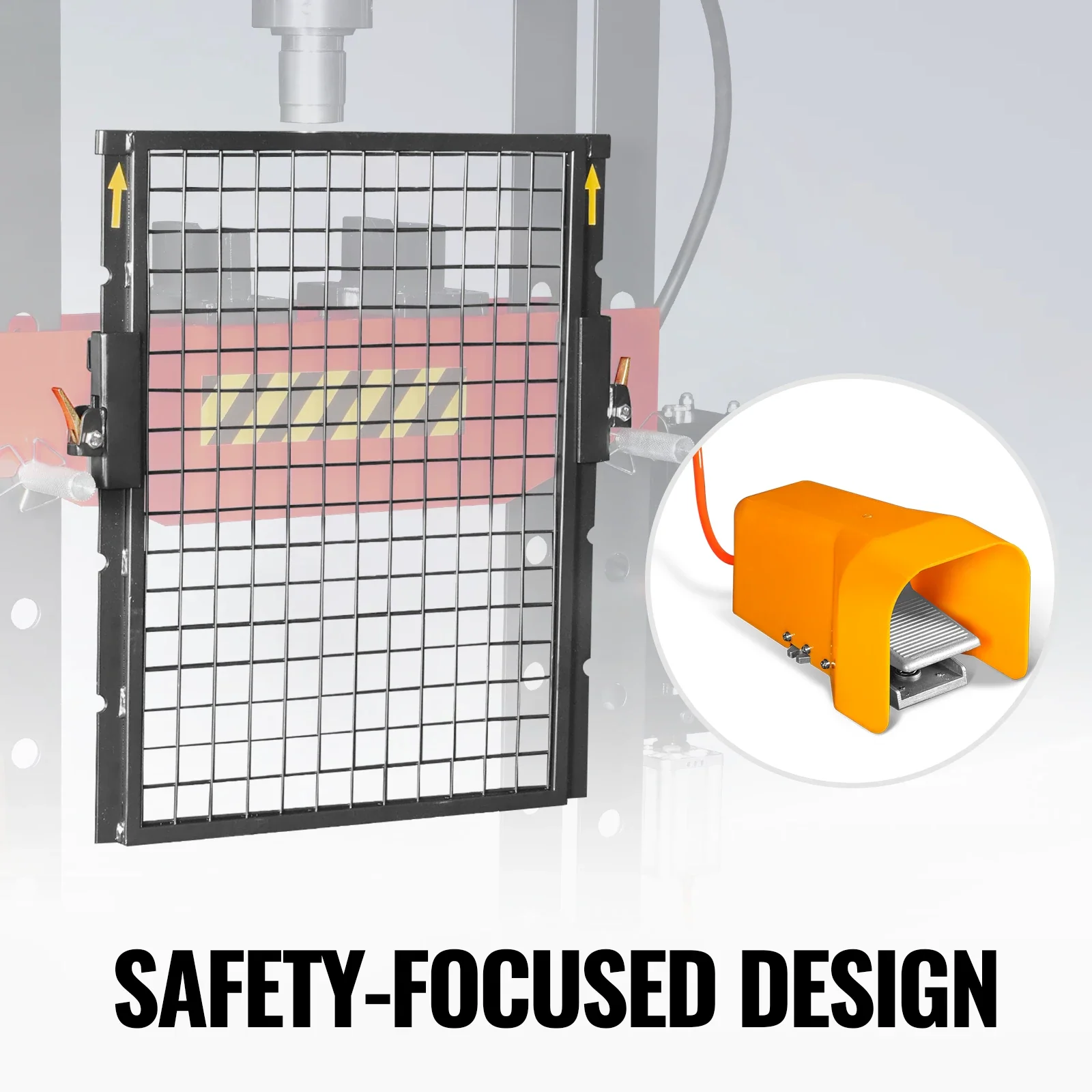

Cylinder Bore	2.4 in	Protective Grid Guard Size	24 x 20 in

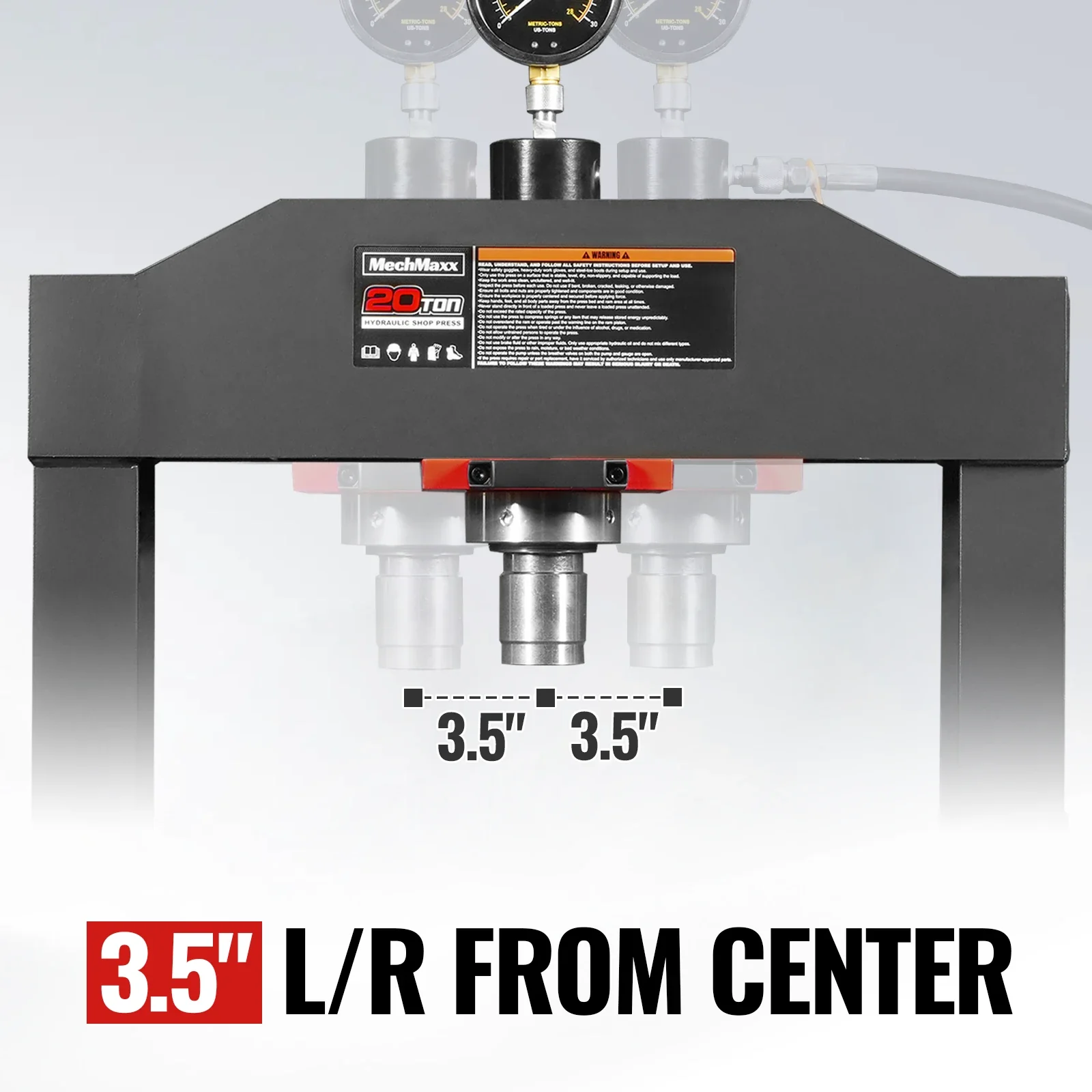

Ram Range of Movement	3.5 in Left / Right from Center	Recommended Hydraulic Oil	AW32 Hydraulic Oil

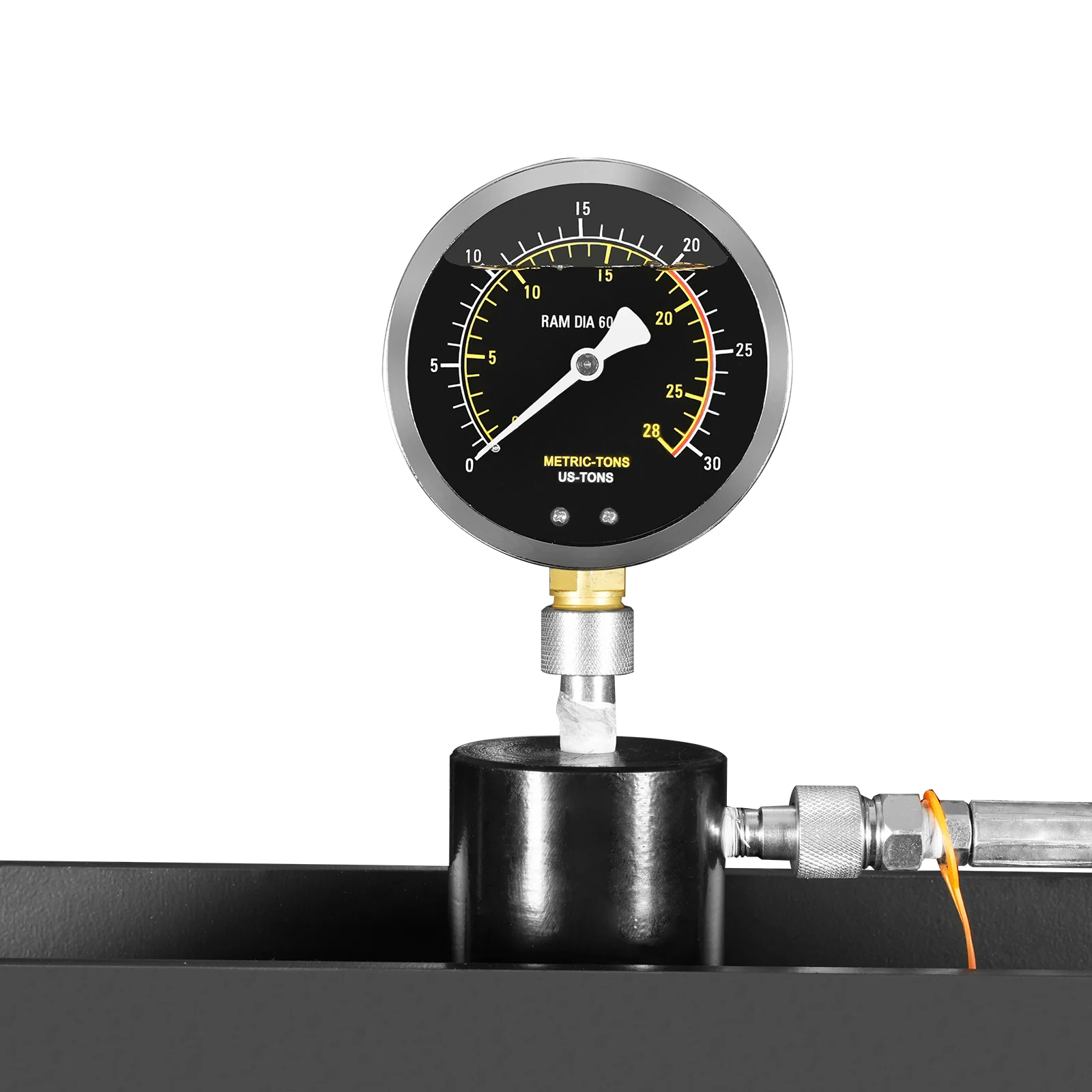

Bed Depth	6.3 in	Gauge Type	4 in Oil-Filled Pressure Gauge

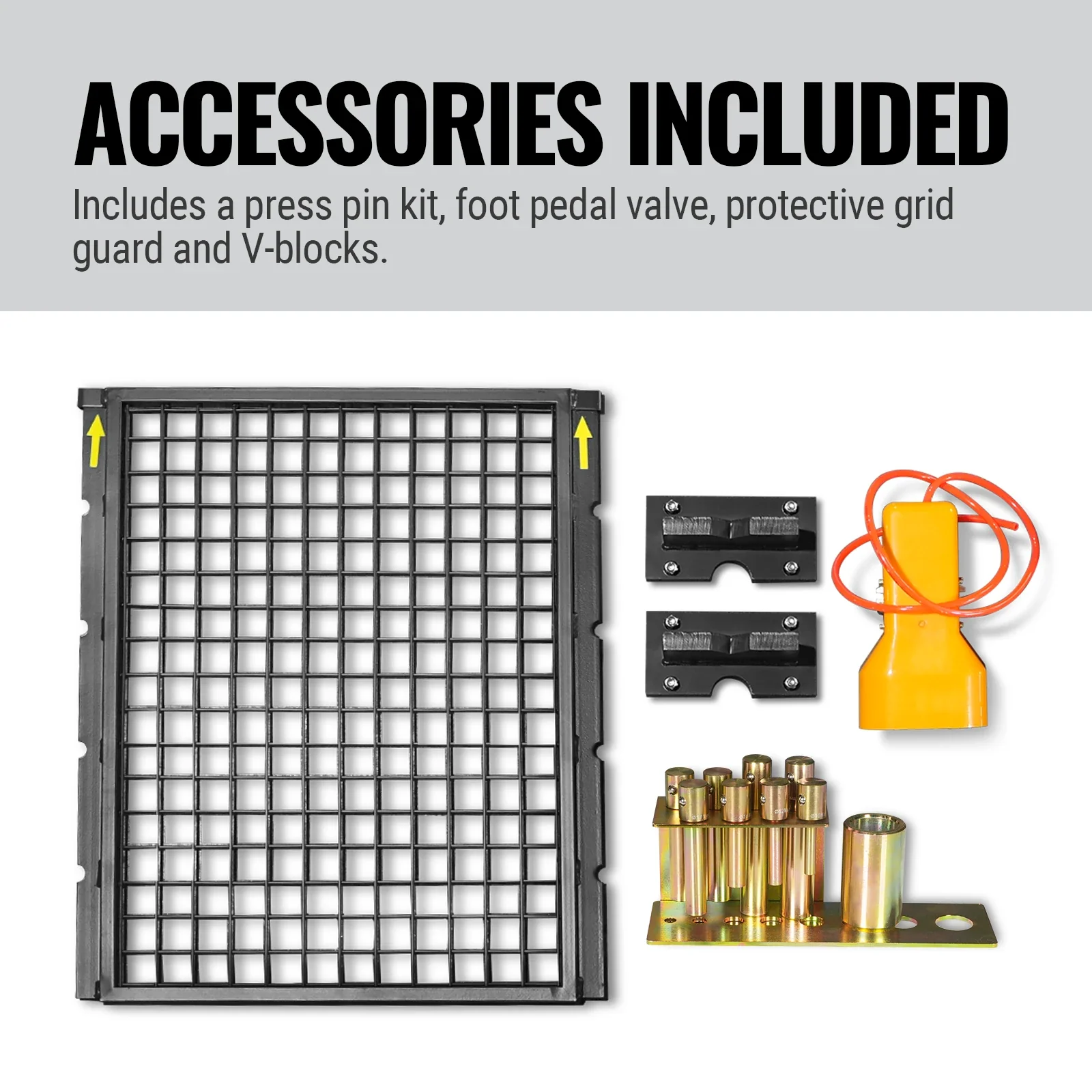

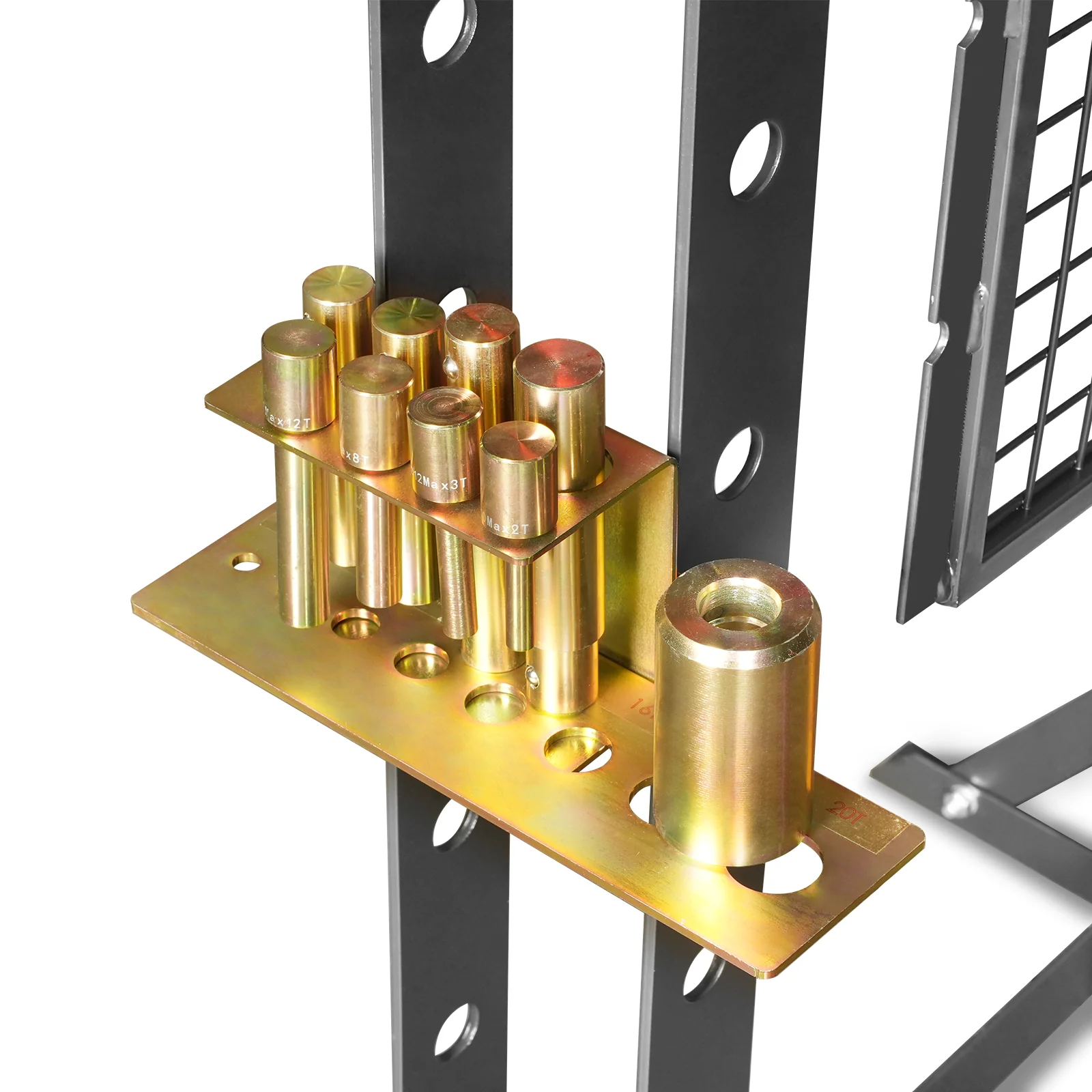

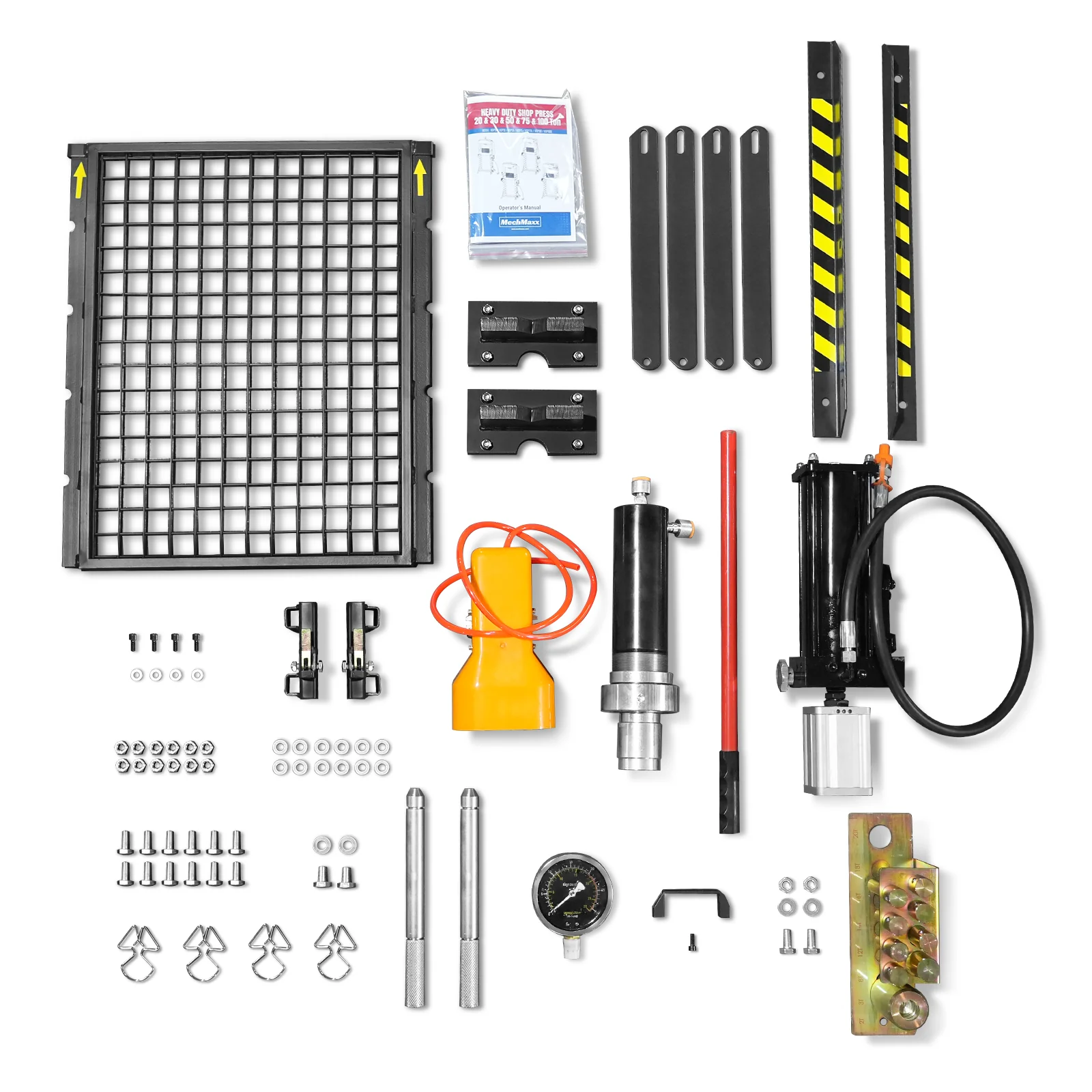

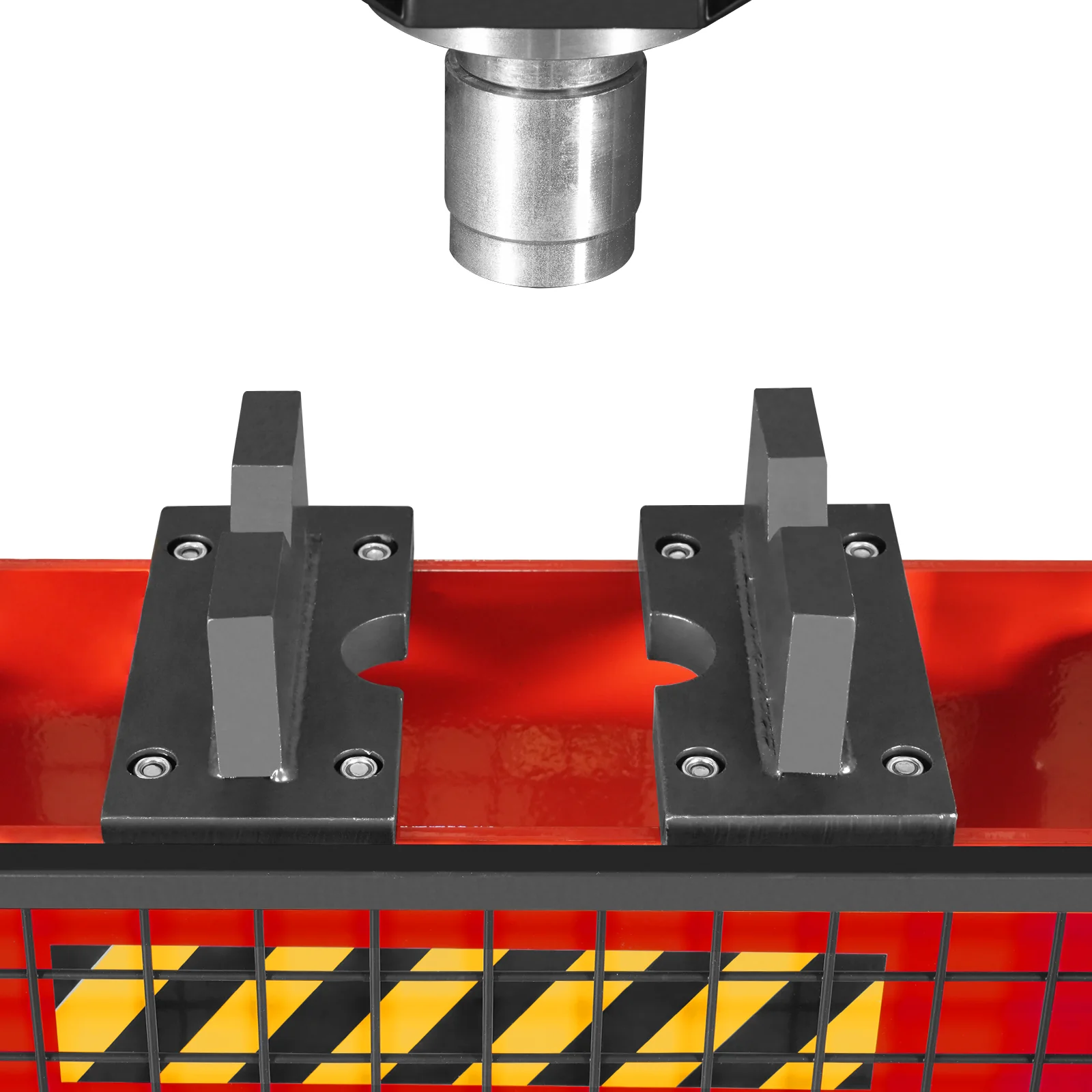

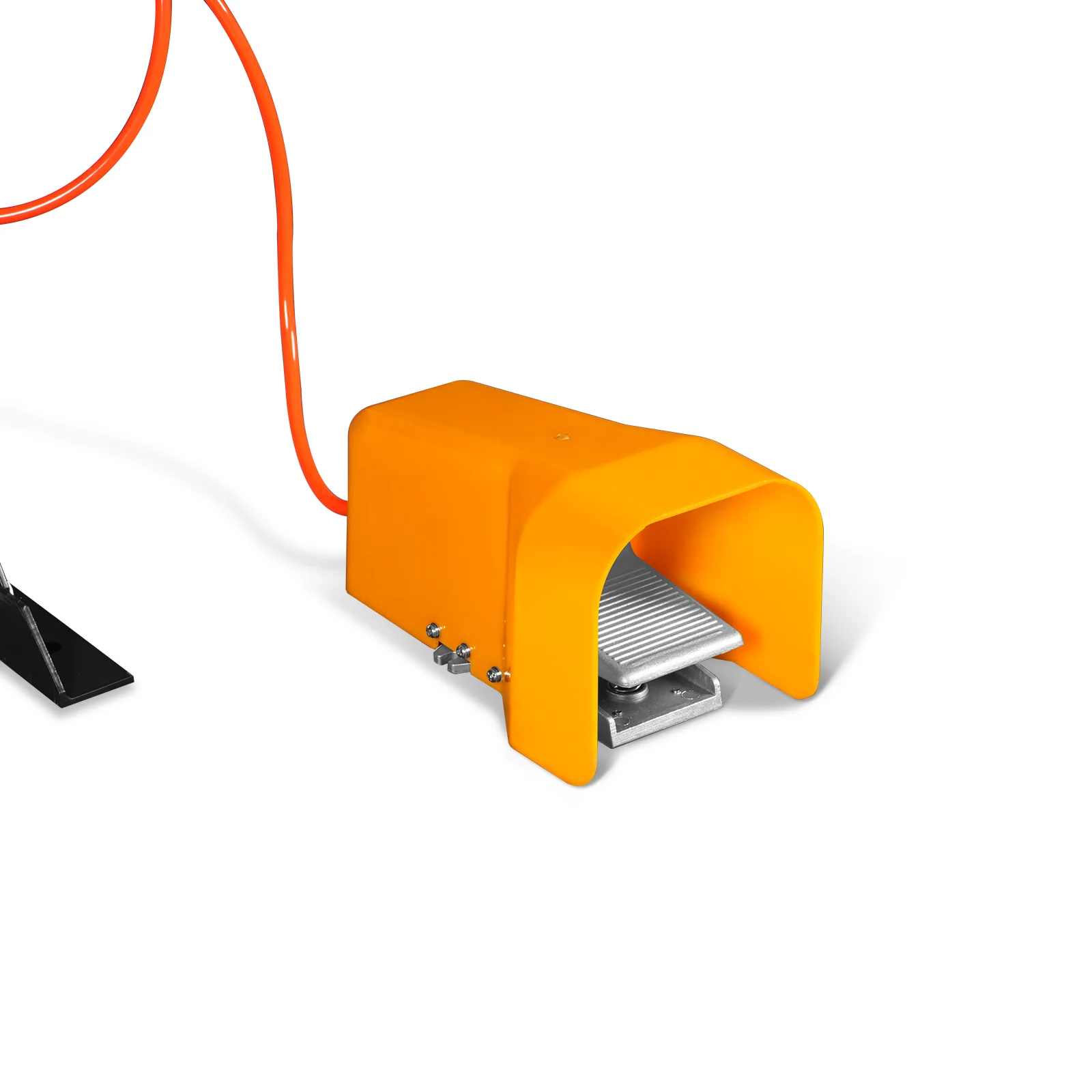

Bed Height	6.7 in	Included Accessories	Press Pin Kit, Protective Grid Guard,  Foot Pedal Valve, V-Blocks
Minimum Ram to Bed	2.3 in	Packing Size (LxWxH)	67.7 x 28.7 x 11.0 in
Maximum Ram to Bed	40.1 in	Weight (N.W/G.W.)	231.5 lbs / 273.4 lbs
Ram Retraction	Twin Springs
