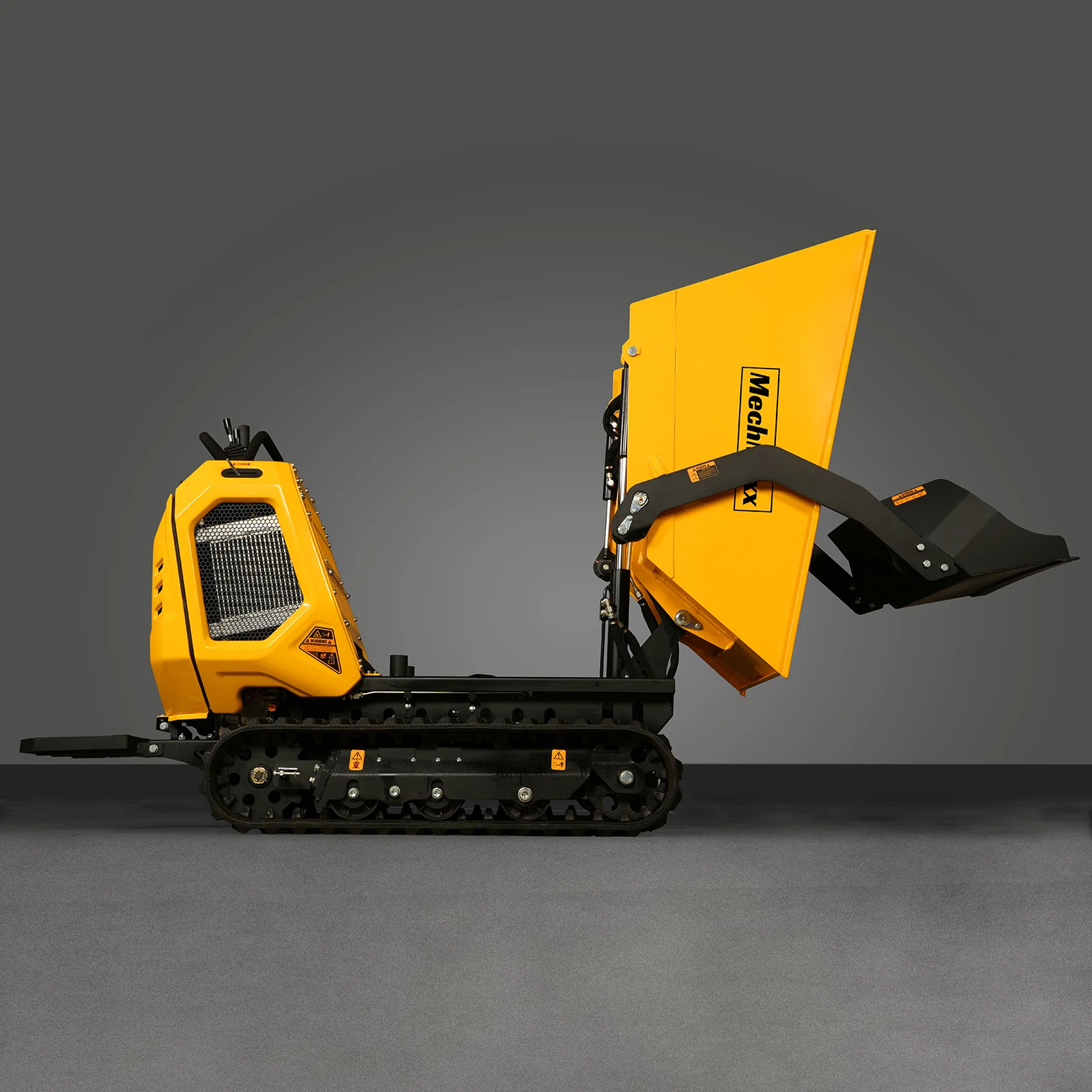

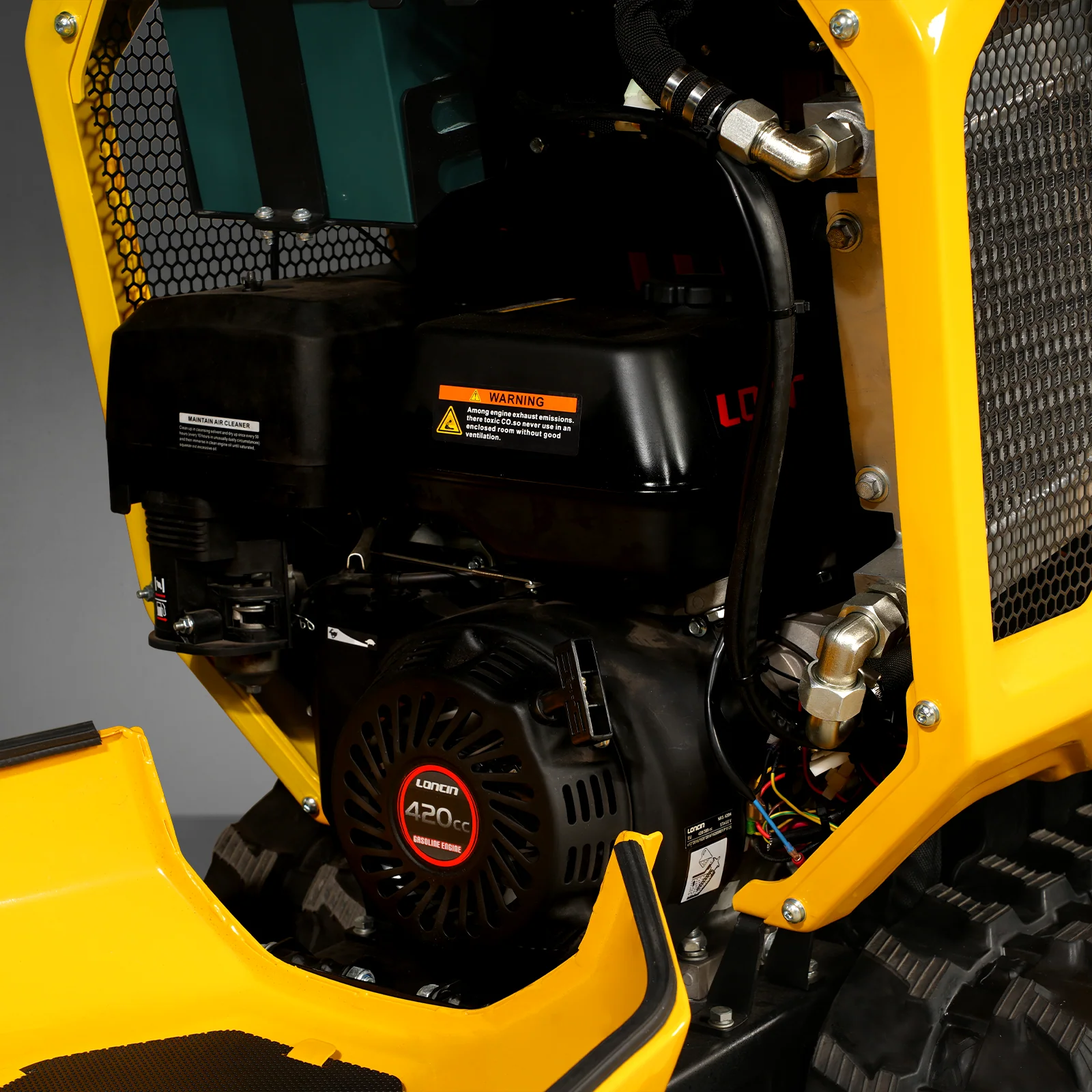

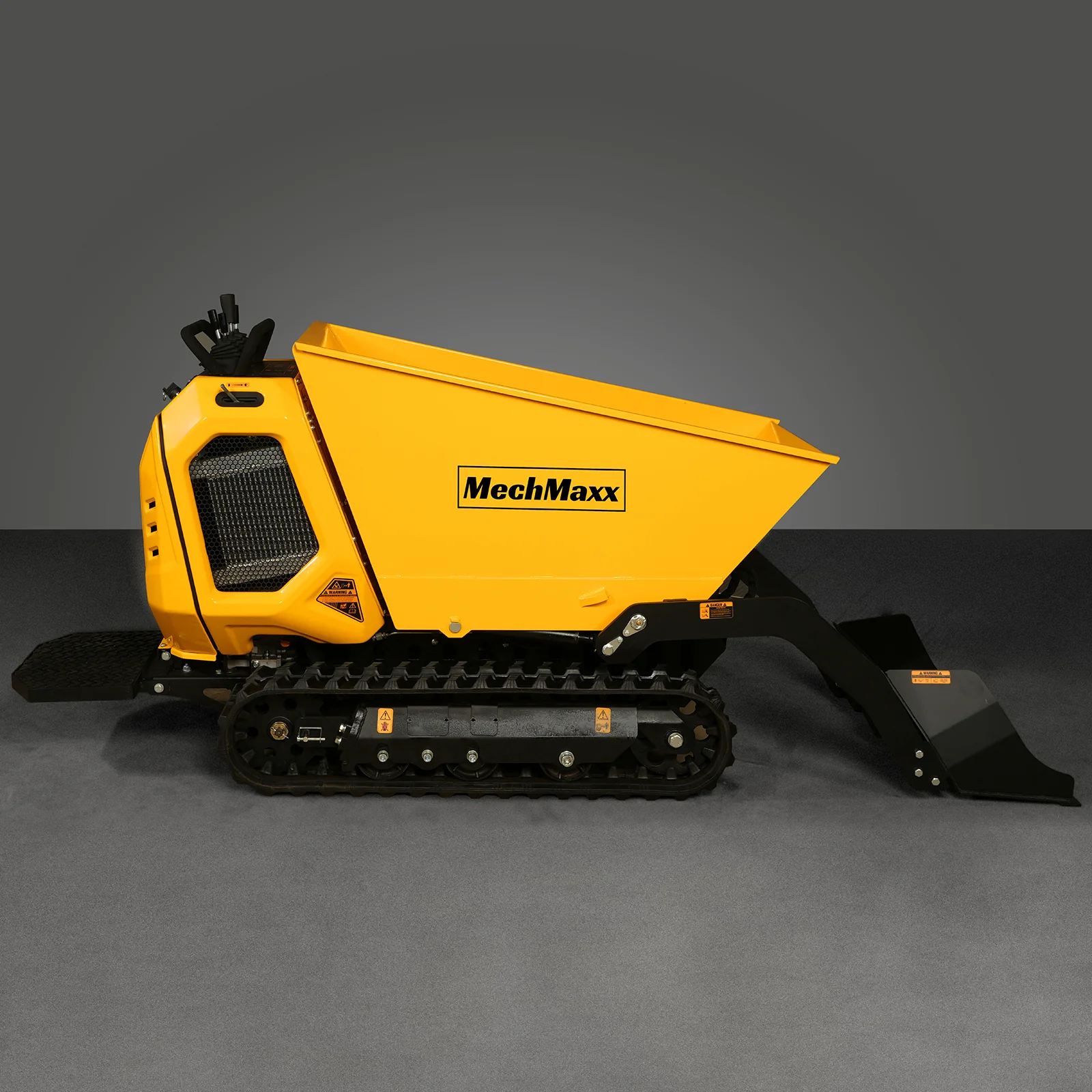

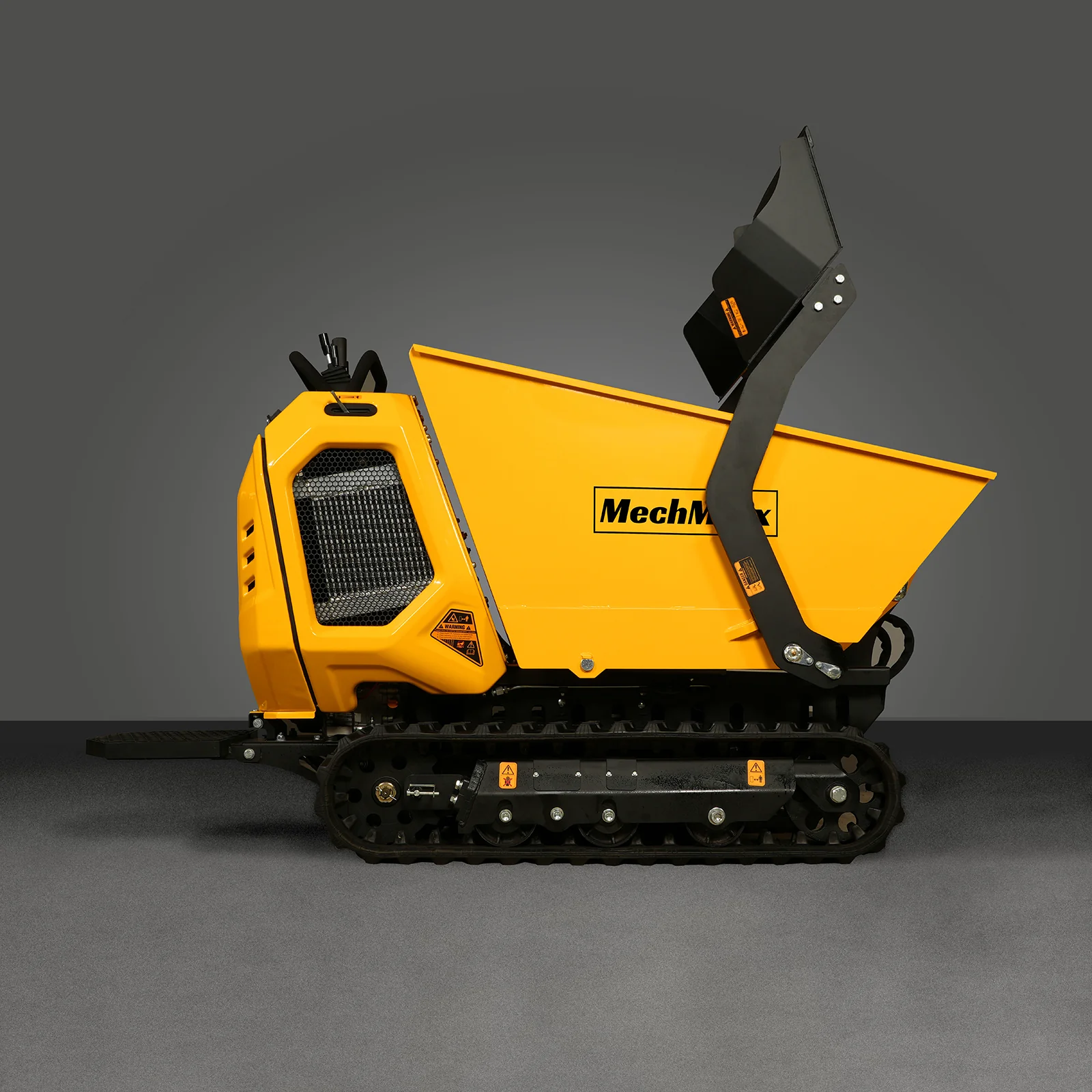

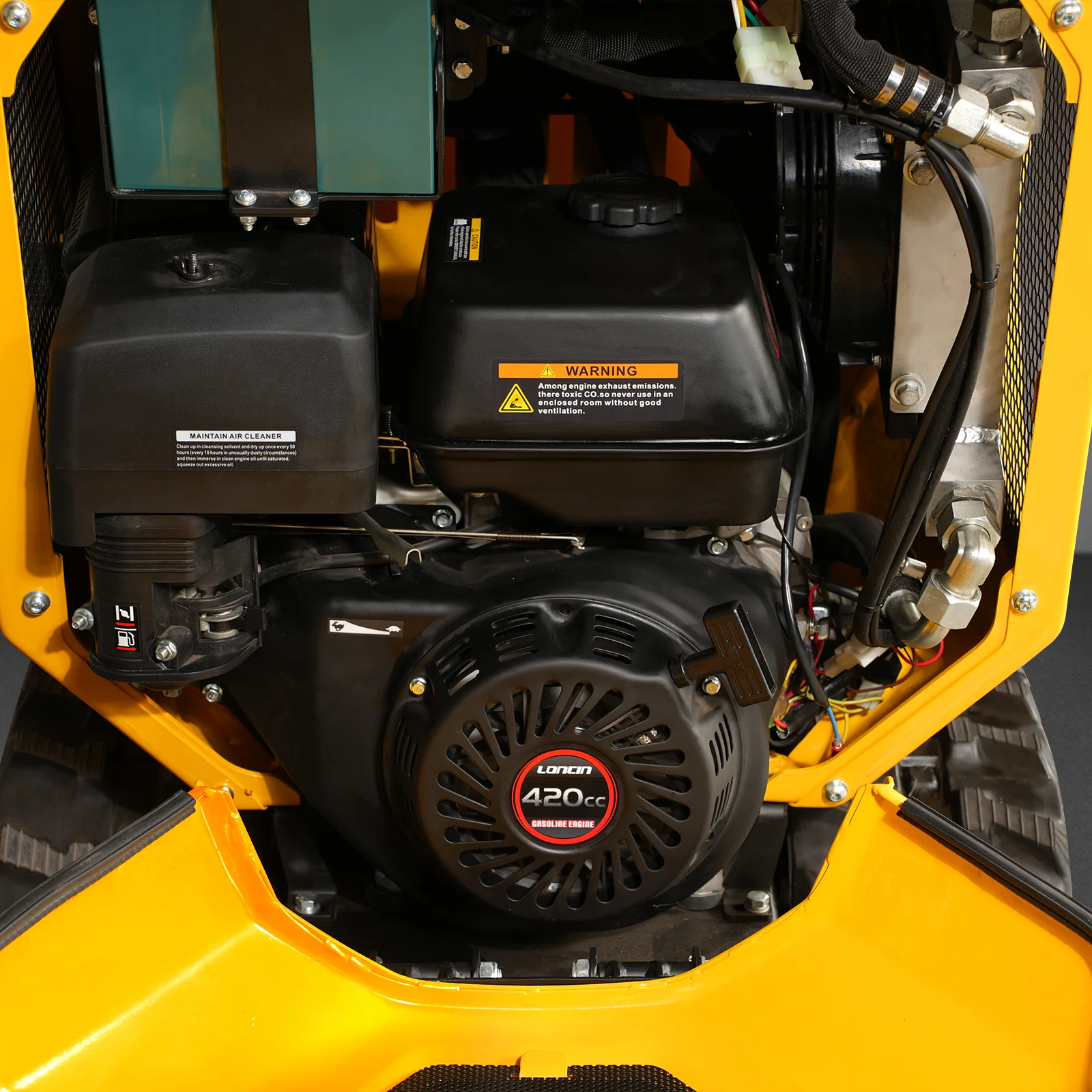

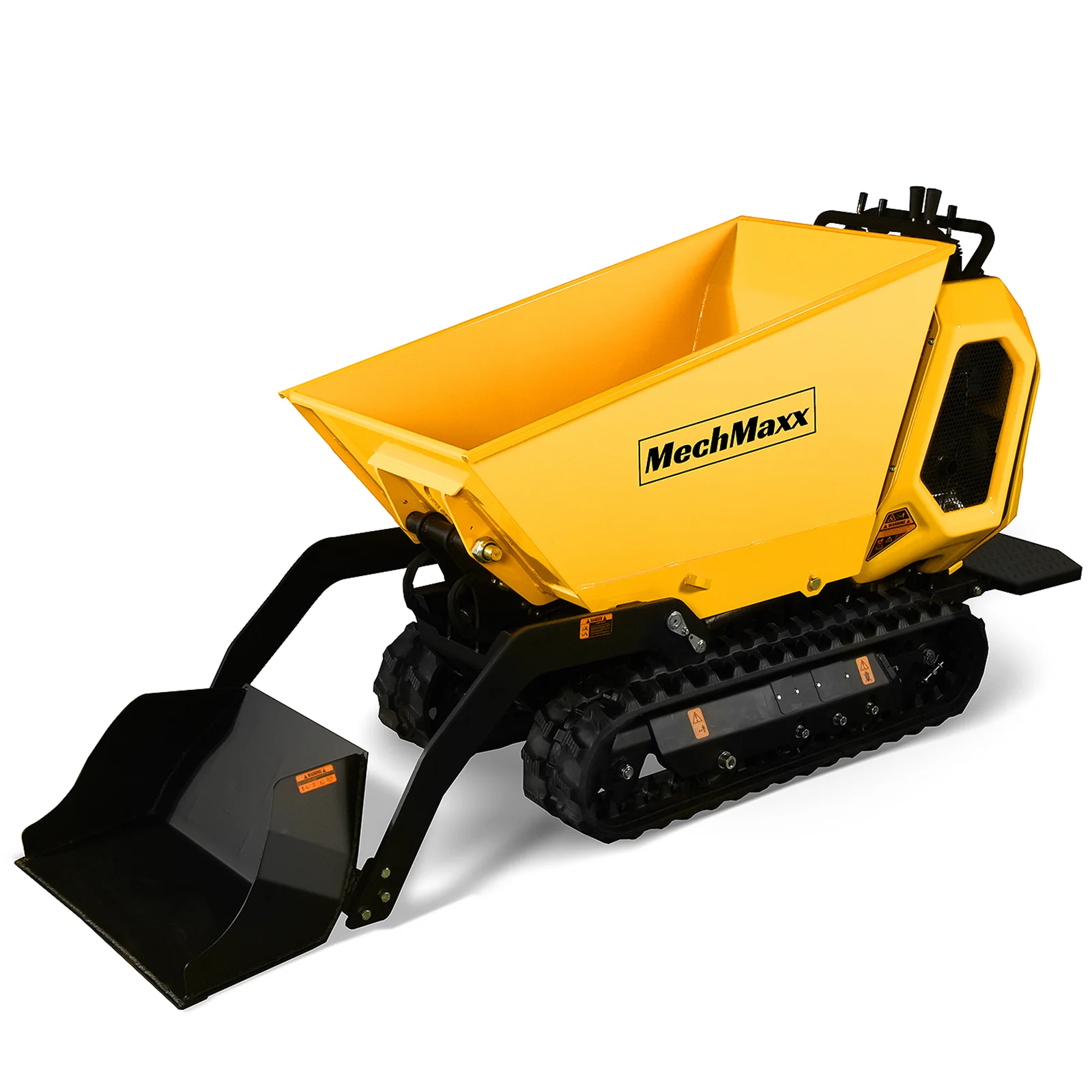

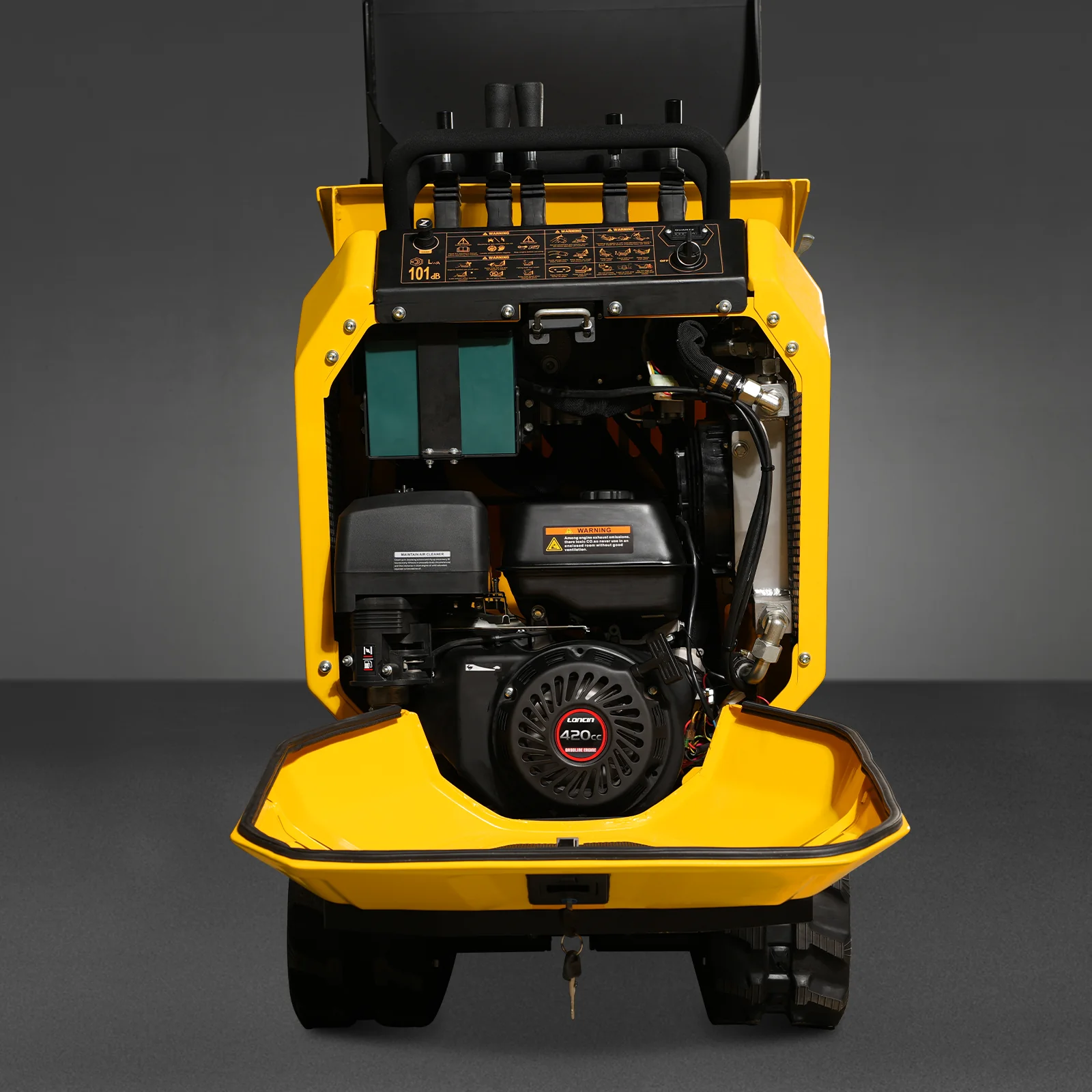

Engine	LONCIN G420F(D)	Working Type	Self Loading and Unloading
Engine Type	Single Cylinder, 4 Stroke, Air Cooled, OHV	Transmission	Hydrostatic Track Drive System
Engine Displacement	420 cc	Parking Brake	Yes
Horsepower	15 HP	Operator Platform	Stand-On
Engine Power	9.0 kw / 3600 RPM	Max.Travel Speed	0-2.73 mph
Start	E-Start	Min. Travel Speed	0-1.37 mph
Maximum Torque	26.5 N·m / 2500 RPM	Max. Gradeability	0.3
Loading Capacity	1800 lbs	Ground Pressure (with Operator)	2.9 Psi (20 Kpa)
Wheelbase	39 in	Hydraulic Pressure	2900 Psi (20 Mpa)
Bucket Capacity	10.6 cu.ft.	Hydraulic Tank Capacity	6 gal
Track Width	7.09 in	Fuel Tank Capacity	1.72 gal
Track Length	51.2 in	Battery Capacity	12 V 20 Ah
Track Height	11.8 in	Pump Type	Triple Gear Pump
Shovel Height	63.8 in	Overall Length (W/O Shovel)	80 in
Dump Front End Height	33.3 in	Overall Length with Shovel	108 in
Dump Back End Height	43.3 in	Overall Height	48 in
Dump Width	24.3 in	Overall Width	29 in

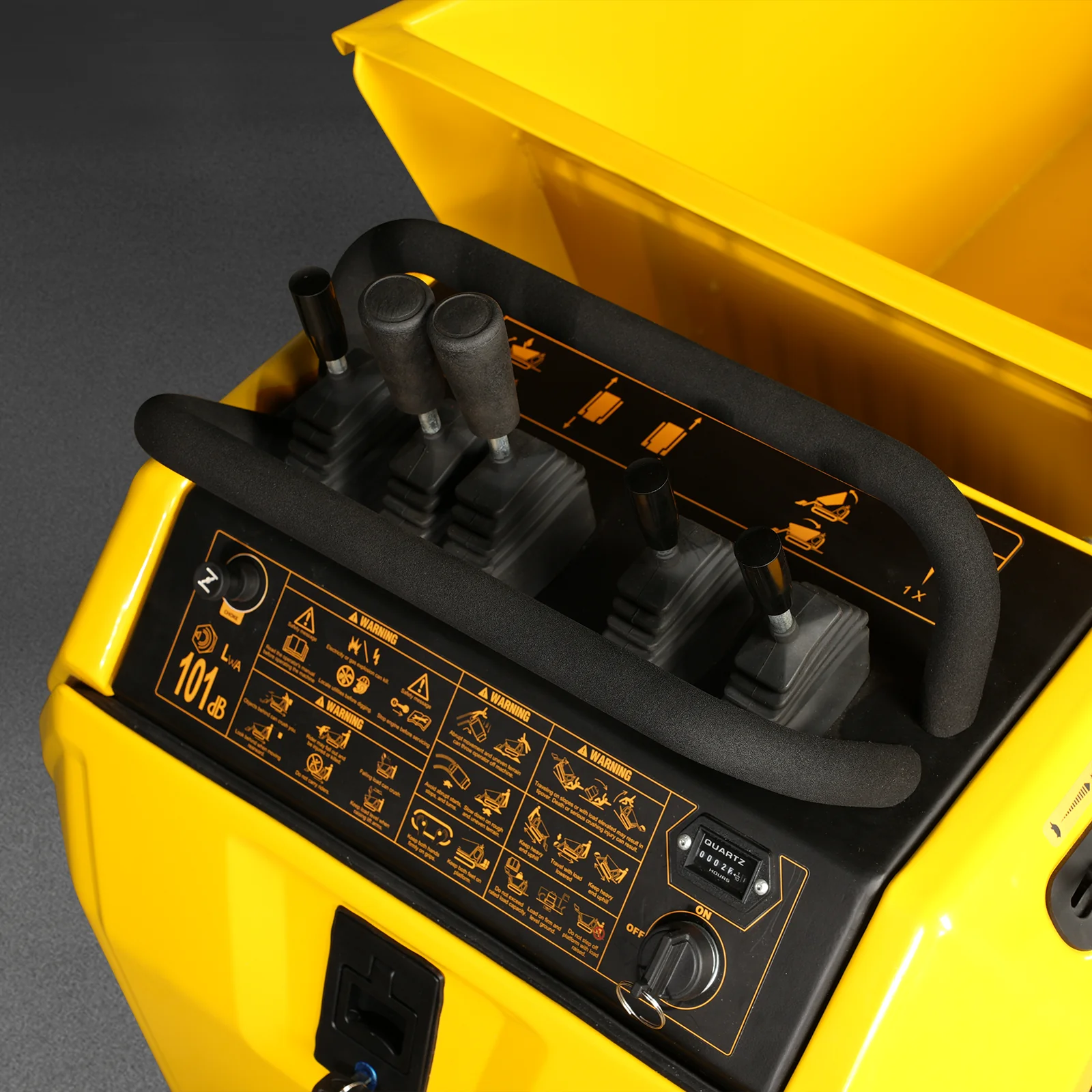

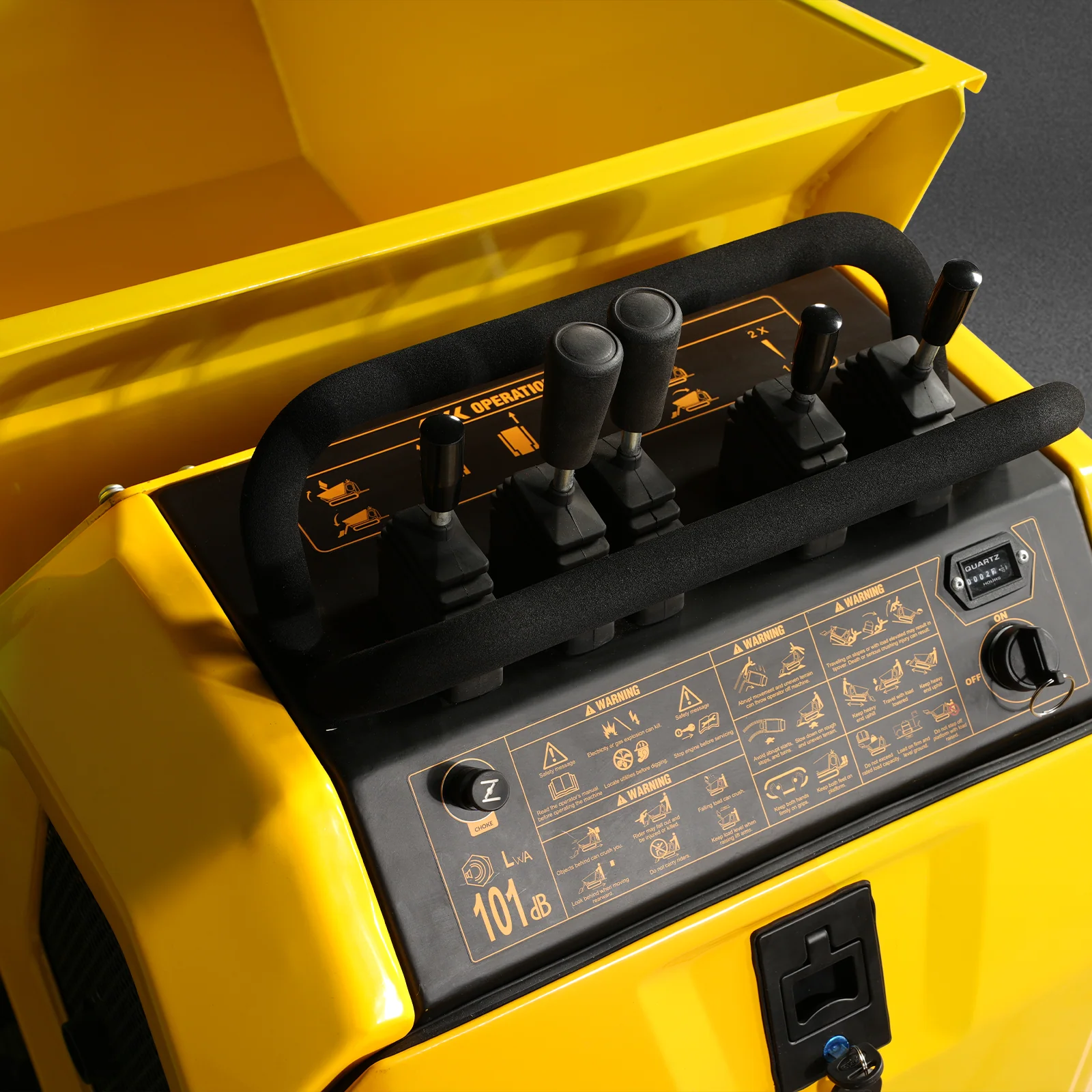

Console Height	40.2 in	Weight (N.W / G.W)	1253 / 1385 lbs
Platform Ground Clearance	10.4 in



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
