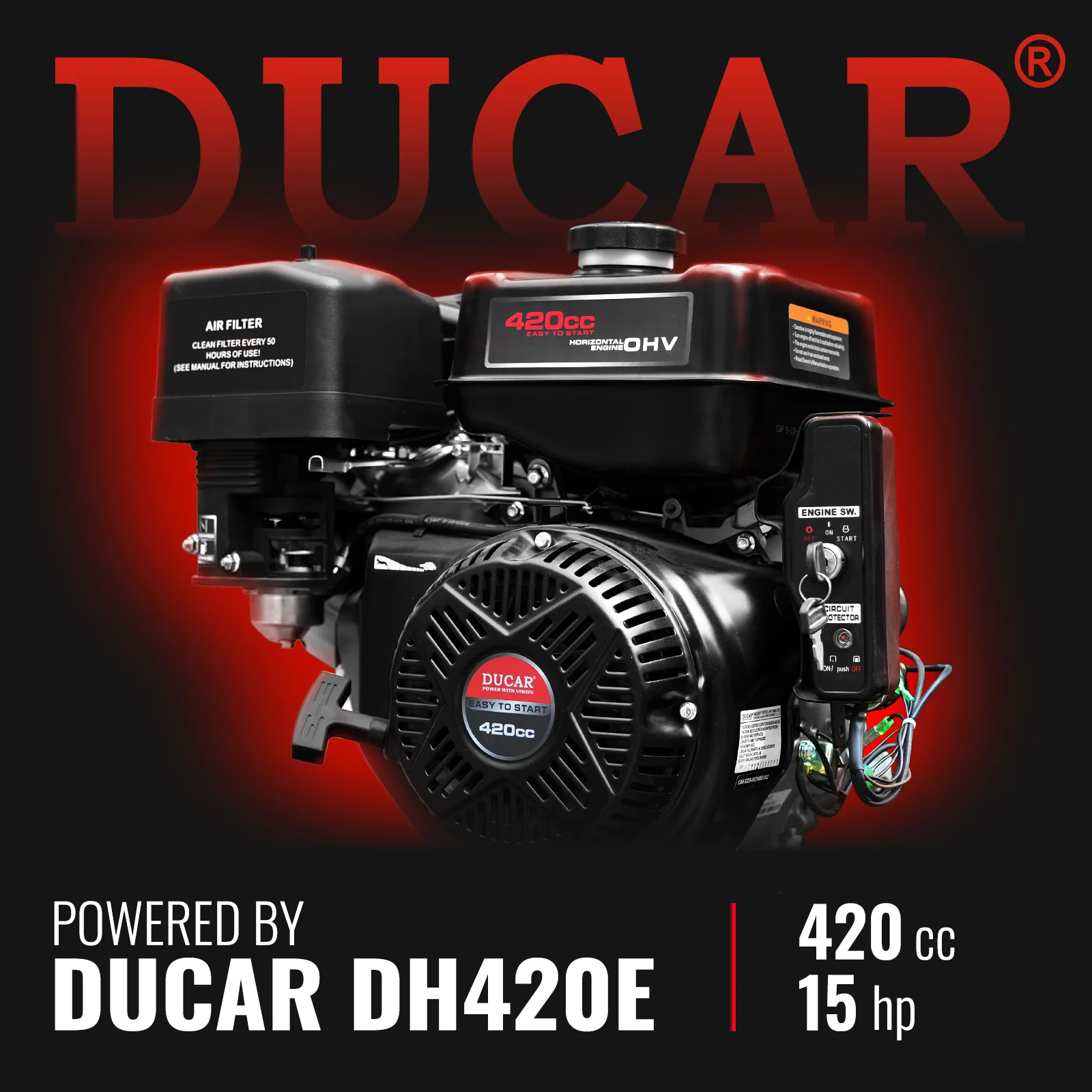

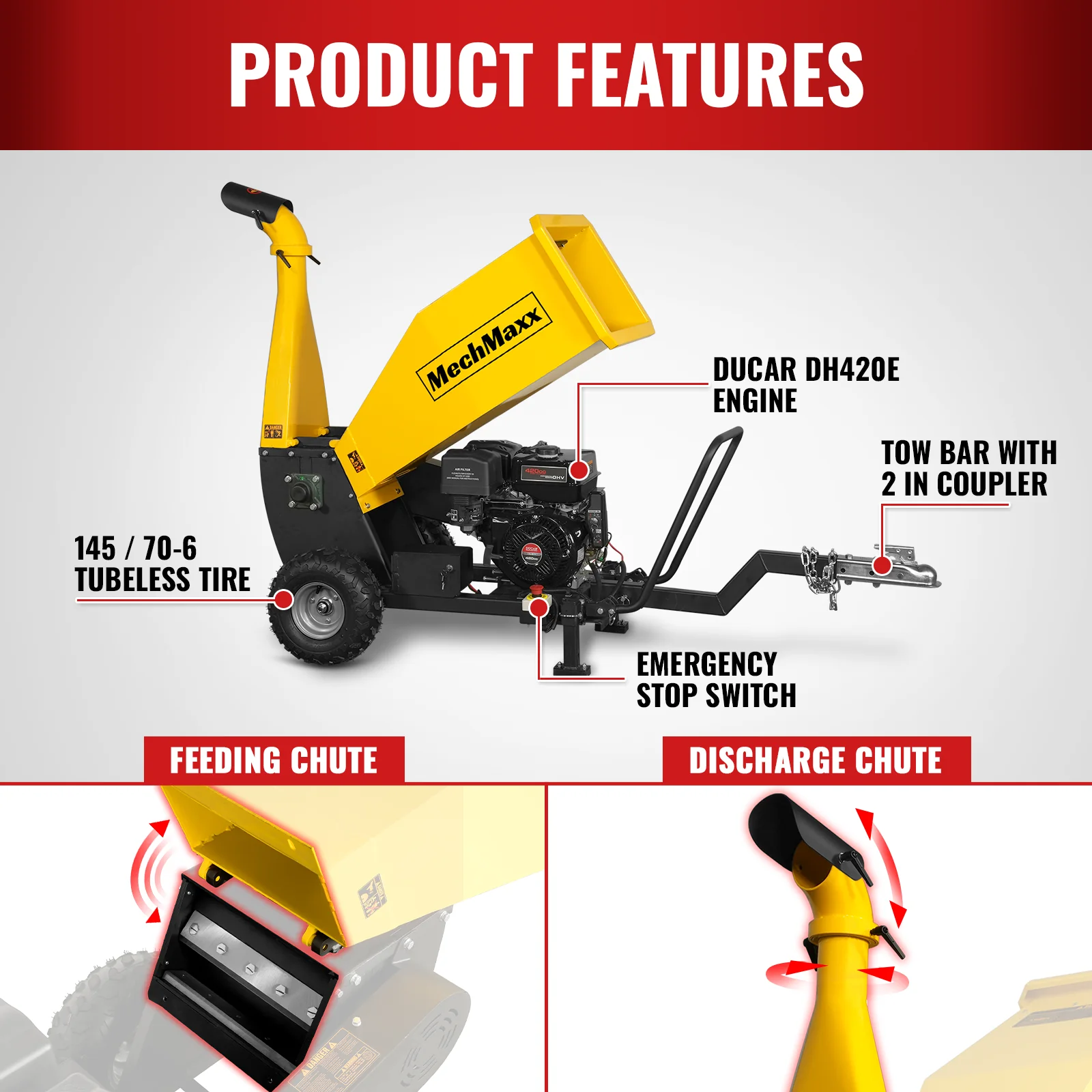

Engine	DUCAR DH420E	Knives Material	A8(5Cr5MoWS)
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Blades Type	Double Edge Blade
Displacement	420 cc; 15 HP	Discharge Chute	360 Degree Rotating

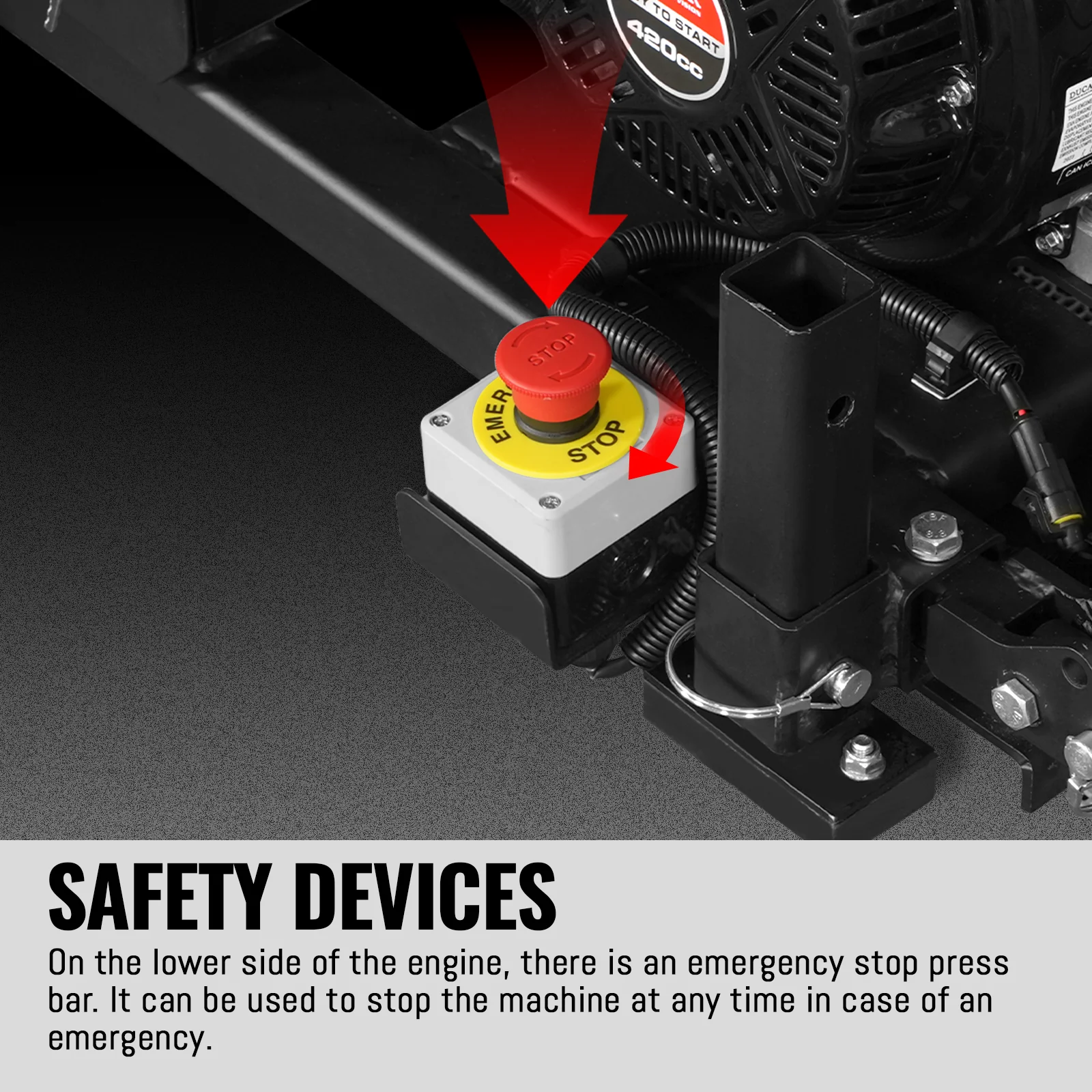

Start	E-Start	Emergency Stop	Stop Button

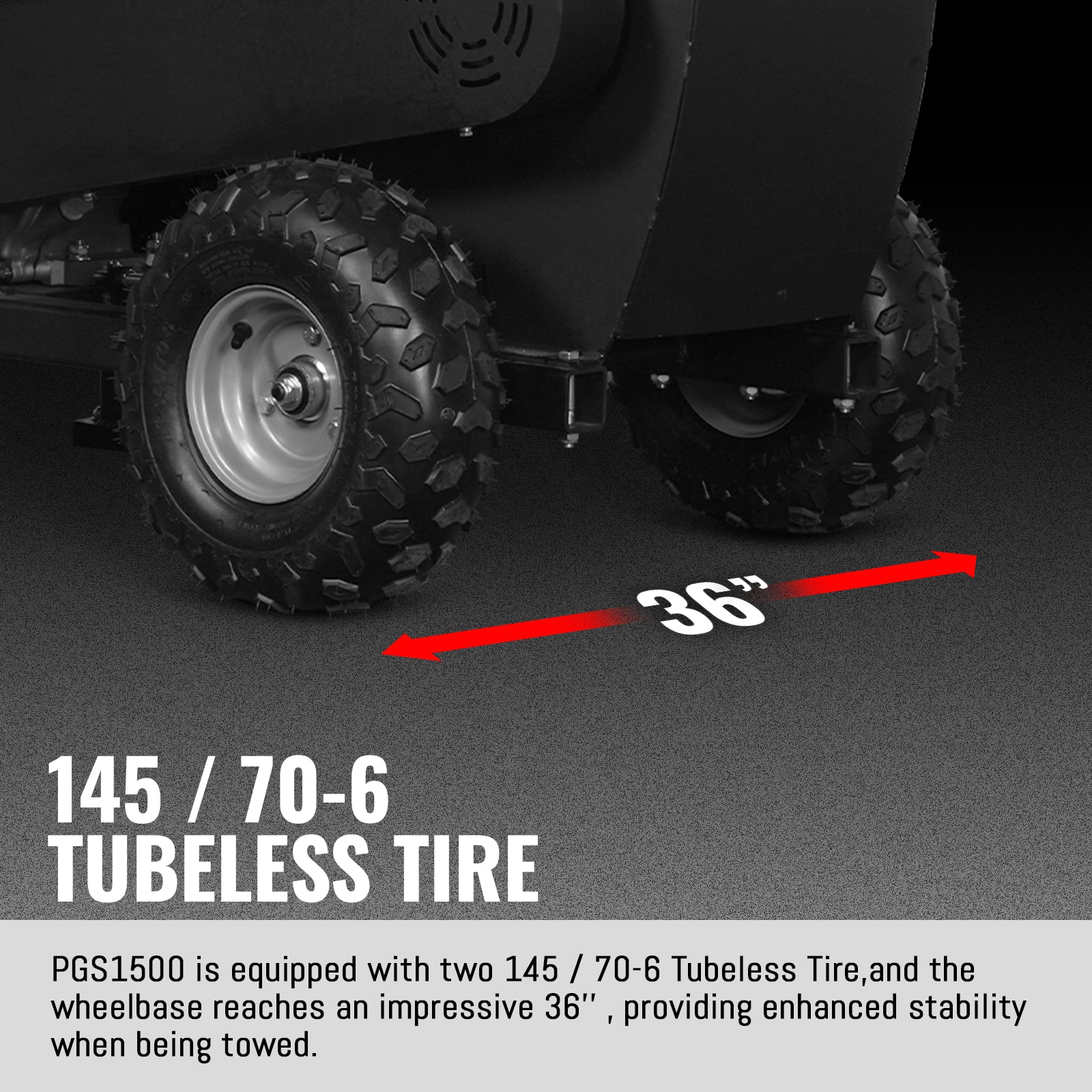

Battery	12V 20Ah Lead-Acid	Tire	145 / 70-6 Tubeless Tyre
Belt	2 x V-Belts	Wheelbase	36 in
Belts Material	Kevlar	Package Method	Plywood Case
Clutch	Centrifugal Clutch	Weight (N.W./G.W.)	486 / 549 lbs

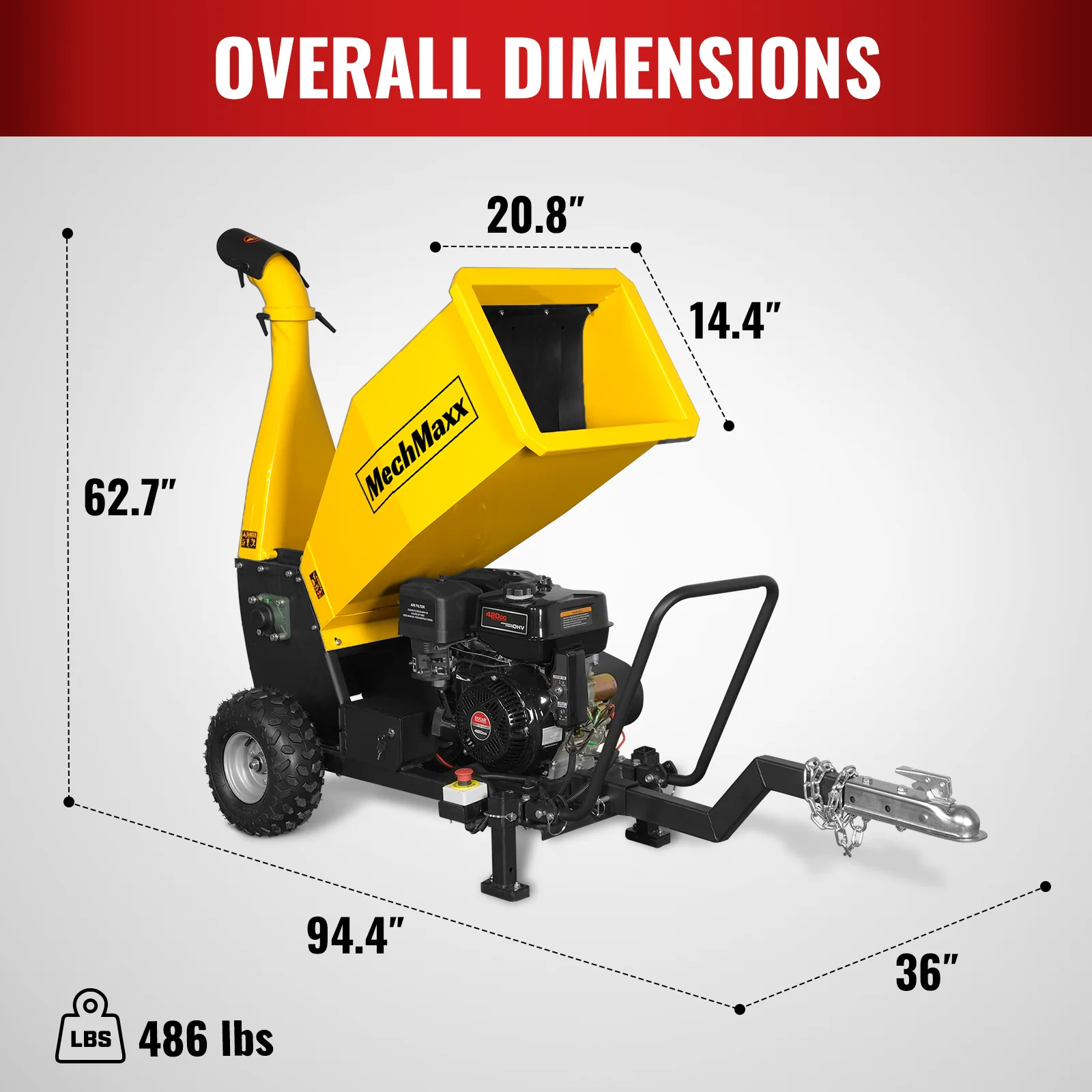

Cutting Method	Drum	Product Size (L*W*H)	95 x 36 x 63 in
Chipping Dia.	5 in	Packing Size (L*W*H)	43 x 30 x 44.5 in
Roller	13.8 in	Machine Warranty	2 Years
Reduction Ratio	20:1	Engine Warranty	2 Years

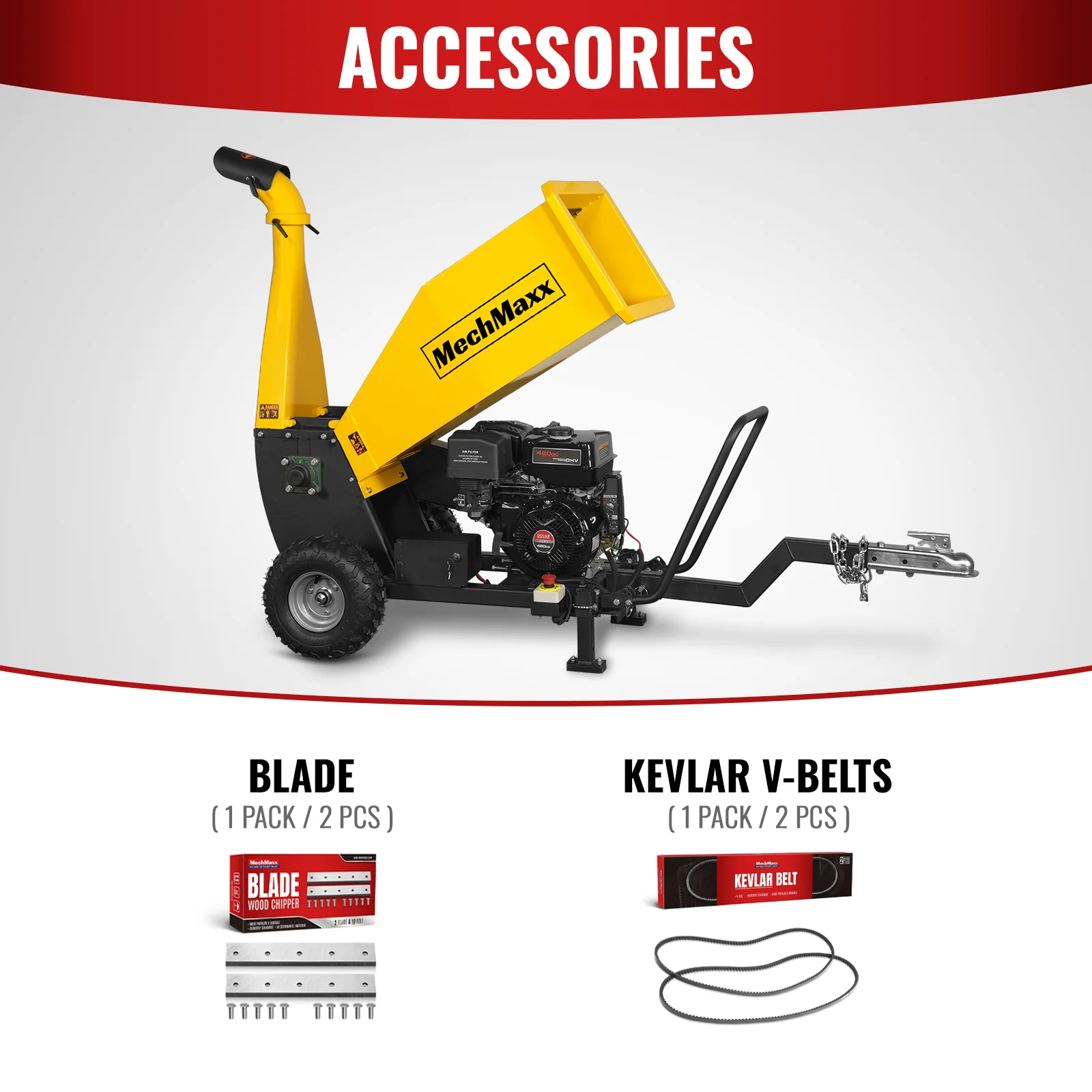

Knives Nos.	2 x Blade; 1 x Anvil



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
