Engine	DUCAR Dh420(E)	Cutting Height	15 in Above Ground
Certification(S)	EPA Phase III, CARB Phase III	Cutting Depth	10 in Below Ground
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Rotary Chassis	Yes
Displacement/ HP	420 cc; 15 HP	Max. Rotation Angle	65 Degrees
Start	E-Start	Max. Rotating Distance	31.5 in
Battery	12 V 20 Ah Lead-Acid	Tow Bar	Included
Brake	2 x Wheel Lock	Coupler	2 in Ball
Belt	2 x V-Belts	Wheelbase	32 in
Belts Material	Kevlar	Max. Speed	Off-Road Only and Max. Speed 15mph
Clutch	Centrifugal Clutch	Front Wheel	10 in

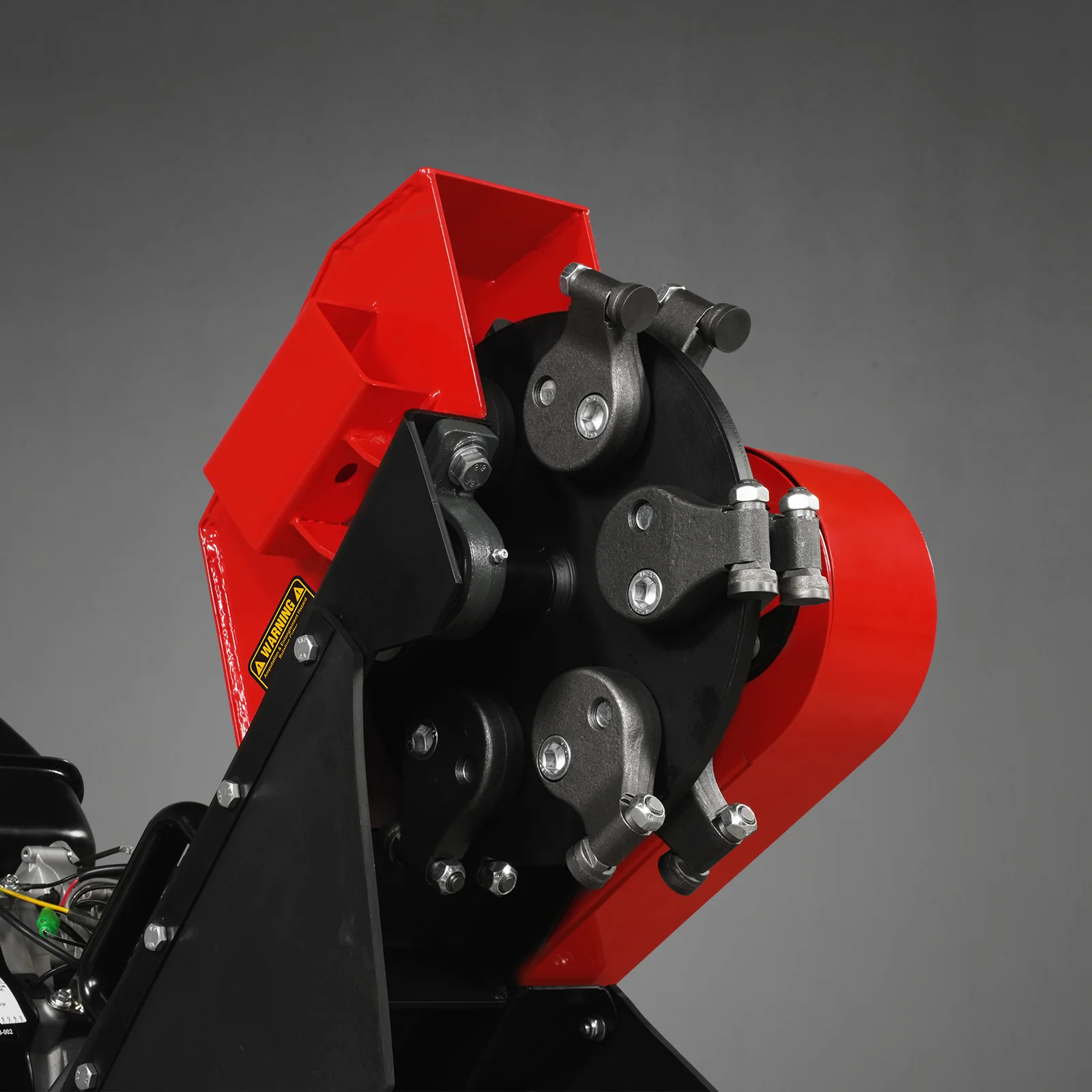

Cutting Wheel Dia.	14 in	Tire	145 / 70-6 Tubeless Tyre
Cutting Wheel Thickness	0.47 in	Assembled Weight	303 lbs
Carbide Tip Qty.	12 Pcs	Gross Weight	353 lbs
Tip Holder Material	42CrMo	Packing Size	45 x 30 x 29.5 in
Carbid Tip Material	YG11C Alloy

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
