13" x 37" Industrial Heavy Duty Bench Metal Lathe 1.5HP/1100W Metal Working Lathe High Precision 64-1500 RPM Variable Speed with Four-axis sliding system 1337G4

13" x 37" Industrial Heavy Duty Bench Metal Lathe 1.5HP/1100W Metal Working Lathe High Precision 64-1500 RPM Variable Speed with Four-axis sliding system 1337G4

Specification 1337G4
Motor 1.5HP(1100W) 220V 60HZ 1PH
Swing Over Bed 13 in/ 330mm
Swing Over Cross Slide 8.46 in/ 215mm
Swing Over gap 19.09 in/ 485mm
Distance Between Centers 37 in/ 940mm

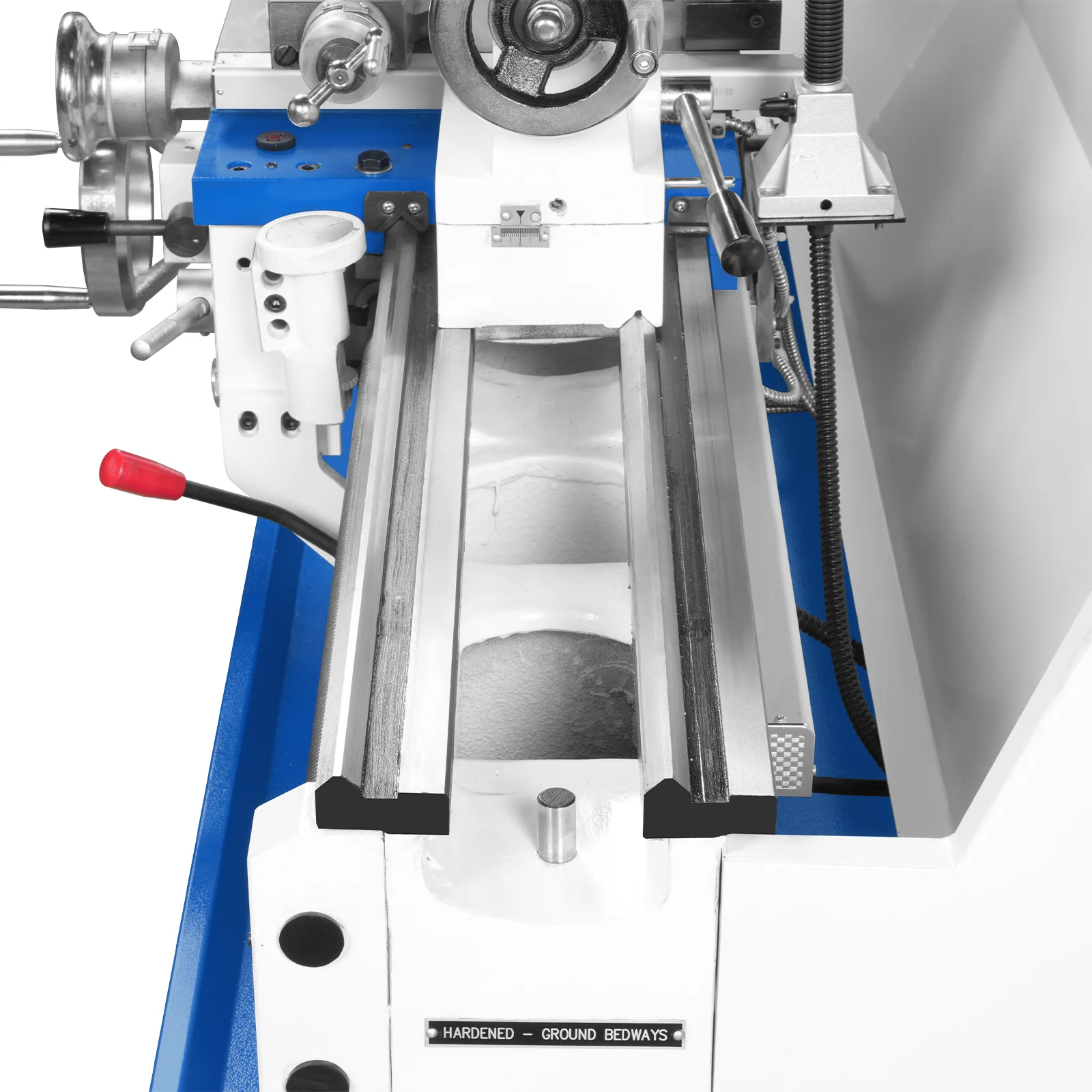

Bed Width 7.12 in/ 181mm
Spindle Bore 1.57 in/ 40mm
Spindle Mount Cam-Lock Mechanism
Spindle Type D1-4
Spindle Taper MT5

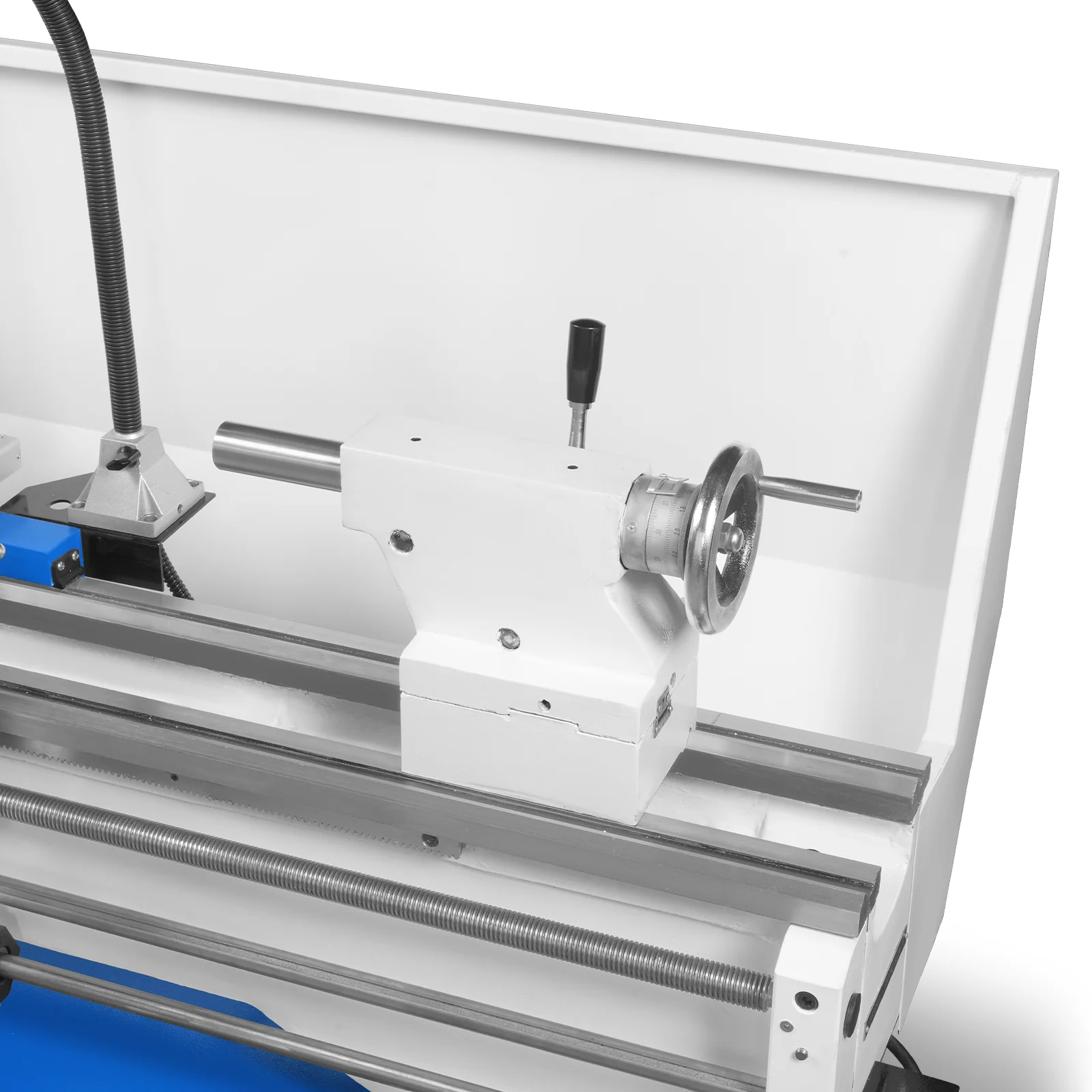

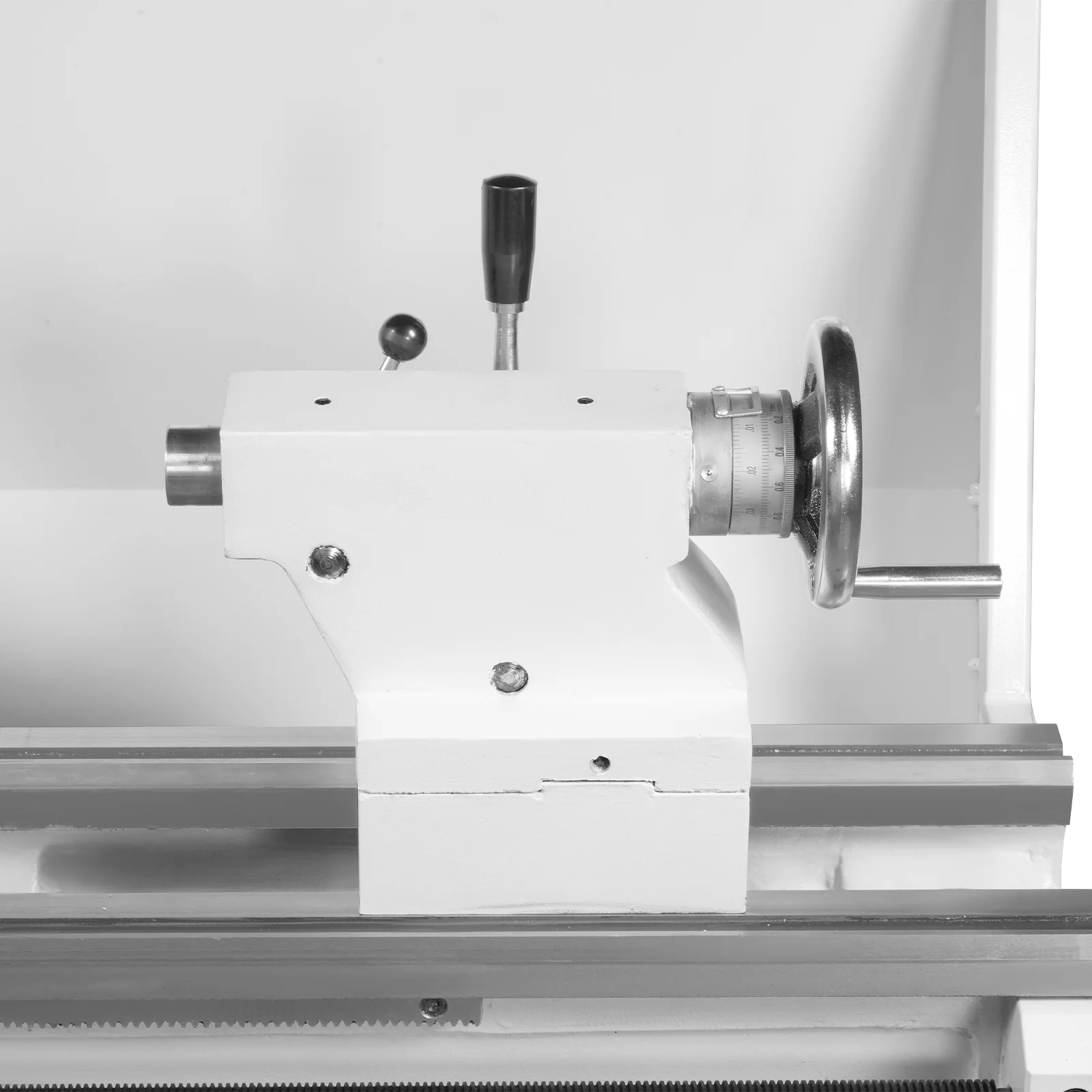

Tailstock Taper MT3
Tailstock Quill Travel 3.93 in/ 100mm
Cross Slide Travel 5.9 in/ 150mm
Compound Slide Travel 3.54 in/ 90mm
Carriage Travel  33.46 in/ 850mm

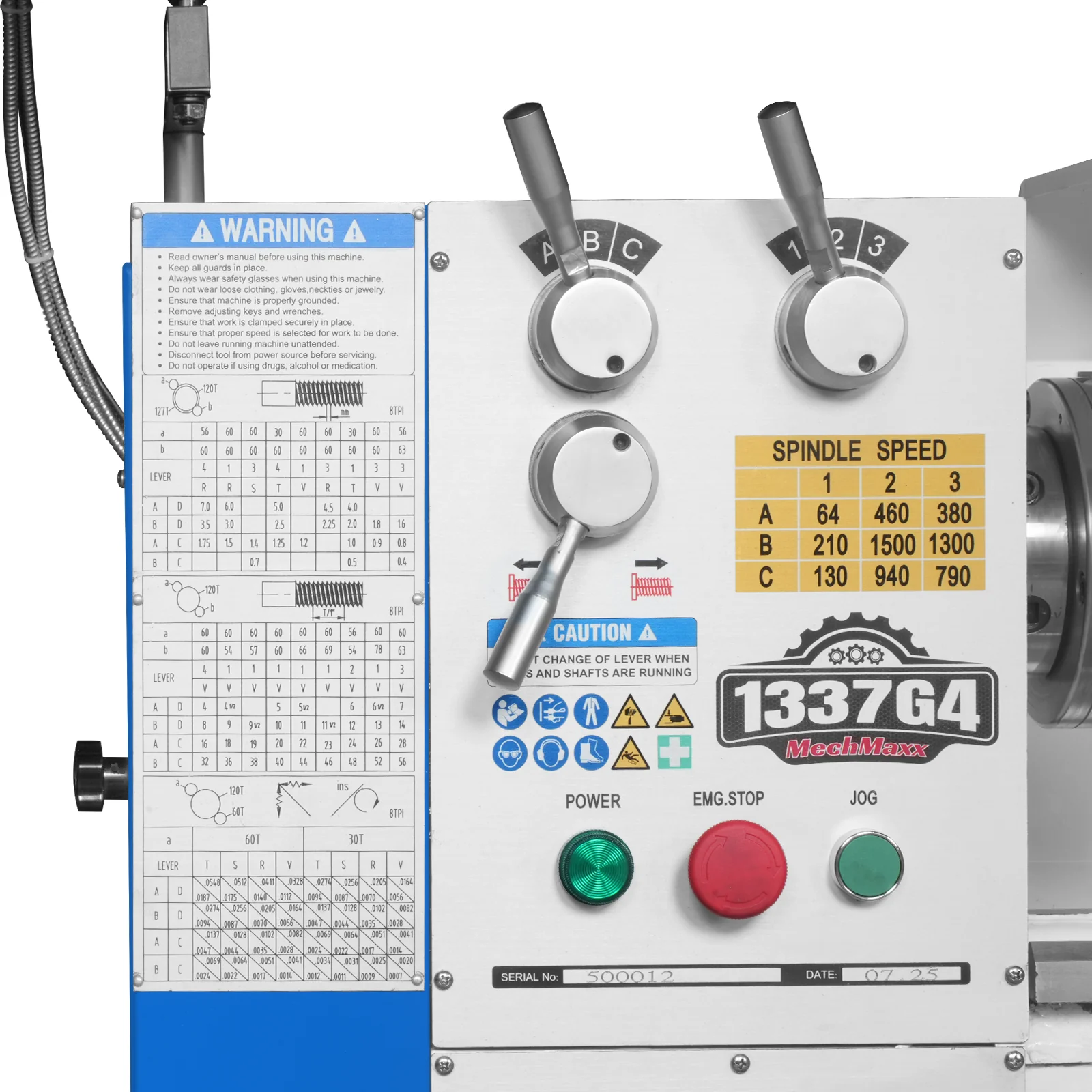

Spindle Speeds 64-1500RPM
Number of Speed Ranges 9
Longitudinal Feeds 0.002''-0.0548''
Transverse Feed Rate 0.00055''-0.015''

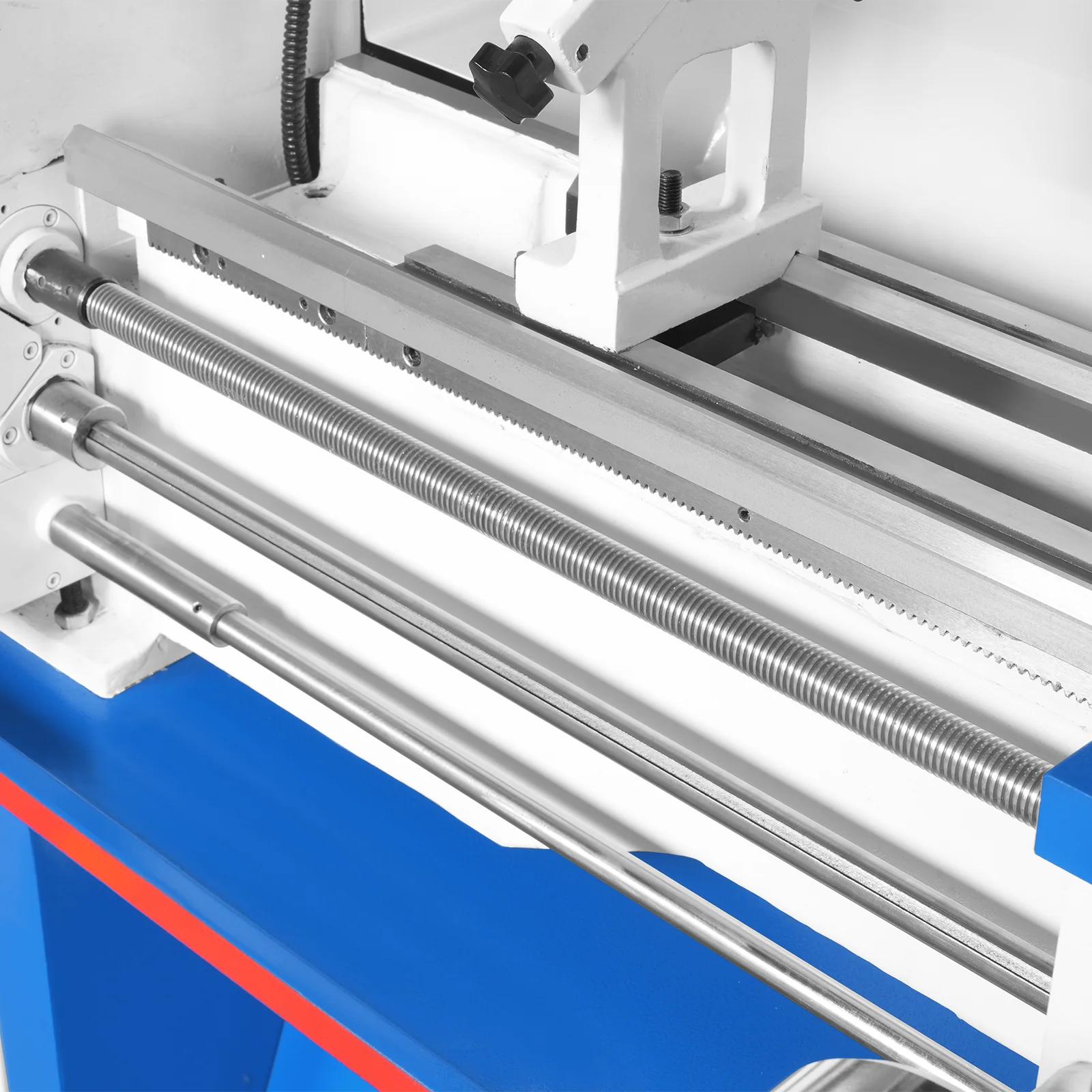

Leadscrew Size & Pitch 22mm/ 7/8''  8TPI
Threading Capacity - Inch 4-56TPI(34 kinds)
Threading Capacity - Metric 0.4-7mm(26 kinds)
Maximum Tool Bit Size 14X14mm
Coolant System NO
Approximate Shipping Dimension Weight 70 X 29.5 X 29.9 in 1320.8 lbs
$2,169.65

Original: $6,199.00

-65%
13" x 37" Industrial Heavy Duty Bench Metal Lathe 1.5HP/1100W Metal Working Lathe High Precision 64-1500 RPM Variable Speed with Four-axis sliding system 1337G4—

$6,199.00

$2,169.65
