ENGINE
Engine Type	Single cylinder; 4 stroke; air cooled; OHV
Model Name	Loncin G420F(D)
Displacement/Horsepower	420cc; 15HP
Engine Power	9.0 kW / 3600 rpm
Start	E-start
Maximum Torque	26.5 Nm/2500 rpm
DIMENSIONS & SPECIFICATIONS
Overall Length (w/o Shovel)	85.5 in
Overall Length with Shovel	112 in
Overall Height	47 in

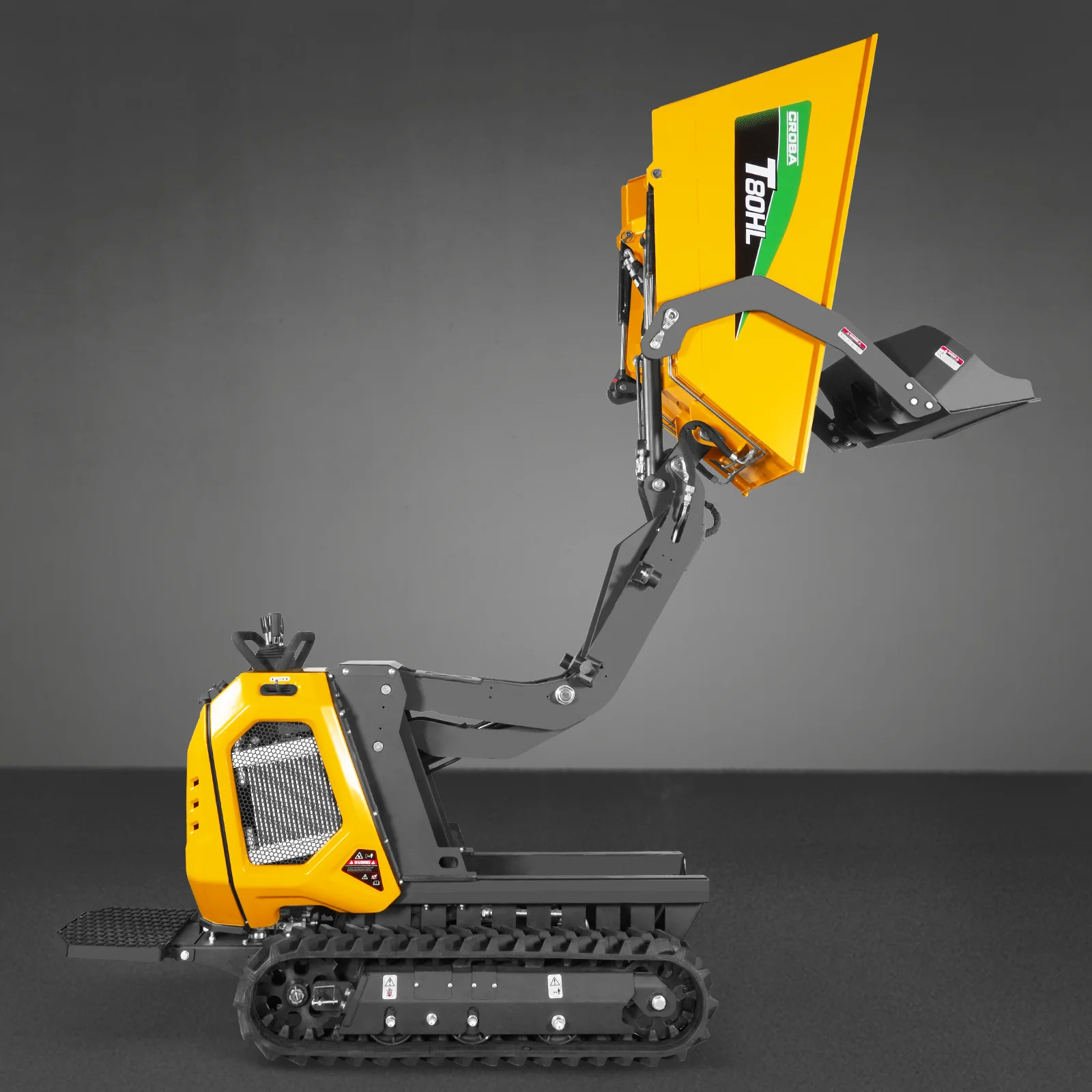

Lifting Overall Height	98.5 in
Overall Width	29 in
Max. Overall Height	120 in
Max. dumping height	65.4 in
Loading Capacity	1102 lbs
Weight	1631 lbs
Operating Weight	1786 lbs
Wheelbase	38.8 in
Bucket Capacity	9.5 cu ft
Track Width	7.09 in
Track Length	51.2 in
Track Height	11.8 in
Dump Front End Height	33.3 in
Dump Back End Height	43.3 in
Dump Width	24.3 in
Console Height	40.2 in
Platform Ground Clearance	10.4 in
OPERATION

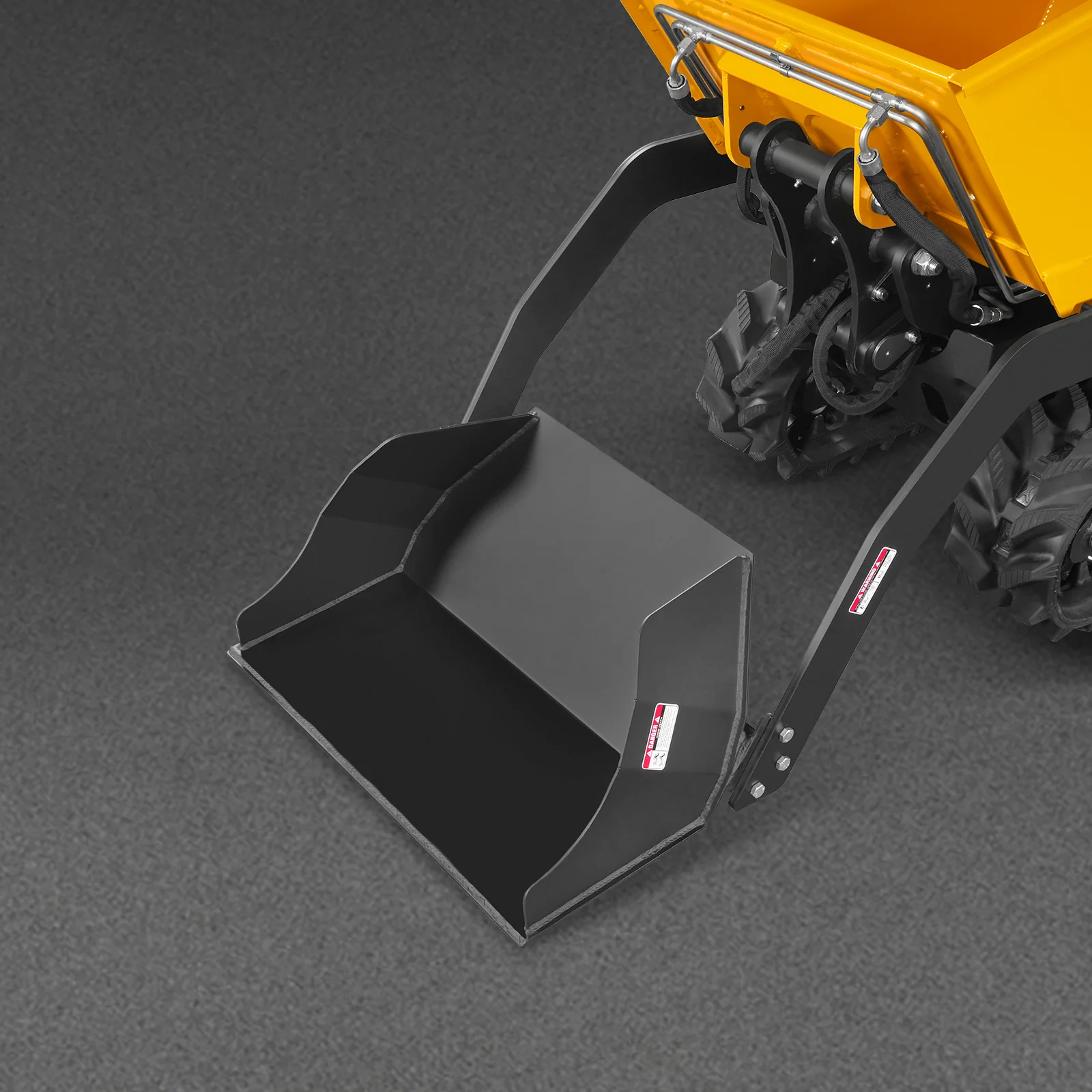

Working Type	Self Loading and Unloading
Transmission	Hydrostatic Track Drive System
Parking Brake	Yes
Operator Platform	Stand-on
PERFORMANCE
Max.Travel Speed	0-2.73 mph
Min. Travel Speed	0-1.37 mph
Max. Gradeability	30%
Ground Pressure (with Operator)	2.9 psi
Battery Capacity	12V 20Ah

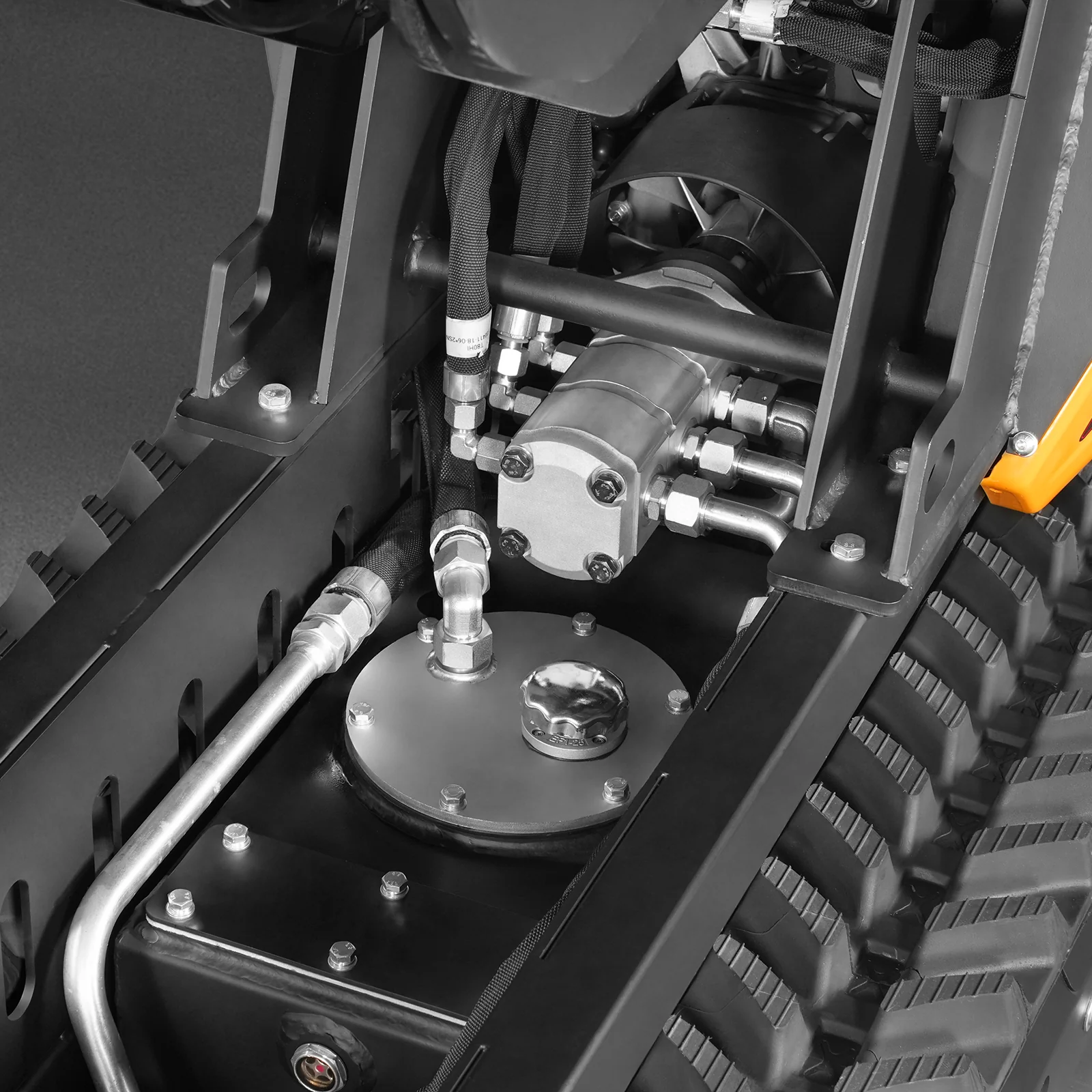

Pump Type	Triple Gear Pump
Hydraulic pressure	2900 psi
SERVICE & FILL CAPACITIES
Fuel Tank Capacity	1.72 gal
Hydraulic System	6.13 gal

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
